HOUSING AND CONTROL PARTS

For Models: KIRD802HSS1, KIRD862HSS1

(Stainless) (Stainless)

11−05 Litho in U.S.A. (jac) Part No. 8191100

30" AND 36"

RETRACTABLE DOWN DRAFT

VENT SYSTEM

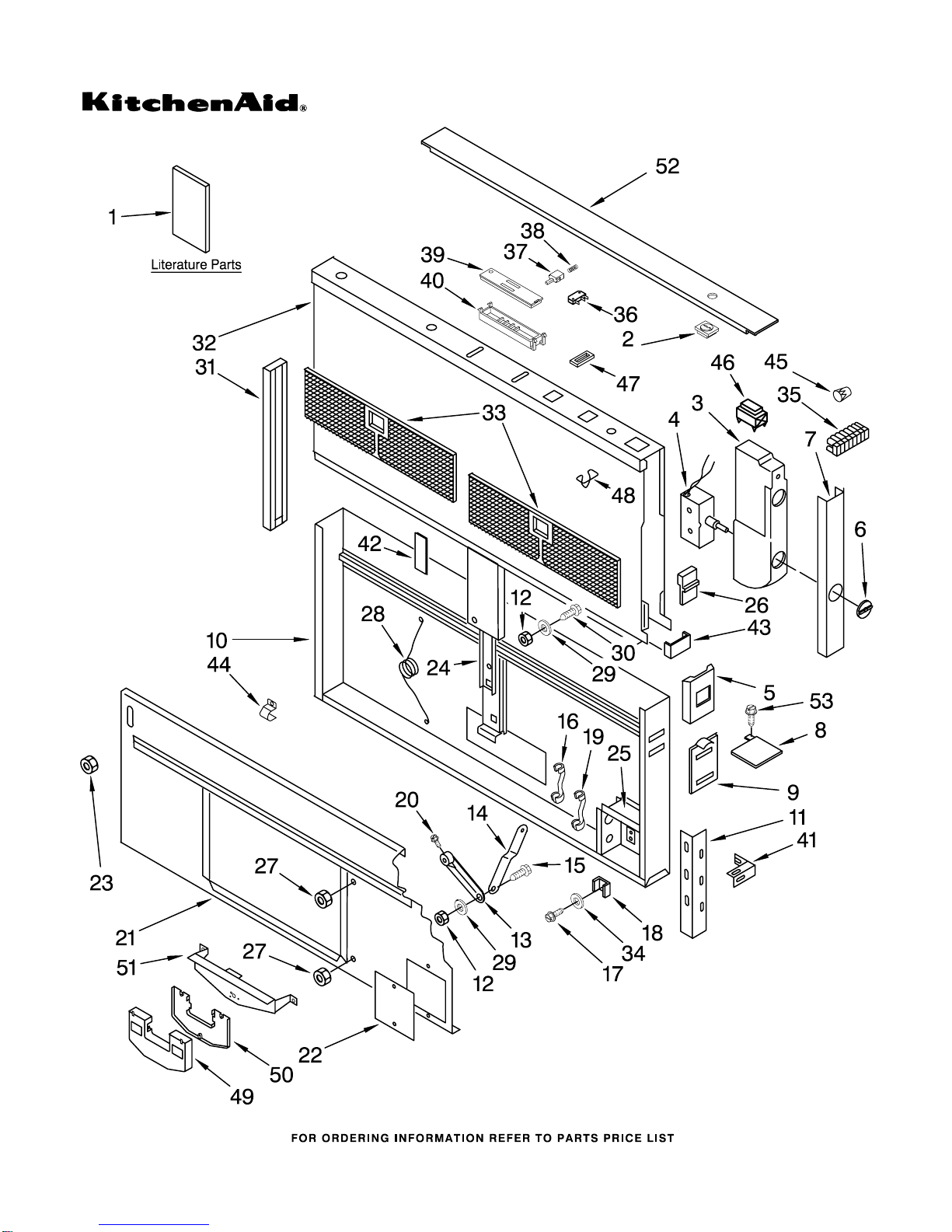

HOUSING AND CONTROL PARTS

For Models: KIRD802HSS1, KIRD862HSS1

(Stainless) (Stainless)

8191100

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9763381 Use & Care Guide/

Install Instructs

2 4360216 Button, Push

3 4360134 Housing, Switch

4 4360135 Switch, Fan

5 Bracket, Shield

4360136 Left Hand

4360387 Right Hand

6 4360137 Knob

7 4360138 Panel, Control

8 End Cap

4360381 Left Hand

4360382 Right Hand

9 4360140 Plate, Support

(Upper) (2)

10 Housing,

Non−Serviceable

11 Bracket, Support

4360141 Lower R.H.

4360170 Lower L.H.

12 4360142 Nut

13 4360143 Arm, Gear Motor

14 4360144 Arm, Cavity

15 4360145 Bolt

16 4360062 Strain Relief

17 4360006 Screw

18 4360146 Nut

19 4360147 Strain Relief

20 4360148 Screw

21 Cover, Housing

Non−Serviceable

22 4360149 Cover, Wiring Box

23 4360150 Nut

24 Guide, Housing

Non−Serviceable

25 4360152 Box, Wiring

26 4360153 Clamp

27 4360156 Nut

28 4360157 Spring

29 4360158 Washer

30 4360159 Bolt

31 4360160 Trim, R.H.

32 Cavity

Non−Serviceable

33 Filter, Grease

4360193 KIRD802

4360194 KIRD862 , KIRD822

34 4360005 Washer

35 4360165 Terminal

36 4360361 Micro Switch (2)

37 4360166 Actuator,

Micro Switch (2)

38 4360167 Spring (2)

39 4360168 Cover, Switch (2)

40 4360169 Housing, Switch (2)

41 Support

4360171 L.H.

4360172 R.H.

42 4360173 Guide,

Housing (Back)

43 4360174 Spacer, Cavity (2)

44 4360044 Clamp, Cable

45 4360211 Connection, Wire

46 4360210 Switch

47 4360385 Connector (3)

48 4360272 Spring (3)

49 4360229 Box, Microswitch

50 4360230 Cover, Box

51 4360155 Bracket, Motor

52 Cover, Top

4360374 30"

4360375 36"

53 4360386 Screw

Following Parts Not Illustrated

4360198 Installation Kit

814380 Kit, Motor Mount

8171304 Trim Kit−White

(KIRD802)

8171305 Trim Kit−Black

(KIRD802)

8171306 Trim Kit−Biscuit

(KIRD802)

8171310 Trim Kit−White

(KIRD862)

8171311 Trim Kit−Black

(KIRD862)

8171312 Trim Kit−Biscuit

(KIRD862)

8171316 Trim Kit−White

(KIRD822)

8171317 Trim Kit−Black

(KIRD822)

8171318 Trim Kit−Biscuit

(KIRD822)

EXTERIOR VENTILATION PARTS

For Models: KIRD802HSS1, KIRD862HSS1

(Stainless) (Stainless)

8191100

Illus. Part

No. No. DESCRIPTION

1 Power Unit

Complete

Model KPED890T

2 Roof Mounting Kit

(Not Serviced)

5 4173414 Motor (Includes

Capacitor & Cap)

6 4173415 Blade, Fan

7 4173417 Cover, Motor

(Wall Mount)

8 Impeller

(Not Serviced)

9 Plate, Adaptor

(Not Serviced)

10 Housing,

(Non−Serviceable)

11 Housing, Ring

(Non−Serviceable)

13 9" Elbow

(Not Included,

Purchase Locally)

VENTILATION PARTS

For Models: KIRD802HSS1, KIRD862HSS1

(Stainless) (Stainless)

8191100

Illus. Part

No. No. DESCRIPTION

1 4360191 Box, Blower

2 4360154 Motor, Gear

3 4360362 Micro Switch (3)

4 4360155 Bracket,

Motor Gear

5 4360059 Bracket, Capacitor

6 4360192 Cover, Blower Box
