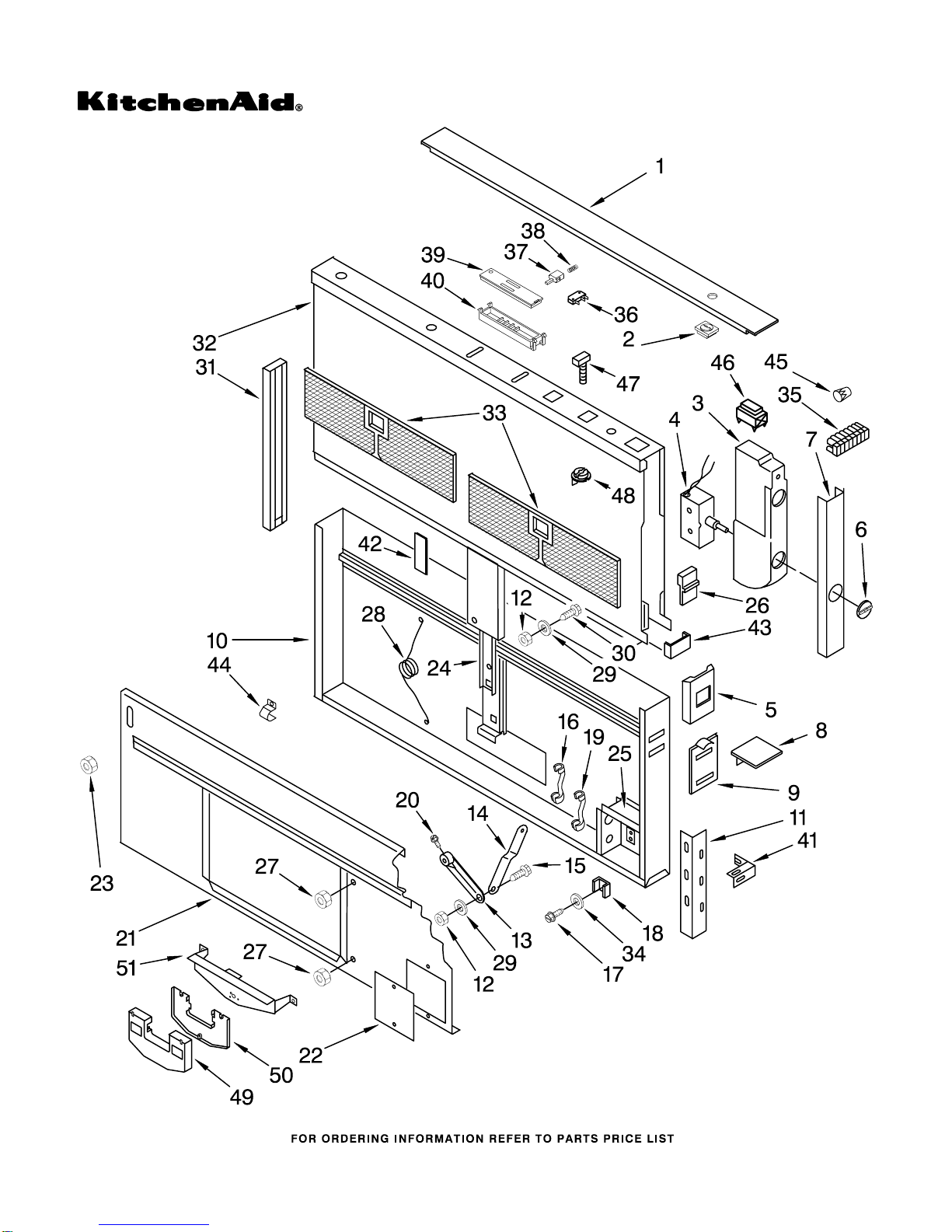

HOUSING AND CONTROL PARTS

For Models: KIRD802XSS3, KIRD862XSS3

30" AND 36"

RETRACTABLE DOWN DRAFT

VENT SYSTEM

10−96 Litho In U.S.A. (jcn) Part No. 4174507 Rev. A

HOUSING AND CONTROL PARTS

VENTILATION PARTS

For Models: KIRD802XSS3, KIRD862XSS3

4174507

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Cover,

Controls (Top)

4360130

KIRD802

4360131

KIRD862

4360209

Button, Push

4360134

Housing, Switch

4360135

Switch, Fan

4360136

4360137

Knob

4360138

Panel, Control

4360139

End Cap (2)

4360140

Plate, Support

(Upper) (2)

Housing,

Non−Serviceable

Bracket, Support

4360141

Lower R.H.

4360170

Lower L.H.

4360142

Nut

4360143

Arm, Gear Motor

4360144

Arm, Cavity

4360145

Bolt

4360062

Strain Relief

4360006

Screw

4360146

Nut

4360147

Strain Relief

4360148

Screw

Cover, Housing

Non−Serviceable

4360149

Cover, Wiring Box

4360150

Nut

Guide, Housing

Non−Serviceable

4360152

Box, Wiring

4360153

Clamp

4360156

Nut

4360157

Spring

4360158

Washer

4360159

Bolt

4360160

Trim, R.H.

Cavity

Non−Serviceable

Filter, Grease

4360193

KIRD802

4360194

KIRD862

4360005

Washer

4360165

Terminal

4360196

Micro Switch (2)

4360166

Actuator,

Micro Switch (2)

4360167

Spring (2)

4360168

Cover, Switch (2)

4360169

Housing, Switch (2)

Support

4360171

L.H.

4360172

R.H.

4360173

Guide,

Housing (Back)

4360174

Spacer, Cavity (2)

4360044

Clamp, Cable

4360211

Connection, Wire

4360210

Switch

4360163

Bolt

4360164

Nut

4360229

Box, Microswitch

4360230

Cover, Box

4360155

Bracket, Motor

Following Parts Not Illustrated

Illus. Part

No. No. DESCRIPTION

End Cap (2)

4360198 Installation Kit

814380 Kit, Motor Mount

LITERATURE PARTS

LIT4360199

Installation

Instructions/

Use And Care Guide

1 4360192 Box, Blower

2 4360154 Motor, Gear

3 4360035 Micro Switch (3)

4 4360155 Bracket,

Motor Gear

5 4360059 Bracket, Capacitor

6 4360191 Cover, Blower Box

EXTERIOR VENTILATION PARTS

For Models: KIRD802XSS3, KIRD862XSS3

4174507

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Power Unit

Complete

Model KPED890T

4173296

Roof Mounting Kit

(Dome cover

And Flashing)

4173414

Motor (Includes

Capacitor & Cap)

4173415

Blade, Fan

4173417

Cover, Motor

(Wall Mount)

4173416

Impeller

4173456

Plate, Adaptor

(With Damper)

Housing,

(Non−Serviceable)

Housing, Ring

(Non−Serviceable)

9" Elbow

(Not Included,

Purchase Locally)

OPTIONAL PARTS NOT INCLUDED

4360205

Trim Kit−White

(KIRD802)

4360207

Trim Kit−Black

(KIRD802)

4360206

Trim Kit−White

(KIRD862)

4360208

Trim Kit−Black

(KIRD862)
