ETS quick start manual

Placement

The card reader (ETS-UP) device must be in an easy to reach location as the

driver needs to use it to unlock the truck before use.

For the best shock detection, we advise to place the IO expansion (ETS-DN)

firmly connected to the truck frame and perpendicular with the ground and the

moving direction.

Avoid installing the ETS in environmentally hard location such as close to

strong heat sources or exposed to the elements (although the ETS is IP65).

Also be aware not to place the card reader (ETS-UP) close to metallic objects

which can prevent the wireless transmissions.

Anti-collision Receiver

The antenna of anticollision must be installed

in the center of forklift.This device measure the

distance between his receiver and the operator

tag (or another receiver)so it’s most important

which is mounted in the center of the forklift.

The ideal position is on the top of the front

glass. If that position it’s no good for the visual

of operator it’s possible to switch behind

rearview mirror.

The safety and visibility of the driver must never be influenced

Do not place the antenna too near a metal parts because it could adversely

affect the system.

When the antenna is installed it is

necessary to remove the balancing

resistance of the canbus from the

wiring of the ETS system.

Additional Sensor

To connect additional sensors how reversing radar, a radar of

road or indication radar, remove the connector 4 poles coming

with display and placed the wiring provided.

Is required to connect the cabling upon taking 4 poles coming up

from display ETS, otherwise may occur malfunction or failure at the

system.

Connect the red wire to a 12/24V power source with the same

negative reference used to power the ETS. Do not connect the

12/24V power supply if it is isolated from the negative reference

used to power the ETS. Otherwise, malfunctions or failures may

occur.

If you have installed the reverse sensor or lane sensor,

use the grey connector.

The ETS can be equipped with one or more additional

sensors connected to the same harness with chain

connections.

For this, you must always place the closing connector

(connettore maschio con due fili neri a ponticello) on

the shortest female socket available.

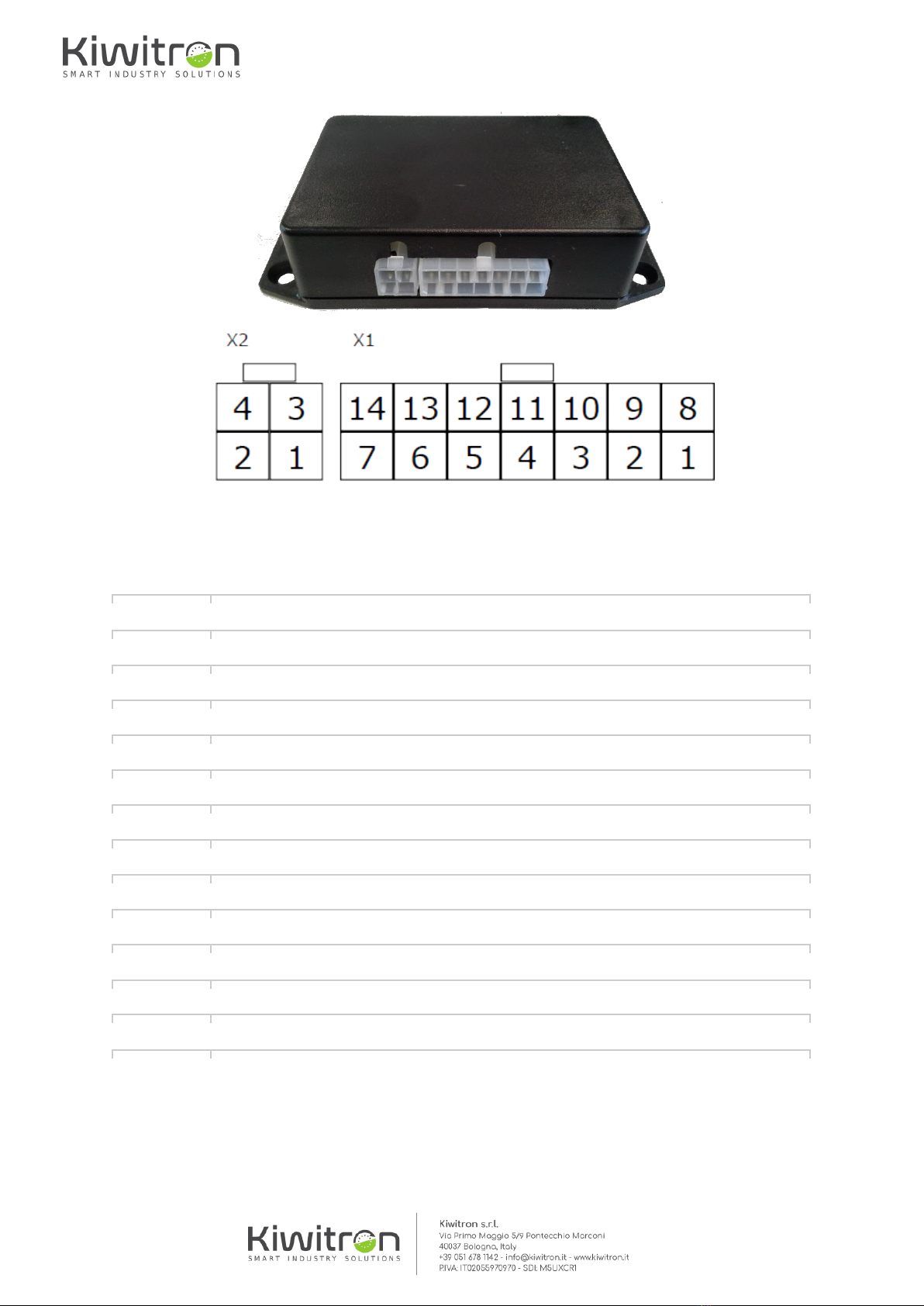

Pinout

X1 connector pinout

Position

Function

Power input positive (10 - 120 Volts DC)

Power input negative

Digital input IP1 (positive activation threshold >1,7 Volts - 150 Volts max)

Digital input IP2 (positive activation threshold >1,7 Volts - 150 Volts max)

Analog input (0 - 10 Volts)

Digital input IN1 (negative activation threshold < 0,5 Volts - 150 Volts max)

Digital input IN2 (negative activation threshold < 0,5 Volts - 150 Volts max)

Relais 1 - common contact

Relais 1 - normally open contact (6Amp max)

Relais 2 - common contact

Relais 2 - normally open contact (6Amp max)

Relais 3 - common contact

Relais 3 - normally open contact (6Amp max)

Analog input AIN1 (0 - 5Volts) (used for current sensor)

X2 connector pinout

Position

Function

Power output positive (5 Volts DC)

Power output negative

CAN +

CAN -

Canbus line on X2 connector has line closure resistor (120 ohm)

Connection diagram example

Software setup

Only few steps are needed to configure the device. Download and install the

PC software from www.kiwitron.it/ets

Connect the USB cable and start the ETS software.

Shock sensor calibration

Go to “Settings → Advanced → Accelerometer” and configure the mounting position

according to the drawings.

Click

“Save”

and then

“0 Accelerometer”.

Battery percent sensor calibration

Go to “Settings → System → Battery” and change the

“Elements”

field according to the

number of elements present in the truck battery (e.g.: a 48 Volts battery has 24

battery elements).

Click

“Save”.

Battery current sensor calibration

Go to “Settings → System → Battery”. Ensure the truck is ON and that no actuation is

in progress then click

“0 Current sensor”.

Badge configuration

Go to

“Users”

. Click the green button to configure a new driver. When

prompted, choose

“Wizard”

to start the guided badge configuration.

Insert a driver name and click

“Next”.

Put the badge on the reader (in front for

ETS device; on the left side for ETS Touch device). The badge code shall

appear on the PC screen. Click

“Next”

until the wizard ends.

Insert any other driver desired using the same procedure.

Click

“Send to device”

to save the user list (important!).

Close a relay contact on shock detection

Go to “Settings → Signals→ ETS”.
