KM K8 Bedienungsanleitung

P. 1

To prevent any serious personal injury or damage

to the public, please be responsible when operating the car!

Safety Precautions

1. Keep out of children when operating the car

2. Be very careful when using tools or sharp accessories

3. Be careful when assembly because some parts may have sharp edge

4. Always switch on your transmitter before you switch on your receiver in the car. Always switch off

the receiver before switch off your transmitter

5. Always check the brakes / throttle / steering before starting your engine

6. Only operating outdoor since exhausts and fuel vapors are noxious to health

7. Keep hands and objects away from the engine and tune pipe after running the car because of

the extremely high temperature, only can touch it until it’ s cool down

8. Never smoking when operating the car because the fuel is highly inammable

9. Do not run the car near real car, road, animals and people

10.Always disconnect the receiver battery after running

11.Only use model fuel for running the car

Customer support

If you have any difculties, problems, or questions, please do not hesitate to

contact our KM distributor in your country or e-mail to : [email protected].

Also, please visit our web-site : www.km-rc.com to nd the latest news, set-up information,

new option parts, and many more.

Note

■

We will be continually up-grading the K8 to even higher performance, the exact specications of the kit may vary.

We KM do reserve all right to change any specication without prior notice.

■ Now, please enjoy our 1/8 Scale Super Luxury 4WD GP

on road car

and wish you get all the great race results with the Pure Free Fighting Killer Machine! ! !

BEFORE YOU START

KM K8 is a high quality pure racing 1/8 on road car and it’s not a toy!

Please follow the below steps before you start :

1. Keep out of children when you open the box

2. Beginners or rst builders should seek the advice of experienced

modelers about the important points for assembly

3. Read throught the instruction manual carefully before opening the part’ s plastic bag

4. Check all parts to nd out if there are missing parts

5. Follow the steps and orders in the instruction manual for assembly

6. If you nd out missing parts, defective parts or any problems in the open box condition,

please contact your local dealers or KM distributors immediately

1.Self-tapping screws cut threads into the plastic parts when being tightened. Do not use excessive force

when tightening the self-tapping screws because you may strip out the thread in the plastic.

2. Make sure all screws are properly tightened. Check them periodically.

3. Clean all ball-bearings to make sure them move very easily and freely. Check them periodically

4. The free movement of the moving parts is very important for the car performance

5. Seek advice from experienced drivers.

Assembly Tips

P. 2

Transmitter

Foam Tyres Tape

1/8 Exhaust pipe

1/8 Body Shell Battery Charger

Air Filter

( KMR - A023 )

Fuel Bottle

( KMR - A038 )

Fuel Gun

(KMR-A001V3)

Threadlock Glue

Receiver & Personal

Transponder

Steering &

Throttle Servos Engine Starter Box &

Battery Pack

Glowplug lgniter

Shock Pliers

( KMR - A035 )

Hex. Wrench 1.5/2.0/2.5/3.0mm

( KMR-H15, H20, H25, H30 )

Ball End Hex 2.5/3.0mm

(KMR-B25, B30)

Glowplug Wrench

( KMR - GW01 )

Body Reamer

( KMR - BR01 )

Flywheel Tool &

Pinion Tools

( KMR - A036 )

Engine Bearing Tool

( KMR - A039 )

►TOOLS REQUIRED

Retaining Ring Plier

Clutch Nut Tool

( KMR - A033 )

Needle Nose

Pliers

►EQUIPMENT REQUIRED

20ml

500 Silicone Oil

►TOOLS & EQUIPMENT

INCLUDED

K8-229-03

K8-992

K8-229-24T-PG1

K8-229-01Si

K8-229-03

Add Grease

(Not Included)

Add Grease

(Not Included)

BAG 1

COMPLETED

ASSEMBLY

K8-229

1. FRONT ONE-WAY

K8-229-24T-PG2

P. 3

●Item No. ●Description ● Quantity ●Item No. ● Description ● Quantity

K8-229-01Si Alum.7075-T6 Front One-Way Axle (Silver)

K8-229-24T-PG1 Front One-Way Pulley Gear 24T

K8-229-24T-PG2 Front One-Way Pulley Washer 24T

x 1

K8-229-03 Red Steel Front One-Way Cup Joint

K8-992 C-clip For Front Axle

x 2

x 1

STEP DETAIL

COMPLETED

VIEW

BAG 2

K8-993

K8-220-48T

K8-497-2

K8-497

COMPLETED

ASSEMBLY

K8-228

P. 4

K8-220-48T Rear Pulley Gear 48T

K8-497 Red Steel Rear Solid Axle

x 1

K8-497-2 Rear Solid Axle Pin 3x23.8mm

K8-993 C-clip For Rear Solid Axle

x 1

●Item No. ●Description ● Quantity ●Item No. ● Description ● Quantity

COMPLETED

ASSEMBLY

2. REAR SOLID AXLE

STEP DETAIL

●Item No. ●Description ● Quantity ●Item No. ● Description ● Quantity

HK301M H-K1 Shock Absorber Medium

HK302B Alum. Upper Shock Cap (Blue)

HK303 H-K1 Shock Head Ball End

K8-304F Front Shock Piston

K8-305 Red Steel Shock Shaft

HK306 Teflon Coated Alum. Shock Body

HK307 O-Ring Shims

HK308B Alum. Spring Adj. Nut (Blue)

HK309B Alum. Lower Shock Cap (Blue)

HK310F H-K1 Plastic Front Lower Spring Cap

HK311 Shock O-Ring

HK312 H-K1 Shock Piston Shims

HK313 Adj. Nut O-ring

K8-321M Front Shock Spring (Medium)

HK536B H-K1 Link Plastic 17.5mm

HK850L H-K1 Harden Ball Universal 5.8mm Hex (Long)

HK850S H-K1 Harden Ball Universal 5.8mm Hex (Short)

HK902 BH M3 x 6

HK951 M2.5 Lock Nut

x 4

x 2

x 4

x 2

NOTE DIFFERENT

124

P. 5

BAG 3

3. FRONT SHOCK x2

HK536B

HK310F

K8-321M

HK309B

HK308B

HK313

HK307

HK306

HK312

HK311

HK951

K8-305

HK850S

K8-304F

HK301M

HK303

HK850L

K8-300F ASSEMBLED VIEW

NOTE DIFFERENT

NOTE THE LENGTH

HK302B

+OIL

NOTE THE LENGTH

HK902

●Item No. ●Description ● Quantity ●Item No. ● Description ● Quantity

HK301M H-K1 Shock Absorber Medium

HK302B Alum. Upper Shock Cap (Blue)

HK303 H-K1 Shock Head Ball End

K8-304R Rear Shock Piston

K8-305 Red Steel Shock Shaft

HK306 Teflon Coated Alum. Shock Body

HK307 O-Ring Shims

HK308B Alum. Spring Adj. Nut (Blue)

HK309B Alum. Lower Shock Cap (Blue)

HK310R H-K1 Plastic Rear Lower Spring Cap

x 2

x 4

x 2

HK311 Shock O-Ring

HK312 H-K1 Shock Piston Shims

HK313 Adj. Nut O-ring

K8-331M Rear Shock Spring (Medium)

HK536C H-K1 Link Plastic 21mm

HK850L H-K1 Harden Ball Universal 5.8mm Hex (Long)

HK850S H-K1 Harden Ball Universal 5.8mm Hex (Short)

HK902 BH M3 x 6

HK951 M2.5 Lock Nut

x 4

x 2

NOTE DIFFERENT

124

P. 6

BAG 4

4. REAR SHOCK x2

NOTE DIFFERENT

NOTE THE

LENGTH

HK536C

HK310R K8-331M

HK309B

HK308B

HK313

HK307

HK306

HK312

HK311

HK951

K8-305

HK850S

K8-304R

HK301M

HK302B

HK303

HK850L

NOTE THE LENGTH

ASSEMBLED VIEW

K8-300R

! !

+OIL

HK902

P. 7

SHOCK OIL FILLING

Fully extend the piston rod so the piston is at the

bottom of the shock body.

Hold the shock upright and slightly overll the shock

body with shock oil.

Let the oil settle and allow air bubbies to rise to the

top. Slowly move the piston up and down until no

more air bubbies appear. Add shock oil as necessory.

Pull the piston rod most of the way out of the shock

body. Let the shock rest for 5 minutes to allow the air

bubbles to escape.

SHOCK OIL & SPRING ASSEMBLE

* When installing the shock cap assembly

on the shock body, some oil will leak

out.... this is normal.

* Fully tighten the cap and clean off any

excess oil.

* After the shock is assembled, the shock

rod will push itself out of the shock body

fairly quickly.

Insert the shock ball end

into the shock cap.

Insert the absorber

properly into the slot.

CUTAWAY VIEW

Rear Shock

NOTE DIFFERENT

NOTE THE

LENGTH

Front Shock

NOTE DIFFERENT

NOTE THE

LENGTH

Rear Shock

NOTE THE

LENGTH

Front Shock

NOTE THE

LENGTH

# 500 Silicone Oil

P. 8

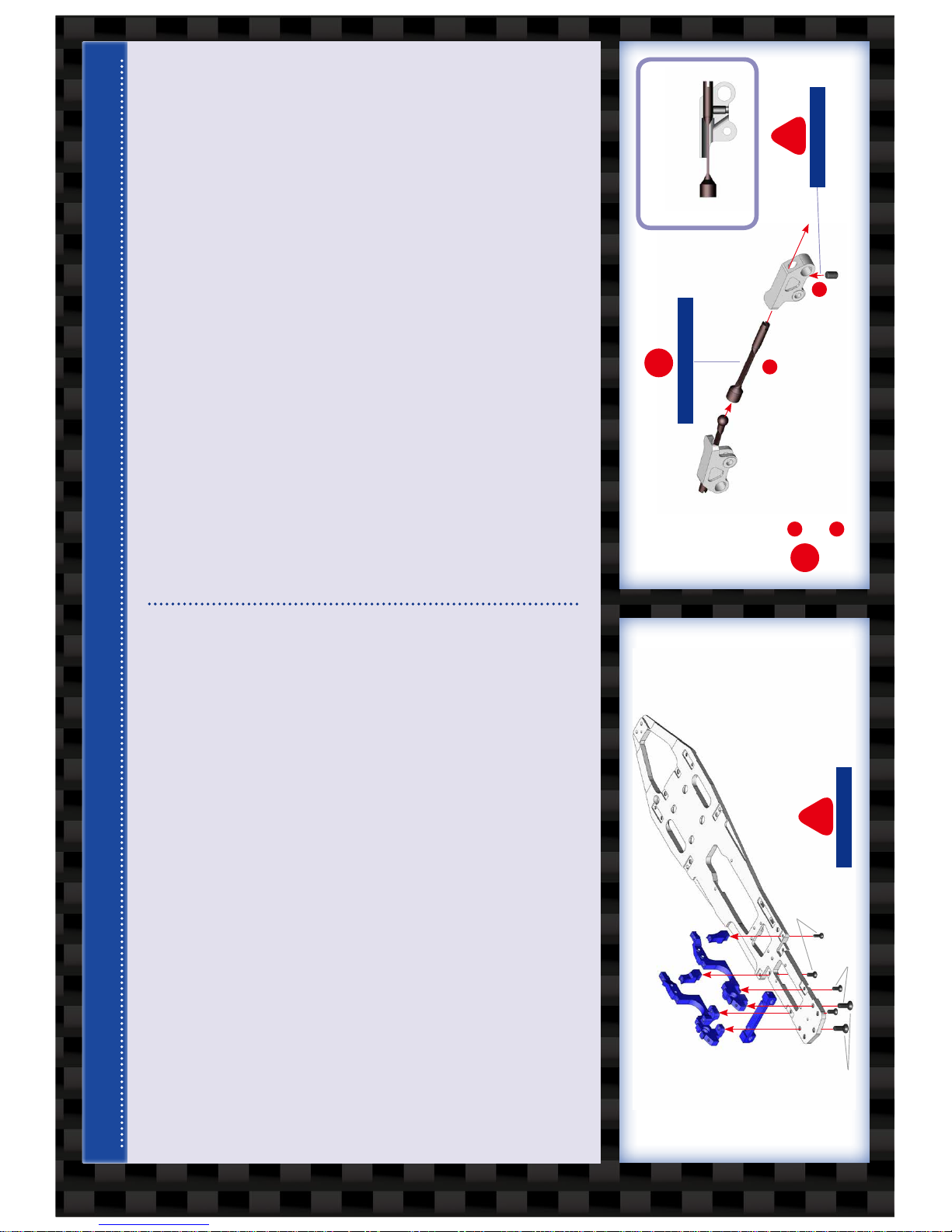

5. FRONT SUSPENSION

HK933

K8-140

K8-502

HK-B12184

K8-487

K8-401-2LB

K8-500

K8-102

K8-401-1LB

HK564AP

HK852A

K8-987

K8-988

K8-402LB

K8-146

K8-483-4Si

K8-483

HK-B12184

HK930

HK506B

HK506A

K8-480

HK933

K8-210B-P

K8-416LSi

K8-989

K8-988

HK902

HK404-1B

HK906

K8-300F

HK902

K8-586-1

K8-586-2

K8-586-3

K8-404LSi

K8-492-2

HK912

Front Suspension

Complete View

HK903

K8-229

HK-B12184

K8-581

K8-142L

K8-300F

HK903

K8-400LB HK905

HK933

HK917 Foam Tyre

(Not Included)

K8-403B

K8-501L

K8-481

HK930

K8-509-1

K8-509-2

K8-492-1

HK943

HK902

BAG 5

HK902

HK933

K8-506C

HK912

●Item No. ●Description ● Quantity ● Item No. ● Description ● Quantity

K8-102 2.5mm Carbon Front Shock Tower

K8-140 2.5mm Carbon Front Upright Arm

K8-142L 2.5mm Carbon Front Lower Damper Mount L

K8-142R 2.5mm Carbon Front Lower Damper Mount R

K8-146 2mm Carbon Front Upright Disc

K8-210B-P Bando 210mm Plastic Kevlar Front Belt

K8-400LB Alum. Front Upper BulkHead L (Blue)

K8-400RB Alum. Front Upper BulkHead R (Blue)

K8-401-1LB Alum. Front Lower Bulkhead L (Blue)

K8-401-1RB Alum. Front Lower Bulkhead R (Blue)

K8-401-2LB Alum. Front Lower Bulkhead Stand L (Blue)

K8-401-2RB Alum. Front Lower Bulkhead Stand R (Blue)

K8-402LB Alum. Front Lower Arm Holder L (Blue)

K8-402RB Alum. Front Lower Arm Holder R (Blue)

K8-403B Alum. Front Lower Suspension Arm Mount (Blue)

HK404-1B H-K1 Alum. Front Anti-Roll Bar Mount Collar (Blue)

K8-404LSi Alum. Front Anti-Roll Bar Mount L (Silver)

K8-404RSi Alum. Front Anti-Roll Bar Mount R (Silver)

K8-416LSi Alum. Front Upper Arm Mount L (Silver)

K8-416RSi Alum. Front Upper Arm Mount R (Silver)

K8-480 Front Upper Arm Pin

K8-481 Front Lower Arm Pin

K8-483 Alum. / Red Steel Front Universal Shaft

K8-483-4Si Alum. 7075-T6 Front Wheel Holder Lock (Silver)

K8-487 3mm Front Wheel Lock Pin

K8-492-1 Red Steel Front Anti-Roll Bar Shaft Cup

K8-492-2 Red Steel Front Anti-Roll Bar Shaft Ball

K8-500 Front Upper Arm left & Right

x 1

x 2

x 1

x 2

x 1

x 2

x 1

x 2

x 1

x 2

K8-501L Front Lower Arm Left

K8-501R Front Lower Arm Right

K8-502 Front Knuckle Arm

HK506A H-K1 1mm Caster Clips (CNC Machined)

HK506B H-K1 2mm Caster Clips (CNC Machined)

K8-506C 3mm Caster Clips (CNC Machined)

K8-509-1 Front Sus Bushing for 3mm shaft (center) (CNC Machined)

K8-509-2 Front Sus Bushing for 3mm shaft (offset) (CNC Machined)

HK564AP H-K1 Aluminium Ball Cup Screw

K8-581 Front Oneway Bearing Bushing 12x18x4

K8-586-1 Sus Bushing for 3mm shaft (center) (CNC Machined)

K8-586-2 Sus Bushing for 3mm shaft (offset_90deg) (CNC Machined)

K8-586-3 Sus Bushing for 3mm shaft (offset_45deg) (CNC Machined)

HK852A H-K1 Alum.7075-T6 Hard Coated 8.5mm Ball Screw

HK902 BH M3 x 6

HK903 BH M3 x 8

HK905 BH M3 x 12

HK906 BH M3 x 14

HK911 SS M3 x 3

HK912 SS M3 x 5

HK917 SS M4 x 8

HK930 FH M3 x 6

HK933 FH M3 x 8

HK943 FH M4 X 12

K8-987 Foam Tyre Lock Spring

K8-988 Washer 15x12x0.6mm

K8-989 Washer 18x12x0.5mm

HK-B12184 Steel Bearing 12x18x4

( FH M3 x 8 )

( FH M4 X 12 ) ( FH M3 x 8 )

All screw should be applied

threadlock glue !

THREADLOCK

CUTAWAY VIEW

Pre-thread mount

with the setscrew.

After anti-roll bar is inserted,

install tighten the setscrew.

All screw suggest applied

threadlock glue !

(

SS M3X5 )

THREADLOCK

NOTE ORIENTATION

P. 9

x 1

x 2

x 4

x 2

x 4

x 2

x 4

x 8

x 4

x 2

x 4

x 2

x 4

x 11

x 2

x 4

x 2

x 6

Inhaltsverzeichnis

Andere KM Motorisiertes Spielzeugauto Handbücher

KM H-K1 Bedienungsanleitung

Beliebte Motorisiertes Spielzeugauto Handbücher anderer Marken

Eduard

Eduard Humber Scout Car Mk.I exterior Bedienungsanleitung

Traxxas

Traxxas 4995X Bedienungsanleitung

Jamara

Jamara VW T1 Bus Bedienungsanleitung

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Bedienungsanleitung

Schumacher

Schumacher Pro Cat Bedienungsanleitung

Tamiya

Tamiya TT-01 TYPE E Bedienungsanleitung

Eduard

Eduard Krupp Protze 6x4 1/48 Bedienungsanleitung

New Bright

New Bright 61072UEP Bedienungsanleitung

Team Durango

Team Durango DEX410v5 Bedienungsanleitung

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Bedienungsanleitung

PLAYMOBIL

PLAYMOBIL 9536 Bedienungsanleitung

Atomic

Atomic BZ3 Bedienungsanleitung

Aiyaplay

Aiyaplay 370-290V00 Bedienungsanleitung

Power Wheels

Power Wheels GRJ53 Bedienungsanleitung

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Bedienungsanleitung

INJUSA

INJUSA 412 Bedienungsanleitung

Maverick

Maverick MSC-30BR-WP Bedienungsanleitung

Land of B.

Land of B. Rollin' Riders Bedienungsanleitung
