KMS Sequential driver Technisches Datenblatt
kms.vankronenburg.nl
Sequential driver
Manual for installation and setup
Handleiding voor installatie en setup
Anleitung für Installation und Setup
EN
—
NL
—
DE
kms.vankronenburg.nl
EN
—
NL
—
DE
Sequential driver
Part nr: 01-01-11-0080
Technical specifications and
installation manual
ENEN
__________________________________________________________ KMS
Sequential driver
Part nr: 01-01-11-0080 4
Version 1.00
kms.vankronenburg.nl
EN
—
NL
—
DE
This document contains detailed information about the KMS
Sequential driver. Additional information, user manuals, wiring
examples and software can be found on our website:
kms.vankronenburg.nlEN
1
. Package contents
•Sequential driver module
•CAN extension hub (2m)
•Sequential driver breakout loom
•Sequential driver module user manual
Sequential driver breakout loom
CAN extension hub (2 metres)
__________________________________________________________ KMS
Sequential driver
Part nr: 01-01-11-0080 5
Version 1.00
kms.vankronenburg.nl
EN
—
NL
—
DE
2. Installation of the KMS Sequential driver module
2.1 Installation notes
The KMS Sequential driver module is splash waterproof. However, it is best
to place it in a dry place where temperatures don’t exceed 65 °C.
Warning: do not place the Sequential driver and it’s wires nearby any ‘high
powered’ cables such as sparkplug leads, as it can cause electrical
interference resulting in malfunction.
2.2 Wiring basics
Included with the KMS Sequential driver is a breakout wiring loom which
consists out of a main connector with all wires connected. These wires are
colour-coded according to their functions which can be found in the table
on the next page.
Both the +12v power input and the power ground should be connected to
the same stable power source as the ECU. It is highly recommended to
install a 10A fuse on the +12v line to prevent further damage in case of a
malfunction.
Connect the desired injector outputs to their corresponding injectors in
either firing order or cylinder order. The resulting injection order and
cylinder bank can later be set in the software (chapter 4: Software
settings).
EN
__________________________________________________________ KMS
Sequential driver
Part nr: 01-01-11-0080 6
Version 1.00
kms.vankronenburg.nl
EN
—
NL
—
DE
2.3 Main 18-pole connector
Connect to the Sequential driver module. Pin functions are as following:
Pin Nr. KMS
Colour
0.5mm
0.75mm
Details
1
Black
X
Grond
2
White
X
Injector output 8
3
White
X
Injector output 7
4
White
X
Injector output 6
5
White
X
Injector output 5
6
White
X
Injector output 4
7
White
X
Injector output 3
8
White
X
Injector output 2
9
White
X
Injector output 1
10
Red
X
12v power input
11
White
X
MD35 injector 1 input (MD35 pin 11)
12
Red
X
12v injector power output 1
13
White/Black
X
MD35 injector 2 input (MD35 pin 10)
14
Red
X
12v injector power output 2
15
-
-
16
Black
X
CAN ground (-)
17
Green
X
CAN low (-)
18
White
X
CAN high (+)
__________________________________________________________ KMS
Sequential driver
Part nr: 01-01-11-0080 7
Version 1.00
kms.vankronenburg.nl
EN
—
NL
—
DE
EN
2.4 Wiring example scheme
3. Wiring of de CAN bus
The KMS Sequential driver module can communicate via CAN communication
through the CAN bus (grey wire) which consists of two pair of twisted wires
__________________________________________________________ KMS
Sequential driver
Part nr: 01-01-11-0080 8
Version 1.00
kms.vankronenburg.nl
EN
—
NL
—
DE
(green and white, red and black). Up to 10 CAN devices may be connected
to the CAN bus. These devices must be placed within 0,5m of the CAN bus.
See figure below for an example.
EN
For all KMS CAN connections, the pin functions are as following:
Pin nr
Colour
Function
1
Red
12V supply
2
Black
Ground
3
White
CAN high (+)
4
Green
CAN low (-)
Male CAN connector front: Female CAN connector front:
__________________________________________________________ KMS
Sequential driver
Part nr: 01-01-11-0080 9
Version 1.00
kms.vankronenburg.nl
EN
—
NL
—
DE
The CAN connection hub included in the package can be used to connect the
KMS Sequential driver to the CAN bus. For every CAN device that’s
connected to the CAN bus, a CAN connection hub will be needed.
KMS Sequential driver
Part nr: 01-01-11-0080 10
Version 1.00
kms.vankronenburg.nl
EN
—
NL
—
DE
4. Software settings
The KMS Sequential Driver has to be set up in the KMS motormanagement
software. Version 4.21 or above is required for this function. Software
updates can be found on the website kms.vankronenburg.nl.
Warning: To be able to fully use the KMS Sequential driver, a correct
functioning camshaft position sensor is required. If a CAM pickup sensor is
not available the module won’t know if the cylinder is in the intake or
combustion stroke.

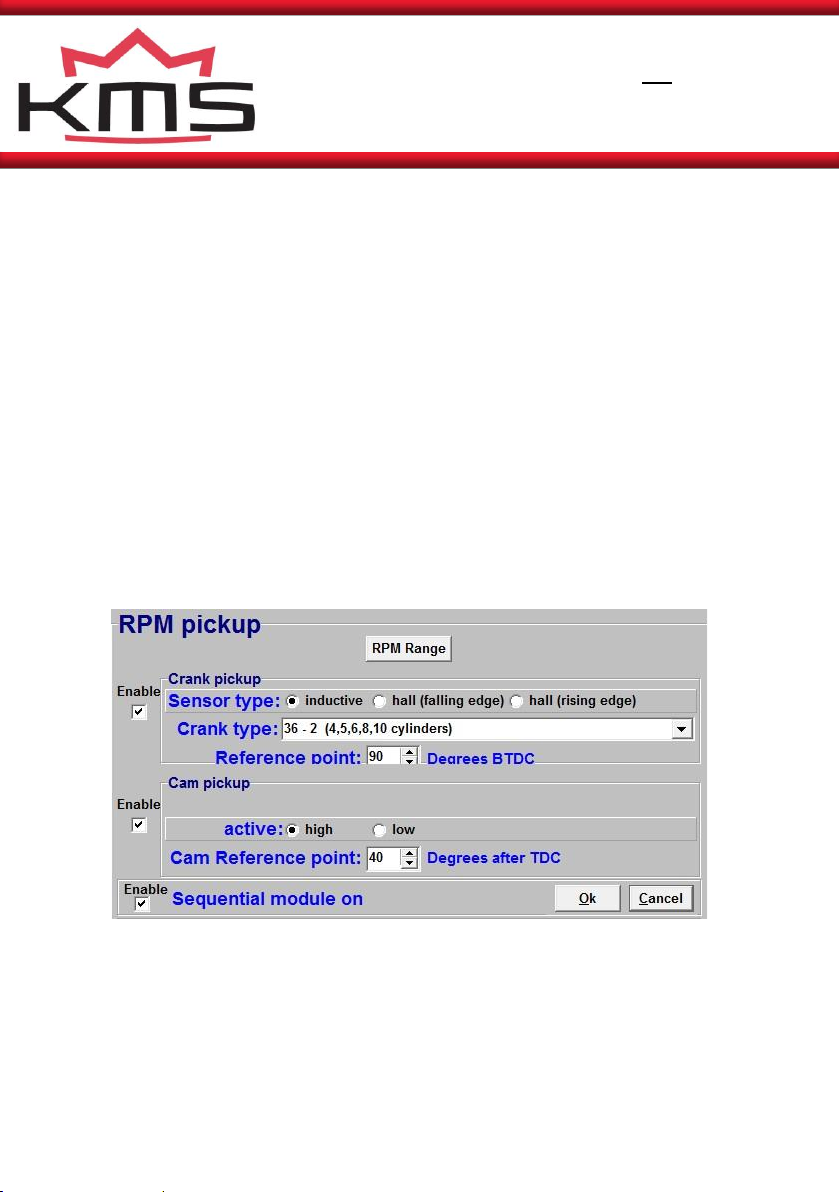

To enable the Sequential driver module, go through the following steps:
1. Press F4 for options -> open ‘options’ -> ‘RPM pickup’
2. Enable the CAM pickup sensor and enter the correct reference point
3. Enable the Sequential driver module and click ‘Ok’
4. Set CAN bus speed at 1 Mhz fixed on all devices
5. Go to ‘Injection settings’ -> ‘Sequential setup’ for the driver settings
