Knoll HD225 Kurzanleitung

HD225 Firmware Upgrade Instructions

To upgrade the projector firmware, you need the following:

♦The M1 cable that comes with the projector

♦A computerwith an available USB port

♦Latest firmware (Downloadable from www.knollsystems.com \Technical info\Home theater products\HD225)

Connect the projector to the computer

1. Connect the M1-A cable to the M1 connector at the rear of the projector

2. Plug the USB connector at the other end of the cable into an available USB port on the computer.

3. Plug the power cord into a power source. Do not plug the power cord into the projector at this

point.

Install the upgrade files on your computer

NOTE The examples below show a different projector model and version number than yours. Your model

and version numbermay be HD225 _753-0363-09.exe, for example. The procedure you follow is the

same.

1. In Windows Explorer, locate the firmware file you downloaded from the web. In this example, the

file was downloaded to a folder named TEMP on the C drive. Double-click the file to extract the

contents.

HD225 FirmwareUpgrade Instructions2

2. The WinZip Self-Extractor dialog box appears. Click Unzip to expand the files. The files will unzip

to the default location listed in the Unzip To Folderbox.

3. Click Close.

Perform the projector upgrade

1. In Windows Explorer, go the folder where the files were unzipped. Double-click the file named

USB_Flasher.exe.

(Example only)

(Example only)

HD225 FirmwareUpgrade Instructions3

The Firmware Upgrade Wizard appears.

2. Click Next.

The Select File dialog box appears.

click on Browse and select " Brandware_753-0374-01.BIN" and click NEXT

HD225 FirmwareUpgrade Instructions4

6. Make sure you've connected the USB connector on the M1 cable to the computer.

7. To prepare the projector for the upgrade process, do the following:

♦On the projector keypad, press and hold the Menu button.

♦Plug in the power cord,immediately release menu button and then repress the

Menu button within one second.

The projector should go into ‘flash mode’, where the LED is steady amber.

If the projector turns on or the LED is green, repeat the process. You may need to repeat the

process to get the timing right.

NOTE At this point, you may be asked to installthe device USB driver.

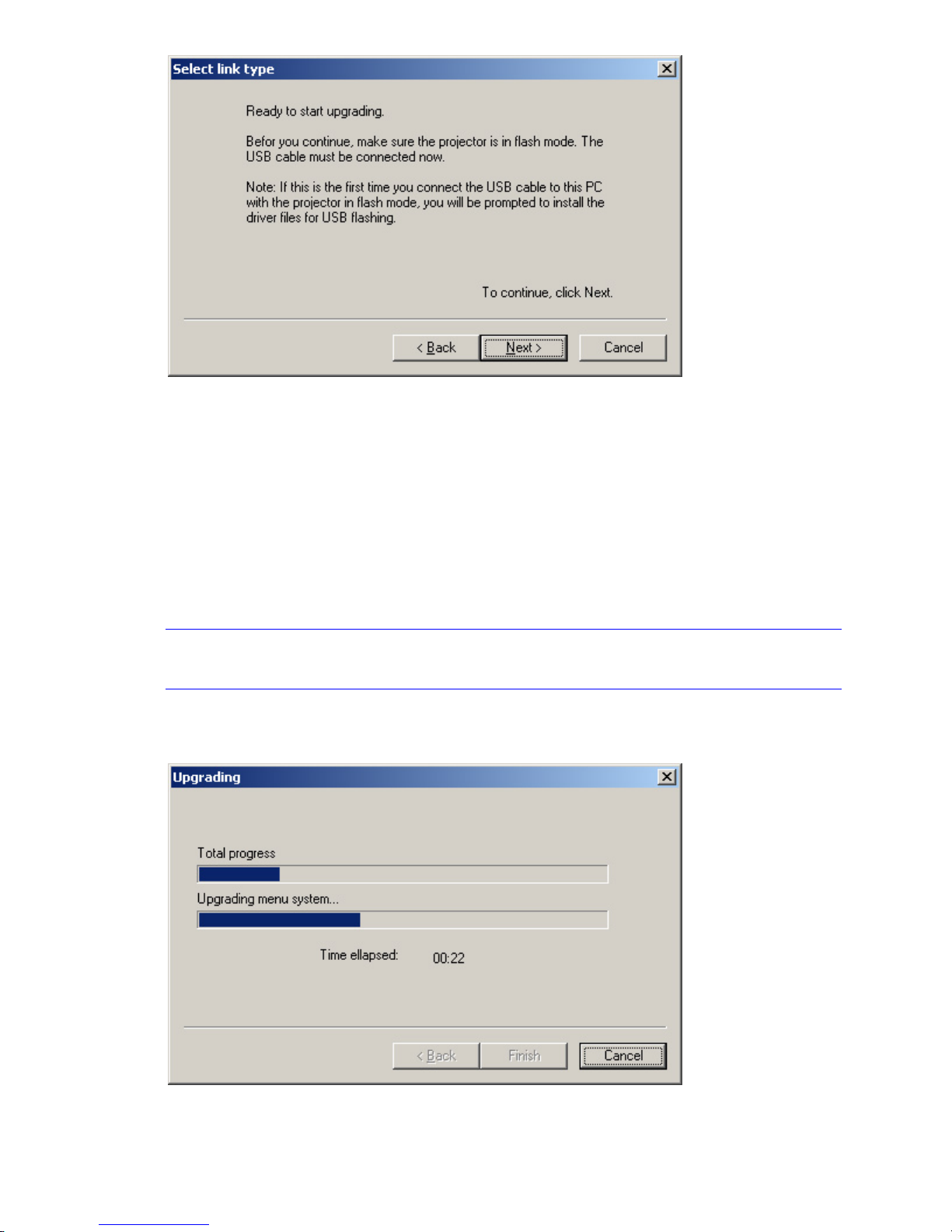

8. To start the upgrade, click Next in the Select Link Type dialog box.

The Upgrading status box appears, showing the progress of the upgrade.

HD225 FirmwareUpgrade Instructions5

NOTE If the Upgrading status box shows no progress, click Cancel and try again.

9. When the upgrade finishes, click Finish.

Part 1 of upgrade is complete.

Part 2 of upgrade

Go through the same process as Part 1 upgrade except in the "select file" box

click on Browse and select "Bifrost Home_1.0.20_ Flasher Upgrader" then select

open and then next, the select link type window appears.

At this time press and hold down the MENU button

Plug in power cord , immediately release Menu button and repress the menu

button within one second then press Next an the upgrading should start.

When the upgrade is complete the projector should power up.

On the projector keypad, press the Menu button

On the Main Menu the "About " should have changed to " Source Info"

The new firmware version should read 753-0363-09 instead of -07.

The upgrade is complete, disconnect M1 -USB cable.
