KOBE Brand Range Hood

Model No. CH7630SQB (30”)

CH7636SQB (36”)

CH7642SQB (42”)

CH7648SQB (48”)

CH-176 SERIES – 10” HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.........................................................................1

COMPONENTS OF PACKAGE.......................................................................................3

INSTALLATION................................................................................................................4

UNDER

THE

CABINET

INSTALLATION............................................................ 6

STAND

ALONE

INSTALLATION ........................................................................ 9

OPERATION INSTRUCTIONS ......................................................................................13

MAINTENANCE.............................................................................................................15

SPECIFICATIONS..........................................................................................................17

MEASUREMENTS & DIAGRAMS.................................................................................18

PARTS LIST...................................................................................................................23

CIRCUIT DIAGRAM.......................................................................................................27

DISCLAIMER.................................................................................................................29

WARRANTY...................................................................................................................30

PRODUCT REGISTRATION..........................................................................................32

– READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING –

ALL WIRING MUST BE DONE BYA PROFESSIONALAND IN

ACCORDANCE WITH NATIONALAND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces

or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if

unit is damaged due to misuse, poor installation, improper use,

mistreatment, negligence or any other circumstances beyond the

control of KOBE RANGE HOODS authorized agents. Any repair

carried out without the supervision of KOBE RANGE HOODS

authorized agents will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any

damages to personal property or real estate or any bodily injuries

whether caused directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking at high heat.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

- Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UPA BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

•

Extinguish any open flame.

•

Do not try to turn on the lights or any type of appliance.

•

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company

and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD

–

Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If

equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to Local,

State, and Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

Duct Cover Box (Sold Separately)

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instruction Manual

{D} Baffle Filter

-- 2 (30”, 36”, 42”)

-- 3 (48”)

{E} Stainless Steel Spacer

-- 0 (30”)

-- 1 (36”)

-- 3 (42”)

-- 2 (48”)

{F} Hood-Mounting Bracket w/ Screws Set

{G} Rubber Stand

{H} Oil Tunnel

{A}

{B} {C}

{D} {E}

{F} {G}

{H}

{I} KOBE Duct Cover

(Model No. CH1120DC)

{J} Inner Duct Cover-Mounting Bracket

{K} Outer Duct Cover-Mounting Bracket

{L} Screws Package

{I}

{J}

{K}

{L}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KOBERANGEHOODS.COM

OR CONTACT KOBE RANGE HOODS AT (626) 350-1355.

3/16" X 1/2" (8 pcs)

Rubber Stand (2 pcs)

Inner Duct

Cover

Outer Duct

Cover

1/8" X 3/8" (4 pcs)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

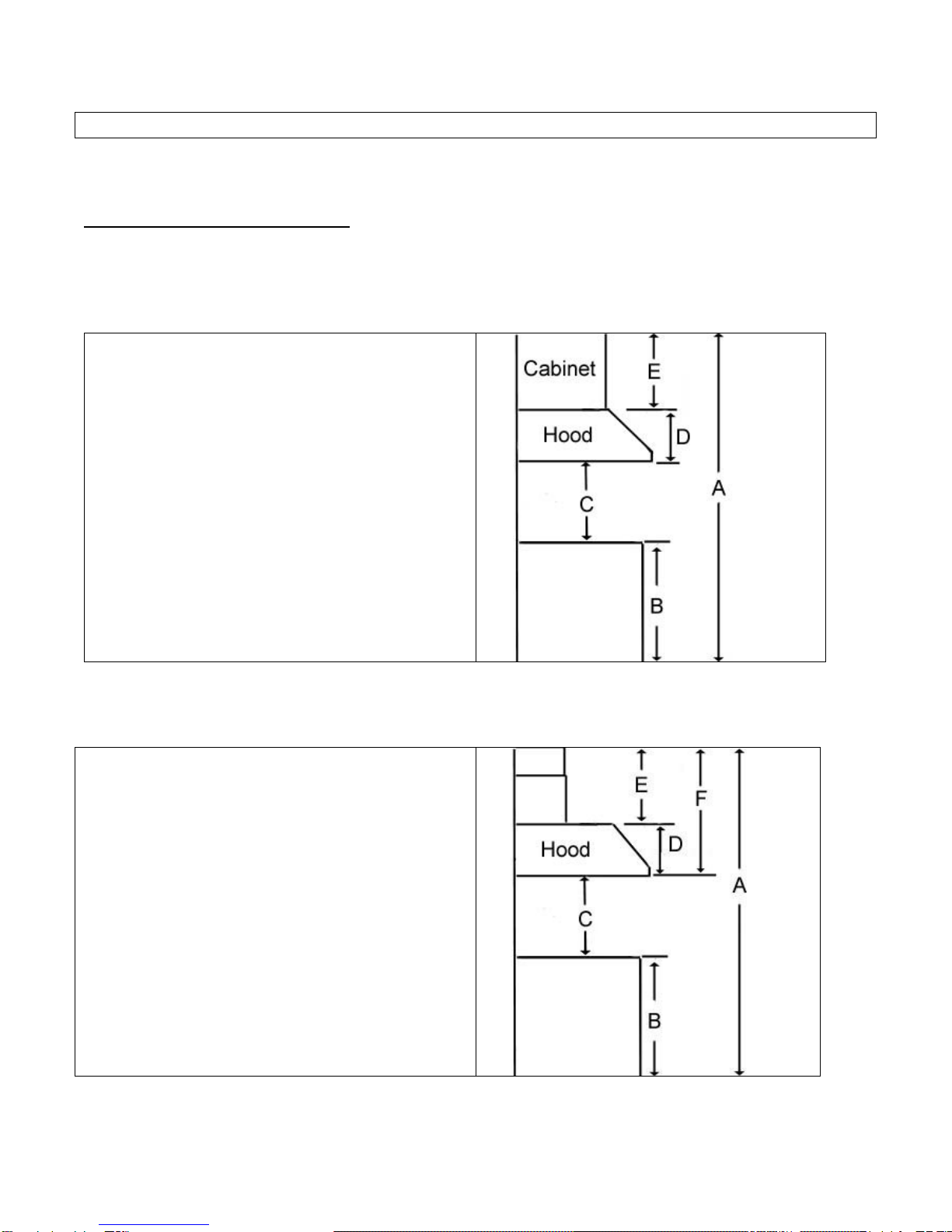

Calculation before Installation

To calculate installation, please refer to TABLE 1 or TABLE 2. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of the Cabinet

- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -

TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top (Standard:

36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A– (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS

NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Installation Contents

UNDER THE CABINET INSTALLATION ........................................................................6

REPARATION BEFORE

NSTALLATION

............................................................................. 6

OOD

NSTALLATION

...................................................................................................... 6

UCTWORK

NSTALLATION

.............................................................................................. 7

IRING TO

OWER

UPPLY

............................................................................................ 7

CCESSORIES

................................................................................................................ 8

INAL

SSEMBLY

............................................................................................................ 8

STAND ALONE INSTALLATION.....................................................................................9

REPARATION BEFORE

NSTALLATION

............................................................................. 9

OOD

REPARATION BEFORE

NSTALLATION

................................................................... 9

OOD

NSTALLATION

...................................................................................................... 9

IRING TO

OWER

UPPLY

.......................................................................................... 10

UCT

OVER

NSTALLATION

......................................................................................... 11

CCESSORIES

.............................................................................................................. 11

INAL

SSEMBLY

.......................................................................................................... 12

UNDER THE CABINET INSTALLATION

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

•

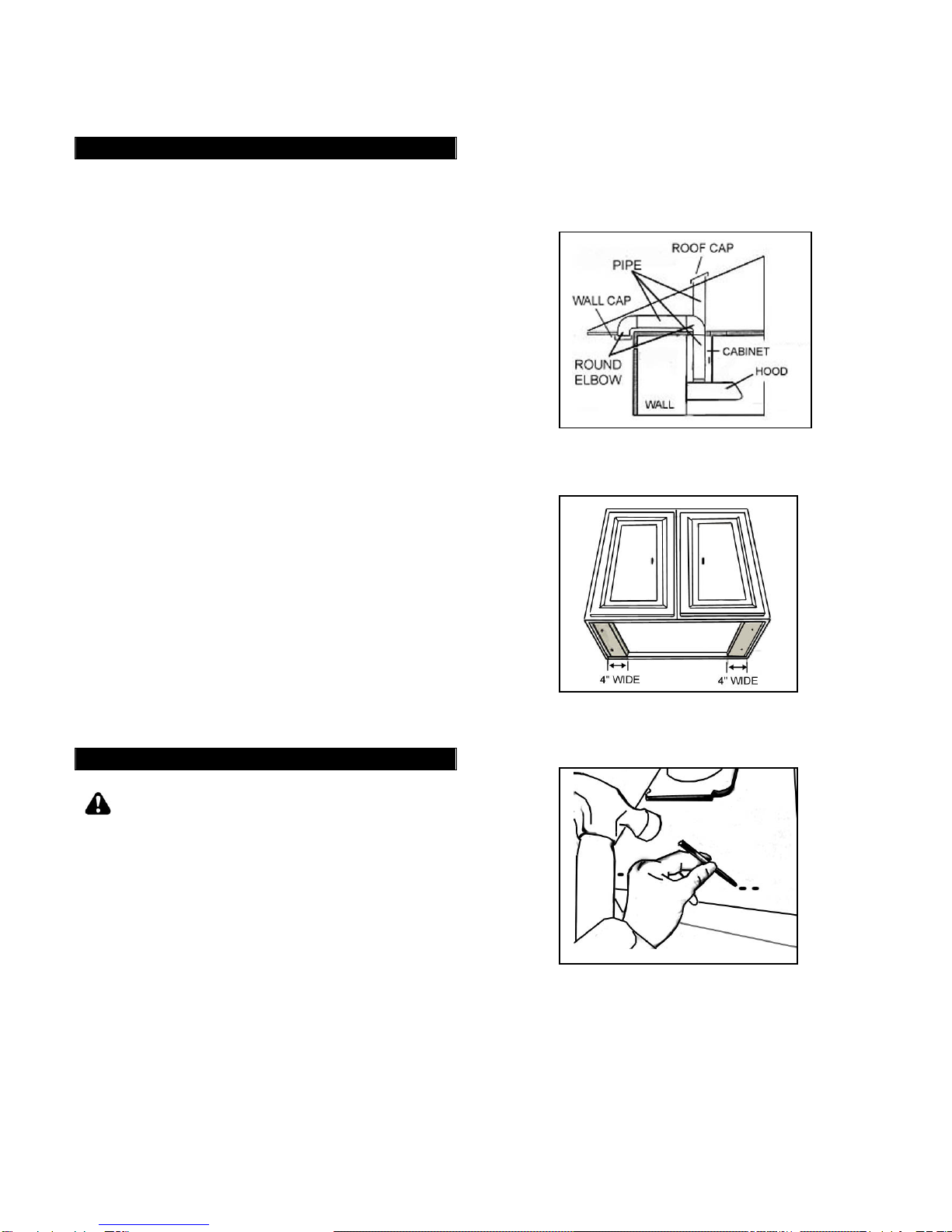

Decide the location of the venting pipe

from the hood to the outside. Refer to

Figure 1.

•

A straight, short vent run will allow the

hood to perform more efficiently.

•

Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.

•

Temporarily wire the hood to test for

proper operation before installing.

•

Important: Peel protective film off the

hood, if any.

•

Use duct tape to seal joints between

pipe sections.

•

For installing under the cabinet with

recessed bottom, attach 4-inch wide

wood filler strips (not provided) on each

side. Refer to Figure 2.

•

Using references in TABLE 1 and

Measurements and Diagrams on page

18, create access opening for electrical

wires and hood exhaust under the

cabinet.

Hood Installation

CAUTION

: If moving the cooking

range is necessary to install the hood, turn

off the power on an electric range at the

main electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

1. Puncture the knockout holes (for mounting

under the cabinet) on the hood as shown in

Figure 3.

2. If necessary, attach two rubber stands

(provided) with 3M adhesive tapes

(provided) to the back corners of the hood.

3. Using references in TABLE 1 and

Measurements and Diagrams on page 18

center the hood beneath the cabinet and

flush with the front of the cabinet.

Figure 1

Figure 2

Figure 3

4. Draw electrical wires through cabinet

access opening.

5. From inside of the hood, place screw (not

provided) into the exact center of each

knockout hole and secure to cabinet bottom.

Once all mounting screws are in place,

finish tightening screws until secure.

CAUTION

: MAKE SURE THE

HOOD IS SECURE BEFORE RELEASING.

6. For safety purpose, pre-drilled mounting

holes are provided through the back of the

hood. For a more secure installation, use as

many mounting holes as needed to secure

from the inside of hood (screws not

provided).

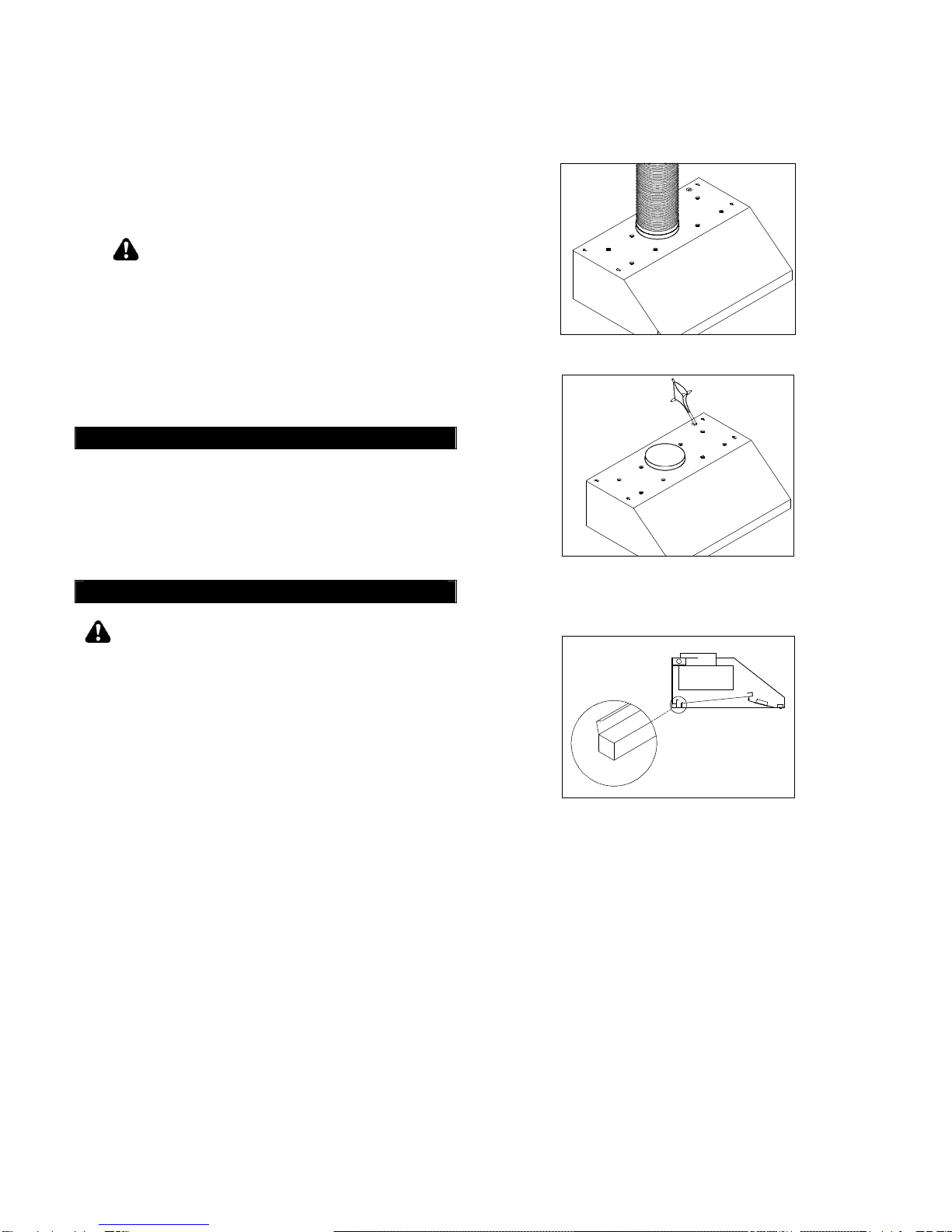

Ductwork Installation

7. Use 7” round steel pipe (follow building

codes in your area) to connect the exhaust

on the hood to the ductwork above. Use

duct tape to make all joints secure and air

tight. Refer to Figure 4.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE BY

QUALIFIED ELECTRICIAN IN ACCORDANCE

WITH ALL APPLICABLE NATIONAL AND

LOCAL ELECTRICAL CODES. BEFORE

CONNECTING WIRES, SWITCH POWER OFF

AT SERVICE PANEL AND LOCK SERVICE

PANEL TO PREVENT POWER FROM BEING

SWITCHED ON ACCIDENTALLY.

8. Connect the electrical wires.

- Connect three wires (black, white and

green) to house wires and cap with wire

connectors. Connect according to color:

black to black, white to white, and green

to green as shown in Figure 5.

- Store wires in the wiring box.

Figure 4

Figure 5

Figure 6

Accessories

9. Drop oil tunnel into recess support near rear

of hood. Refer to Figure 6.

10. Install baffle filters and stainless spacer(s).

Refer to Measurements and Diagrams on

page 22 for baffle filter and stainless spacer

placement. Angle baffle filter toward back of

hood . Push baffle filter up until almost

level . Slide forward into recess behind

the front of hood . Lower baffle filter .

Slide back until it fits into resting position .

Refer to Figure 7.

11. Repeat step 10 to install all baffle filters and

stainless spacer(s).

Final Assembly

12. Turn power ON in control panel. Check all

light and fan operation.

13. Make sure to leave this manual for the

homeowner.

Figure 7

Andere Handbücher für CH7630SQB

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere KOBE Dunstabzugshaube Handbücher

KOBE

KOBE Premium Series Fehlerbehebungshandbuch

KOBE

KOBE RAX21 SQB-X Series Fehlerbehebungshandbuch

KOBE

KOBE CH2230SQ-1 Fehlerbehebungshandbuch

KOBE

KOBE CH2230SQ Fehlerbehebungshandbuch

KOBE

KOBE OVS-CHX2030SQB-40 Fehlerbehebungshandbuch

KOBE

KOBE Brillia RAX21 SQB-2 Series Fehlerbehebungshandbuch

KOBE

KOBE Brillia CHX91 SQB-2 Series Fehlerbehebungshandbuch

KOBE

KOBE RA9236SQ Fehlerbehebungshandbuch

KOBE

KOBE PREMIUM IN26 Series Fehlerbehebungshandbuch

KOBE

KOBE Brillia RAX9430SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE IS22 SQB-5 Series Fehlerbehebungshandbuch

KOBE

KOBE CHX79 Bedienungsanleitung

KOBE

KOBE Brillia CHX81 SQB-2 Series Fehlerbehebungshandbuch

KOBE

KOBE CH22 SQB-5 Series Fehlerbehebungshandbuch

KOBE

KOBE IN2630SQB-650-5A Fehlerbehebungshandbuch

KOBE

KOBE CH0130SQB (30") Bedienungsanleitung

KOBE

KOBE PREMIUM IN2630SQB-700 Fehlerbehebungshandbuch

KOBE

KOBE CH2730SQ3 Series Fehlerbehebungshandbuch

KOBE

KOBE CH-191 Fehlerbehebungshandbuch

KOBE

KOBE RA9236SQ Fehlerbehebungshandbuch

KOBE

KOBE IS2336SQ Fehlerbehebungshandbuch

KOBE

KOBE IS2236SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE RA9230SQB-DC30-1 Fehlerbehebungshandbuch

KOBE

KOBE IS2236SQB-1 Fehlerbehebungshandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
