KOBE IN2730SF Fehlerbehebungshandbuch

KOBE Brand Range Hood

Model No.: IN2730SF

IN-027 SERIES

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ........................................................................1

COMPONENTS OF PACKAGE ......................................................................................3

INSTALLATION...............................................................................................................4

NSERT INSTALLATION

-....................................................................................................5

Preparation Before Installation................................................................................................5

Custom Hood Preparation........................................................................................................5

Liner Installation.........................................................................................................................5

Wiring to Power Supply ............................................................................................................6

Duct Work Installation...............................................................................................................6

Hood Preparation Before Installation.....................................................................................6

Hood Installation........................................................................................................................7

Final Assembly...........................................................................................................................7

OPERATING INSTRUCTIONS .......................................................................................8

MAINTENANCE..............................................................................................................9

SPECIFICATIONS ........................................................................................................11

MEASUREMENTS & DIAGRAMS.................................................................................12

PARTS LIST..................................................................................................................14

CIRCUIT DIAGRAM......................................................................................................16

DISCLAIMER ................................................................................................................17

WARRANTY..................................................................................................................18

PRODUCT REGISTRATION.........................................................................................20

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

AL L W IR ING MUST BE DO N E B Y A PROFE SSIONAL A ND IN

ACCORDA NCE W ITH NA TIO NA L AND LOCAL E LE C T R ICAL CO D E S.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

- Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UPA BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD

–

Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If

equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to Local,

State, and Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KOBERANGEHOODS.COM

OR CONTACT KOBE RANGE HOODS AT (626) 350-1355.

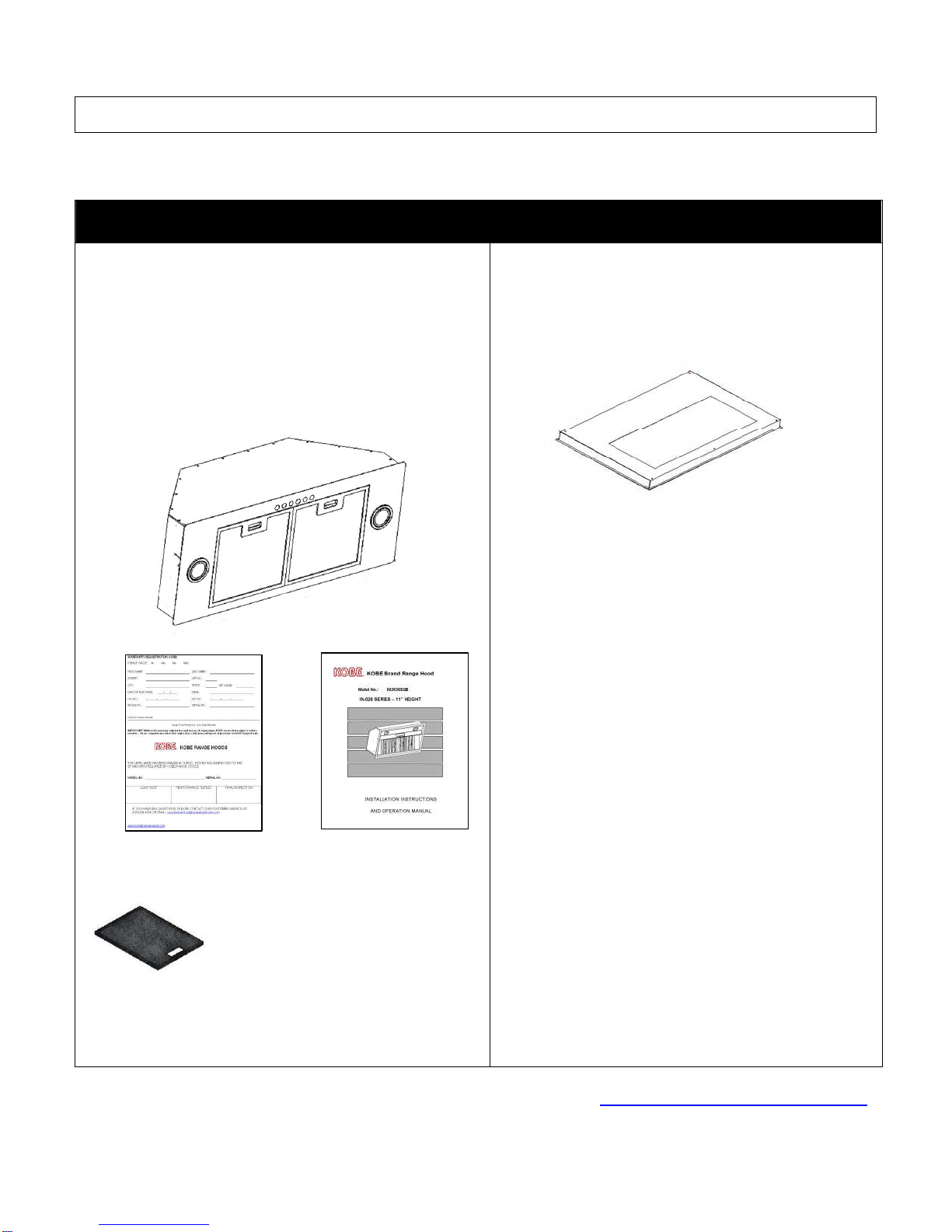

Range Hood Box Liner (Sold Separately)

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instruction Manual

{D} Aluminum Filter – 2

{A}

{B} {C}

{D}

{E} Liner

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

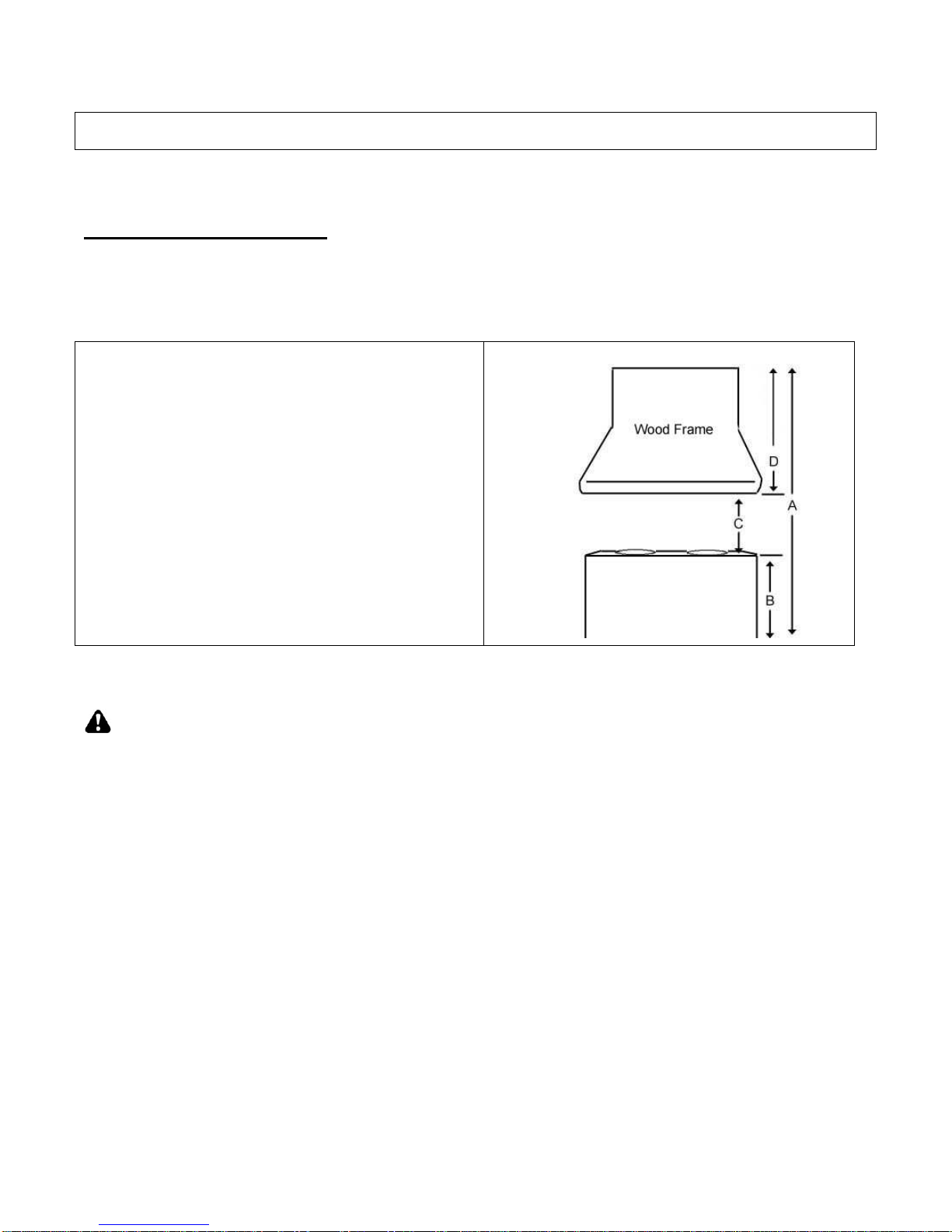

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Height of Counter Top to Wood Frame

Bottom (Recommended 27” to 30”)

D = Height of Wood Frame

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

- For Insert installation -

Preparation Before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT

DEBRIS FROM ENTERING THE VENT OPENING.

•

Decide the location of the venting pipe from the hood to

the outside. Refer to Figure 1.

•

A straight, short vent run will allow the hood to perform

more efficiently.

•

Try to avoid as many transitions, elbows, and long run

as possible. This may reduce the performance of the

hood.

•

Temporarily wire the hood to test for proper operation

before installing.

•

Important: Peel protective film off the hood, if any.

•

Use duct tape to seal joints between pipe sections.

CAUTION

: If moving the cooking range is

necessary to install the hood, turn off the power in an

electric range at the main electrical box. SHUT OFF

THE GAS BEFORE MOVING A GAS RANGE. And use a

protective covering to protect cooktop and/or

countertop from damage.

Custom Hood Preparation

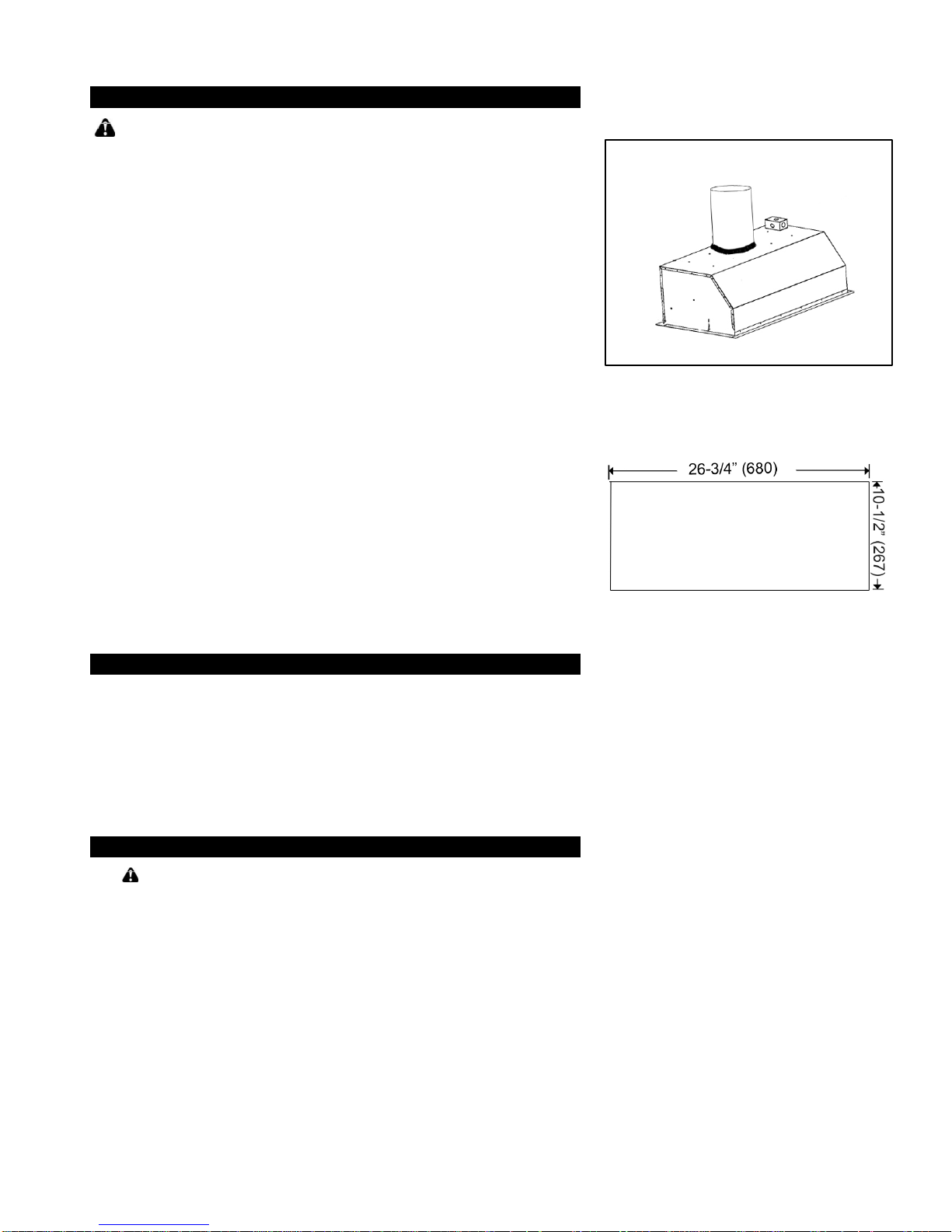

1. The custom hood frame must be sized to shape and the

weight of the insert. Refer to Measurements and

Diagrams on Page 11.

2. It must have a sturdy base (1/2 inch thick plywood

recommended) to sustain the weight of insert.

3. If an optional liner will be installed, the side of the wood

cabinet must be sturdy (1/2 inch thick plywood

recommended).

4. It is recommended to install a rear and front stud

support. Refer to Figure 2. The stud supports are

located 1-1/2” up from the base of the wood frame.

Liner Installation

5. The custom/wood hood must have a sturdy base to

accommodate the cut-out for the inset. The base must

be recessed to accommodate the height of the liner (See

liner dimension on Page 12)

6. Secure the liner to the bottom of the base using screws

(not included) appropriate for the size and material of

your wood frame.

7. Position the rear section of the liner so that it aligns with

the back edge of the custom wood frame. Use a pen to

trace the outline of the pre-cut area. Remove the liner

and proceed to Hood Preparation Before Installation on

Page 6.

8. Install the liner with 5 screws (not provided).

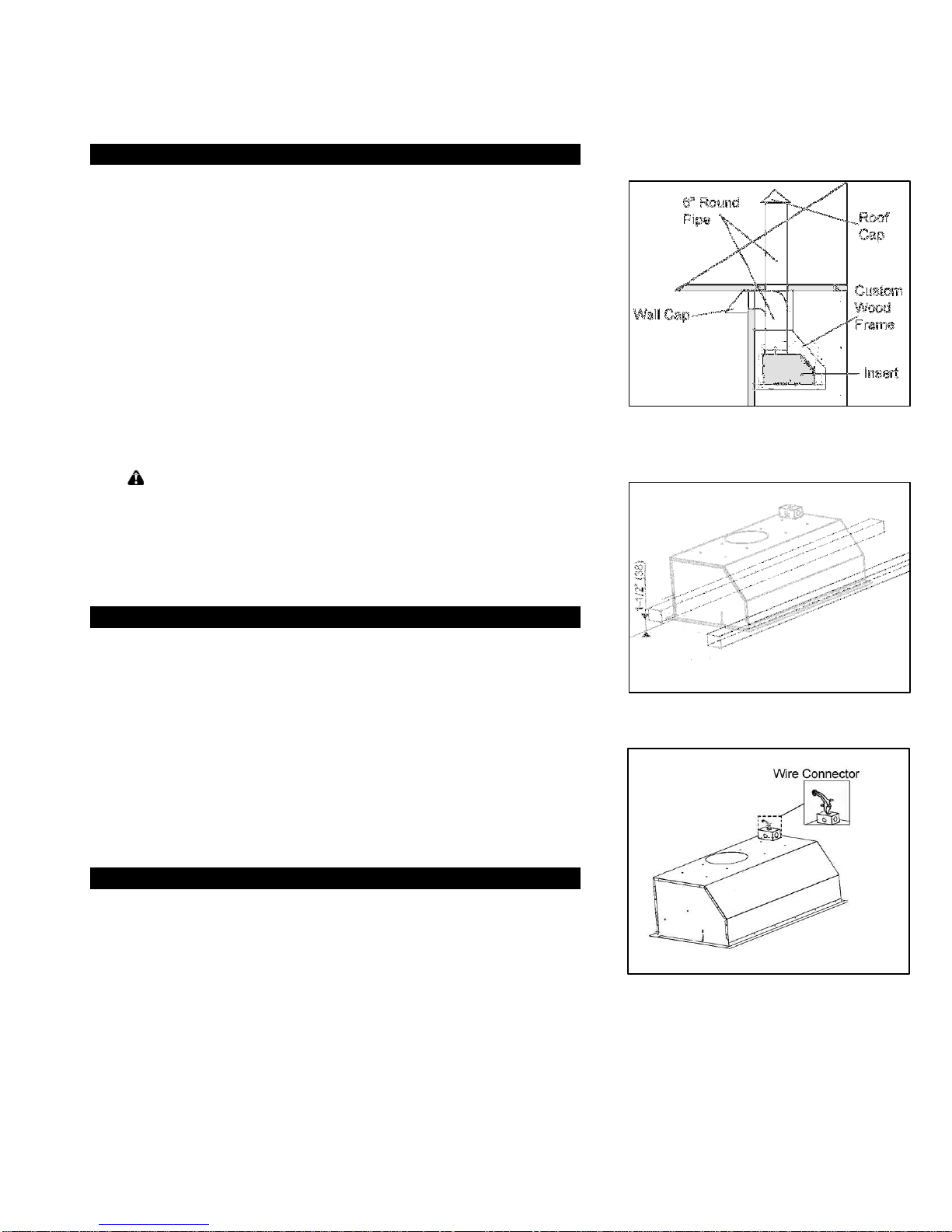

Figure 1

Figure 2

Figure 3

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST

BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE

BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES, SWITCH POWER

OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

9. Temporarily wire the hood to test for proper operation

before installing. If the insert does not operate, check

the circuit breaker or house fuse. If the insert is still not

working, disconnect the power supply and check the

continuity of all wiring connections.

10. Connect electrical wires.

11. Connect three wires (black, white and green) to house

wires and cap with wire connectors. Connect wires

according to their colors (i.e. black to black, white to

white, and green to green). See Figure 3.

12. Store wires in the wiring box.

13. Determine the proper location for the Power Supply

Cable. Make a wiring access hole using a drill bit.

Install the wire cable and seal the gap around hole.

Note: Connect all electrical wires before installing insert.

DO NOT turn on the power until installation is complete.

Duct Work Installation

14. Use 6” steel pipe (follow building codes in your area) to

connect the ducting on the hood to the ductwork above.

Use duct tape to seal and secure joints as shown in

Figure 4.

15. Please refer to local codes for the usage of the damper

(included). If necessary, remove the damper

mechanism and install as exhaust connector.

Hood Preparation Before Installation

CAUTION

: If moving the cooking range is

necessary to install the hood, turn off the power in

an electric range at the main electrical box. SHUT

OFF THE GAS BEFORE MOVING A GAS RANGE.

16. Determine and mark the centerlines on the base of the

wood frame where the insert will be installed.

17. Determine and make all necessary cuts in the wall or

ceiling for the ductwork. Note: Install the duct work

before installing the insert.

18. Cut out the opening where the insert will be installed.

(Figure 5)

Figure 4

Figure 5

Hood Installation

19.

Release the screws located on each side of the insert.

Adjust the level of the hood casing support according to

the thickness of the base (1/2 thickness plywood

recommended). Tighten the screws to secure as shown

on Figure 6.

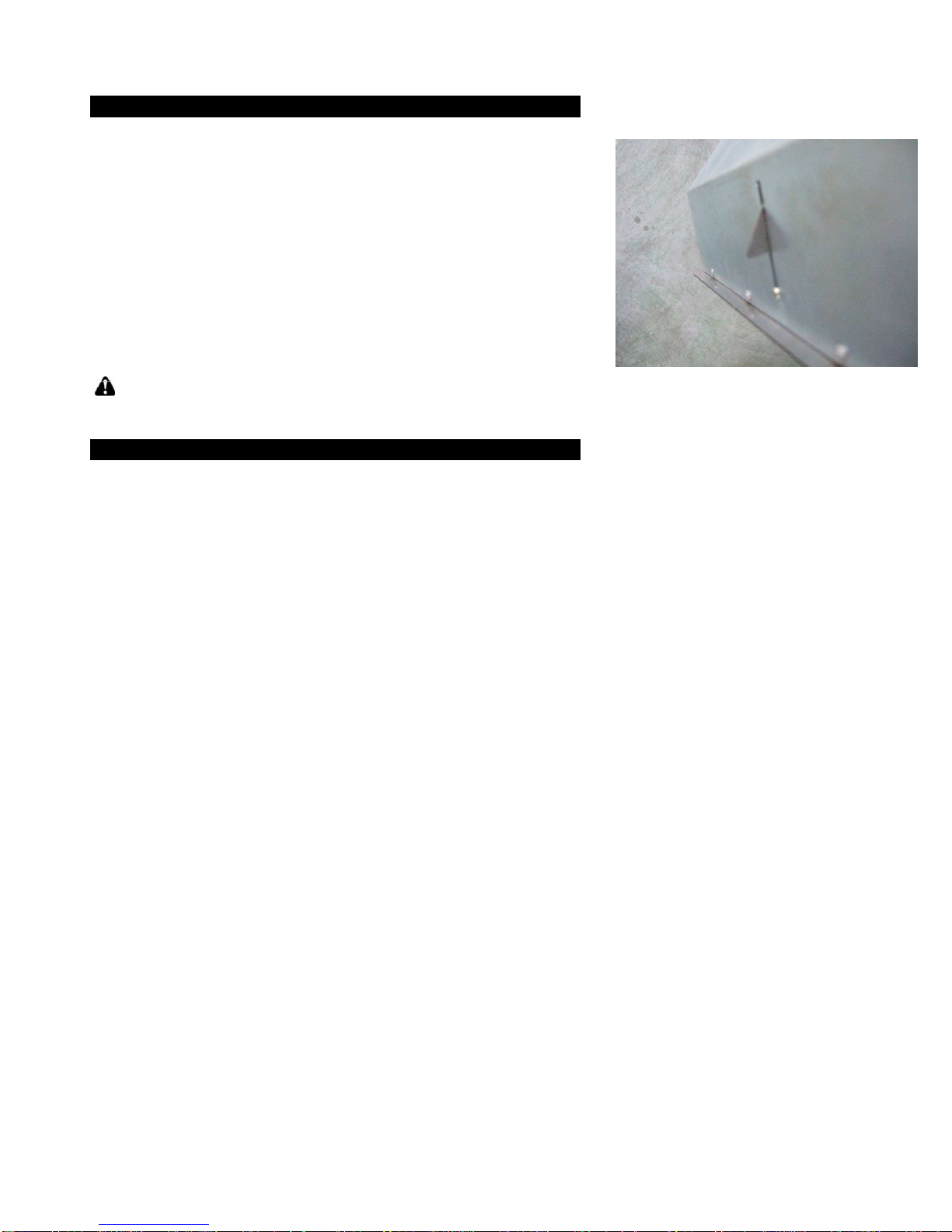

20. Install the insert inside the custom wood frame.

21. Make sure the hood casing support is secure before

releasing.

22. For a more secure installation, use the mounting holes

for the rear support which are located at 1-1/2” (38mm)

up from the insert base (screws not provided).

CAUTION

: MAKE SURE HOOD IS SECURE BEFORE

RELEASING.

Figure 6

Final Assembly

23. Install Aluminum Filters. Insert the filters towards the

back of the unit and push up.

24. Make sure the Aluminum Filters are secure before

releasing.

OPERATING INSTRUCTIONS

This KOBE hood is equipped with five electronic push buttons with LED indicator, double powerful

centrifugal squirrel cage with aluminum filter, two bright12-volt 20-watt halogen lights.

The five control buttons are Power Control (On/Off), Speed Control (High, Medium, & Low), and Light

Control. Refer to Figure 7.

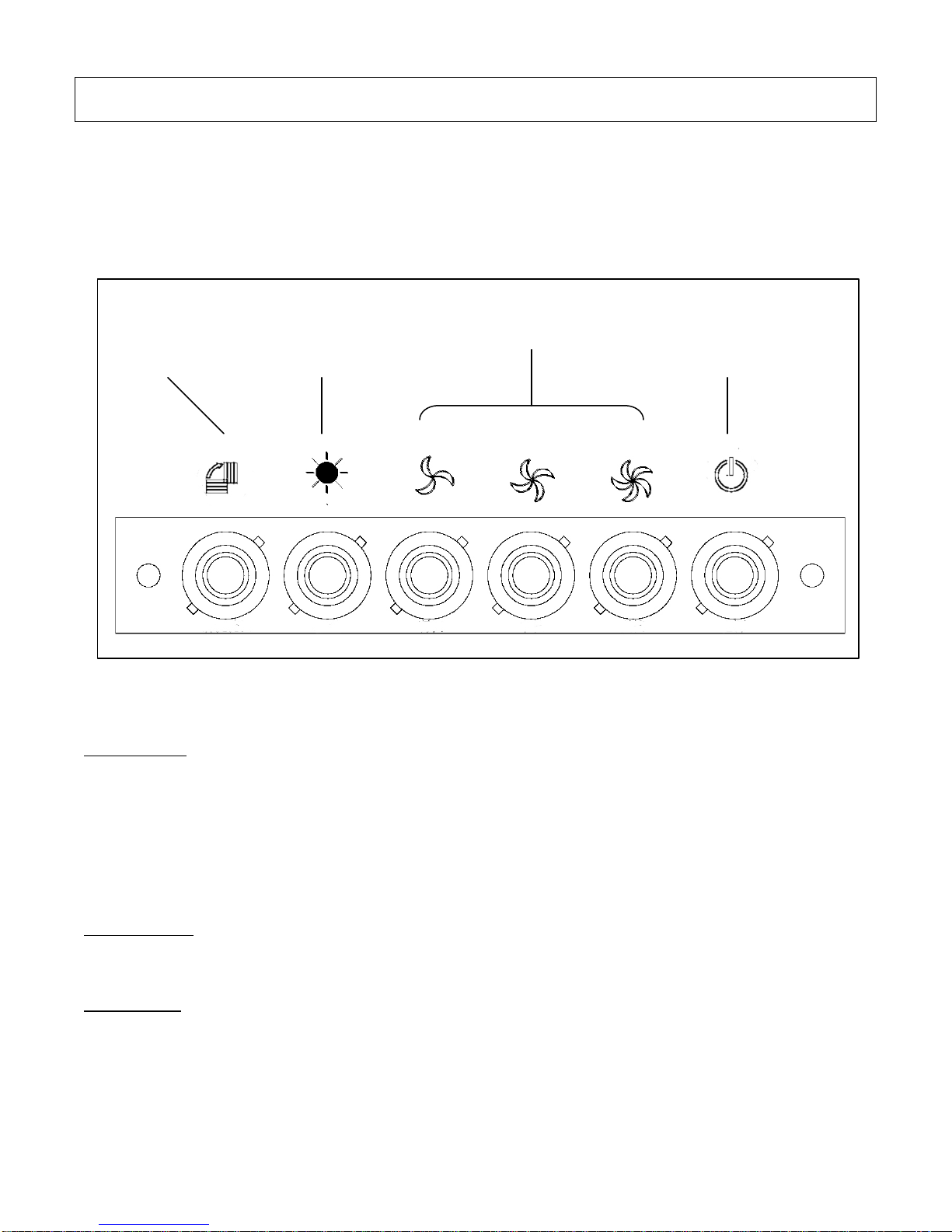

Figure 7

Note: For best results, turn hood to QuietMode™ prior to any preparation or cooking. Adjust speed as

needed.

PowerControl

Press Power Control to turn On/Off the hood.

This unit equipped with 3-minute delay shutoff. To activate this feature, press Power

Control button once, panel LED lights will flash and power will be completely shut off after 3

minutes.

Press Power Control button twice, the fans will be shut off immediately.

Speed Control

Press Speed Control to activate Low, Medium, & High Speed.

Light Control

(Light control is separate from ON/OFF control. Turning power off will not turn lights off.)

Press Light control to turn lights ON.

(Each press of Light Control will cycle the light intensity through high, low, and off.)

Change Filter

Indicator Halogen Light

Control

Speed

Control Power Control

Inhaltsverzeichnis

Andere KOBE Dunstabzugshaube Handbücher

KOBE

KOBE OVS-ISX2430GSQB-40 Fehlerbehebungshandbuch

KOBE

KOBE CH2230SQ-1 Fehlerbehebungshandbuch

KOBE

KOBE INX2930SQBF-500-1 Fehlerbehebungshandbuch

KOBE

KOBE CH3830SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE RA92 SQB-5 Series Fehlerbehebungshandbuch

KOBE

KOBE Brillia RAX9430SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE CH2730SQB Fehlerbehebungshandbuch

KOBE

KOBE RA9230SQB-DC30-1 Fehlerbehebungshandbuch

KOBE

KOBE ISX2136SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE IN26 SQB-650-5 Series Fehlerbehebungshandbuch

KOBE

KOBE Brillia Series Fehlerbehebungshandbuch

KOBE

KOBE RA9430SQB-1 Gebrauchs- und Pflegehandbuch

KOBE

KOBE Brillia RAX2130SQB-1 (30") Fehlerbehebungshandbuch

KOBE

KOBE CH8136SQB Fehlerbehebungshandbuch

KOBE

KOBE IN2730SF-1 Fehlerbehebungshandbuch

KOBE

KOBE CHX36 SQB-29 Series Fehlerbehebungshandbuch

KOBE

KOBE CHX7930SQB-1 Bedienungsanleitung

KOBE

KOBE CHX3630SB-1 Fehlerbehebungshandbuch

KOBE

KOBE OVS-ISX2130SQB-40 Fehlerbehebungshandbuch

KOBE

KOBE CH0130SQB (30") Bedienungsanleitung

KOBE

KOBE IN2642SQB-1200-1 Fehlerbehebungshandbuch

KOBE

KOBE CHX30 Series Fehlerbehebungshandbuch

KOBE

KOBE OVS-CHX8130SQB-40 Montage- und Bedienungsanleitung

KOBE

KOBE CH8136SQB Fehlerbehebungshandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
