KOBE Range Hoods

Model No.

IS2236SQB-DC16-1 (36”)

IS2236SQB-DC22-1 (36”)

IS2236SQB-DC59-1 (36”)

IS2242SQB-DC16-1 (42”)

IS2242SQB-DC22-1 (42”)

IS2242SQB-DC59-1 (42”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.

2. Thoroughly inspect the unit for any shipping damages, cosmetic

damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial

number ready.

3. Contact your merchant for product replacement due to shipping

damages, cosmetic damages or defects.

4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to

[email protected] .

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED

2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3. MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

IMPORTANT

READ THIS FIRST

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION.......................................................................................................................... 4

OPERATING INSTRUCTIONS................................................................................................... 8

MAINTENANCE……………………………………………………….……………..………….………10

SPECIFICATIONS....................................................................................................................11

MEASUREMENTS & DIAGRAMS.............................................................................................12

PARTS LIST..............................................................................................................................13

CIRCUIT DIAGRAM..................................................................................................................15

TROUBLE SHOOTING.............................................................................................................16

WARRANTY.............................................................................................................................17

WARRANTY INFORMATION FORM........................................................................................19

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W I RING MUS T B E DON E B Y A PRO FESSIONAL AND IN

AC CORD ANC E W I T H NA T IONAL AND LOCA L E LECT RI CAL CODE S

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE

This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF ARANGE

TOP GREASE FIRE:

•Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease should

not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

•Always turn hood ON when cooking.

•Use high settings on cooking range ONLY when necessary.

•Do not leave cooking range unattended when cooking.

•Always use cookware and utensils appropriate for the type and amount of food prepared.

•Use this unit only in the manner intended by the manufacturer.

•Before servicing, switch power off at service panel and lock service panel (if possible) to prevent power

from switching on accidentally.

•Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UPA BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and Fire

Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published

by the National Fire ProtectionAssociation (NFPA), and the American Society for Heating, Refrigeration

and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which must

be recycled or disposed of according to Local, State, and Federal Codes.

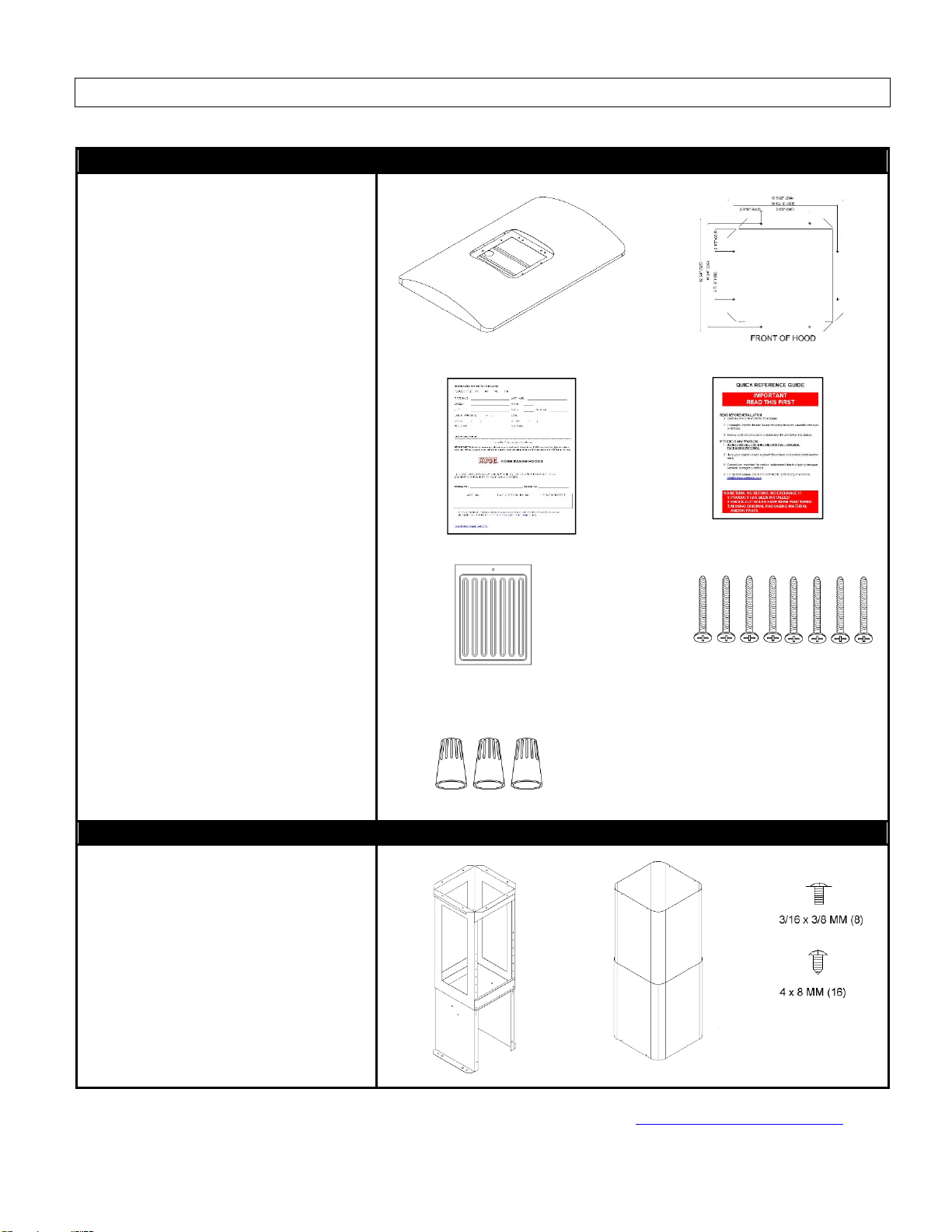

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box (Box 1 of 2)

{A} KOBE Range Hood

{B} Mounting Template

{C} Warranty Registration Card

{D} Quick Reference Guide

{E} Baffle Filters x 3

{F} Screws Package

{G} Wire Cap x 3

{A}

{B}

{C} {D}

{E} {F}

Knob attached to baffle filter

{G}

Duct Cover Box (

Box 2 of 2

)

{H} Telescopic Stack

{I} Two-Piece Duct Cover

{J} Screw Package

{

{I}

{J}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

M4 x 1-1/2” (8)

Wire caps (3)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

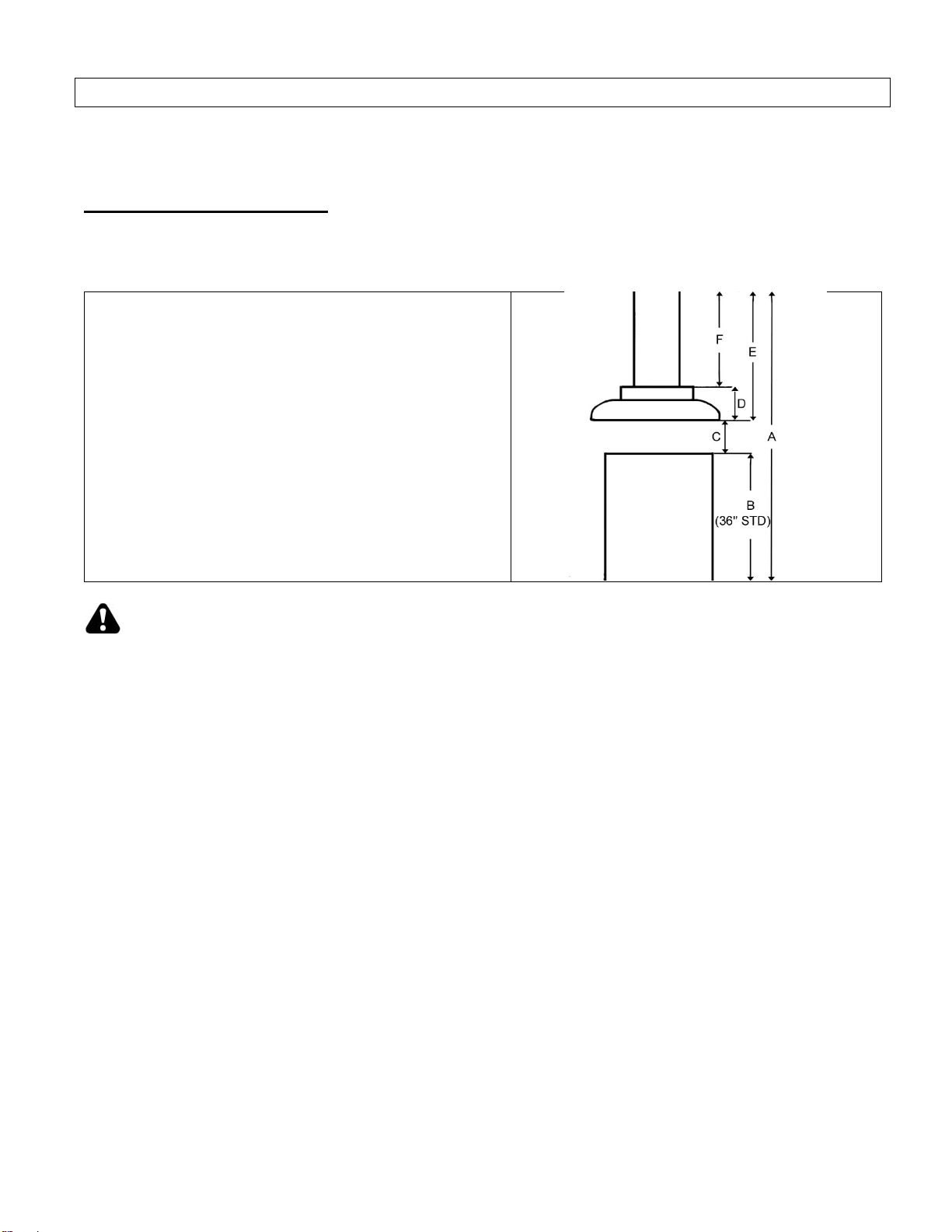

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABL

E 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 30” to 36”)

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE:BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY

OCCUR.

Preparations of Ductwork and Location

NOTE: TO AVOID DAMAGE TO YOUR

HOOD, PREVENT DEBRIS FROM

ENTERING THE VENT OPENING.

- Decide the location of the venting pipe from

the hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the

hood to perform more efficiently.

- Try to avoid as many transitions, elbows,

and long run as possible. This may reduce

the performance of the hood.

- Temporarily wire the hood to test for proper

operation before installing.

- Important: Peel any protective film off the hood

-Use duct tape to seal the joints between pipe

sections.

Telescopic Stack Installation

1. Mark centerlines of cook top or range on

ceiling above. Use centerlines marked on

ceiling to position the mounting template

as shown in Figure 2.

2. Remove and save template. Cut and

remove ceiling drywall. Install 2” x 4” cross

framing lumber (not provided) between

ceiling joists. Refer to Figure 3. Consult a

professional if you have difficulty or your

installation is unique.

3. Finish the ceiling surface. Be sure to mark

the location of the ceiling joists and cross

framing, or replace the mounting template

in the position of the ceiling joists & cross

framing.

4. Attach the telescopic stack to the ceiling

and securely fasten to the joists and cross

framing with eight screws (provided) as

shown in Figure 3. Make sure screws are

driven into center of joists and cross

framing for maximum support.

5. Adjust the telescopic stack using reference

Fcalculated in Table 1 and measurements

on page 12. Tighten from the side with four

(4x8 mm) screws (provided) as shown in

Figure 3.

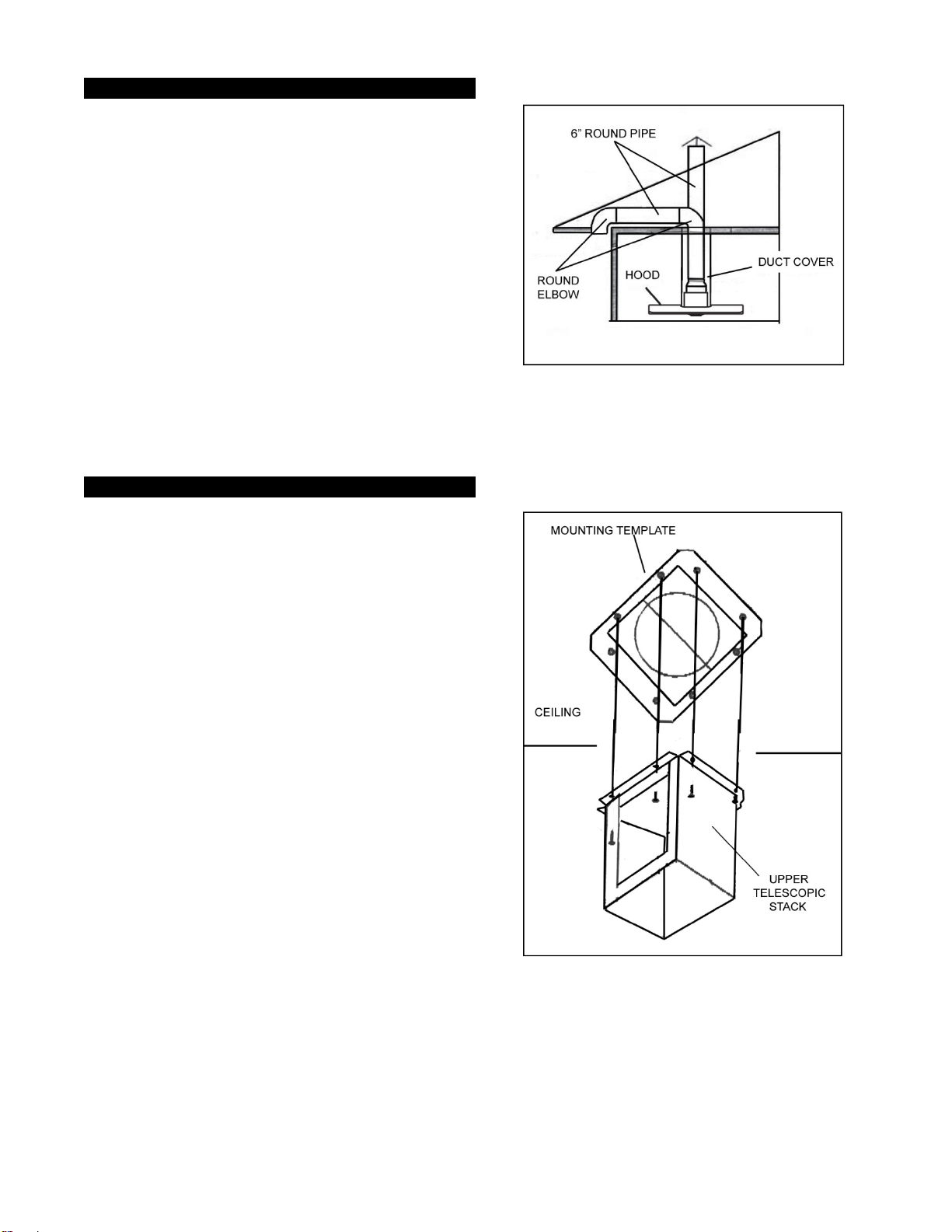

Figure 1

Figure 2

Wiring

to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE

HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY A SPECIALIZED

ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL

ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE

PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

6. Connect three wires (black, white and green)

to house wires and cap with wire connectors.

Connect according to color: black to black,

white to white, and green to green.

7. Test the operation of the hood before moving

on to next step. Make sure power is supplied

to the hood.

Ductwork Installation

8. Use 6” steel pipe (not provided) to connect the

plastic exhaust on the hood to the ductwork

above.

9. Use duct tape to make all joints secure and air

tight.

Duct Cover Installation

10. Slide the duct cover up and secure the inner

duct coverto the telescopic stack with four (4x8

mm) screws (provided). Refer to Figure 4.

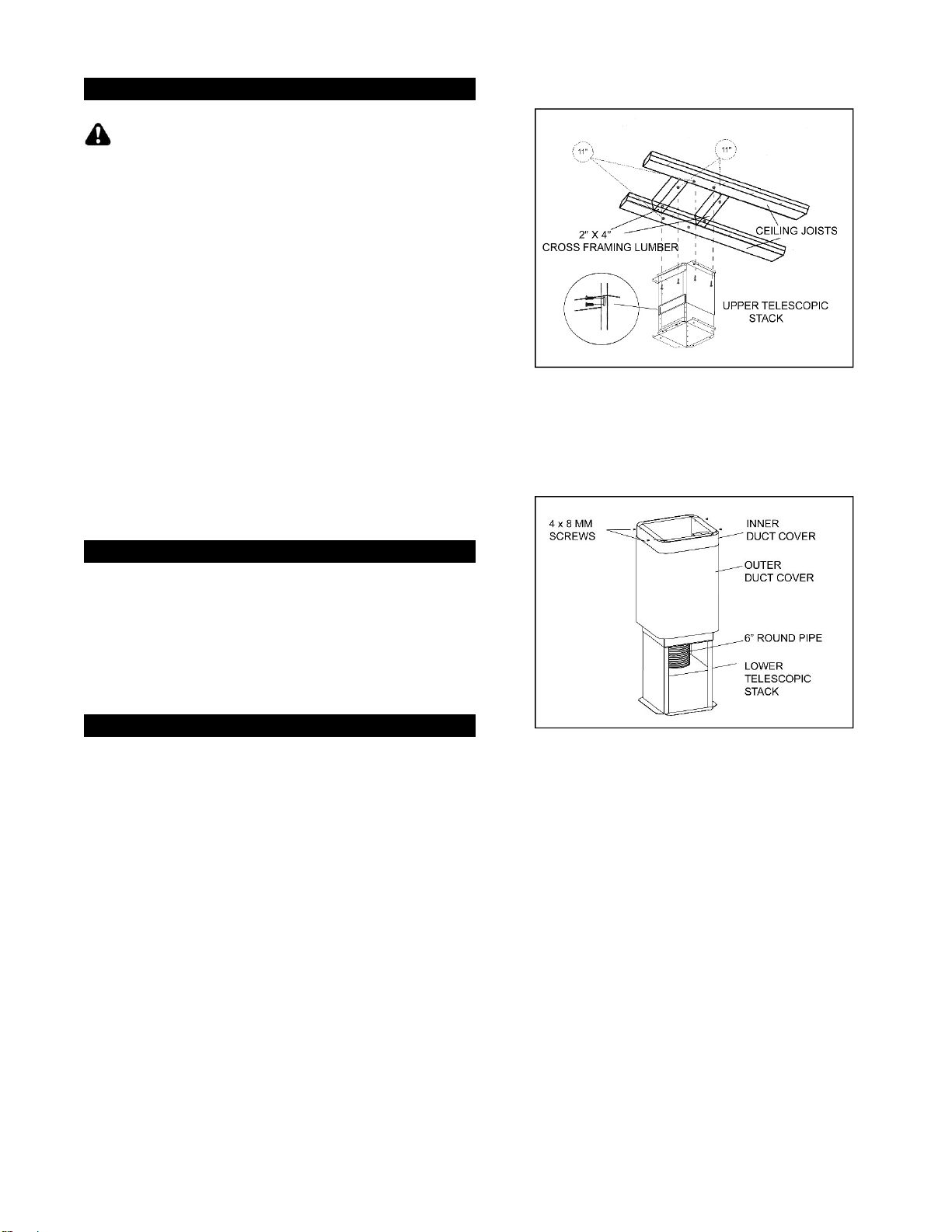

Figure 3

Figure 4

Hood Installation

11. Place four (4 x 8 mm) temporary screws

(provided) to hold the duct cover up. Install the

hood as shown in Figure 5.

12. Use eight (3/16x3/8 mm) screws (provided) to

secure hood to telescopic stack. Make sure to

tighten screws securely. Refer to Figure 5.

13. Connect all the wire connections inside the

hood.

Install Accessories

14. Place baffle filters underneath the hood

Final Assembly

15. Remove the temporary screws and slide the

outer duct cover downward so that it sits

properly on the hood.

16. Turn power ON in control panel. Check all

lights and fan operation.

17. Make sure to leave this manual for the

homeowner.

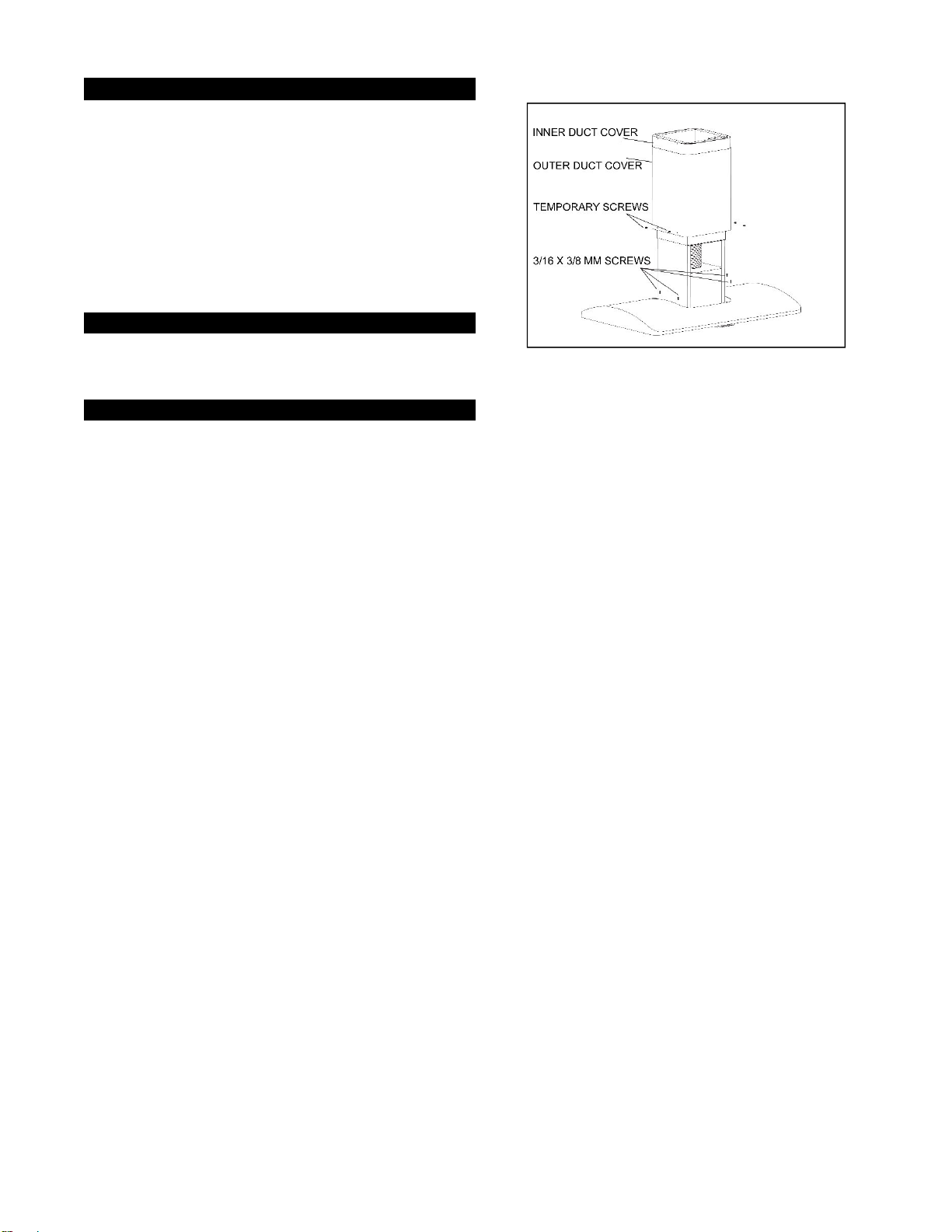

Figure 5

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere KOBE Dunstabzugshaube Handbücher

KOBE

KOBE CHX2030SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE INX2636SQB-700-3 Bedienungsanleitung

KOBE

KOBE INX2830SQH-700-1 Fehlerbehebungshandbuch

KOBE

KOBE IN28 SQP Series Fehlerbehebungshandbuch

KOBE

KOBE RA9230SQB-1 Gebrauchs- und Pflegehandbuch

KOBE

KOBE RA3830SQD Fehlerbehebungshandbuch

KOBE

KOBE BRILLIA INX-026 Fehlerbehebungshandbuch

KOBE

KOBE Premium Series Fehlerbehebungshandbuch

KOBE

KOBE RA92 SQB-5 Series Fehlerbehebungshandbuch

KOBE

KOBE CH0036SQB Fehlerbehebungshandbuch

KOBE

KOBE OVS-CHX9130SQB-40 Fehlerbehebungshandbuch

KOBE

KOBE IN26 SQB-1100-5 Series Fehlerbehebungshandbuch

KOBE

KOBE CHX9130SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE IN2630SQB-700-2 Fehlerbehebungshandbuch

KOBE

KOBE IN2636SQB-700-1 Fehlerbehebungshandbuch

KOBE

KOBE RA2830SB Fehlerbehebungshandbuch

KOBE

KOBE CH77 SQB-1 Series Fehlerbehebungshandbuch

KOBE

KOBE CH-101 Series Fehlerbehebungshandbuch

KOBE

KOBE ISX2130SQB-2 Fehlerbehebungshandbuch

KOBE

KOBE Premium Series Fehlerbehebungshandbuch

KOBE

KOBE CHX20 Fehlerbehebungshandbuch

KOBE

KOBE RA3830SQB-WM-1 Fehlerbehebungshandbuch

KOBE

KOBE IN26 30SQB-650-5 Series Fehlerbehebungshandbuch

KOBE

KOBE INX2730SQB-700-2 Fehlerbehebungshandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
