KOBE RAX9430SQB-2 Fehlerbehebungshandbuch

KOBE Range Hoods

Brillia Series

ISX21 SQB-2 Series

Model No.

RAX9430SQB-2 (30”)

RAX9430SQB-DC30-2 (30”)

RAX9430SQB-DC47-2 (30”)

RAX9436SQB-2 (36”)

RAX9436SQB-DC30-2 (36”)

RAX9436SQB-DC47-2 (36”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

IMPORTANT

READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of package(s).

2. Thoroughly inspect the unit for any shipping damages, cosmetic

damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial

number ready.

3. Contact your merchant for product replacement due to shipping

damages, cosmetic damages or defects.

4. For all other issues, email customer.service@koberangehoods.com

or call 1-626-775-8880, toll free 1-877-289-5623.

NO RETURN, NO REFUND, NO EXCHANGE IF:

1.PRODUCT HAS BEEN INSTALLED

2.KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3.MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION.......................................................................................................................... 4

OPERATING INSTRUCTIONS................................................................................................... 7

MAINTENANCE......................................................................................................................... 8

SPECIFICATIONS ..................................................................................................................... 9

MEASUREMENTS & DIAGRAMS.............................................................................................10

PARTS LIST..............................................................................................................................11

CIRCUIT DIAGRAM..................................................................................................................13

TROUBLE SHOOTING.............................................................................................................14

WARRANTY .............................................................................................................................15

WARRANTY INFORMATION FORM.........................................................................................17

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRI NG MU S T BE DO NE BY A PRO FESSIO NAL AND IN

ACCORD ANCE W I TH NATIO NAL A N D LO CAL E L ECTRI CAL CO DES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE

This warranty is void without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS’ authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING:TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

•NEVER PICK UP A BURNING PAN – You May Get Burned.

•DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.

•Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which must

be recycled or disposed of according to Local, State, and Federal Codes.

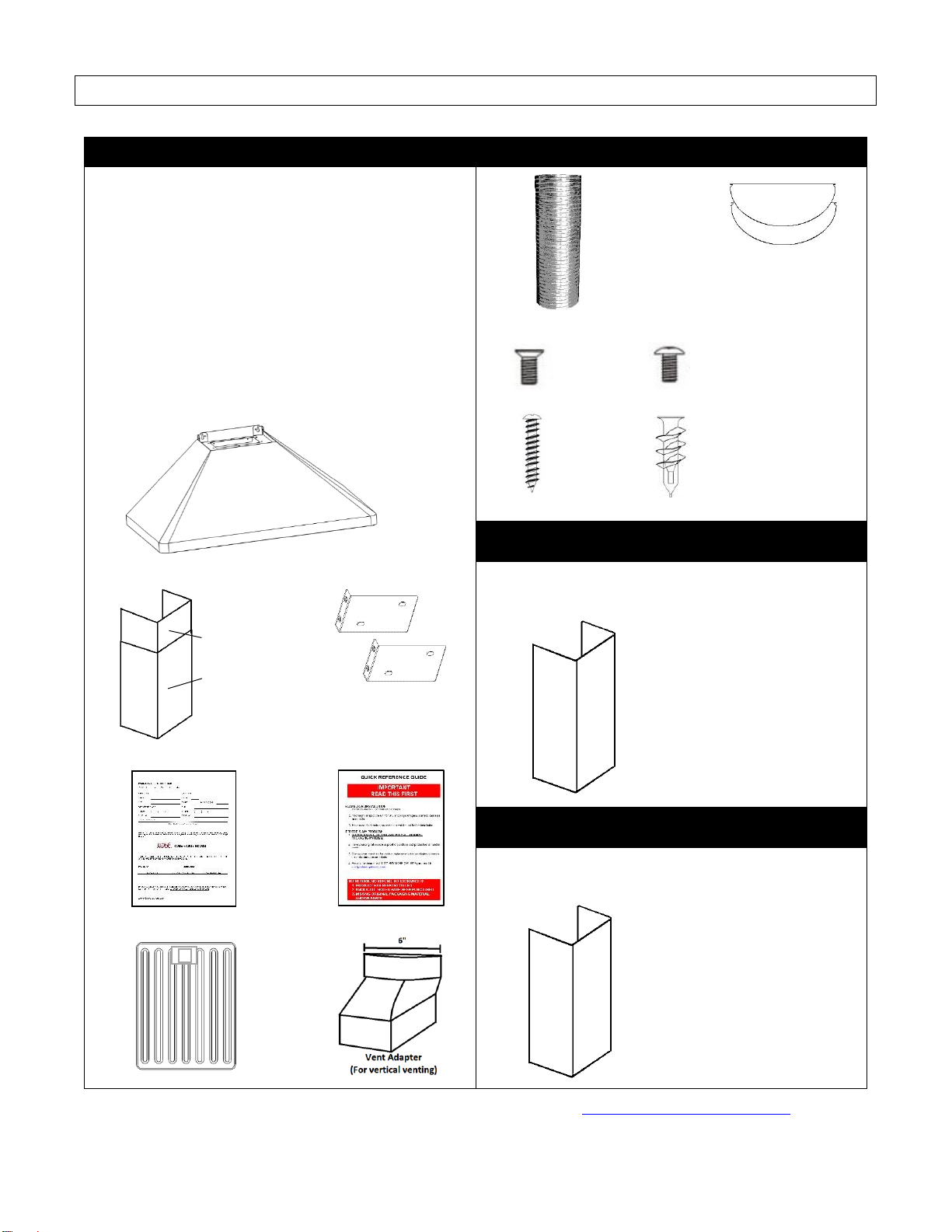

CONTENTS OF PACKAGE

(Must keep all material for returns or refunds)

RAX94 SQB-2 Series Range Hood Box

{A} Range Hood Body –1

{B} 2-pc Duct Cover –1

{C} Duct Cover Mounting Bracket –2

{D} Warranty Registration Card –1

{E} Quick Reference Guide –1

{F} Baffle Filters x 2 (30” hood)

x 3 (36” hood)

{G} 6” Round Vent Adapter

(for vertical venting)

{H} Aluminum Duct Pipe

{I} Flapper (2 pcs)

{J} Screw Package

{A}

{B} {C}

{D} {E}

{F} {G}

{H} {I}

{J}

RAX94DC30-I (1-piece Inner Duct Extension)

(Included in RAX94 SQB-DC30-2 only)

{K} 1-piece Inner Duct Extension

Model No.: RAX94DC30-I

{K}

RAX94DC47-I (1-piece Inner Duct Extension)

(Included in RAX94 SQB-DC47-2 only)

{L} 1-piece Inner Duct Extension

Model No.: RAX94DC47-I

{L}

⧫FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com.

Inner duct cover

Outer duct cover

4 x 8 mm

QTY: 6 PCS

(Pre-attached to Vent

Adapter)

4 x 35 mm

QTY: 6 PCS

12 x 40 mm

QTY: 6 PCS

(For sheet rock only)

5 x 12 mm

QTY: 6 PCS

Pre-attached to

Vent Adapter

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1 (all calculations are in inches.)

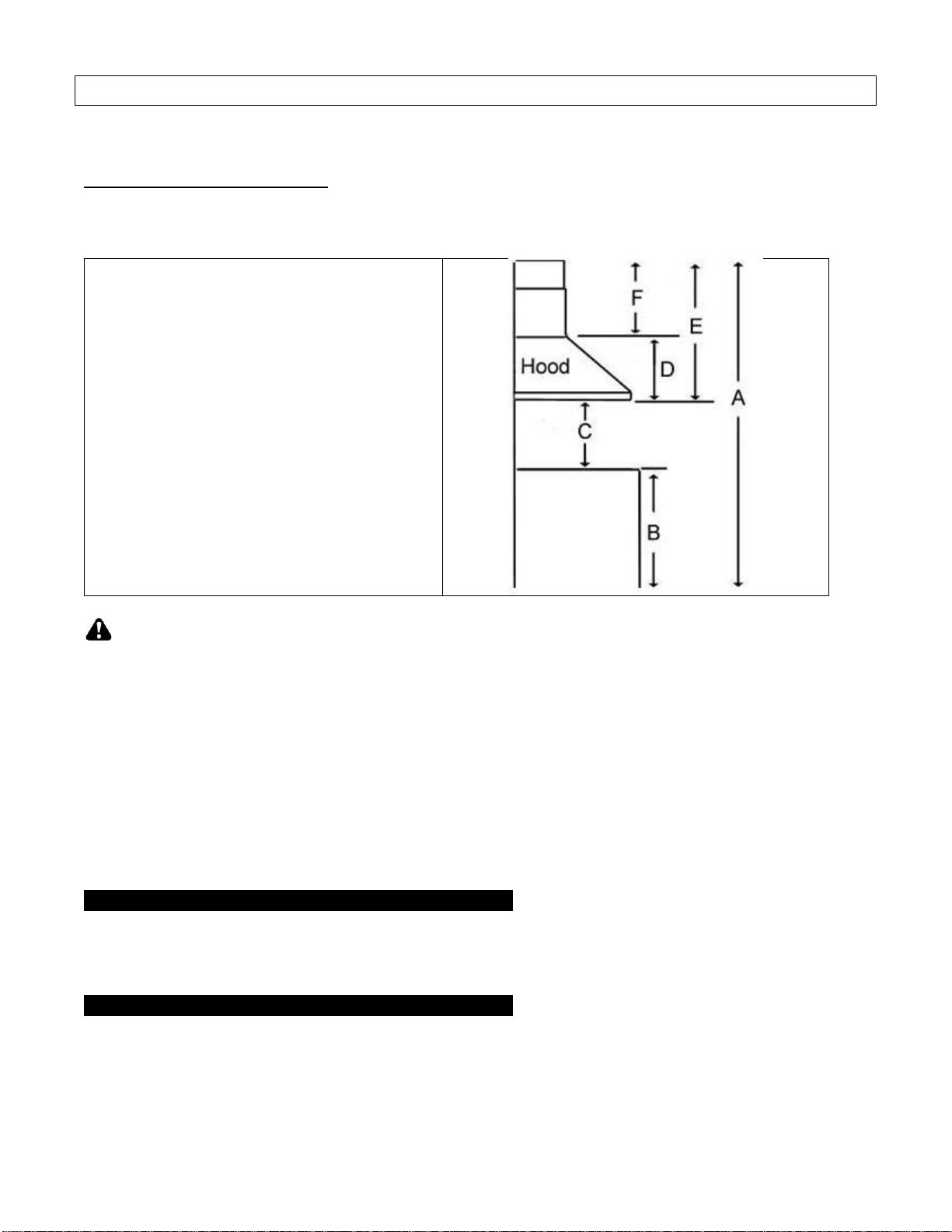

- FOR WALL MOUNT -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Preferred Height of Counter Top

to Hood Bottom (Minimum

26"to 30")

D = Height of Hood

E = Height of Duct Cover [F –D]

F = Height of the Hood Installation

[A –(B+C)]

SAFETY WARNING

•HOOD MAY HAVE SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING

ANY PARTS FOR INSTALLING, CLEANING, OR SERVICING.

•BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY

OCCUR. USING HAND TOOLS IS RECOMMENDED. DO NOT OVER TIGHTEN SCREWS.

•MAKE SURE TO PREVENT ANY DEBRIS FROM ENTERING THE VENT OPENING TO AVOID

DAMAGE OR MALFUNCTION.

WALL MOUNT INSTALLATION

**Installation videos available at www.koberangehoods.com**

1. Read any provided document(s).

2. Test the range hood by temporarily connecting to an outlet and turning ON the fan and lights.

3. If you run into any problems, contact KOBE Range Hoods.

4. This range hood has top 6” round exhaust.

5. Decide the location of the venting pipe from the hood to the outside. A straight, short vent run will

allow the hood to perform more efficiently. Try to avoid elbows, transitions, and long run as much

as possible as this may reduce the performance of the hood. Make sure that the duct work leads

to the outside.

Before Installation

Venting Requirements

6. It is recommended to use metal/aluminum duct/pipe with a

uniform size (ex. 6” round pipe from range hood to the outside).

7. If an elbow is necessary, a minimum of 12” straight run is

necessary before the elbow.

8. Clearance is the distance between the cooktop and the bottom

of the range hood. The recommended minimum clearance for

this model is 26” and the maximum clearance is 30”.

9. It is important to install the hood at the recommended

clearance. Installing too low could result in damage and/or fire

hazard while installing too high may result in reduced

performance and efficiency.

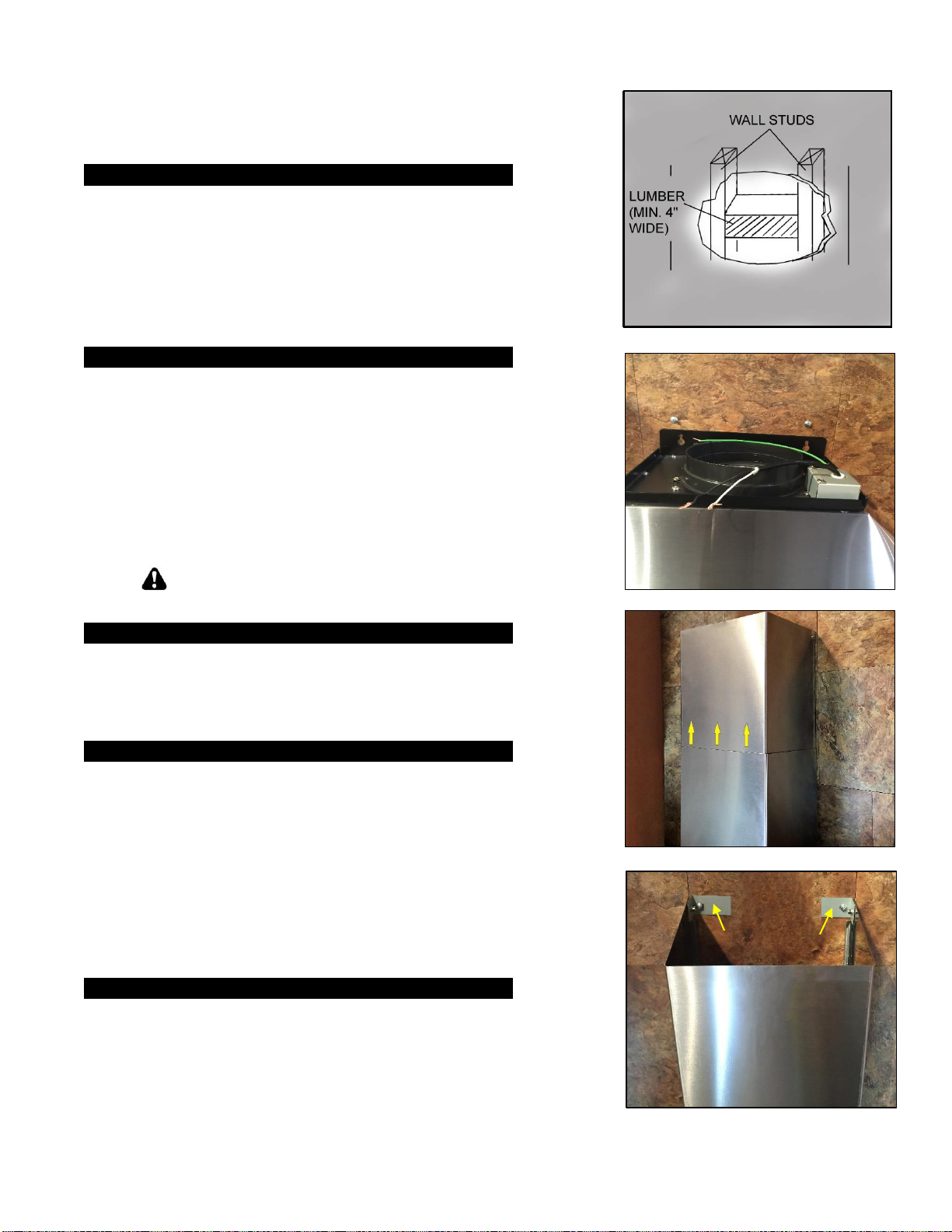

10. The first step is to secure the mounting screws on the wall. It

is important that the screws are hitting the wall studs. If

necessary, install a cross lumber frame in the wall as shown in

figure 1.

11. Attach the mounting screws on the wall, leaving about 1/8 of

an inch between the wall and the end point of the screws since

this is where you will hang your hood. Refer to figure 2.

12. Align the hood-mounting bracket to the screws on the wall and

hook into place. Then tighten the screws to secure the hood to

the wall.

CAUTION: MAKE SURE THE HOOD IS SECURE

BEFORE RELEASING.

13. Attach the vent adapter to the exhaust opening using the 4 x 8

mm screws.

14. Connect the pipe onto the vent adapter and seal the joint with

duct tape. Make sure that it is completely air tight.

15. Attach the two ductcover mounting bracket on the wall as seen

on figure 4.

16. Place the inner duct cover and outer duct cover over the range

hood.

17. Secure the outer duct cover to the range hood body with the 5

x 12 mm screws provided.

18. Pull the inner duct cover up until it aligns properly to the duct

cover mounting bracket, then secure to the duct cover

mounting bracket with 5 x 12 mm screws. Refer to figure 3 and

19. Connect the range hood to an outlet.

20. If hardwired is desired, cut off the plug and connect three wires

(black, white, green) to the outlet wires and cap with wire

connectors. Connect the wires according to color (ex: black to

black).

Clearance

Hood Installation

Ductwork

Duct Cover

Electrical Wire

Figure 1

Figure 2

Figure 3

Figure 4

Duct Cover

Mounting Bracket

21. Remove any protective film off the hood, if any.

22. Before using, make sure that any accessories such as filters are properly installed where

applicable.

23. Test the range hood to see if it is working properly.

THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY

QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL

ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.

Finish

OPERATING INSTRUCTIONS

3-Speed Mechanical Control

Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while

cooking. Adjust speed as necessary.

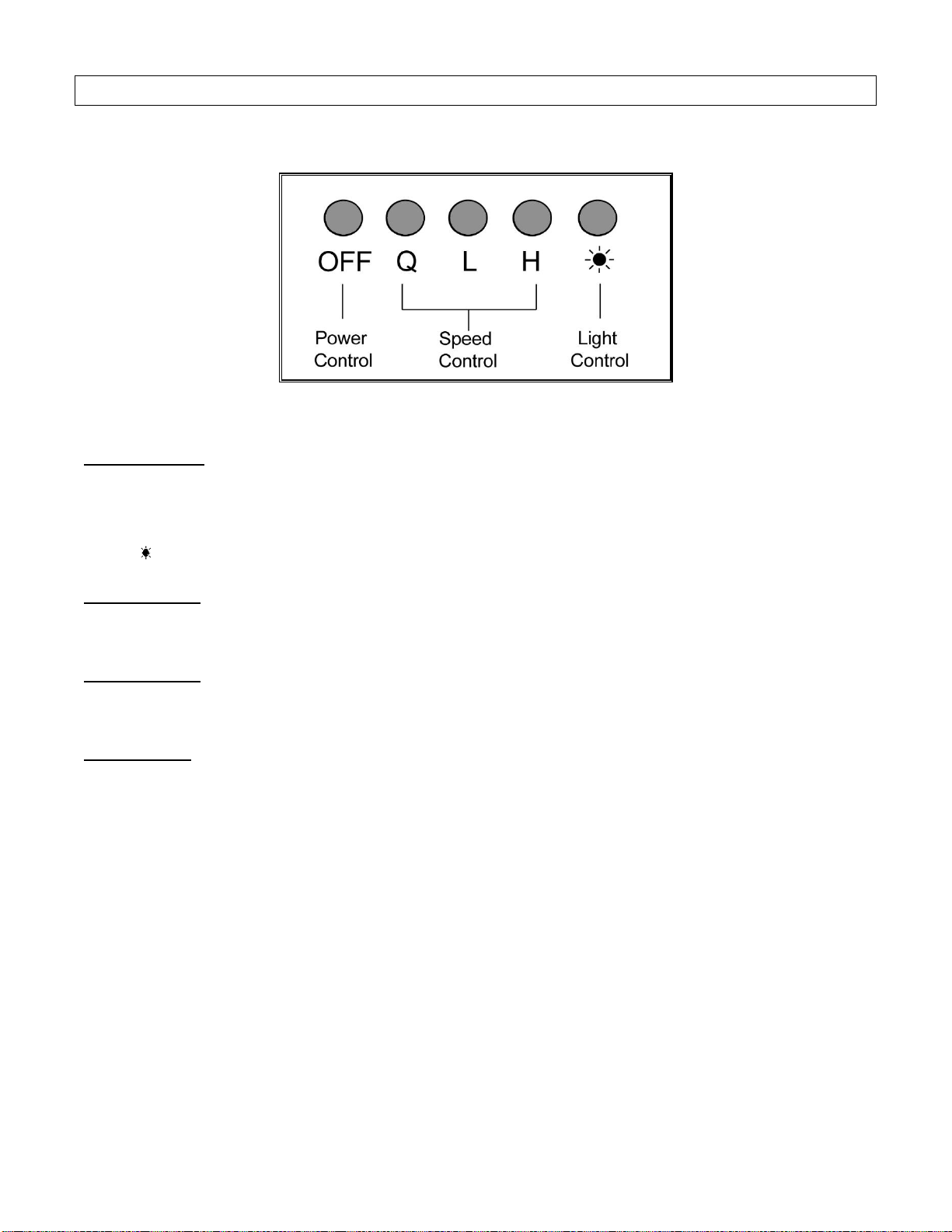

Button Control

OFF = Turns the range hood OFF.

Q = Lowest fan speed (QuietMode).

L = Middle fan speed (Low).

H = Highest fan speed (High).

= Turns the lights ON/OFF.

Power Control

To turn the hood off, press the OFF button once while it is ON.

Speed Control

Press the speed buttons (Q, L, and H) to increase/decrease the fan speed level.

Light Control

Press the light button to turn ON/OFF the lights.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere KOBE Dunstabzugshaube Handbücher

KOBE

KOBE CH0330SQB Fehlerbehebungshandbuch

KOBE

KOBE Brillia RAX9430SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE CH8136SQ Fehlerbehebungshandbuch

KOBE

KOBE PREMIUM IN26 Series Fehlerbehebungshandbuch

KOBE

KOBE ISX2136SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE CHX9136SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE IS2336SQ Fehlerbehebungshandbuch

KOBE

KOBE RA3830SQD Fehlerbehebungshandbuch

KOBE

KOBE CHX9130SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE CHX-30 Series(400 CFM-LED) Fehlerbehebungshandbuch

KOBE

KOBE CH0030SQB Fehlerbehebungshandbuch

KOBE

KOBE RA0230SQB-DC48-1 Fehlerbehebungshandbuch

KOBE

KOBE AMZ-CHX2030SQB-40 Fehlerbehebungshandbuch

KOBE

KOBE Brillia RAX2130SQB-1 (30") Fehlerbehebungshandbuch

KOBE

KOBE CH0030SQB Fehlerbehebungshandbuch

KOBE

KOBE RA2230SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE Brillia Series Fehlerbehebungshandbuch

KOBE

KOBE INX29 SQBF-500-1 Series Gebrauchs- und Pflegehandbuch

KOBE

KOBE CHX2030SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE RA3830SQ Fehlerbehebungshandbuch

KOBE

KOBE CH77 SQB-5 Series Fehlerbehebungshandbuch

KOBE

KOBE Premium Series Fehlerbehebungshandbuch

KOBE

KOBE IN26 SQB-1100-5 Series Fehlerbehebungshandbuch

KOBE

KOBE CH2730SQB Fehlerbehebungshandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
