Kodak KC20 Bedienungsanleitung

KC20

Camera

Camera subject to minor appearance and specification changes.

Getting to Know Your Camera

123

ses

ILM

8910 11 12

Contents

Need Help with Your Camera? ........................................... 2

Camera Identification ......................................................... 3

Specifications..................................................................... 4

Loading the Batteries ......................................................... 5

Loading the Film ................................................................ 6

Taking a Picture ................................................................. 10

Tips for Better Pictures....................................................... 12

Taking Flash Pictures ......................................................... 13

Unloading the Film ............................................................. 15

Troubleshooting.................................................................. 16

ENGLISH

Need Help with Your Camera?

Call:

Kodak in your country.

Visit our web site at http://www.kodak.com

For warranty purposes, please keep your sales receipt as proof of the

date of purchase.

1Shutter Button

2Picture Counter

3Viewfinder

4Flash

5Lens

6Lens-Cover Switch

7Camera Strap

8Film Spindle

9Viewfinder Eyepiece

10 Flash-/Camera-Ready Light

11 SprocketTeeth

12 Film Window

13 Film Door

14 Film-Load Mark

15 Battery-Door Latch

16 Take-Up Spool

17 Film-Rewind Switch

18 Film Chamber

19 Film-Door Latch

Camera Identification (see inside front cover for diagrams)

Specifications

Type: Compact 35 mm fixed-focus camera

Lens: 29 mm, 3-element hybrid

Viewfinder: Reverse-Galilean

Aperture:

/5.6

Film Speed: DX (ISO) 100–400 for color or black-and-white

print film

Focus Range: Daylight: 4 ft. (1.2 m) to infinity

Flash Unit: Electronic flash with ISO 100/21°, guide

number of 7.5 m; flash every time

Flash Recycle Time: Approximately 6 sec with fresh batteries

Power Source: 2 AA-size alkaline batteries

Dimensions: 4.7 x 2.6 x 1.7 in. (120.4 x 65.2 x 43.7 mm)

Weight: 5.7 oz. (162 g)

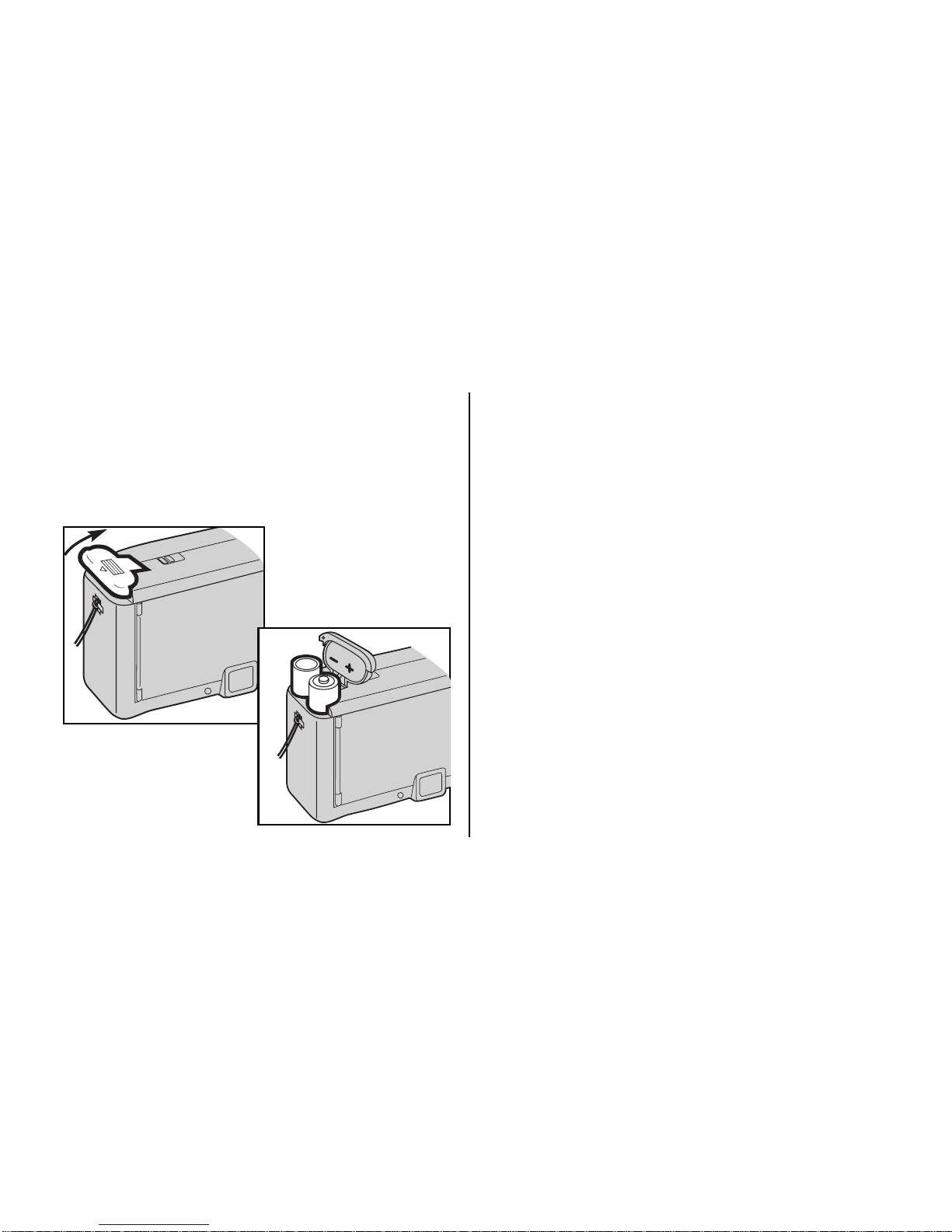

Loading the Batteries

This camera uses 2 AA-size

alkaline batteries.

Low-Battery Warning

It’s time to replace the batteries

when—

• the flash- /camera-ready light takes

more than 30 seconds to turn on.

• the camera motor slows down or

will not run.

• the film will not advance.

Auto Power Off

This camera automatically turns

off after approximately 2–3 minutes

to conserve battery power when not

in use.

Loading the Film

If in sunlight, turn your back to the

sun and load the film in the shade

of your body.

1. Slide the FILM-DOOR

LATCH (19) down; then open

the FILM

DOOR (13).

2. Insert the film into the FILM

CHAMBER (18). Place the flat,

recessed end of the film over

the FILM SPINDLE (8). Push

the other end of the film down

into the film chamber until it

snaps into place.

FILM

LOAD MARK

FILM-GUIDE RAILS

3. Pull out just enough film to

place the end of the film at the

FILM-LOADMARK (14).

Be sure the end of the film is

at the film-load mark or you

may not get any pictures.

Lay the film flat between the

film-guide rails.

If the end of the film extends past

the film-load mark, gently push

the excess back into the film

cartridge.
