Kogan HDMI HD26 Bedienungsanleitung

Kogan HD26

High Definition LCD TV

USER MANUAL

Safety information

To ensure reliable and safe operation of this equipment, please read carefully all of the

instructions in this user guide, especially the safety information below.

Electrical safety

·The TV set should only be connected to a mains power supply which matches that stated

on the label on the mains power adaptor.

·To prevent overload, don’t share the same mains power supply socket with too many

other items of equipment.

·Be careful to route the mains power cable away from areas where people can trip

over it.

·Unplug the TV when it is not going to be used for a long time. Disconnect both the

aerial and the main power cable.

·Take care not to expose the TV set or the remote control to water or moisture.

·Pull the plug out immediately, and seek professional help if:

- the mains power plug or cable is damaged

- liquid is spilt onto the TV set, or if it is accidentally exposed to water or moisture

- anything accidentally penetrates the ventilation slots

- the TV set doesn’t work normally.

·Never remove the cover, there are no user-serviceable parts inside.Allow only

qualified service personnel to repair this equipment.

·To avoid leakage, take out the remote control batteries when:

- the batteries are exhausted

- you are not going to use the remote control for a long time.

·Batteries should be recycled or disposed of in a proper manner.

Physical safety

·Make sure the set is positioned at least 5cm (2inch) from the wall or furniture.

·Never tap or shake the screen for any reason.

·Take care not to drop or sit on the remote control.

·Clean the set using only a soft, clean, dry cloth. Do not use any solvents.

OPERATING INSTRUCTIONS

Contents

Safety information--------------------------------------------------------------------------------------- 1

Electrical safety ----------------------------------------------------------------------------------------- 1

Physical safety ------------------------------------------------------------------------------------------ 1

In the box -------------------------------------------------------------------------------------------------- 3

Connection ------------------------------------------------------------------------------------------------ 4

Rear connection panel -------------------------------------------------------------------------------- 4

Getting Started ------------------------------------------------------------------------------------------- 5

Front panel controls ------------------------------------------------------------------------------------ 5

The Remote control ------------------------------------------------------------------------------------- 6

Using the remote control for normal TV functions ---------------------------------------------- 6

Initial Setup Instruction Guide ---------------------------------------------------------------------- 8

Power ON/OFF: Standby mode -------------------------------------------------------------------- 8

Selection of Input Mode ------------------------------------------------------------------------------ 8

On Screen Display (OSD) Menu -------------------------------------------------------------------- 9

Navigating the OSD Menu--------------------------------------------------------------------------- 9

Video Page Menu -------------------------------------------------------------------------------------- 10

Audio Page Menu -------------------------------------------------------------------------------------- 13

TV Page Menu (Only for TV) ------------------------------------------------------------------------ 14

Setup Page Menu -------------------------------------------------------------------------------------- 17

Parental Page Menu ---------------------------------------------------------------------------------- 19

Troubleshooting ------------------------------------------------------------------------------------------ 22

Maintenance ----------------------------------------------------------------------------------------------- 23

Features and Specifications-------------------------------------------------------------------------- 24

In the box

TVset

Powersupplycable Remotecontrol

- If any of the accessories are missing, then please contact Kogan Technologies.

- Keep all the original packaging in case you need to return the TV to Kogan Technologies.

Connection

Rear connection panel

Number Name Function Description

1 HDMI HDMI input jack (audio and video)

2 VGA VGA (D-sub) computer input

3 VGAAudio IN VGA audio input (3.5mm stereo)

4 YPbPr (1,2) IN YPbPr inputs

5 YPbPr (1,2) Audio IN YPbPr Audio input

6 S-VIDEO S-Video input

7 COAX OUT Audio signal (digital) coaxial output

8 CVBS IN AV analogue video input

9 CVBS_R/CVBS_L AV analogue audio input (also S-Video audio IN)

10 CVBS OUT This port is not functional on this model

11 CVBS Audio OUT This port is not functional on this model

12 RF Connect to TV cable/antenna or DVB-t antenna

13 AC Connect to the supplied PowerAdaptor

14 TEST USB slot for testing and upgrade

Getting Started

1. Connect the aerial or input source to the appropriate input socket at the rear of

the TV set (see page 4).

2. Connect the small round plug on the power adaptor cable to the power input

socket at the rear of the TV set.

3. Connect the power cable between the power adaptor and the mains supply.

4. Turn on the TV Power switch under the right hand speaker.

5. Switch the TV on by pressing the POWER button on the front panel or the

remote control (the LED will show green).

6. Use the AV/TV button on the front panel or the remote control to select which

input source to use : TV-AV-SVIDEO-YPBPR1-YPBPR2-VGA-HDMI

7. You can use the front panel controls to adjust the volume or select a channel as shown

below, or you may use the remote control for these functions.

8. To switch the set off for a short time, press the POWER button, the set will go into

standby and the LED will show red. If you are not going to use the set for some

time, switch the power off completely by unplugging the mains cable.

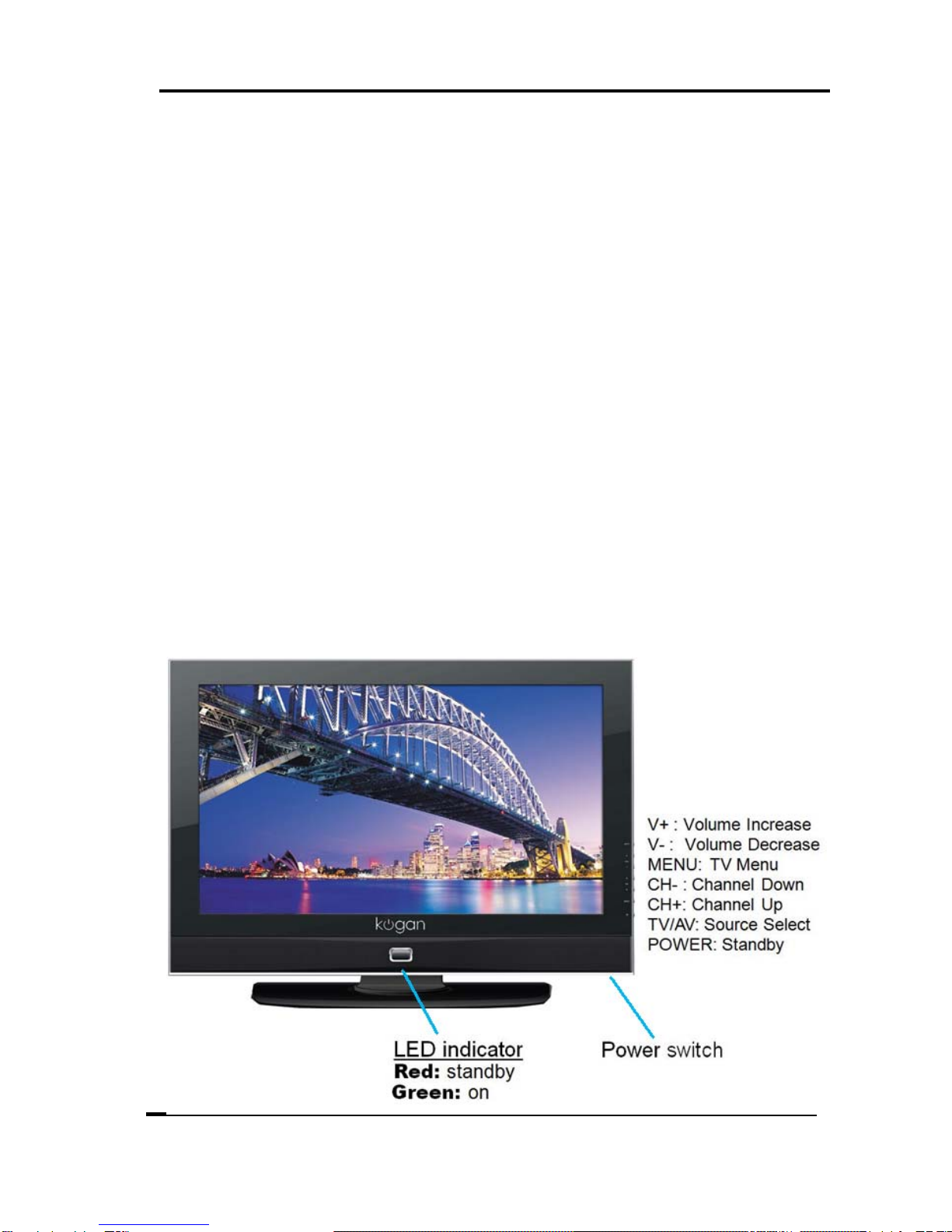

Front panel controls

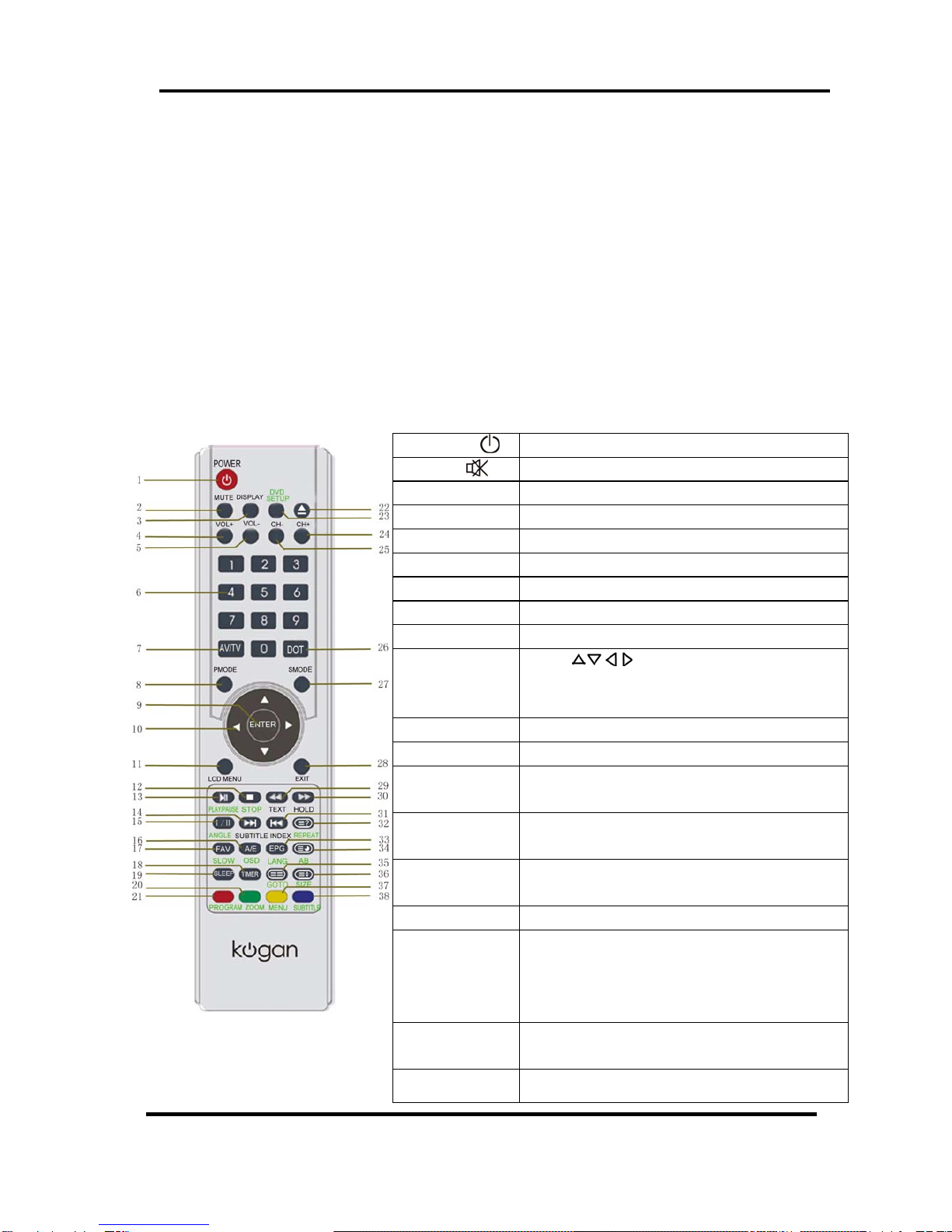

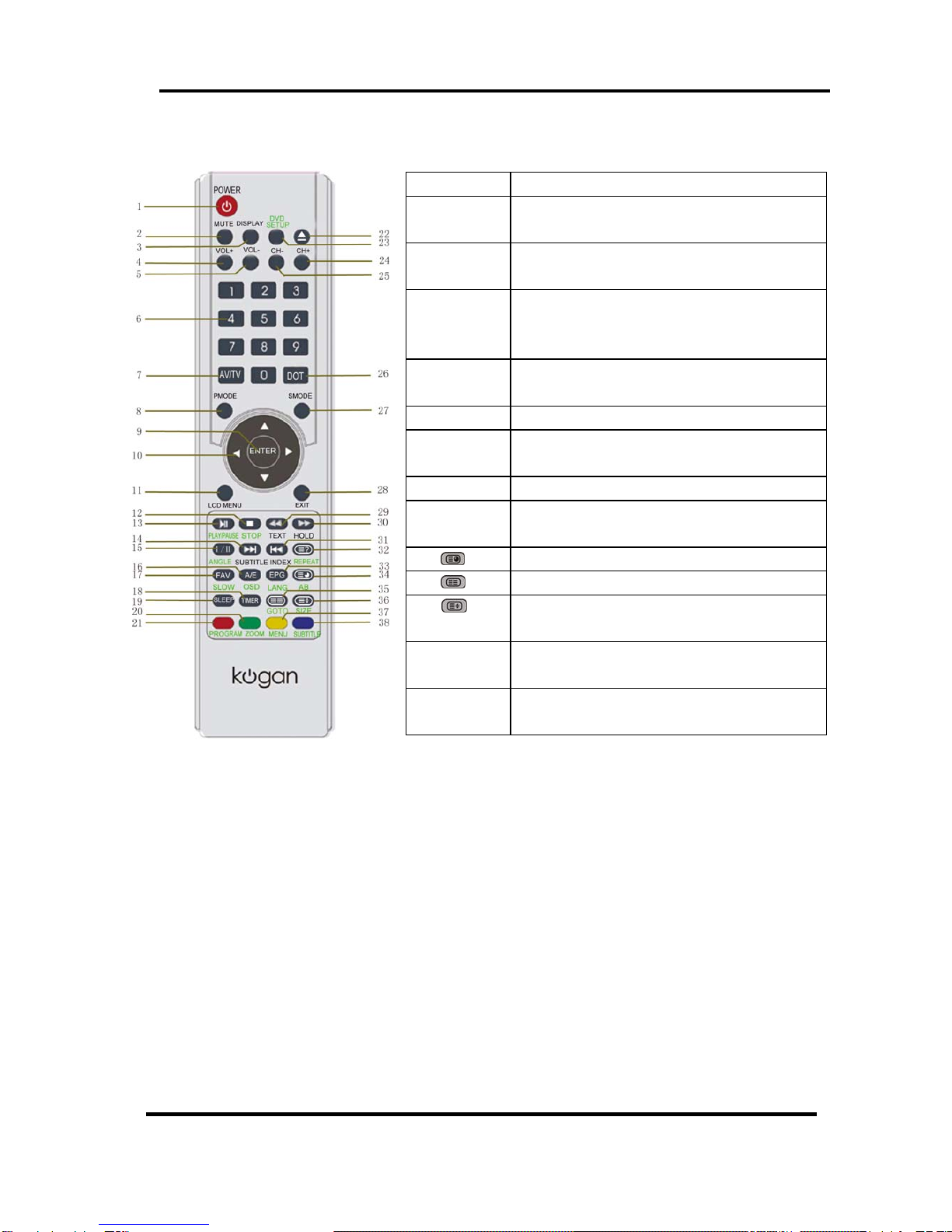

The Remote Control

Using the remote control for normal TV functions

1. Insert two AAA batteries, making sure that the polarity is correct as marked

inside the compartment.

2. Aim the remote control at the IR sensor just below the green light (see

page 5 for diagram). Keep this area clear at all times.

3. Do not press the buttons on the remote too quickly – allow the TV time to

respond.

01. POWER : Press to enter or exit the standby mode

02. MUTE : Press to turn on or off speaker output

03. DISPLAY: Press to show or remove status display

04. VOL+: Press to increase volume

05. VOL-: Press to decrease volume

06. Numbers: Press to select a channel

07. AV/TV: Press to select input source

08. PMODE: Press to select picture display mode.

09. Enter: Press to confirm your selection

10. Directions: Press to Select up (Page+ for TV

teletext), down (Page- for teletext), left, and right

in menu screens.

11. LCD Menu Press to display the LCD Menu system (see p.9)

12, 13, 15.: These buttons are unused on this model

14. SUBTITLE Press this button to activate subtitles for Digital

TV programs where available.

16. A/E Press this button in TV mode to make the

current channel a Favourite

17. FAV: Press this button to enter the Favourites menu

directly

18. TIMER: Press to display the time

19. SLEEP: Press to enter Sleep mode, where the TV will

automatically enter standby mode after a set

time (press to toggle between “Off” and up to

240 minutes in 15 minute increments)

20. GREEN Press to activate the “GREEN” function in

teletext

21. RED Press to activate the “RED” function in teletext

22-23.: These buttons are unused on this model

24. CH+ Press to select TV channel (see p.15 “Channel

Skip”)

25. CH- Press to select TV channel (see p.15 “Channel

Skip”)

26. DOT Press the number buttons with this to select

channels directly (i.e. channel 108-1 would

need the DOT button pressed after the 8).

27. SMODE Press this button to toggle between preset

sound modes for different echoing effects.

28. EXIT Press this button to exit in a menu.

29. TEXT Press to enter or exit teletext mode for

TV/DVB

30-32.: These buttons are unused on this model

33. EPG In TV/DVB mode, press to display the

Electronic Programming Guide

34. Press to access subpages for teletext

35. This button is not used on this model

36. Press to toggle between available display

aspect ratios for the current input.

37. YELLOW Press to activate the “YELLOW” function in

teletext

38. BLUE Press to activate the “BLUE” function in

teletext

Note: The TV will return to TV mode when any of the buttons for changing

channels are used, i.e. the Number buttons, CH+ and CH-

Initial Setup Instruction Guide

Power ON/OFF: Standby mode

- Press POWER ( )button on the remote control or on

the side panel to turn on the unit.

[The power indicator changes from red to green]

- Press POWER ( ) button on the remote control or on

the side panel again to return the display to standby mode.

[The power indicator changes from green to red]

Selection of Input Mode

- Press the Input (AV/TV) button to display the signal source menu.

- Press or button to select the signal source you desire,

then press the Enter button to confirm.

When selecting the input source, the screen will display the information

of the selected input source. For example:

TVmode

- When there is no signal from the selected source or channel, a warning message will be displayed.

- If you see the “No Signal!” warning, you can select a different channel or press the Input (AV/TV)

button to change the selected source.

- When you first receive your new TV, it is advisable to perform a new “Channel Scan” to setup your

set to receive all of the channels available in your area. Follow the section “Using Channel Scan”’

on page 15.

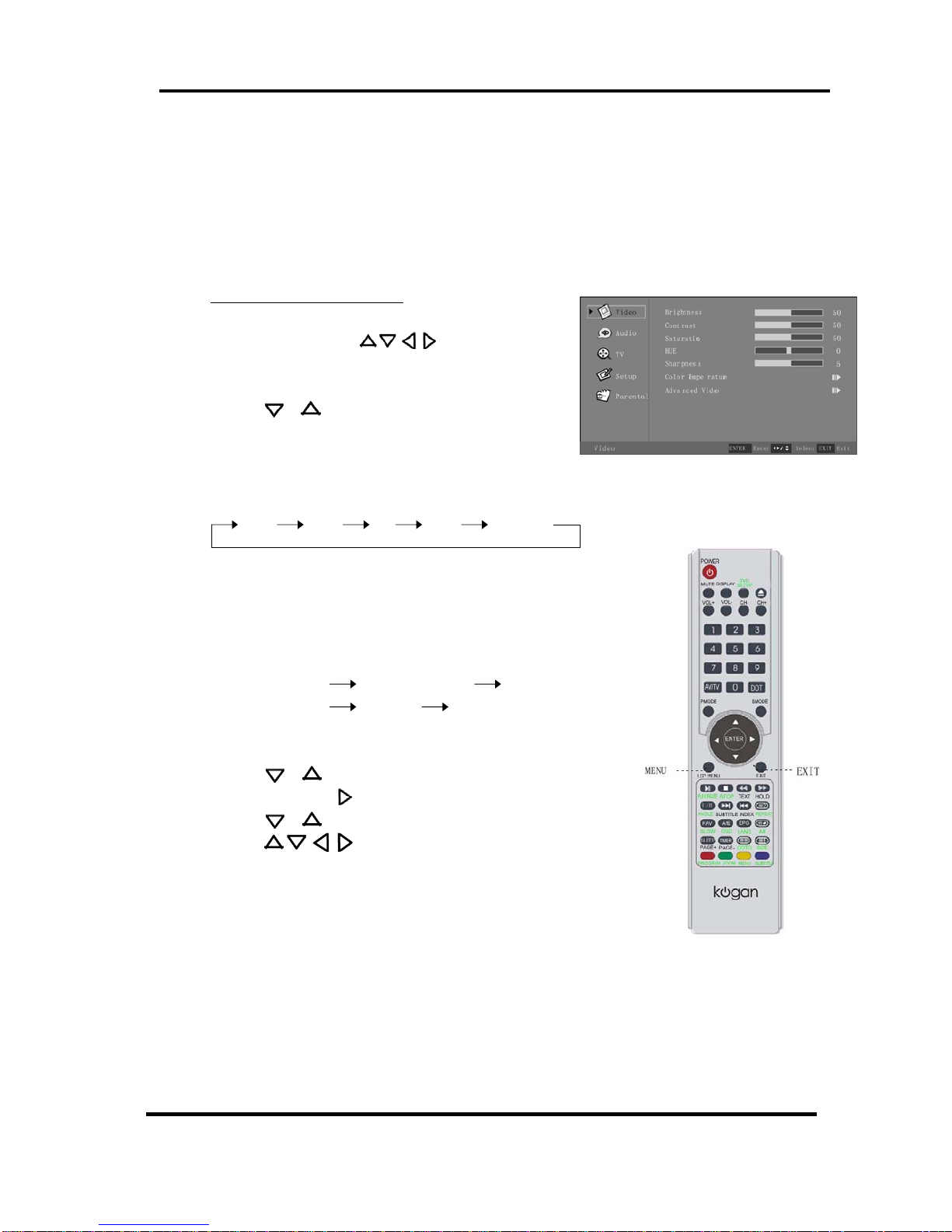

On Screen Display (OSD) Menu

After you have installed the batteries in the remote control, you can set setting preferences on

the TV using the OSD menu system.

Navigating about the OSD menu:

- The buttons used in the OSD menu include:

’MENU’ (LCD MENU), , ‘ENTER’ and ‘EXIT’.

- Whatever input source is currently selected, press

the Menu button to open the OSD Menu for that source,

then or to select the sub menu pages

The sub menu pages are displayed in the following sequence

(circular display):

Video Audio TV Setup Parental

Note: The TV sub menu page will only appear for the TV mode OSD Menu.

When pressing the Menu button on the remote control or on

the side panel, it will change in the following sequence:

Main Menu Press Menu or Exit Exit

Sub Menu Press Exit Previous Menu

1. Press the Menu button to display the menu system.

2. Press or button to select the menu pages.

3. Press the Enter or button to enter.

4. Press or button to select an item.

5. Press button to select or adjust a setting.

6. If you do not make a selection within several

seconds, the main menu will close automatically,

7. Press the Menu or Exit button exit the OSD menu.
