USER GUIDE

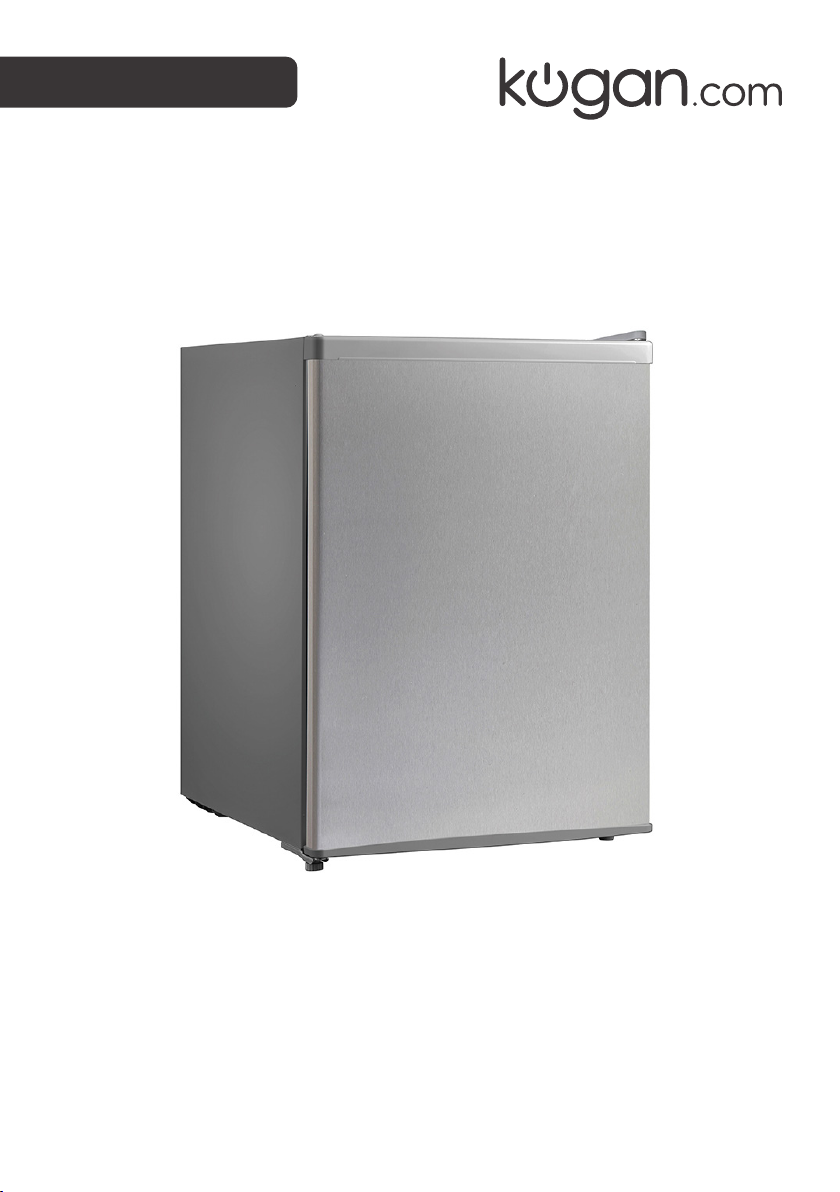

69L BAR FRIDGE

(KAM69LBRSFA, KA69WCBRFGA, KAM69LBRSFB)

CONTENTS

THIS USER GUIDE COVERS THE FOLLOWING MODELS

Kogan 69L Bar Fridge - Stainless Steel (KAM69LBRSFA)

Kogan 69L Bar Fridge - White (KA69WCBRFGA)

Kogan 69L Bar Fridge - Black (KAM69LBRSFB)

Safety and warnings ................... 03 - 04

Product overview...................................05

Installation..................................... 06 - 08

First time use...................................09 - 10

Cleaning & maintenance............... 11 - 13

Troubleshooting...................................... 14

Speciﬁcations.......................................... 15

Thank you for buying this Kogan product. Please read all safety instructions before using

your bar fridge.

• Read this manual thoroughly before ﬁrst use, even if you are familiar with this type of

product. The safety precautions enclosed herein reduce the risk of ﬁre, electric shock and

injury when correctly adhered to.

• Make sure you understand all instructions and warnings.

• This appliance is only intended for use within a domestic environment only.

• Children should be supervised to ensure that they do not play with the appliance.

• If the power supply cord is damaged, it must be replaced by a Kogan.com technician or

similarly qualiﬁed person in order to avoid a hazard.

• Do not store explosive substances such as aerosol cans with ﬂammable propellants inside.

• Unplug the appliance aer use and before carrying out any user maintenance.

• Keep all ventilation openings clear of obstructions.

• Do not use mechanical devices or other means to accelerate the defrosting process.

• Do not use extension cords.

• The refrigerant and cyclopentane foaming material used in this appliance is ﬂammable.

• When unplugging the appliance from the power outlet, grasp the plug and pull on it. Do

not pull on the cord.

• Please use a dedicated power socket for this appliance. Do not share the outlet with other

appliances via a power board or double adapter.

• Do not disassemble or attempt to repair the refrigerator by yourself. Doing so will void the

warranty. Kogan.com is not liable for an appliance that has been tampered with.

• The gap between the refrigerator door and the cabinet is small. Do not put your hands in

this area to avoid having your ﬁngers pinched.

• Do not touch or move items from the cooler compartment with wet hands.

• Do not allow animals or pets to climb into or onto the refrigerator.

• Do not place heavy objects on top of the refrigerator.

• Unplug the unit from the power outlet in the event of a power failure or when cleaning.

Avoid plugging the unit back within 5 minutes aer unplugging to avoid damage to the

compressor.

• The refrigerator should be used only for the storage of household foods and drinks. It is not

designed for storage of blood, drugs or other biological products.

• Do not store beer, beverages or other ﬂuids contained in bottles or enclosed containers in

the cooler compartment of the refrigerator, as the bottles may crack due to the freezing

process.

• When the refrigerator is being disposed of, the doors should be removed and the power

cord should be cut.

SAFETY AND WARNINGS

WARNING: RISK OF FIRE / FLAMMABLE MATERIALS

Risk of Fire:

• If the refrigerant circuit should become damaged. Avoid open ﬂames and sources of

ignition. Disconnect the appliance from the mains power. Thoroughly ventilate the room in

which the appliance is situated for several minutes.

Disposing:

• Old appliances should not simply be disposed of with normal household waste, but should

be delivered to a collection and recycling centre for electric and electronic equipment. A

symbol shown on the product, the instruction manual or the packaging shows that it is

suitable for recycling.

• Materials used inside the appliance are recyclable and are labelled with information

concerning this. By recycling materials or other parts from used devices you are making a

signiﬁcant contribution to the protection of our environment.

• Information on appropriate disposal centres for used devices can be provided by your local

authority

SAFETY AND WARNINGS (cont’d)

PRODUCT OVERVIEW

1 Cooler compartment

2 Thermostat

3 Drain tray

4 Steel wire shelf

5 Bottle rack

6 Adjustable feet

INSTALLATION

SELECTING A SUITABLE LOCATION

When selecting a position for your unit, ensure the floor is flat and firm, and

the room is well ventilated. Avoid placing your unit near a heat source (ie,

oven, radiator, or hot water system). Avoid direct sunlight as it may increase

the electrical consumption. Extreme cold temperatures may also cause the

unit to not perform correctly. This unit is not designed for use in a garage or

outdoors. Do not drape the unit with any covering.

When installing the unit, ensure that 15cm of free space is allowed to the

left, right and rear of the unit, and 20cm at the top. This will allow cold air to

circulate around the unit and improve the efficiency of the cooling process.

1a. Door space requirements

The unit’s door must be able to open fully

as pictured (1a).

1b. Levelling the unit

To level the unit, adjust the two feet at

the front of the unit – turning clockwise

to extend and counter-clockwise to

reduce (1b). If the unit is not level, the

door and magnetic seal alignments

will not be covered properly, leading to

inefficient freezing performance. Ensure

that the feet all touch the ground before

use.

Figure 1a

Figure 1b

2. Reversing the door swing

TOOLS REQUIRED

Phillips head screwdriver, flat-blade screwdriver, and hexagonal

spanner.

Step 2bStep 2a

a. Remove the plastic covering from the top door hinge, and unscrew

the two screws from the bottom bracket. Remove the foot from the

opposite side.

b. Place the pieces to one side for now.

Step 2c Step 2d

c. Slide the door down about 15cm and off the top hinge pin and then

lift it away from the fridge.

d. Remove the two screws from the top bracket and replace them on

the other side. You will need to remove the plastic caps from the

other side first.

INSTALLATION (cont’d)

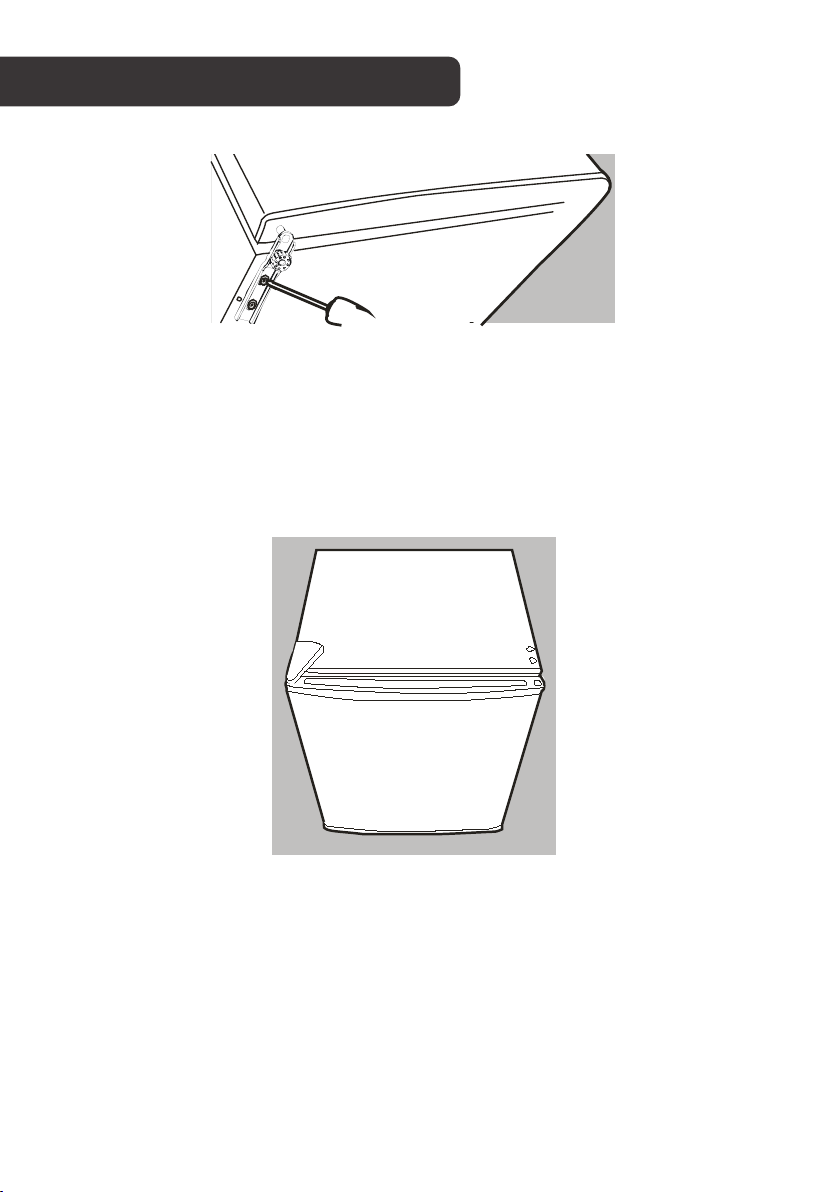

Step 2e

Step 2f

e. Slide the door back onto the top hinge, making sure it is facing the

right way up. Screw the bottom hinge into place on the new side.

Replace the other foot on the other side and then replace the plastic

covering by clicking it back into place on the door hinge.

f. Check that the door is aligned horizontally and vertically and that

the seals are closed on all sides before finally tightening the bottom

hinge.

FIRST TIME USE

POWER SOURCE AND GROUNDING

It’s recommended to use the vertical fridge on its own dedicated power

outlet for both convenience and safety. The power outlet must be

grounded.

Important! If the supply cord is damaged, it must be replaced by

Kogan.com or an authorised service agent on Kogan.com’s behalf. Cease

use and ensure the appliance is completely disconnected from the power

supply.

Cleaning before use

Wipe the inside of the unit with a weak solution of bicarbonate soda,

then rinse with warm water using a wrung-out cloth or sponge. Wash the

shelves and drawers in warm soapy water and dry completely

before replacing in the unit. Clean the exterior of the unit with a damp

cloth. Further cleaning instructions can be found on page 11.

Before using your unit

• Before initial start, keep the refrigerator still for half an hour before

connecting it to power supply.

• Do not use when the power cord is damaged or the plug is worn.

• Do not alter the power cord under any circumstances, so as to ensure

safe use.

• Do not put flammable, explosive, volatile and highly corrosive items in

the refrigerator to prevent damages to the product or fire accidents.

• Do not place flammable items near the refrigerator to avoid fires.

• This product is a household refrigerator and is only suitable for domestic

use.

• According to national standards, household refrigerators shall not be

used for other purposes, such as storage of blood, drugs or biological

products.

• Important! Before plugging in your fridge, you must check that you

have a power outlet which is compatible with the plug supplied on the

appliance lead.

Operation

• Before putting any fresh or frozen foods into the fridge, the fridge should

be left to run for 2-3 hours. If the temperature is especially high during

FIRST TIME USE (cont’d)

summer, wait up to 4 hours.

• All frozen food products that you purchase should be placed in the

cooler compartment as soon as possible to avoid the frozen food from

defrosting.

• Storage recommendation printed on the packaging of frozen food by the

manufacturers should always be followed.

• Ensure that the drawer doesn’t damage the refrigerant circuit.

Noise from your fridge

• You may notice that your fridge makes some unusual noises. This is

completely normal for refrigerators and freezers, and the noises are

caused by the circulation of the refrigerant liquid within the cooling

system.

Tips for keeping food within the fridge

• Cooked meats & fish should always be stored on a shelf above raw

meat/fish to avoid bacterial transfer. Keep raw meat/fish in a container

which is large enough to collect juices and cover properly, placing the

container on to the lowest shelf.

• Leave space around your food to allow air to circulate inside the unit.

• Ensure all parts of the appliance are kept cool.

• To prevent transfer of flavours and drying out, pack or cover the food

separately. Fruit and vegetables do not need to be wrapped.

• Always let pre-cooked food cool down before you place into the fridge.

This will help to maintain the internal temperature of the fridge.

• To prevent cold air from escaping the fridge, try to limit the number of

times you open the door.
