USER MANUAL

KALED24DVDYA

Contents

-2-

SAFETY AND WARNINGS.............................................................2-4

BASE STAND .........................................5

INSTALLATION.............................................................................6-9

REMOTE CONTROL.................................................................10-11

OPERATION.............................................................................12-17

DVD OPERATION......................................................................18-21

DVD TROUBLE SHOOTING............................................................22

TROUBLE SHOOTING................................................................... 23

TECHNICAL SPECIFICATIONS.......................................................24

ASSEMBLY INSTRUCTION

WALL MOUNTING INSTALLATION GUIDELINES...............................5

-3-

SAFETY AND WARNINGS

Important Safety Instructions

Warning: To reduce the risk of electric shock, do not remove the cover or back. There are

no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or

moisture.

Do not expose the Adaptor and product to water (dripping or splashing) and no objects

filled with liquids, such as vases, should be placed on the unit.

Keep the product away from direct sunlight and heat source such as radiators or stoves.

Do not block the ventilation openings. Slots and openings on the unit are provided for

ventilation. The openings should never be blocked by placing your product on a cushion,

sofa or other similar surface.

Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall,

resulting in possible damage or injury.

Never place heavy or sharp objects on the panel or frame.

Only use the AC adapter included with product. Using any other adapter will void your

warranty.

Unplug the po wer from the outlet when the unit is not in use.

Attention should be drawn to the environmental aspects of battery disposal.

WARNNING: The battery (battery or batteries or battery pack) shall not be exposed to

excessive heat such as sunshine, fire or the like.

WARNNING: Excessive sound pressure from earphones or headphones can cause

hearing loss.

WARNNING: Only use attachments/accessories specified provided by the manufacturer,

the product is supplied by AC adapter, the AC adapter is used as disconnect device, the

disconnect device shall remain readily operable.

-4-

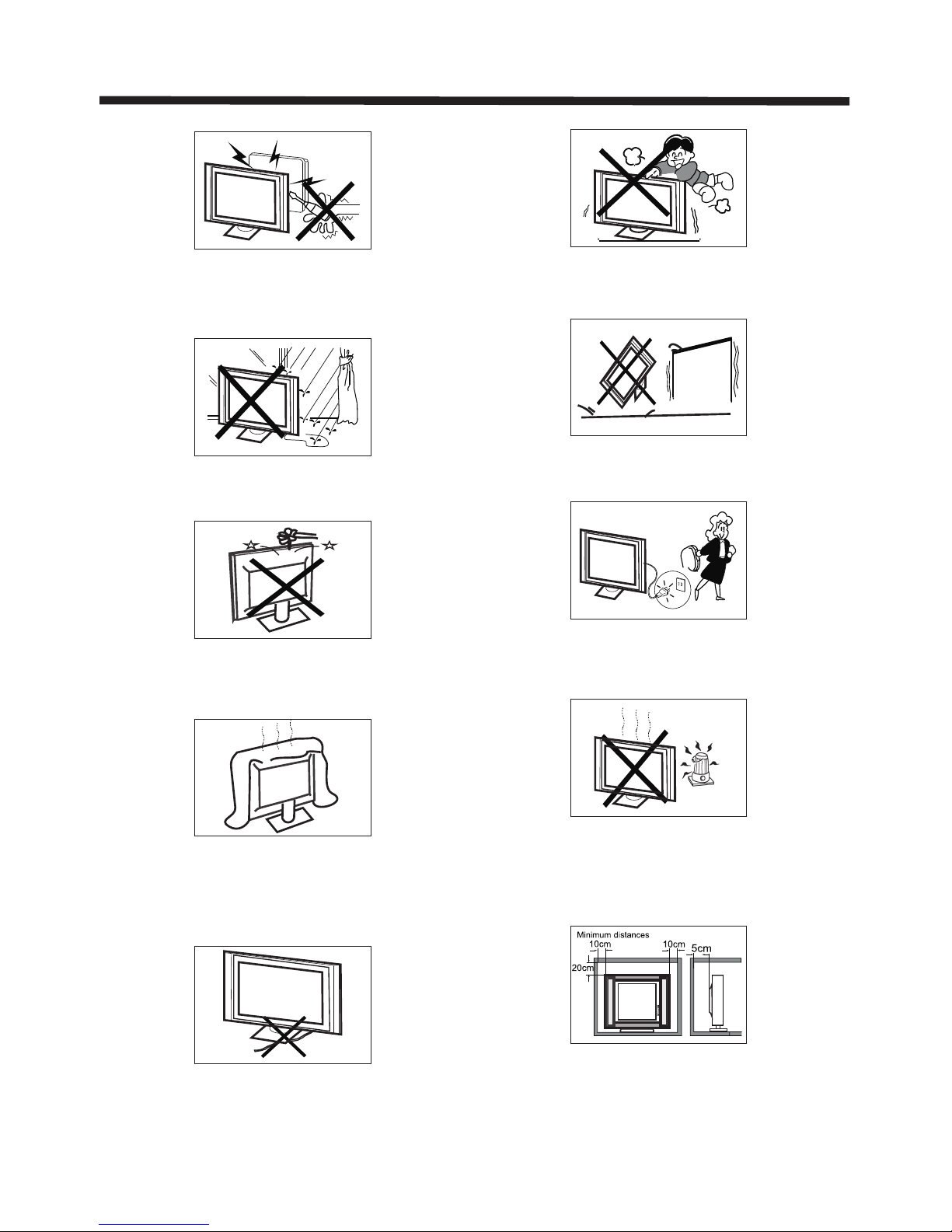

High voltages are used in the operation of this

television receiver. Do not remove the cabinet

back from your set.

Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not

expose the television receiver to rain or moisture.

Do not drop or push objects into the television

cabinet slots or openings. Never spill any kind

of liquid on the television receiver.

Do not block the ventilation holes in the back

cover.

Adequate ventilation is essential to prevent

failure of electrical components.

Do not trap the power supply cord under the

television receiver.

Never stand on, lean on, or suddenly push the

television or its stand. You should pay special

attention to children. Serious injury may result if it

falls.

Do not place your television on an unstable cart,

stand, shelf or table. Serious injury to an individual,

and damage to the television may result if it falls.

When the television receiver is not used for an

extended period of time, it is advisable to

disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight

and other sources of heat. Do not stand the television

receiver directly on other products which give off heat,

e.g. video cassette players and audio amplifiers. Do not

place naked flame sources, such as lighted candles on

the television.

If the television is to be built into a compartment or similar

enclosure, the minimum distances must be maintained. Heat

build-up can reduce the service life of your television, and

can also be dangerous.

Dim:515*320mm(不包括底座）

SAFETY AND WARNINGS

-5-

INSTALLATION

Base Stand Assembly Instruction

1. Place the TV with the display side down

on a flat surface.Use a cloth to protect.

Locate the bottom at the stand.

2. Fix the bottom with turning the screw

tightly on the stand.

WALL MOUNTING INSTALLATION GUIDELINES

For wall mounting with the optional bracket, please read the following instruction and the bracket

instruction. Make sure qualified service personnel perform the operation.

KOGAN bears no responsibility for improper mounting that results in accident or injury.

This television can be wall mounted as follows:

1.Place the LED LCD Television onto a solid surface. Please place some soft material over the

front of the screen to protect it from any damage.

2.Remove the screws from the lower part of the television, where the base joins to the

TV, and take away the stand (put the stand somewhere safe for future use).

3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the

four VESA standard holes on the back of the television.

100 mm

INSTALLATION

-6-

Front panel

KEYBOARD

1．SOURCE：

Displays the input source Menu.

2．MENU：

Displays the main MENU.

3．CH+/CH-

In TV mode, press "CH+" or "CH-" to change the channel up or down.

In MENU mode, press "CH+" or "CH-" to select items.

4．VOL+/VOL-

Adjusts the sound level.

In MENU mode, press "VOL+" or "VOL-" to adjust the item that you have selected.

5. STANDBY

Once the TV's main power switch has been activated, press this button to turn the

unit ON from STANDBY mode.

Press it again to return the set back to STANDBY.

30 3 0

1: Remote control sensor.

2: Indicator LED:

BLUE = POWER ON.

RED = Stand-by.

3: Key board (on side of TV).

SOURCE

CH+

CH-

VOL+

VOL-

STANDBY

-7-

INSTALLATION

STEPS:

Be sure both the TV and computer are

set to Power off.

1.Connect VGA and audio cable.

2.Connect the power cord.

3.Power on the TV, switch to PC mode.

4.Power on the PC.

This sequence is very important.

ANTENNA

Note:

Aerial connections: IEC(female).

Input impedance: 75 unbalanced.

REAR AV Connections

All the terminals are(from left to right):

, Audio input, Power socket, YPbPr (component video) input,

HDMI2 input.

Note: 1. AV and YPbPr share one audio channel.

2. When the HDMI2 port receives a DVI signal, the audio signal is received from the

YPbPr/AV Audio channel.

AV composite video input

REAR AV Connections(SIDE)

All the terminals are(from left to right):

HDMI1 input, USB, PC Audio input, (composite video and audio) VGA input,

Note: When HDMI1 receives a DVI signal, the audio signal is received from the PC

Audio channel.

AV output ,

Antenna socket.

USB PC AUDIO VGA RF

HDMI1 AV LR

AV OUTPUT

USB PC AUDIO VGA R F

HDMI1 AV LR

AV OUT PU T

AV L R Y Pb Pr

HDMI2

POWER

-8-

PRESET MODE

INSTALLATION

720*400

640*480

800*600

1024*768

31.47

35.156

37.88

48.08

48.36

56.48

RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

AV L R Y Pb Pr

HDMI2

POWER

-9-

INSTALLATION

You can use the input terminals on TV set rear as follows.

AV EQUIPMENT

Yellow (video)

White(audio L)

Red(audio R or Pr)

W R

GBR

Blue(Pb)

Green(Y)

VIDEO EQUIPMENT with YPbPr (component) output

GBR

W R

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video

game or stereo system, etc.....

YPbPr can support these video formats: 480i,576i,480p,576p,720p,1080i.(component video)

HDMI

TO AUDIO OUTPUTS

VIDEO EQUIPMENT with Composite output

TO VIDEO

OUTPUTS

HDMI

W R

TO AUDIO INPUTS

VIDEO EQUIPMENT

TO VIDEO

INPUTS

USB PC AUDIO VGA RF

HDMI1 AV LR

AV OUTPUT

AV L R Y Pb Pr

HDMI2

POWER

-10-

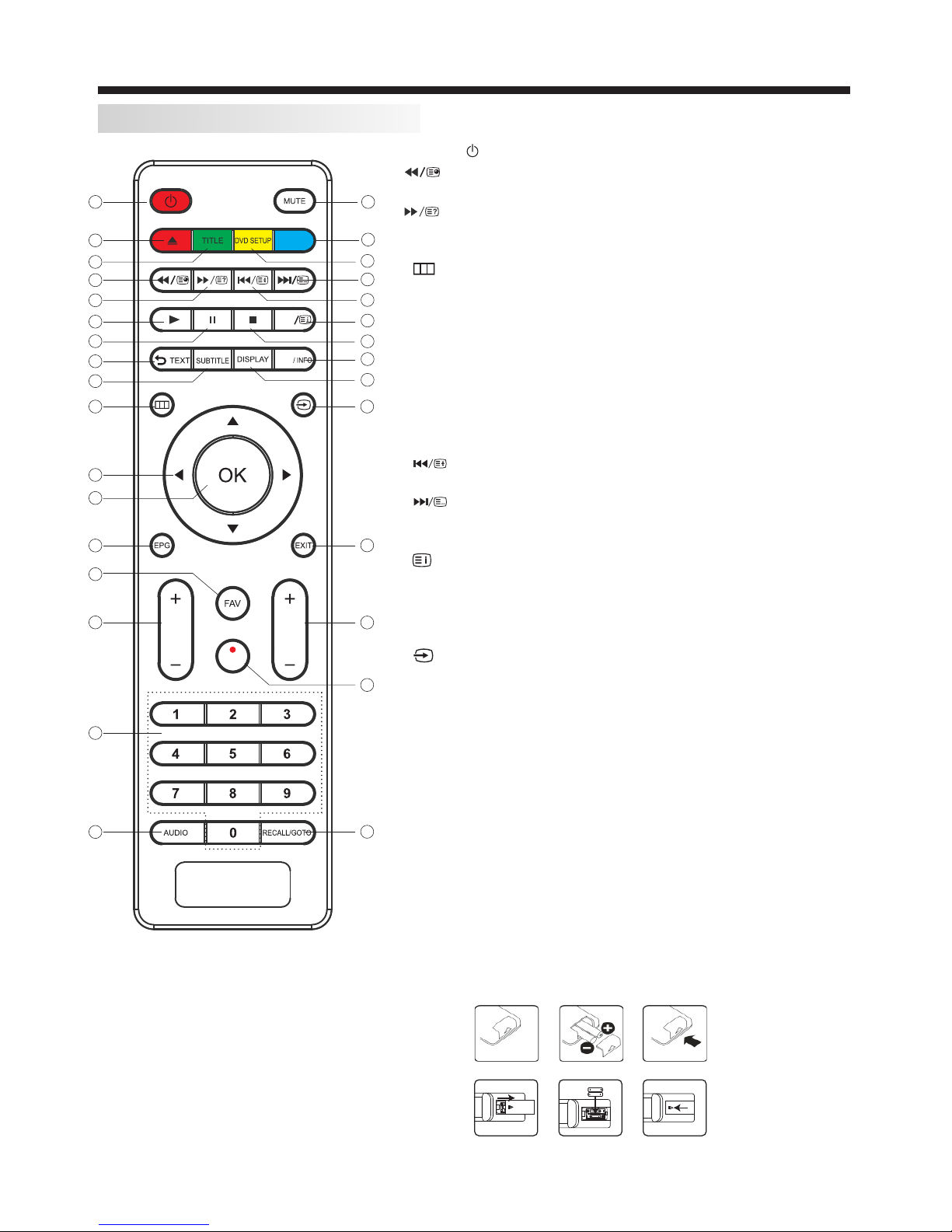

REMOTE CONTROLREMOTE CONTROL

REMOTE CONTROL

1:POWER :To set the TV to standby or power on.

4: : In DVD mode(if available),or in USB mode, used as

reverse key, in teletext mode used as subpage key.

5: : In DVD mode(if available),or in USB mode, used as

forword key, in teletext mode used as reveal key.

8.TEXT: To enter or exit TELETEXT.

10: : Displays the main on-screen menu.

11:CURSOR: To move within the menu.

12:OK: Confirms selection.

13:EPG: To display information about the program being viewed

and what's on next in DTV mode.

14:FAV: To access your favourite channels list in TV or DTV mode.

15:VOL+/- : To adjust sound level.

16:NUMERIC KEY: For direct access to channels.

17:AUDIO: To select the available audio language of TV programs .

18:MUTE: To disable or enable the sound output.

21: : In DVD mode(if available),or in USB mode, used as

previous key, in teletext mode used as hold key.

22: : In DVD mode(if available),or in USB mode, used as

next key, in teletext mode used as list key. In TV/DTV mode,used

as channel list key when without TTX function.

23: : In teletext mode used as index.

25:MENU/INFO: During DVD playback, press MENU to display the

disc menu of the current title. During VCD/SVCD playback,press

MENU to control PBC ON/OFF. In DTV mode used as info. In USB

playback mode, provides control tab at bottom of screen.

27: : Press to display and select the available video input sources.

28:EXIT: To return to the previous menu or exit menu.

29:CH+/CH-: To access the next or previous channels.

31:RECALL/GOTO: DTV Mode:RECALL:Jumps to last channel viewed.

DVD Mode(if available):GOTO:Allows direct chapter/Title/Track/time

Note:

30:REC: Press to record the TV program you are watching in

DTV Mode or In USB mode, select Repeat mode.

Remote Control Battery Installation

The remote control requires two AAA batteries. Below are steps to

assist you with replacing the batteries.

1.Open the back cover of the battery compartment.

2.Install the batteries into the battery tray. There are +/- polarity

markings in the battery compartment. Please ensure the battery

polarity is correct.

3.Close the battery cover.

There are two battery cover types that may be used, Please

refer to picture 1 or picture 2 as Remote control at your hand.

Picture 1:

Picture 2:

VOL CH

ANGLE

REC

A-B

Inhaltsverzeichnis

Andere Kogan Fernseher Handbücher

Kogan

Kogan KALED19XXXYA Bedienungsanleitung

Kogan

Kogan KALED55XX1B Bedienungsanleitung

Kogan

Kogan KALED42XXXZA Bedienungsanleitung

Kogan

Kogan KALED32XXXA Bedienungsanleitung

Kogan

Kogan KGNHDLED19VB Bedienungsanleitung

Kogan

Kogan KGNUKFHDLED40VA Bedienungsanleitung

Kogan

Kogan KALED22XXXYB Bedienungsanleitung

Kogan

Kogan KALED27MONA Bedienungsanleitung

Kogan

Kogan KALED55XX1ZA Bedienungsanleitung

Kogan

Kogan KALED26DVDYA Bedienungsanleitung

Kogan

Kogan KALED46BLSWB Bedienungsanleitung

Kogan

Kogan KALED46XX1A Bedienungsanleitung

Kogan

Kogan KALED46SMTWA Bedienungsanleitung

Kogan

Kogan LET40T3 Bedienungsanleitung

Kogan

Kogan KALED55SMTZA Bedienungsanleitung

Kogan

Kogan KALED42 ZA Series Bedienungsanleitung

Kogan

Kogan KALED32DVDWA Bedienungsanleitung

Kogan

Kogan KULED19XXXYA Bedienungsanleitung

Kogan

Kogan KULED32SMTWA Bedienungsanleitung

Kogan

Kogan KALED26DVDA Bedienungsanleitung

Kogan

Kogan KALED55UHDZD Bedienungsanleitung

Kogan

Kogan AGORA KALED39SMTWA Bedienungsanleitung

Kogan

Kogan Agora KALED553DSMTZA Bedienungsanleitung

Kogan

Kogan KALED50XXXZB Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
