Kogan KULED32SMTWA Bedienungsanleitung
KULED32SMTWA
USER MANUAL
Contents
Caution
Safety Information
Names of each part
Accessories
Front View
Back View
1
2
3
3-4
3
4
5-6
Remote Control
7
Basic Operation
OSD Menu
1. Picture menu
2. Sound menu
3. Channel menu
4. Feature menu
Specifications
Trouble shooting
Smart TV
8-14
8
9
10-11
12-13
14
5. Setup menu
Multimedia Operation 15-17
Recording Operation 18-20
21-33
34
35
Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling center.
Please help us to conserve the environment we live in!
1
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
directives.
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
vTo prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains power from the supply.
- Do not allow water or moisture to enter the TV . Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
v8]TT\PMXT]OW]\QUUMLQI\MTy, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
v,W67T block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
v,W67T tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
v<WKTMIV\PM<>][MI[WN\LZaKTW\P,W67<][M[WT^MV\[WZpetrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
3
Remote Control
Names of each part

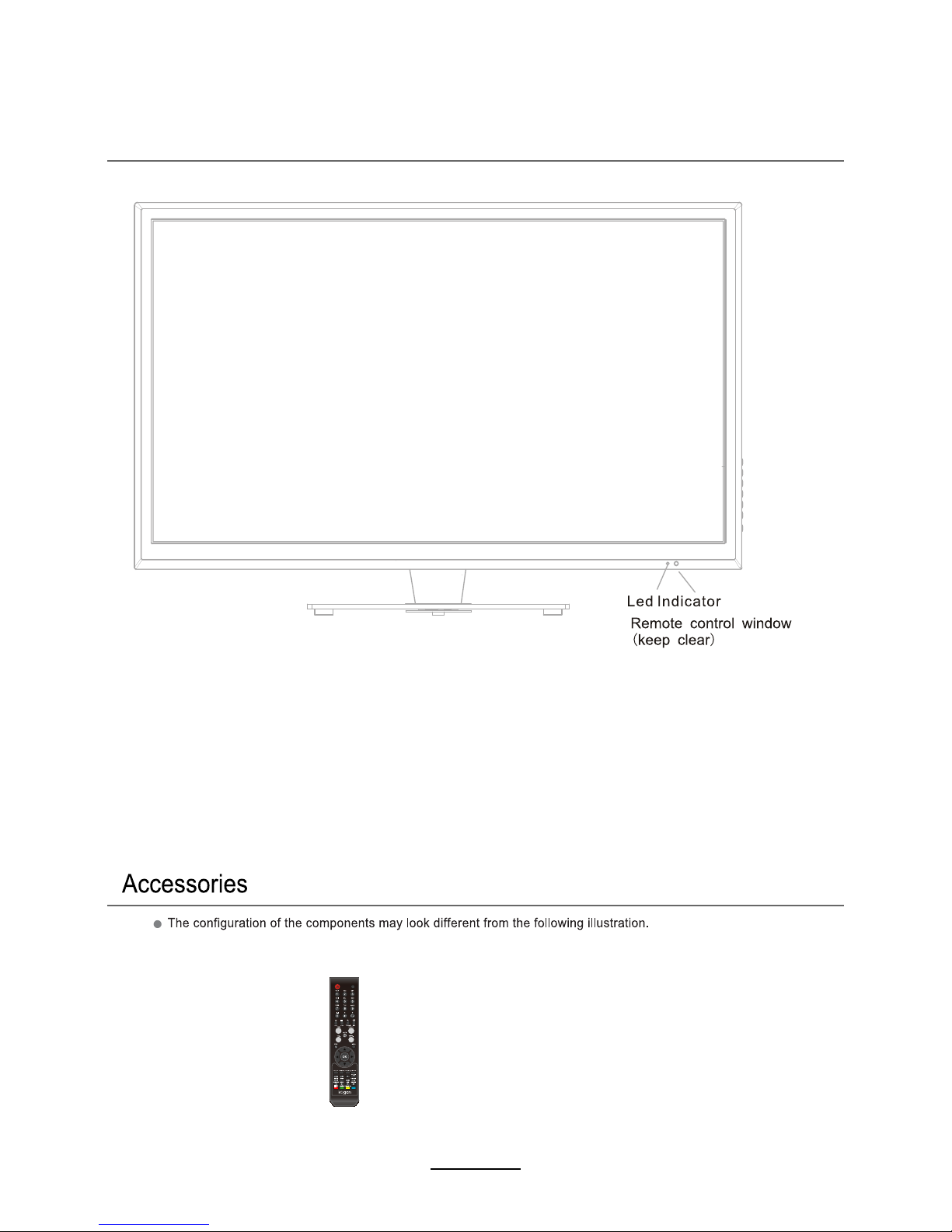

Front View
INPUT: Display the input source menu.
MENU: Display/exit the OSD menu.
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
POWER: Turn on/standby the TV set.
INPUT MENU CH+ CH- VOL+ VOL- POWER
INPUT
VGA
9
Headphone out
26
Mini YPbPr
Mini AV
11
12
USB1
5
RF
10
1POWER
PC-IN
SCART
3
CI
7
Coax
HDMI1/2
8
4
4
Names of each part
Back View
USB1
5
6
7
8
10
11
12
9
4
POWER
2
1
12
3
Recovery
RJ45
SD card
USB3
USB2
13
13 USB1/2
SD
RJ45
Recovery
INPUT
EPG
SUBTITLE
AUDIO
NICAM/A2
ABC/123
ASPECT
Rec.list
PVR TV/Radio FAV
NOTIFICATION
LIST
POWER

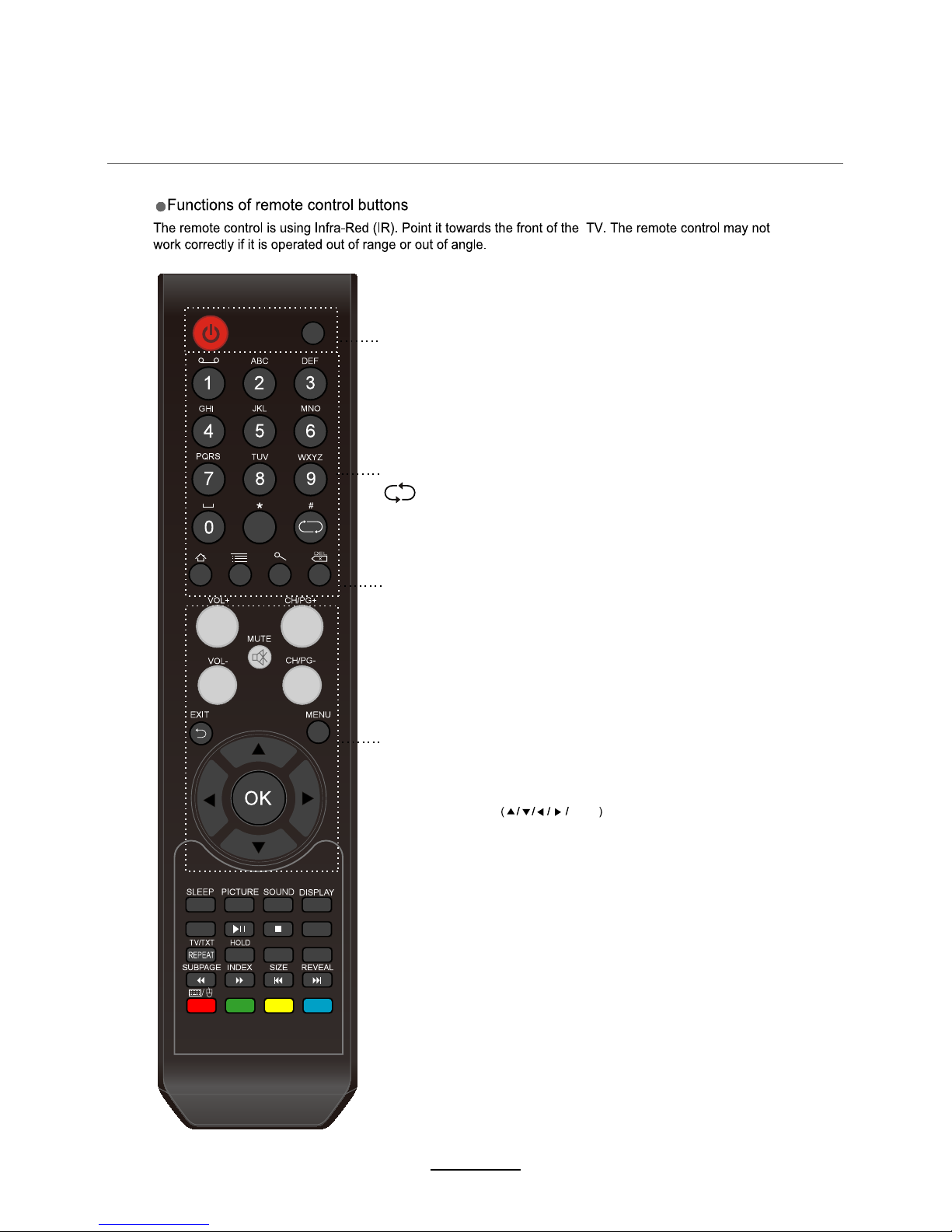

INPUT: Press to display the input source menu.
: Turn the TV on/standby.
NUMBER BUTTONS
Press 0-9 and -/-- to select a TV channel directly when you
are watching TV.
FAV: Display the favorite program list.
Return to the previous channel viewed.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
CURSOR KEYS OK
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
MENU: System setup menu.
EXIT: Exit the OSD menu.
EPG: To show the Electronic Program Guide during no-menu
state onl
PVR: To start record function.
TV/Radio: To switch to TV or Radio state in DTV mode.
y in DTV mode.
CH+/- : Scan through channels.
VOL+/- : Adjust the volume.
5

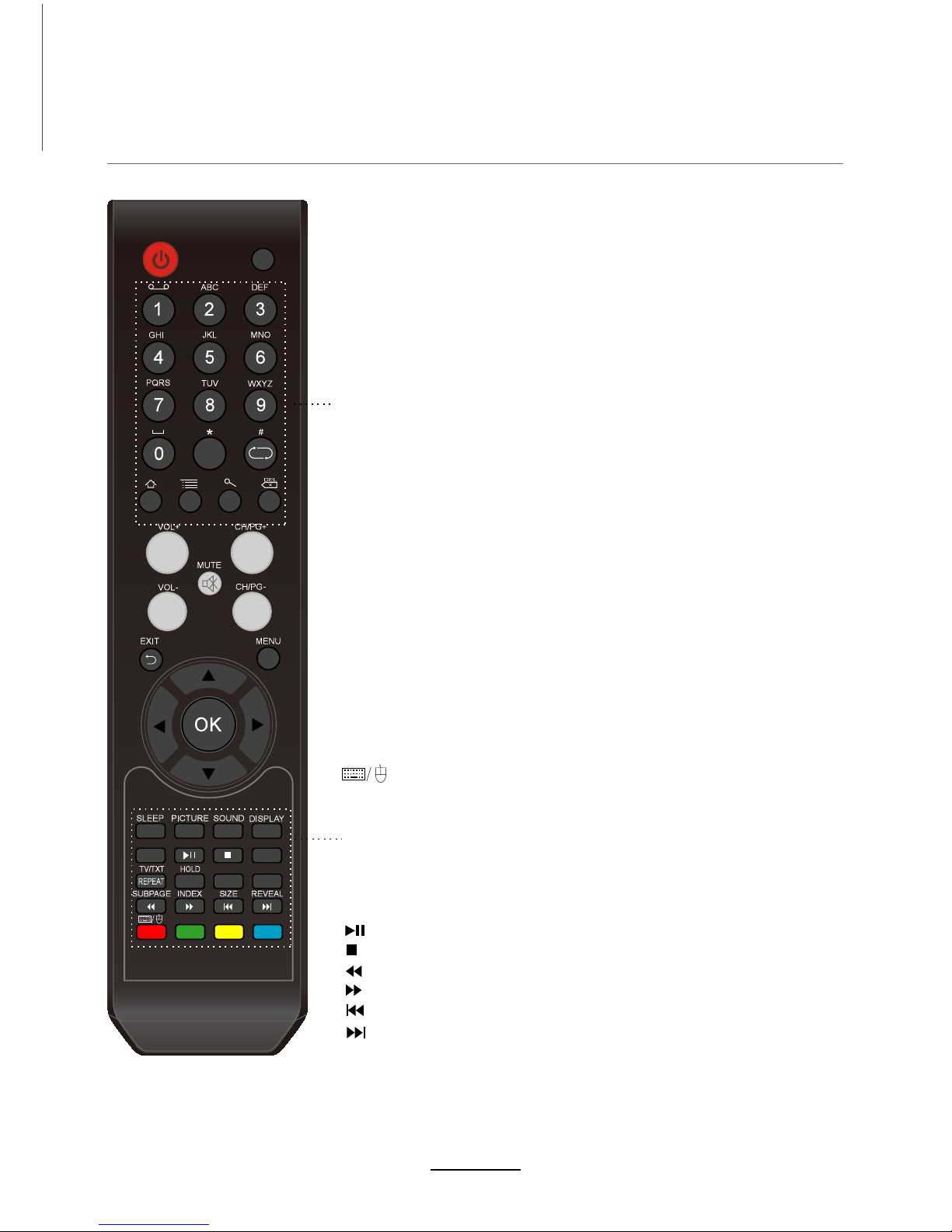

Remote Control
INPUT
EPG
SUBTITLE
AUDIO
NICAM/A2
ABC/123
ASPECT
Rec.list
PVR TV/Radio FAV
NOTIFICATION
LIST
TV/TXT: Turn off
HOLD: Hold or carry on the current subpage.
/on the Teletext display.
SIZE: Press to see top half of page double size,
Press again to see the bottom
half of page
REVEAL: Reveal any hidden text.
double size. Press again for normal size.
SUBPAGE: Press to enter subpages, press again to cancel.
INDEX: Go to index.
NICAM/A2: TV Nicam/A2 select.
Color Buttons: S
: Switch to keypad/mouse or remote control.
ABC/123: Switch to digital numbers or letters.
SUBTITLE: Turn on/off the subtitle display in DTV mode.
hort cuts-follow the coloured links in the text.
:
:
:
:
:
Play/Pause program.
Stop program.
Fast reverse.
Fast forward.
Previous chapter.
Next chapter.
:
Buttons for Android
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
SLEEP: Standby timer.
DISPLAY : Means information, to display brief information
concerning the current channel or disc you are wathching.
Rec.list: Display the record list.
AUDIO: Change the audio language in DTV mode.
ASPECT: Cycles among screen display modes.
Repeat: Repeat playing the title or chapter.
6
Remote Control
button to select the function item, press / OK button to enter
Basic Operation
Power on/off
1. Connect to the power supply with the power adaptor.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press INPUT button on the TV set or remote control to display the
input source menu, and use CH+/- button on the TV set or button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Main menu: Picture Sound Channel Feature Setup
Submenu
(Picture menu
for example)
Hint---you should operate
Press MENU button to display the OSD menu as below:
Use / button to select the main menu, and press / OK button to enter the submenu.
In the submenu, use
the setup menu, then press / button to adjust, or press / to select and press OK /
/ button to confirm.
/
* (Press MENU / button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
the OSD menu according
to the hint.
7
OSD Menu
1. Picture menu
Description
Picture Mode: Select your desired picture mode from Dynamic, Standard, Mild and User.
Brightness: Adjust image black level.
Contrast: Adjust image contrast.
Sharpness: Adjust the sharpness (Gray and invalid in VGA/PC mode).
Colour: Adjust image colour from black and white.
Colour Temp.: Select an optimum color temperature mode to suit your eyes for viewing from
Warm, Cool, Standard.
Noise Reduction: If the broadcast signal received is weak, you can select the Noise Reduction
option to reduce the video noise level between Off, Low, Middle and High.
Tint: Control the tint ( NTSC mode only).
Aspect Ratio: Change the aspect for the screen from 4:3, 16:9, Zoom1, Zoom2.
8
