C6.1

EN Electrical installation and Operation Manual

C6.2

This symbol indicates that this product is not to be disposed of with your household waste, according to the

WEEE Directive (2002/96/EC) and your national law. This product should be handed over to a designated

collection point, or to an authorised collection site for recycling waste electrical and electronic equipment (EEE). Im-

proper handling of this type of waste could have a possible negative impact on the environment and human health due

to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the

correct disposal of this product will contribute to the eective usage of natural resources. For more information about

where you can drop o your waste equipment for recycling, please contact your local city oce, waste authority, ap-

proved WEEE scheme or your household waste disposal service.

Content

1. ELECTRICAL INSTALLATION INSTRUCTIONS........................................................................................................................................3

1.1. Power supply connection...........................................................................................................................................................................3

1.2. Control panel installation...........................................................................................................................................................................3

1.3. Connection of external elements ...........................................................................................................................................................4

1.4. Temperature sensor installation...............................................................................................................................................................5

2. OPERATING MANUAL........................................................................................................................................................................................6

2.1. Unit control with the control panel ........................................................................................................................................................6

2.2. Connecting the unit to local computer network or the Internet.................................................................................................6

2.3. Unit control with a smartphone...............................................................................................................................................................8

2.4. Control Panel C6.1.........................................................................................................................................................................................9

2.4.1. Displayed symbols on the panel.................................................................................................................................................9

2.4.2. Review of the parameters .......................................................................................................................................................... 10

2.4.3. Operation mode selection......................................................................................................................................................... 10

2.4.4. ECO mode........................................................................................................................................................................................ 11

2.4.5. AUTO mode..................................................................................................................................................................................... 12

2.4.6. Menu.................................................................................................................................................................................................. 12

2.4.6.1. Overview ......................................................................................................................................................................... 12

2.4.6.2. Scheduling...................................................................................................................................................................... 13

2.4.6.3. Air quality........................................................................................................................................................................ 15

2.4.6.4. Settings............................................................................................................................................................................ 15

2.4.6.5. Advanced settings....................................................................................................................................................... 15

2.5. Control Panel C6.2...................................................................................................................................................................................... 20

2.5.1. Operating mode selection......................................................................................................................................................... 20

2.5.2.„ECO“.................................................................................................................................................................................................. 20

2.5.3. AUTO mode..................................................................................................................................................................................... 20

2.5.4. Warning indicator.......................................................................................................................................................................... 20

2.5.5. Reset button.................................................................................................................................................................................... 20

2.5.6. Turning the unit on/o................................................................................................................................................................ 20

2.5.7. Keypad lock..................................................................................................................................................................................... 21

2.5.8. Control panel alarm message sound signal enable / disable........................................................................................ 21

2.6. Troubleshooting.......................................................................................................................................................................................... 21

APENDIX NO.1. KOMFOVENT CONTROL Terms of Use and Privacy Notice.............................................................................. 24

UAB KOMFOVENT we reserve the right to make changes without prior notice

C6_20-08 3

1. ELECTRICAL INSTALLATION INSTRUCTIONS

The installation can only be performed by qualied personnel. It is necessary to follow the requirements below

during the installation.

It is recommended to lay the control cables separately from the power cables,

at a minimum distance of 20 cm.

The connector connection is performed strictly according to the wiring dia-

gram numbering, or with adequate markings (see the principal wiring dia-

gram of the unit).

When removing the unit parts, do not pull on the connecting wires and ca-

bles!

Before performing any work inside the equipment, make sure that the air

handling is switched o and disconnected from the mains power supply.

1.1. Power supply connection

The unit is designed for a supply voltage of 230 V AC, or 50 Hz; therefore, you must install a socket with an earthing

of the corresponding capacity next to it (see the wiring diagram). The power cable type is indicated in the wiring

diagram.

It is recommended to connect AHU to the mains via 16 A automatic circuit

breaker with 300 mA current leakage protection (type B or B+).

The air handling unit is designed to connect only to a neat outlet, with protec-

tive grounding meeting all the electrical safety requirements.

1.2. Control panel installation

1. The control panel must be installed in the premises under the following conditions:

• at an ambient temperature of 0 °C... 40 °C;

• relative humidity ranging from 20%... 80 %;

• protection from accidentally falling water drops (IP X0).

2. Control panel connection through the hole in the back or in the bottom.

3. The control panel can be mounted on a ush mounting box or in any other place, simply by screwing it to the

surface through the two holes on the fastening surface.

4. The control panel is connected to the controller box. The length of installation cable for the control panel may not

exceed 150 m.

Do not use any other type or size screws but those that are packed together

for control panel mounting. Wrong screws may damage electronics board.

Control panel connection

Yellow (A) () White

(+) RedGreen (B)

Yellow(A)

(+) Red

Green (B)

()White Yellow (A) () White

(+) RedGreen (B)

Yellow(A)

(+) Red

Green (B)

()White

UAB KOMFOVENT we reserve the right to make changes without prior notice

C6_20-08

The cable thicknesses for the panel connection and others are specied in

the wiring diagram!

Remove protective screen tape, before mounting front cover on the control

panel!

1.3. Connection of external elements

The air handling unit has external connection terminals in the control box, inside the air handling unit. They are

used to connect all the external control elements.

123

1. Ethernet connection of computer network or Internet

2. Controller panel connection

3. Connection of external elements

Fig. 1.3 a. Controller with the connection terminals

Fig. 1.3 b Connection diagram for external elements

UAB KOMFOVENT we reserve the right to make changes without prior notice

C6_20-08 5

The total power of all the external elements, powered from a 24 V voltage,

must not exceed 30 W.

1.4. Temperature sensor installation

Supply air temperature sensor B1 (Fig. 1.4 a) must be installed in the duct of supplied air to the premises, past all

the additional air heating/cooling equipment (if any). It is recommended to install the sensor in the straight segment

of the air duct within the distance of 5 duct diameters in front and after the sensor (Fig. 1.4 c).*

Supply air temperature sensor B1 is not necessary if CAV or DCV airow con-

trol is not enabled (more details in section 2.4.6.5) and internal electrical* or

duct mounted air heater or cooler is not used.

The at part of sensor must be directed perpendicularly to the airow for

sensing element would be well blown.

The water temperature sensor B5 (Fig. 1.4 b.) is mounted on the return water pipe, by screwing it into the provided

hole. The sensor must be thermally insulated!

Supply air temperature sensor B1 Water temperature sensor B5

Fig. 1.4 a Fig. 1.4 b

>5D >5D

D/2

Fig. 1.4 c

* exeption R300V unit.

UAB KOMFOVENT we reserve the right to make changes without prior notice

C6_20-08

2. OPERATING MANUAL

2.1. Unit control with the control panel

The air handling unit can be operated by one of the following panels (Fig. 2.1).

C6.1 – panel with a touch screen for parameters of air handling unit setting and indication. The panel has integrated

thermometer and hygrometer for indoor climate monitoring.

C6.2 – panel with touch-sensitive buttons is intended for main air handling unit parameters setting.

C6.1 C6.2

Fig. 2.1. Choice of control panels

2.2. Connecting the unit to local computer network or the Internet

The unit can be controlled not only by the control panel, but also by computer. In such cases, the air handling unit

must be connected to a local computer network or to the Internet. The unit is controlled by a computer using a web

browser. The air handling unit is connected to the computer network with a CAT5 type cable (RJ45 connector; see Fig.

1.3 a). The total cable length between the unit and the network router must not exceed 100 m.

The IP address can be found and changed on the control panel*(see Advanced settings→Connectivity).

An air handling unit connected to a network router can be controlled by a computer via a wireless connection

(Wi-Fi) on the local network. After connecting the unit to the network router, activate the DHCP setting on the panel

(see Advanced settings→Connectivity). This will automatically assign the unit a free IP address on the local network

(do not use this setting if you connect the computer directly to the unit).

Fig. 2.2 a Example of the unit connection to a local network

* Only on the C6.1 panel (see Fig. 2.1)..

UAB KOMFOVENT we reserve the right to make changes without prior notice

C6_20-08 7

When connecting the computer directly to the unit, in the network settings of the computer, it is needed to

manually assign an IP address the last number of which would be dierent from the unit’s IP address (for example,

if the unit’s IP address is 192.168.0.60, assign the address 192.168.0.70 to the computer). Also enter the subnet mask:

255.255.0.0.

Internet Protocol Version 4 (TCP/IPv4) Properties

General

Obtain an IP address automatically

Use the following IP address:

Use the following DNS server addresses:

Obtain DNS server address automatically

IP address:

Subnet mask:

Alternate DNS server:

Preferred DNS server:

Validate settings upon exit

Advanced...

Cancel

Default gateway:

You can get IP settings assigned automatically if your network supports

this capability. Otherwise, you need to ask your network administrator

for the appropriate IP settings.

192 . 168 . 0 . 70

255 . 255 . 0 . 0

. . .

Fig. 2.2 b. Computer network settings for direct connection to the unit

When connecting the computer directly to the unit with a computer, you will have to enter IP address the Internet

browser to point to the user interface of the air handling unit.

Komfovent

192.168.0.60

You will need to change more settings to control your unit over the Internet using your computer. First, port

forwarding must be conﬁgured to the IP and port number of the unit 80, according to the instructions of the network

router.

INTERNET

Fig. 2.2 c Example of unit connection to a the Internet

UAB KOMFOVENT we reserve the right to make changes without prior notice

C6_20-08

When connecting the computer to the internet with, you will have to enter an external router IP address and the

port number in the Internet browser to point to the user interface of the air handling unit.

Komfovent

192.168.0.60: 80

Connect to the C6 control panel interface: enter the user name user, password user*and press CONNECT.

user

2.3. Unit control with a smartphone

After connecting the air handling unit to a computer network or the Internet, it can be controlled with your smart

phone with an iOS or Android operating system. Download and instal “Komfovent Control” app. Connect by scaning

QR code on the AHU door.

Controller ID

Password

CONNECT

Read QR code

Select from list

Find ID on local network

To download the applet, just search for it in the GooglePlay or iTunes stores. If app is used for the rst time, You

will be prompted to read and accept privacy policy (see Apendix No.1)

Tip: The applet user interface and the control capabilities are fully consistent with the C6.1 control.

* Should you forget a changed password, it can be reset to the initial “user”. To do this, you must restore the factory settings for the air

handling unit using control panel.

UAB KOMFOVENT we reserve the right to make changes without prior notice

C6_20-08 9

2.4. Control Panel C6.1

Time

Button for activation of

ECO operating mode

Indication of equipment

modes/functions

Indication of actual

operating mode

Button for activation of

AUTO operating mode

Fig. 2.4. C6.1 panel main window

2.4.1. Displayed symbols on the panel***

Fan operation

Energy recovery operation

Air heater operation

Air cooler operation*

There is a heating demand, but it is

being blocked by the ECO mode**

There is a cooling demand, but it is

being blocked by the ECO modes2

ECO mode on**.

Air ow reduction.

ECO mode on**. Free cooling

operation.

ECO mode on**. Free heating

operation.

Alarm signal

(see the troubleshooting section)

Supply air

Exhaust air

Outside air temperature

Air lters

Instant heat recovery of the air

handling unit

Instant power consumption of the air

handling unit

* The air handling unit has the air cooling function, but it requires the following additional components which should be ordered in

advance: DCW duct coil (for water cooling) or DCF duct coil with outdoor DX unit (for DX cooling).

**For more about the ECO mode, read Section 2.4.4.

UAB KOMFOVENT we reserve the right to make changes without prior notice

C6_20-08

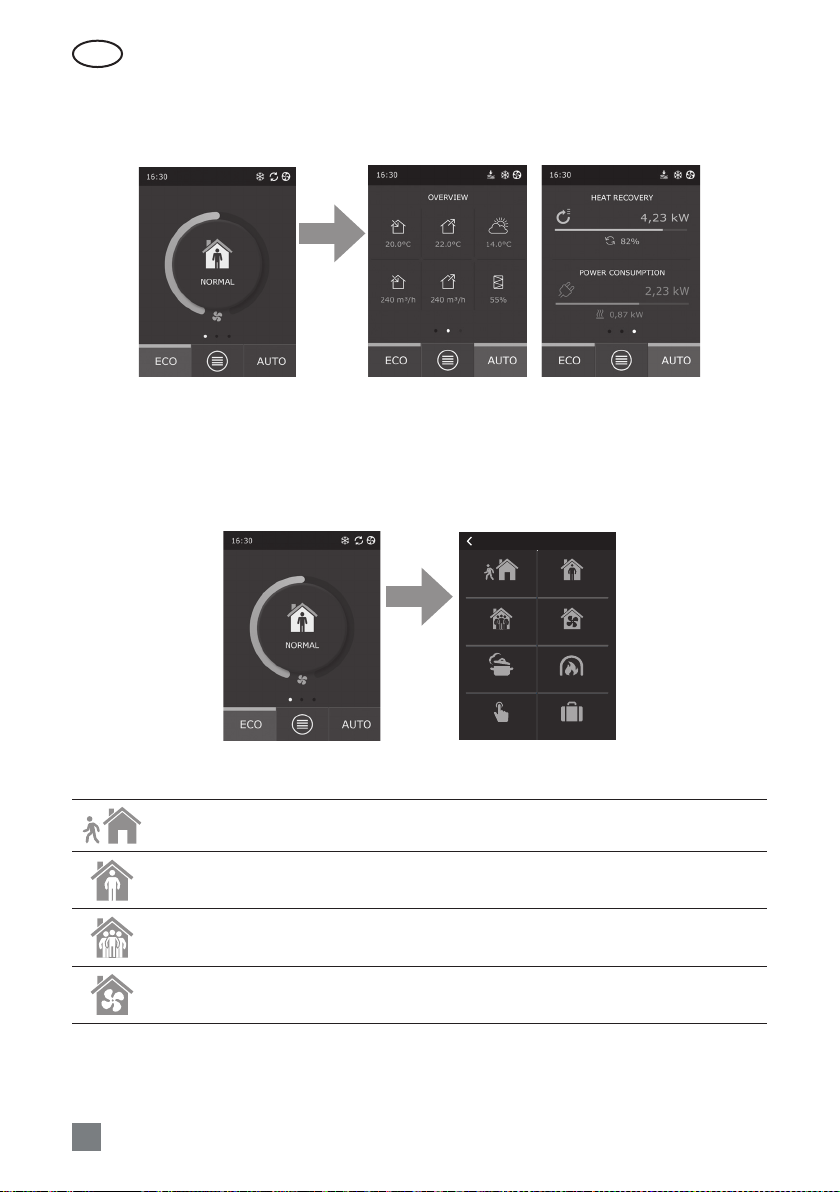

2.4.2. Review of the parameters

Main unit parameters: air ow, temperature and lter clogging are displayed in the second window, and the

energy parameters – energy recovery and power consumption – are displayed in the third panel window.

Tip: For window scrolls, swipe your nger on the screen to the appropriate side.

All other air handling unit parameters are presented in the “Overview” menu item (see Section 2.4.6.1.).

2.4.3. Operation mode selection

There is provided four usual operation and four special operation modes. User can choose one of them from the

main panel window by clicking on the center button.

NORMALAWAY

INTENSIVE BOOST

HOLIDAYSOVERRIDE

KITCHEN FIREPLACE

Operation modes

Usual operation modes

Away. The recommended choice when you are not at home or when there are fewer people inside the

premises than usual. The ventilation intensity will be 20%.

Normal. Recommended when there is the usual number of people inside the premises. The ventilation

intensity will be 50%.

Intensive. The recommended choice when there are more people inside the premises than usual. The

ventilation intensity will be 70%.

Boost. The recommended choice when it is necessary to quickly ventilate the premises. The ventilation

will run at its maximum intensity.

Andere Handbücher für C6.1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Komfovent Fernbedienung Handbücher

Komfovent

Komfovent C6.1 Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
