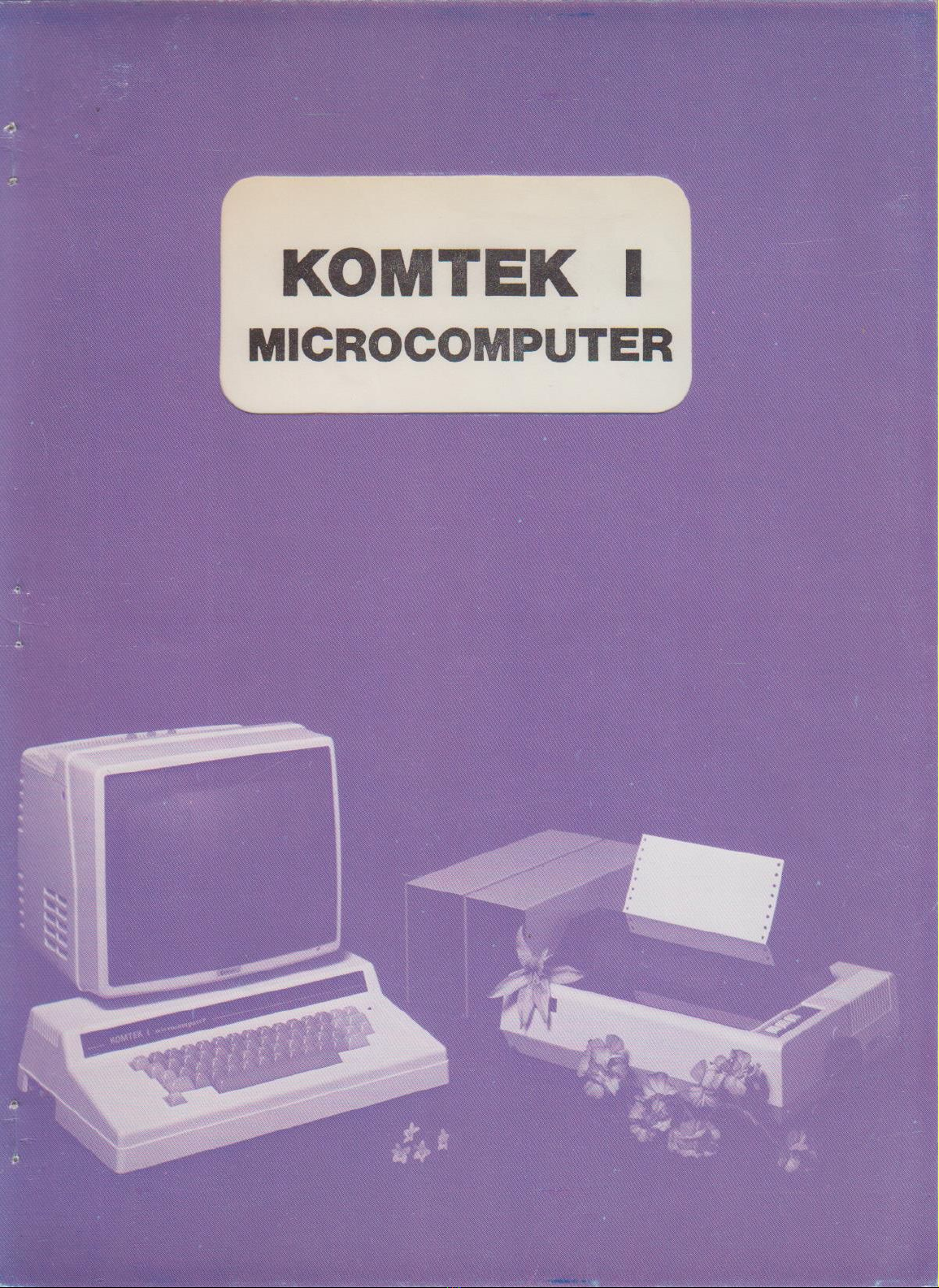

KOMTEK I

MICROCOMPUTER

KOMTEK I

MICROCOMPUTER

CONTROL FUNCTION MANUAL

KOMTEK TECHNOLOGIES LTD.

BRIEF SUMMARY OF CONTROL FUNCTION

OPERATIO N USING DEM ONSTRA TIO N T A P E PROGRAMME

1. Load Control Function demonstration tape using CLOAD, press RETU R N key.

2. After loading type RUN & press RETURN.

3. I f you want channel 1 to light up just press key 1, i f channel 3, press key 3 & so on up to 6.

If you want it to go OFF just press again.

4. For sensing to be active press 7 for sensing channel 1, 8 for channel 2 & so on.

5. There are two kinds o f contact switch: the OPEN or CLOSE type, so choose the corresponding

channel as designated by A.B.C.D.

6. Starting time for control function: Just type O and then the number o f the channel. Then type

time. e.g. 6:30 A.M. just type 0630 and the screen will show 06:30. The programme will take

care o f the : always maintain a 4 digit configuration For 6:30 P.M. just type 1830.

7. For tim e-off just type F and proceed as before.

8. Be sure to set the OUT-IN switch in the O U T position for the real time clock to run. Set it

O U T just before you load tape.

PRIN TE R FUNCTIONS ASSOCIATED WITH CO N TR O L FUNCTIO NS

In some countries the Distributer order from Komtek the Control Function-Basic Printer

together as a package. In this case one can have printer function simply by connecting a parallel

centronic printer.

O P E R A T IN G TH E BASIC PRIN TER IN TER F A C E

1) When the printer is already connected to the printer Dort:

Tum on the power and the basic instruction o f LP R IN T“ or L L IS T will operate the

printer.

2) When the printer is not connected to the computer printer port and the computer is

turned on or in operation:

You should then put in the printer connector and then use the following: —

SYSTEM Press RETU RN

* ? Will appear

N ow t y p e t h e f o l l o w i n g : - / 1 2 3 6 7

T y p e L P R IN T " t h e n p r e s s r e t u r n

OM ERROR w i l l a p p e a r n o w p r o c e e d t h e s e c o n d

t i m e & t h e p r i n t e r w i l l w o r k .

N o t i c e t h a t e v e r y t i m e y o u p r e s s t h e RETURN k e y t o g o t o t h e

n e x t l i n e t h e p r i n t e r a l r e a d y p r i n t o n p a p e r g i v i n g y o u n o

c h a n c e o f e d i t i n g . O ne s o l u t i o n i s t o u s e l i n e n u m b e rs an d

t h e e d i t i n g c a n b e d o n e u s i n g B a s i c E d i t i n g f u n c t i o n s . F i n a l l y

w h en y o u a r e s a t i s f i e d w i t h i t y o u c a n u s e RUN t o dump a l l t h a t

y o u h a v e o n t h e s c r e e n o n t o t h e p r i n t e r . T o f u r t h e r s a v e y o u

t h e t r o u b l e o f w r i t i n g l i n e n u m b e r s y o u c a n u s e AUTO f o r

a u t o m a t i c l i n e n u m b e r .

1

OPERATING THE CONTROL FUNCTION

The simplest mode o f operationg the control function is to use it to turn on electrical

appliances & machines. Suppose the control function channels are connected to 6 control boxes,

or even LED’s. I f you want the first control channel to light up, this is what you do:

1. Turn on the computer.

2. Reset the computer, some version o f the same computer with real time clock based on the

interrupt (IN T ) has to be reset by first pressing the switch on the left side o f the computer

to stop the clock and at the same time press the reset switch on the keyboard for 2 seconds

& then release both.

3. Press R ETU R N key.

4. If you want channel 1 to light up type: POKE 13825, 1

5. Press RETURN

The LED will immediately light up.

6. Let’s say you want channel 3 to light up this is what you type in as a continuation:

POKE 13825, 4. Press RETURN key. Yes, 4 represent No. 3 channel because all the channels

are recalled by a system o f binary place value not decimal value.

Channel No. 1 2 3 4 5 6

Binary 00000001 00000010 00000100 00001000 00010000 01000000

Decimal place value 1 2 4 8 16 32

For you information Komtek 1 microcomputer has already 8 control channels. But only 6 is

wired for your use externally. I f you are an electric engineer or technician you can wire you the 2

extra bonus channels. Another point o f interest is that 13825 in the hex system is 3601.

Note: FOR OLDER VERSIO N OF KOMTEK 1, Y O U NEED T O T YPE FIR S T POKE 13827,

128 & PRESS RETU RN K E Y BEFORE YO U T YPE CLAUSE 4.

Occasion arises where one needs to turn on more than one channel at the same time, in this

case all you need to do is to superimpose the binary one’s & translate into decimal, for example:

If you want to turn on channel 1

Binary 0000 0001

Decimal 1

If you want to turn on channel 3

Binary 0000 0100

Decimal 4

If you want to turn on both channel 1 & 3

0000 0001

0000 0100

0000 0101 which is decimal 5

The principle to do this is, in a more imaginative form, is to imagine all the 0’s in the binary

train as switches turned off. I f you want to turn on any one o f them, just put in the number 1 in

the required switch position which represent turning on a switch. So the number name o f the switch

is called by its place value mathematically turning one more than one switch is merely binary

addition. So in the decimal system too, it is the aiding o f the decimal value!

2

.You can o f course turn on all the switches, in our computer it is the decimal value 63.

Now with all the switches or one o f the switch on, how to turn it off?

Type: POKE 13825, O. & press R ETUR N key.

For those who purchase Komtek 1 equipped with control function, there is a operating

cassette programme to be load into the computer, you do not need to do the “ PO K ING ” . All you

need to do is to press one key for each channel & also to set the clock or alarm & also termination

time.

To use the programme, First load the cassette programmes into the computer. A fte r going

through the normal loading procedure type RUN, press RETU R N key and the switch operating

listing will be shown on the screen as a 12 line listing, excluding the real time clock on the top right

hand comer.

To set the real time on the top right hand corner you set it from seconds to minutes & then to

hour. However this is an interruption o f the programme, so you First press BREAK key and proceed

as follow:

(L e t’s suppose the time is now 10:45:32)

a. To set second:

POKE 16449, 32 press R ETUR N key.

b. T o set minutes:

POKE 16450, 45 press RETU RN key.

c. To set hour:

POKE 16451, 10 press RETU RN key.

d. Type CONTINUE & press RETURN key.

or Type RU N & press RE T U RN key.

Now you have the correct time - but, do not turn the computer o ff otherwise you have to

reset again. I f you set the time on the computer before you load the control programme you do not

need to press the BREAK key; or that you can simply leave the power on so that computer is acting

as a clock.

Note that in the above d. when you type CONT you only have part o f the listing shown on the

screen as your previous setting move the programme on the screen upwards, but the contents is

still in the memory, you have not lost anything, just that you are not able to see the complete

listing.

However when you type R U N & press RETU R N you have a complete listing but you have lost

all date that you put in (except the programme). I f you are starting a new control function setting

it is all right, but when you are in the middle o f a programme setting & forget to set the time, then

you would have to use the command CONT.

We advise strongly that you should always reset your real time clock first before you will load

the control programme to save you the dilemna o f choosing CONT or RUN.

3

Going back to loading the control function after it is loaded type RUN and press R E T U R N &

a 12 line listing will appear on the screen.

TIM E TIME

SWITCH O U TPUT SENSER OFF IS ON O FF

SW 1 - OFF OFF OPEN 0 0 :0 0 0 0 :0 0

SW 2 - OFF OFF OPEN 0 0 :0 0 0 0 :0 0

SW 3 ** OFF OFF OPEN 0 0 :0 0 0 0 :0 0

SW 4 ** OFF OFF OPEN 0 0 :0 0 0 0 :0 0

SW 5 - OFF SW 6 - OFF

1 7 AOF F

28B

39C

40D

56

The bottom 5 rows o f alphabets and numerals represents the control and sensing function

switch number as well as the ON-OFF time.

1 represents control function switch 1

2 represents control function switch 2 etc.

7 represents sensing function switch 1

8 represents sensing function switch 2 etc.

NOTE: Control Function switch 5 is represented by 5 and switch 6 is represented by 6, both

do not have corresponding sensing functions to match. O f course it holds true for this

programme only.

You can also write programme to have switch 5 or 6 to correspond to any o f the

sensing function channel (or switch). Or alternatively you can use one control channel

to correspond to all 4 control functions or vice versa.

To activate the different functions all you need to do is to type the corresponding

number or alphabet on the keyboard; typing the same key twice causes it to revert

back to the original mode.

One the fourth column is OFF IS. This means that when the senser is ON the way you

stop the control function is by choosing the OPEN or CLOSE mode. For example:

When switch 1 i.e. SW1 is on & SENSER control is ON and if O FF IS is typed OPEN,

control switch 1 will be OFF when you have no sensing lead connected to the sensing

channel or that even if it is connected & open circuited it will still be OFF. Thus the

control function will operate only when the sensor is CLOSE circuited; if it is OPEN

circuited the control function will be OFF.

So when you are boiling water in the morning and if your sensing function is con

nected to a contact point thermometer it should be o f the “ OPEN CIR C U IT T Y P E ”

i.e. when certain temperature is reached the circuit will OPEN thus stopping the

control function. However if the thermometer you bought is o f the “ CLOSE-CIRCUIT

T Y P E ” all you need to do is to change the mode by typing A on the keyboard to

change the O FF IS for senser 1 to CLOSE.

Every time the sensing function turn O FF the control function it will not revert back

by itself again.

4

This is true for control channel 1& 2. What it means is that in the above example o f

boiling water, even if the temperature drops after a while when power is turn O FF

the control function wili not be able to start by itself. Control channel 3 & 4 is special

in that it is continuously re-activated by itself every time the sensing function revert

back to its original state. This means that when you cook food you can have your food

warmed by using that 3rd or 4th control channel & sensing function. Every time when

the food gets cold that sensing function will sense the drop via the thermometer and

command the control channel to turn pn the heat again. This carries on until termina

tion time, as designated by column TIM E OFF. So we designate control channel 3 &

4 by tw o asterisk * * to distinguish its nature from channel 1 & 2. A fter you have set

all the time please make sure that the real time clock is ON. This is done by releasing

the OUT-IN switch on the left side o f the computer by leaving it in the O U T posi

tion. Otherwise the clock will not run!

To set the time o f switching on and o ff for the control function, proceed as follow:

a) Press key 0 and on the screen you will see:

SET SWITCH (1 -4 )

This means it is asking you what switch (or channel do you want).

b) I f you want say channel 2, you simply press key 2 and press RETU RN, the screen will

show:

TIM E:

Now if you want to set the time as 12:30PM, you simply type 12 on the keyboard and

the screen will show you

12:

Now type 3 and the screen will show

12:3

Now type 0 the line will disappear!

Because 12:30 is immediately transferred to the TIM E ON column.

To set the time O F F press key F and proceed as before. For P.M. add 12 to the time because

the computer real time clock runs on HOURS designation basis, e.g. 8 O ’clock in the evening is

20:00 HOUR.

By the way, when you have gone through most o f the programme and find that there are

typing errors, don’t press RESET! Just press BACK SPACE to where you made the mistake and

re-type again.

Or you can type B REAK and the line in which you write will be erased completely. In case

you go way back to the beginning o f the programme then you do not want all the intermediate line

to be erase; you should then use EDIT functions: please refer to your basic manual for ways o f

using it.

Finally type RUN and press R ETURN. Leave the computer on until the control function has

done its job.

You can write programme to convert the real time clock on the top right hand comer o f the

screen to drive big time display on the screen. So that for those o f you who are short sighted or that

you T V is every far away you can still see the time from afar.

5

P r i o r i t i e s :

C h a n n e l 1 t o c h a n n e l 4 ca n a l l b e o p e r a t e d

m a n u a lly a n d i n c o n ju n c t i o n w i t h s e n s in g f u n c t i o n .

I n t h e c a s e o f c h a n n e l 1 & 2 . T h e s e n s o r o n l y

d o e s i t s d u t y f o r o n c e an d s t o p s .

I n t h e c a s e o f c h a n n e l 3 & 4 t h e s e n s o r w o r k s on

t h e c o n t r o l f u n c t i o n ON & OFF f o r u n l i m i t e d

n u m b e r o f t i m e s .

H o w e v e r o n c e yo u s e t t h e t i m e o f ON o r OFF t h e

p r o p e r p r o c e d u r e i s t o s e t c o n t r o l an d s e n s in g

c h a n n e l b o t h i n t h e OFF m ode e x c e p t t h e s e n s in g

m od e i n d i c a t e d b y t h e c o lu m n OFF I S .

W hen t h e t i m e c o m es t h e m a c h in e w i l l a u t o m a t i c a l l y

t u r n s b o t h c o n t r o l a n d s e n s i n g f u n c t i o n ON f o r

d u t y t i l l i t i s t u r n e d o f f b y t h e p r o g ra m m e d

t i m e .

(H o w e v e r b e f o r e t h e s e t t i m e y o u c a n s t i l l

m a in p u l a t e c h a n n e l 3 & 4 b y h a n d a f t e r t h e s e t

t i m e y o u c a n a l s o m a i n p u la t e d m a n u a l l y a s

an o v e r r i d e )

10 CLS:G0T0570

20 C L S :CT=0 :PR INT:POKE 13827,137

30 T S ="17A28B39C40D":TI =P EE K<16451> *16+PEEK(16450)

40 POKE 13825,0

50 P RINT"TO SEEK INSTRUCTION:- PRESS I"

60 PRINT:PRINT" TIME TIME

SW ITCH OUTPUT SENSER OFF IS ON OFF

SW 1 — OFF OFF OPEN 0 0 : 00 00:00

SW 2 — OFF OFF OPEN 00:00 00:00

SW 3 ** OFF OFF OPEN 0 0:00 00:00

70 PRINT "SW 4 ** OFF OFF OPEN 0 0 : 00

SW 5 — OFF SW 6 - - OFF

17A0F

28 B -

39C

4 0 D

56"

80 DIM S W (6,5): FOR A=1 TO 4:S W (A,3 ) = 1 : NEXT

90 G OS UB 100:GO TO 200

100 G OSUB 520 :TC=P E E K <1 6451) * 16+ PEE K< 16450): IF IN T(TC- TI)>0 THEN GOSUB 350

110 IF S W (1,2)+ S W (2,2)=0 THEN 150 ELSE FOR A=1 TO 2 : IF SW(A, 2) =0 OR S W( A, 1> =0 TH

EN 140

120 B = P E E K (138 26) AN D 2 C ( A + 3): IF (B > 0 >*- l < > S W(A,3 ) THE N 140

130 X=A :GOSUB 330

140 NEXT

150 IF S W (3,2)+ S W (4,2)=0 THE N RETUR N EL SE FOR A=3 TO 4

160 IF SW (A,2)=0 THEN 190

170 IF ( (PEEK < 13826) AND. 2C (A+3) > >0) *-l=SW (A, 3) THEN IF SW(A,1) = 1 THE N X=»A:GOSUB

330 :G OTO 190

180 IF ( ( P E E K U3S2 6 ) A ND 2C (A + 3 ) ) >0) *-l < >SW (A, 3) THEN IF SW(A ,1)=0 T HEN GOSUB 34

0 : S W ( A , 1) = 1: CT= C T + 2 C (A - 1>:PR INT@265+A*6 4, "O N "!:POKE 13825,CT: GO SU B 550

190 NEXT:RETURN

200 K S= INKEY S:IF KS="" THEN 90

21 0 IF KS="Q" OR KS = " F " THEN 420

220 IF KS="I"THEN570

230 IF KS< >"5" AND KS<>"6 " THE N 260 ELSE S=6 :IF K S = " 5 ” THEN S=5

240 IF SW (S,1) =0 THEN C T=C T+ 2 C(S - l):FS ="ON ":SW(S,1>=1 ELSE C T =CT- 2 C(S - l>:PS="OF

F " : S W (S,1)=0

250 P OK E 13825,CT:PRINT 0500 + S * 17, P S ;

260 FOR A = 1 TO 12: IF M I D S (T S , A, 1>< >KS THEN 320

27 0 C=I NT <(A-l)/3 )+1:B=A - (C- l )*3

28 0 IF SW (C,B> = 1 THEN S W (C,B)=0 :P S="CLOSE" ELSE S W (C,B>= 1 :PS =" OP EN "

290 IF B<3 THEN IF SW(C,B)=1 THEN PS="ON " ELSE PS="OFF"

300 I FB =1 THEN IF SW(C,B)=1 THEN C T =CT+ 2 C(C - l):POK E 13823,C T EL SE X=C:GOSU B 330

31 0 P R INT @ 257 + C* 64+ B*8 ,P S;: GOT O 90

320 NEXT:GOTO 90

6

330 GOSUB 540:CT=CT-2C<X— 1):POKE 13825,CT:PRINT@265+X*64,"OFF";

340 GOSUB 550:S W (X , 1)=0: RETURN

350 GOSUB 540:FOR A=1 TO 4:TI=TC:IF S W (A,4 )=S W (A,5) THEN 410

360 IF SW(A,1)=1 THEN 390

370 IF SW(A,4)< >TI THEN 410

380 SW(A, 1> = 1>PRINT@265+A*64,"ON :CT=CT+2C(A-l): POKE 13825,CT:GOTO 410

390 IF SW(A,5)< >TI THEN 410

400 SW(A,1)=0:PRINT@265+A*64,"OFF";:CT=CT-2C(A-l): POKE 13825,CT

410 NEXT:GOTO 550

420 SS=KS:PRINT@962,"SET SWITCH (1-4)

430 GOSUB 100:KS=INKEYS:IF KS>“4" OR KS<"1" THEN 430 ELSE S=VAL(KS)

440 PRINT@962,CHRS(30);"TIME : ";:STS="":TS=0:ST=0

450 GOSUB 100:KS=INKEYS:IF K$>"9" OR KSC'O" THEN 450

460 PRINT K$;

470 STS=STS+KS: IFLEN(STS)=2 THEN TS=TS+1:ST=ST*16+ VAL (STS ):P T S (TS ) IF

TS<2 THEN PRINT

....

GOTO 450 ELSE IF V A L (PTS(1)>>23 ORVAL(PTS(2))>59 THEN 440

ELSE 490

480 GOTO 450

490 IF S$="0" THEN S W (S,4)=ST:SL=1 ELSE S W (S,5)=ST:SL=2

500 PRINT C HRS(29);C H R S (30);

510 PRINT @280+S*64+SL*9,PTS(1)j": ;P T S (2);: GOTO 90

520 GOSUB 540:GOSUB 540:PRINT @181, : Z=PEEK(16451>:GOSUB 560:PRINT ":"t:Z=PEEK

(16450):GOSUB 560:PRINT ":"5:Z=PE EK(16449):GOSUB 560:G0T0 550

530 GOSUB 550:RETURN

540 C1=PEEK(16 4 16):C2 = PEEK(16 4 17): RETURN

550 POKE 1 641 6,Cl:POKE 16 417,C2:RETURN

560 PRINT RIGHTS ("0"+RIGHTS(STRS(Z),LEN(STRS(Z>)-1),2)!: RETURN

570 PRINT" INSTRUCTION FOR CONTROL & SENSING FUNCTION-TIMER PROGRAMME

580 PRINT" THIS IS A DEMONSTRATION PROGRAMME FOR YOU TO FAMILIARIZE YOURSE

LF WITH OUR CONTROL SYSTEM OF KOMTEK I. YOU CAN TURN ON 6 APPLIANCES BY 3 WAYS

590 PR INT:PRINT

600 PRINT"1ST SIMPLE SWITCH ACCORDING TO THE # ON KEYBOARD

I.E. : SW 5, SW 6

610 PR INT"2ND CONNECTED WITH SENSING FUNCTION STATUS 3RD C

ONTROLED BY PRESET TIMER (SW 1 TO SW 4)

620 PRINT:PRINT:PRINT"THE SITUATION OF THE SWITCH, TIMER, S< SENSOR ARE SHOWN IN

THE TABLE BELOW:

630 F0RT-0T02OOO:NEXT

640 CLEAR255

650 G0TÜ20

7
