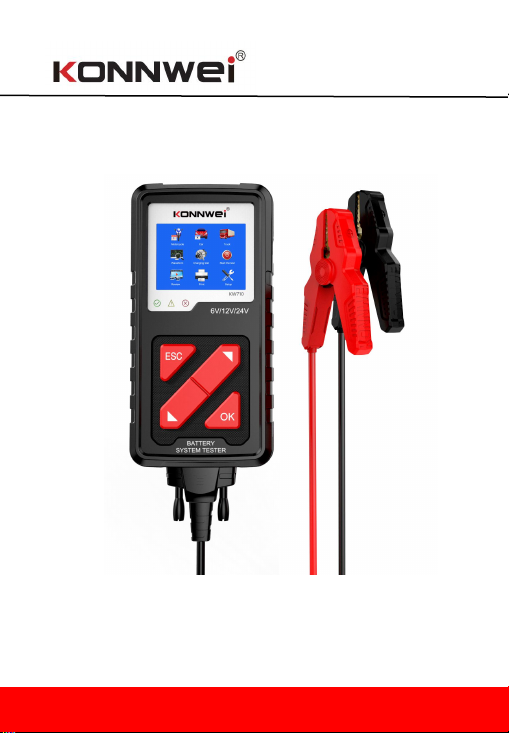

Konnwei KW710 Bedienungsanleitung
1
User's Manual
6V, 12V, 24V battery tester
KW710
KW710
1
www.konnwei.com
KW710 Battery Tester can test all 6V, 12V, 24V automotive cranking lead
acid battery, including ordinary lead acid battery, AGM flat plate battery,
AGM spiral battery, and Gel battery, etc. it adopts the state-of-the -art
conductance testing
technology in the word to easily, quickly and accurately measure the actual
cold cranking amps capability of the vehicle starting battery, healthy state of
the battery itself, and common fault of the vehicle starting system and
charging system, which can help maintenance personnel to find the find the
problem quickly and accurately, thus to achieve quick vehicle repair.
Other Feature include:
• The battery detection range is from 100 to 2000 CCA;
• Bad cell detection function;
• Polarity misconnection protection;
• Measure deeply discharged batteries;
• Various battery specifications testing (CCA, JIS, EN, DIN, SAE, IEC);
•Provide multiple language interfaces for selection: Chinese, English,
German, French ,Japanese,Korean, Dutch, Russian, Spanish,Italian,
Portuguese, Polish, Persian.
Test Result
Resistance
Standard Battery Rating
Actual Battery Rating
Test Voltage Value
KW710
Noted : If test on the vehicle, please make sure to disconnect all loads, and
don't out the key in the ignition position and must close the door . Connect
the red clip to the positive (+) terminal of the battery and the black clip to the
negative (-) terminal. After connecting, shake the clip back and forth to make
the connection firm. Before testing the battery, two clips are required to
connect the terminals firmly.The best test location is the connection port of
the battery. If the battery cannot be connected from the wiring port, you can
try to test on the jumper port, but the measured data may be lower than the
actual value.

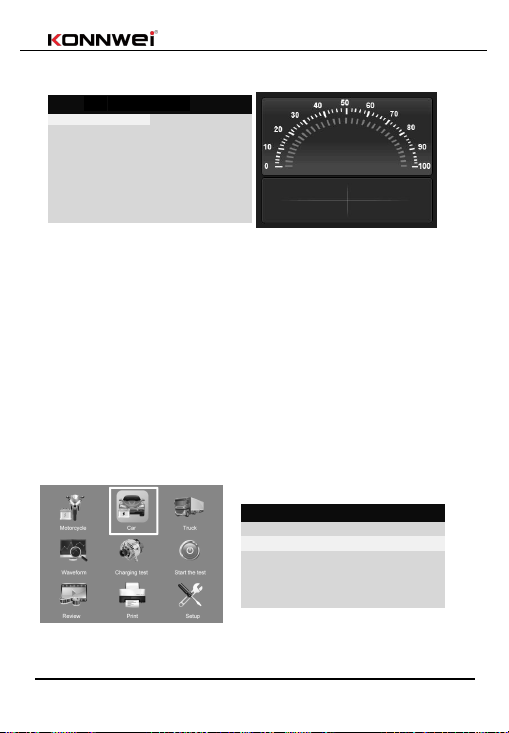

Menu Selection
Motorcycle menu
After entering motorcycle menu ,
select “ BatteryRating “ The screen
will display
the test result ,
Press the up and down keys to switch
between SOH and SOC
SOC:state of charge
SOH :state of health
Batterytest result includes 5 types as following:
(Good Battery /
Good, Recharge /
Replace / Bad cell, Replace /
Charge, Retest )
KW710
3
Set Battery Rating
51814
51913
53030
12N10-3A
12N10-3A-1
12N10-3A-2
1210-3B
12N11-3A-1
12N12A-4A-1
12N14-3A
12N16-3B
12N24-3
12N24-3A
12N5.5-3B
Car menu
After entering car menu , Tester will display the following contents in a
sequence, select accordingly:“ Battery In-vehicle or Out-of-Vehicle”
Press UP/DOWN key to select the battery location, in vehicle or out of
vehicle, then press ENTER key to confirm.
For Example ,Select “ Battery Test out-of- vehicle” , Then show battery type
as shown : Regular Flooded,AGM Flat Plate,AGM Spiral,GEL,EFB.
Then select battery standard and input battery CCA value to get the test
result .
Battery Location
In - Vehicle
Out - Of - Vehicle
SOH 100%
GOOD-RECHARGE
R:23.01
STD:12N9-4B-1
CCA: 131A
VOL: 12.19V
mΩ
KW710
Truck menu
After entering Truck menu , Tester will display the following contents in a
sequence, select accordingly:
“ Battery In-vehicle or Out-of-Vehicle”
Press UP/DOWN key to select the battery location, in vehicle or out of
vehicle, then press ENTER key to confirm.
For Example ,Select “ Battery Test out-of- vehicle” , Then show battery type
as shown : Regular Flooded,AGM Flat Plate,AGM Spiral,GEL,EFB.
Then select battery standard and input battery CCA value to get the test
result .
Battery Location
In - Vehicle
Out - Of - Vehicle
Select Type
Select Standard
Regular Flooded
CCA
AGM Flat Plate
IEC
AGM Spiral
EN
GEL
DIN
EFB
CA
BCI
KW710
5

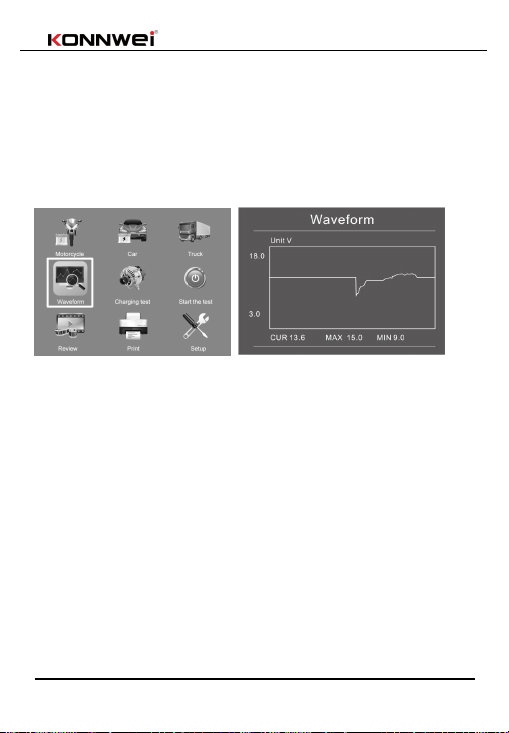

Waveform menu
press WAVEFORM FUNCTION button, The screen will display the interface
as shown below:
CUR: Current Voltage
MAX: Maximum Voltage during Ignition
MIN: Minimum Voltage during Ignition;The waveform will stay in static u
ntil there's changes in the voltage changes detected
Battery Test
1.Battery location: select inside or outside the car. During the in-vehicle test,
the tester will further test the starting and charging system.
2. Important note: The performance of the starting and charging system
depends on the health of the battery. It is necessary to check the starting
and charging system after confirming that the battery is in good performance
and fully charged.
1. Menu: select Car, Motorcycle, Truck
2. Battery type: select ordinary lead-acid battery, ordinary AGM battery,
winding type AGM battery or gel battery.
3. Battery standard: Please check your own battery standard. The battery
KW710
usually uses one or more standard systems.
KW710 battery tester each battery according to the selected system and
rating.
Use UP/DOWN key to select according to the actual system standard and
rating marked on the battery.
Battery
Standard
Description
Range
CCA
Cold Cranking Amps, specified by SAE&BCI, most
frequently used value for starting battery at 0°F(-18 °C)
100–2000
JIS
Japan Industrial Standard,displayed on the battery as
combination of the numbers and letters, e.g. 55D23, 80D26
26A17-
245H2
EN
European Automobile Industry Association Standard
100–2000
DIN
German Auto Industry Committee Standard
100–1400
SAE
Society of Automotive Engineers Standard
100–2000
IEC
Internal Electron technical Commission Standard
100–1400
BCI
Battery Council international standard
100-2000
CA
Cranking Amps standard,effective starting current
value at 0°C
100-2000
MCA
Marine Cranking Amps standard,effective starting current
value at 0°C
100-2000
1.Battery rating: up/down button to select rating, press and hold the up/down
button to speed up the scrolling speed.
2.Press the Enter key to start the test. After a few seconds, the tester
displays the result of the battery test and the measured voltage.
3.The tester can also display the type and specifications of the battery
tested.
KW710
7
Set Battery Rating
Battery Tester Result
Result
Description
Good Battery:
The battery is without any problem, please be relaxed to use.
Good, Recharge
Good battery but low current, recharge before using
Good, Recharge
Good battery but low current, recharge before using.
Note: If the battery is not fully charged before retesting, it may
result in erroneous readings. If the display again after
charging, test again after charging, please replace the battery.
Replace
The battery is near to or already reached the end of the using life,
replace battery otherwise, bigger danger will be followed.
The replacement of the battery may be due to a poor
connection between the car's cable and the battery. After
disconnecting the car battery cable and battery, please
use the outdoor mode to test the battery again, and then
decide whether it needs to be replaced.
Bad cell, Replace
Battery interior damaged, bad cell or short circuit, replace battery.
900 A
CCA
SOH 100%
GOOD BATTERY
CCA: 1415A
VOL:14.10V
R：2.12
STD: 900A
mΩ
Test Result
Resistance
Standard Battery Rating
Actual Battery Rating
Test Voltage Value
KW710
Attention: If “Replace” resulted from IN-VEHICLE mode, it might be the
reason that vehicle cable is not well connected with the battery,Ensure to
cut off the cable and retest the battery under OUT-OF-VEHICLE before
making a decision to replace battery.
Cranking Test
Important note: Before starting the test, check the drive belt of the generator.
If the belt is shiny or worn, or lacks proper tightness, the machine will not
reach the speed level required for detection.
1.When the battery test in the car is completed, the battery test results and
prompts will be displayed alternately. Press Enter to test and start the
system.
2.Press the enter key to do cranking system test.
3. The tester will prompt to start the engine.
4. The KW710 tester will displays the test results : the max cranking voltage,
the min the cranking voltage, and the cranking time in milliseconds, cranking
lower / higher etc.
Cranking Test
TIME: 7554ms
MAX:9.84V
MIN:8.47V
CRANKING LOW
