Konx KX7001 Bedienungsanleitung

Wireless Video Door Phone

User Manual

Contents

1. Introduction ...................................................................... 2

2. Features............................................................................ 2

3. Packing list........................................................................ 3

4. Outdoor camera................................................................. 4

5. Indoor monitor .................................................................. 4

6. Installation instructions....................................................... 5

7. E-lock installation................................................................ 7

8. Operation........................................................................... 8

9. Working environment.........................................................13

10. Notices ...........................................................................13

11. Specifications..................................................................13

12. Failure diagnosis..............................................................14

●Thank you for purchasing our product.

●Please carefully read this user manual before using the product and

follow the manual to install and operate.

1. Introduction

The product is applicable in office, house, apartment, hotel, building and so on.

The outdoor camera is easy to install. Indoor monitor is portable. It can be hung

on the wall, or be placed on the desk.

2. Features

(1) 2.4GHz digital frequency hopping and encryption technology, transmission

distance up to 200 meters in free field, robust anti-interference

(2) Clear night vision can capture image in low-illumination environment

(3) Rain shield for the outdoor camera is available

(4) 3.5 or 7 inch TFT color panel for indoor monitor

(5) Surveillance, unlock, hands-free call and talk

(6) 16 chord melodies and melody volume is adjustable

(7) Brightness and talk volume are adjustable

(8) Date (only one camera with one monitor system) and time shown on the screen

(9) Indoor monitor could take pictures automatically or by instruction. It could store

up to 100 pictures with date and time

(10) BL-5J battery of camera and monitor is replaceable and rechargeable

(11) Outdoor camera works about 30 days if with battery. It works all the while if

connected with the 2w solar module. Or it works all the while if power adapter

is connected.

(12) Wireless unlock control supports power on and power off unlock

(13) One outdoor camera supports up to 4 indoor monitors and vice versa

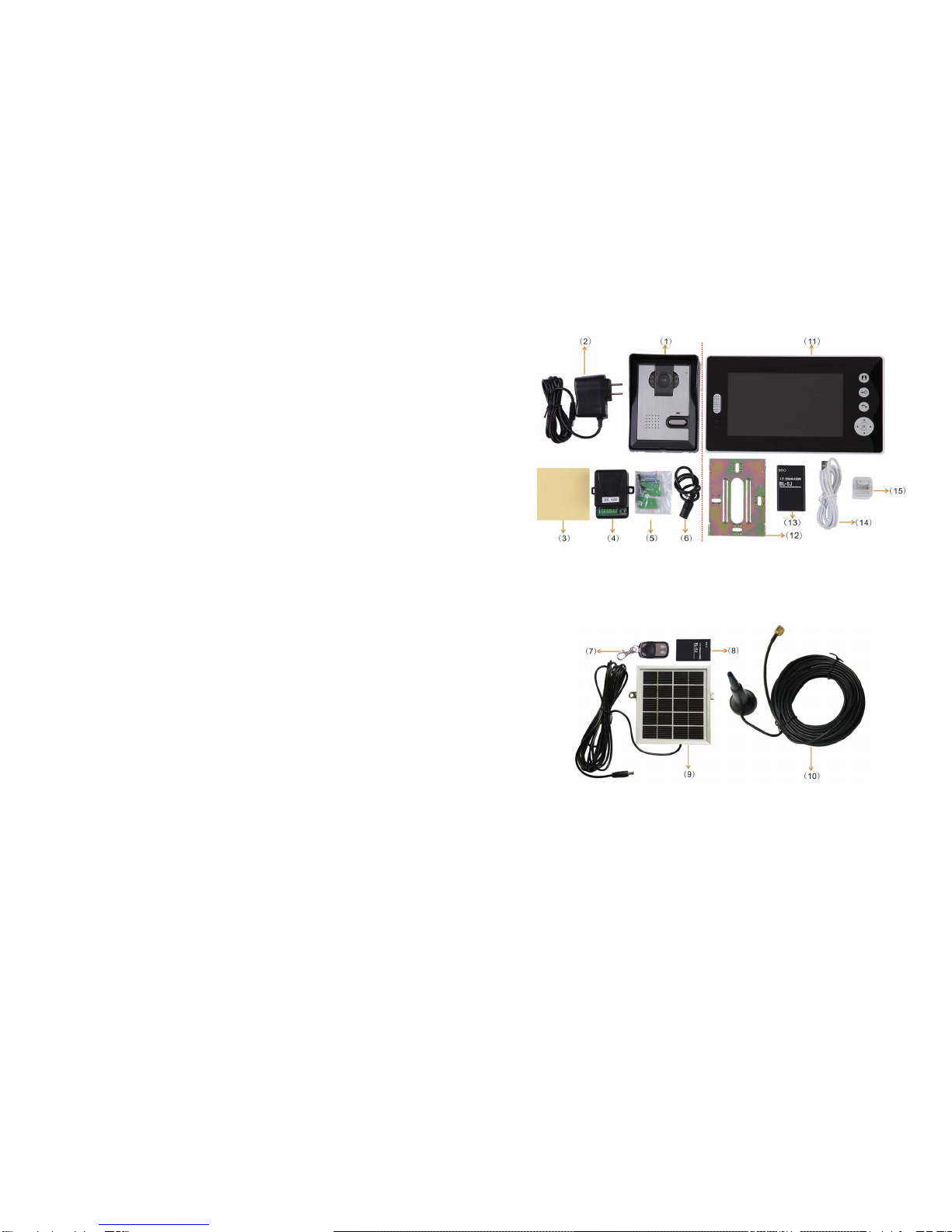

3. Packing list

Outdoor camera part

(1) Outdoor camera (2) Power adapter Input: 100-240V 50/60Hz Output: 5V/1A

(3) double-sided tape (4) Unlock control (5) Screws and stoppers (6)

DC cable

(7) Remote control (optional) (8) BL-5J battery (optional)

(9) Sloar moudle charger (optional) (10) 6meters or 10meters antenna

Indoor monitor part

(11) 3.5” indoor monitor or 7” indoor monitor

(12) Fixed iron for 7” indoor monitor (13) BL-5J battery (14) USB Cable

(15 ) USB power adapter; Input: 100-240V 50/60Hz Output: 5V/1A (16) User manual

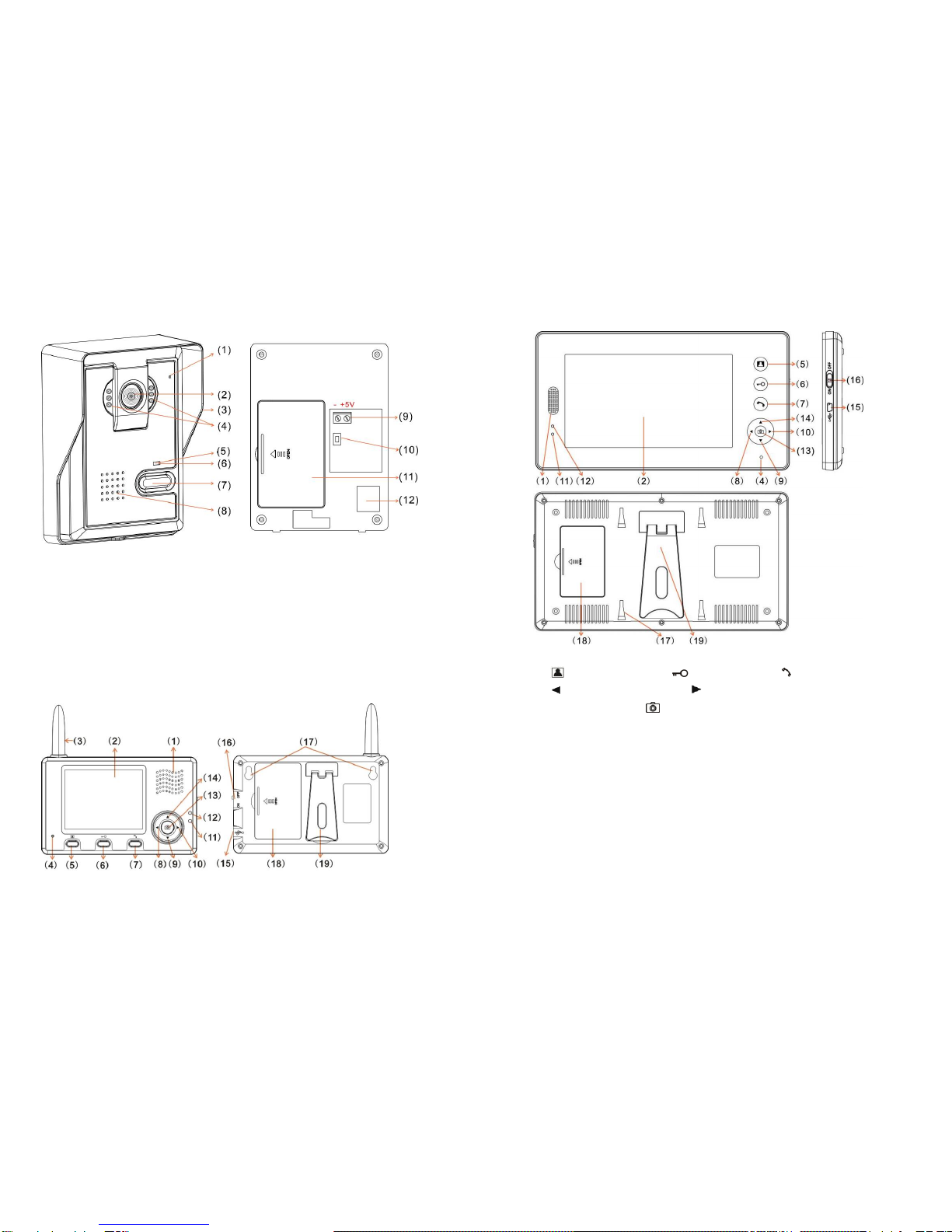

4. Outdoor camera

(1) Microphone (2) Camera lens (3) Rain shield (4) Infrared light

(5) Indicating light for recharge

(6) Indicating light, show green if press ‘pair’ or ‘call’ button, show red if low voltage

(7) ‘Call’ button (8) Speaker (9) Adapter interface (10) ‘Pair’ button

(11) Battery lid of BL-5J (12) Obligate area welding antenna

5. Indoor monitor

(A) 3.5” indoor monitor

(B) 7” indoor monitor

(1) Speaker (2) TFT screen (3) Antenna (4) Microphone

(5) ‘Monitor’ button (6) ’Unlock’ button (7) ’Talk’ button

(8) Left (9) ▼Down (10) Right (11) charging light

(12) Working light (13) ‘Take picture ’ button (14) ▲Up (15) USB interface

(16) Power switch (17) Fixed slot (18) Battery lid of BL-5J (19) Bracket

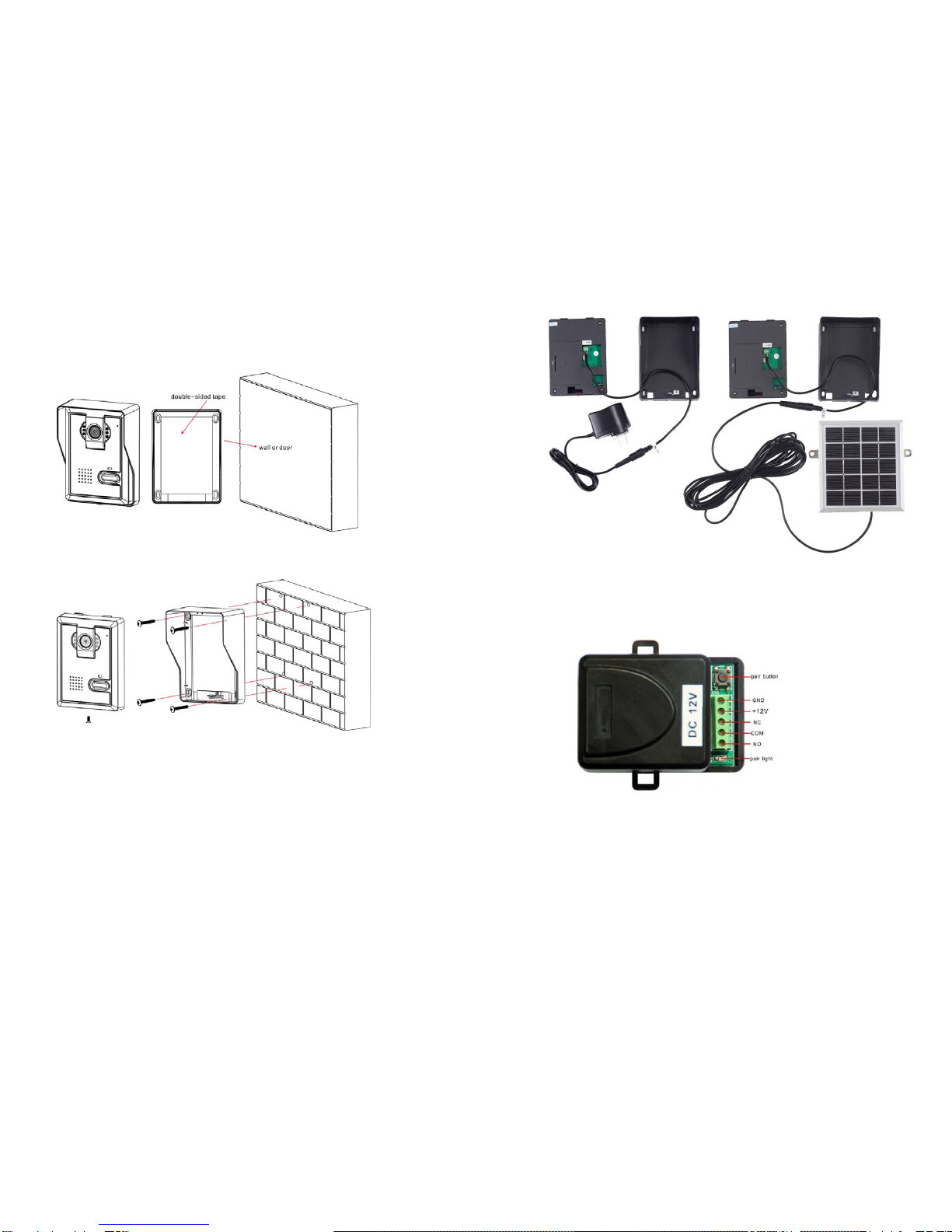

6. Installation instructions

The outdoor camera should be installed at the shielded position to be free from

direct shinning of strong light or raining. The height for installation is recommended

to be 1.5~1.7m for outdoor camera to focus on the best monitoring range. Wireless

signal will be weakened if there are obstacles between the outdoor camera and the

indoor monitor. Please check the best sign of monitor when install the outdoor

camera to get the best position.

If wiring needs to go through wall, the plug should be firstly wrapped with tape so

as to avoid the sand or dirt going into the plug thus resulting in malfunction.

Use double-sided tape fix camera on the wall or door as the following diagram.

Take off the screw on the bottom, remove the back box fit on the wall, embed the

camera to the back box and use screws to fix as the following diagram.

If it is inconvenient for the user to install power adapter near outdoor camera,

user can also select solar panel module and rechargeable battery for outdoor

camera. But the solar panel module and rechargeable battery are not included in the

product package list.

The Vmp and Imp of the 2w solar panel module are 5v and 400mA respectively.

The wire between solar panel module and camera length is 6 meters. You’d

better put the solar module on the place the sun can directly shine. The battery

costs 3~4hours to be fully charged by strongly directly shinning. Outdoor camera

can work about 30 days each full recharge. 7

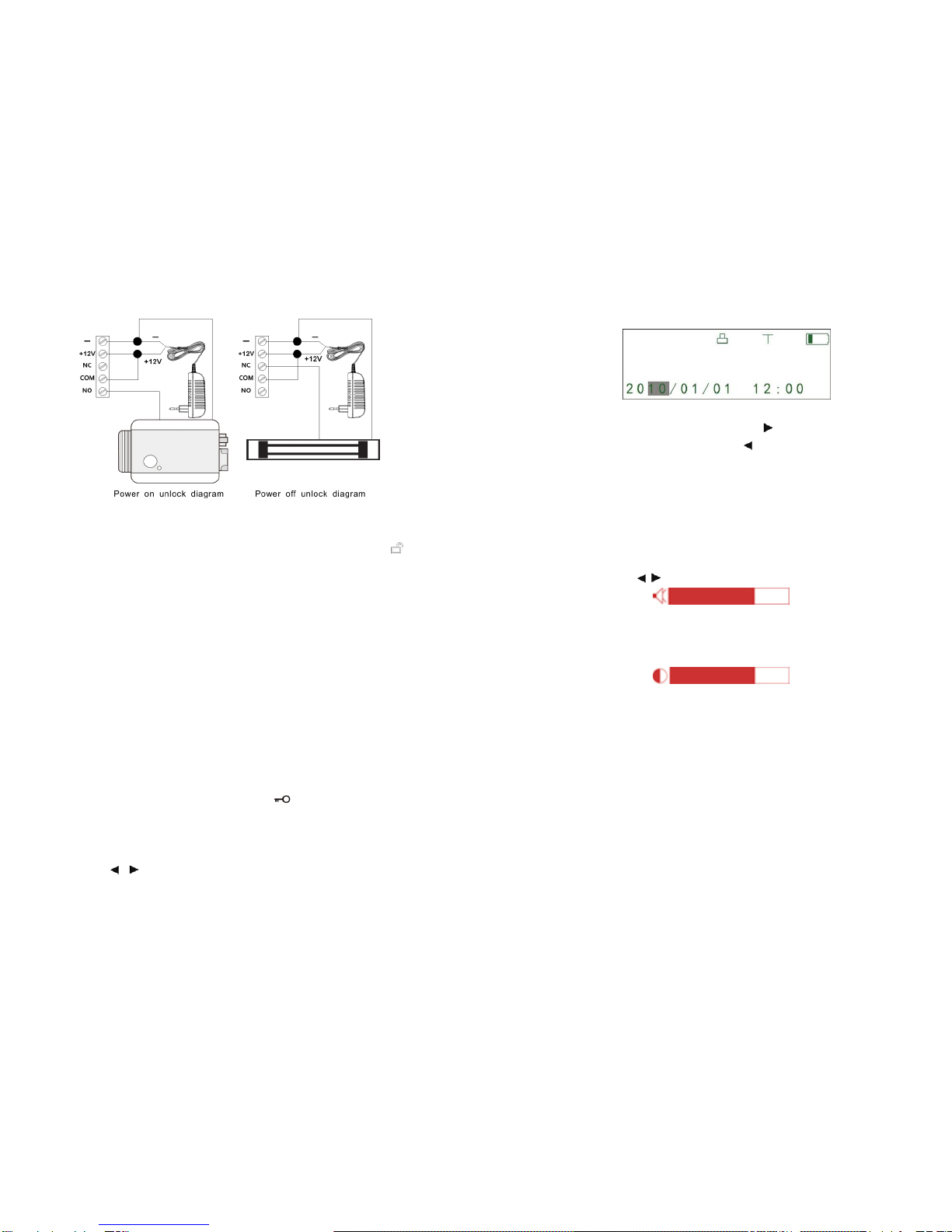

7. E-lock installation

E-lock and power of e-lock are not included in this product. Unlock control

connects e-lock, shares 12V power adapter with e-lock when it works.

Notes: The distances between wireless unlock control and outdoor camera

should be within 10 meters so that the wireless unlock control is able to receive

unlock command. The remote control uses 27A/12V battery. presses of

remote control to unlock. The work distance between remote control and unlock

control should be within 15 meters.

The system can work together with intelligent lock, Intelligent lock uses 4pcs AA

batteries.

8. Operation

Note: When the system is in working condition, if there is no blocking wall

between indoor monitor and outdoor camera, you must keep them at least 6

meters apart to avoid the ‘whistle’ sound.

A Setting

(1) Date and time

When indoor monitor is in non-talk mode, press button for 3 seconds, there

will be a "T" (for time) character on the left side of the battery symbols on the screen.

User can set the date (year/month/day) and the current time (hour/min). Time format

is 24 hours. Only one outdoor camera with one indoor monitor is available for date

setting. Press , button to select, press ▲, ▼button to adjust the date and

time in grey.

(2) Melody and volume

When indoor monitor is in non-talk mode, press button to select one of the 16

chord melodies as the sound of the bell. Press choose to the volume of melody

(adjust level: 1-2).

16 chord melodies are Ding-dong, To Alice, Westminster bell, Butterfly lovers, The

cygnet, Red river valley, My heart will go on, Turkey’s march, Small dance,

Congratulations you, William's prelude, Love romance hudson, Memory, The Little

Mermaid, Green sleeves, Romeo and Juliet.

(3) Talk volume

In the talk mode, press ,to adjust the talk volume. Adjust level: 0-7.

(4) Brightness

In the talk mode, when indoor monitor has dynamic image from outdoor camera,

press ▲, ▼to adjust brightness. Adjust level: 0-7.

B Operation

(1) Indoor monitor turn on/off

Turn on: Turn the power switch to “ON”, working light display red and rings the

melody.

Turn off: Turn the power switch to “OFF”, working light off。

Maximum Com-sign is level 6. Maximum battery bar is level 4.

(2) Talk, unlock

The visitor presses the “call” button of the outdoor camera. All indoor monitors will

sound melody.

A. Press button of one indoor monitor to speak to visitor before unlock.

Other indoor monitors can see the image but can not hear sound of the visitor.

If you want to let other indoor monitor to talk, press button to end the

current dialogue, then another indoor monitor could press button to

speak to visitor.

When in talk mode, press button to unlock the door lock, the unlock signal

shows on the screen. When press button again, the unlock signal will

disappear.

Press button to turn off the screen and enter standby mode, or it will turn into

standby mode automatically after 30 seconds.

B. If do not want to let the visitor go in after seeing the video, no operation or

press the button to turn off the screen and then enter into standby mode.

Indoor monitor enters into the standby mode after 30 seconds if no any operation.

Note: if you use multiple indoor monitors, please keep distance among indoor

monitors to avoid affecting talk effect.

(3) Monitor

For one outdoor camera or more outdoor cameras with one indoor monitor, if

there is no calling from the outdoor camera, the indoor monitors are in standby

mode. User can press the button once to wake up the indoor monitor; press

button again to enter monitor mode and monitor the outdoor as long as you like,

monitor signal will display on the screen. Press button again to quit and turn off

the screen.

For several outdoor cameras with one indoor monitor, in monitor mode, press

button to show the image from the CAM1, CAM2, CAM3, CAM4 (if the system

has) in sequence. At the last outdoor camera, press button again to quit and

turn off the screen.

(4) Charge

For the first time, the battery should be charged for more than 5 hours to activate

the lithium battery. After that charge 3 hours every time, Charging led is red when

charging, it turns green when the battery is filled, the color of battery bar will change

from green to red when the battery is in low power.

C Picture

(1) Take pictures

When there is video from outdoor camera, presses button to take a picture,

one press captures one picture.

When the Call button of outdoor camera is pressed, if the user isn't in or no

operation, all indoor monitors automatically save the image from camera after 10

seconds. The new picture will replace the first picture if no memory is available.

(2) Browse pictures

In the non-talk mode, press , button to browse the stored pictures, then

press button or after 10 seconds to quit browse mode.

(3) Delete pictures

Firstly turn off the indoor monitor, then press and button together about

5seconds, then turn on the indoor monitor, until the screen displays text: ’Delete

all photo, please wait’ ‘no photo , Please Power off’. After that all pictures have

been deleted. Please turn off the indoor monitor.

D Pair

pair ok before use get the product.

1 Pair outdoor camera with indoor monitor

Note: The system only support 3 models as below. User can’t mix them when

purchase. For one-to-one system, adding more outdoor camera or more

indoor monitor can’t become one-to-multiple system.

(1) One outdoor camera and one indoor monitor system is 1V1 system

Press ‘pair’ button of outdoor camera, indicating light flash, press and

button of indoor monitor at the same time, the screen will show “... 1v1 pairing”. If

pairing succeeds, the video from outdoor camera will be shown in the screen of

indoor monitor.

(2) One outdoor camera and up to 4 indoor monitors system is 1VN system

Firstly, press ‘pair’ button of outdoor camera, indicating light flash, press and

button of indoor monitor at the same time, the screen will show “... 1v4 pairing”.

If pairing succeeds, the video from outdoor camera will be shown in the screen of

indoor monitor.

Secondly, repeat the above operation for each indoor monitor.

(3) Up to 4 outdoor cameras and one indoor monitor system is NV1 system

Note: To pair this system is more complex than to do the above two systems.

After turn on outdoor camera and indoor monitor, press button ASAP so not

let any part enter into standby mode.

Firstly, press the ‘pair’ button of outdoor camera, indicating light flash, press

and button of indoor monitor at the same time, the screen will show “... 4v1

pairing”, if pairing succeeds, the video will be shown in the screen of indoor monitor.

Secondly, repeat the above operation as soon as possible until finish all pairing.

Thirdly, check whether pairing is successful, let system power on again, and then

press ‘monitor’ button continuously to monitor each outdoor camera. If each outdoor

camera works, it means that system pairs successfully. Otherwise repeat the first

step.

2 Pair unlock control with door phone system

Unlock control is connected to 12V power adapter. Outdoor camera uses the

battery, or is connected to the power adapter. Firstly press the pair button of unlock

control, the pair light will flash once. Press the button of the indoor monitor

under talk mode, pair light will continuously flash.

Once again press the pair button of unlock control, pair light stops flashing.

Finally press the button of the indoor monitor under talk mode, the pair light

will flash 3 seconds, it means that pairing is successful.

9. Working environment

(1) Working temperature: -15℃—+55℃(2) Working humidity: ≤85%

10. Notices

(1) Please don’t cover anything on the Microphone or speaker when it is in

working mode.

(2) Please always use the specified power adapter, or that with the same

model (same standard voltage and current).

(3) Do not attempt to service this product yourself as opening or removing

covers may expose you to dangerous voltage or other hazards.

11. Specifications

Camera Indoor monitor

Light

Source 6 LED lights USB

Power

Input：AC 100-240V

50/60Hz

Output：DC 5V/1A

Camera CMOS 300K pixels Screen 3.5”TFT 320×240

7”TFT 800×480

Battery BL-5J 1250mAh(option) Battery BL-5J 1250mAh

Power

supply

Solar moudle, battery or

5V 1A power adapter

Power

supply

Battery or 5V 1A power

adapter

Size 126×93×42 mm Size 3.5” 141×87×20 mm

7” 236×130×18 mm

Installatio

Double-sided tape or

screw fix

Installa

tion

Place on the desk etc.

Or wall mounting type

Standby 35 days Standby 3.5” 20 days

7” 4 days

12. Failure diagnosis

Malfunction Checking Debug

Fail to start the

product

If turn the switch to the "ON"? Turn the switch to the ON

If the power of Li-on battery is

not enough? Charge the Li-on battery

Fail to charge

If the plug of power adapter

correctly?

Re-connect indoor monitor

with power adapter

If the power adapter correctly

get through the 100-240V AC

electricity?

Re-insert the plug to make

power adapter get AC

electricity.

No voice in talk

mode

If the talk volume is adjusted to

be the least?

To adjust the talk volume to

be suitable.

The image is

flashing or

noisy

If the indoor monitor is close to

induction cooker and

microwave oven which has

magnetic wave?

Keep indoor monitor far away

from these things which has

magnetic wave.

No signal for

indoor monitor

If the outdoor camera doesn't

connect the power?

To connect power adapter to

the outdoor camera

If the outdoor camera is far

away from the indoor monitor?

Keep the distance in 60

meters within (stopped by

multi-wall)

If there is other strong

magnetic space bother?

Keep indoor monitor far away

from the strong magnetic

space

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

This device and its antenna(s) must not be co-located or operation in conjunction with any

other antenna or transmitter.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC ID: 2AA6JKXPHOC

KONX INTERNATION LIMITED

Model No.: KX7001

Model name: Wireless video door phone

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Inhaltsverzeichnis

Andere Konx Gegensprechanlage Handbücher

Konx

Konx PH7001 Bedienungsanleitung

Beliebte Gegensprechanlage Handbücher anderer Marken

Bticino

Bticino LINEA 3000 Bedienungsanleitung

MSI

MSI MSI-140 Bedienungsanleitung

golmar

golmar Stadio Plus Bedienungsanleitung

CyberData

CyberData 011211 series Handbuch

Vidos

Vidos duo M1021 Bedienungsanleitung

Vimar

Vimar ELVOX 7539/E Bedienungsanleitung

SSS Siedle

SSS Siedle BTSV 850-03 Bedienungsanleitung

Dahua

Dahua VTO Series Bedienungsanleitung

Elvox

Elvox 5651 Bedienungsanleitung

Videx

Videx VIDEOKIT Series Bedienungsanleitung

Rocom

Rocom Doortello Business FW T2.05W2.04 Bedienungsanleitung

Viking

Viking E-35-EWP Bedienungsanleitung

Safeguard Supply

Safeguard Supply LRA-EX1000 Bedienungsanleitung

SSS Siedle

SSS Siedle BFCV 850 Series Bedienungsanleitung

GRD

GRD MAX V2 Bedienungsanleitung

Alecto

Alecto ADI-250 Bedienungsanleitung

Aiphone

Aiphone IE-8MD Bedienungsanleitung

Perel

Perel EDB4 Bedienungsanleitung
