Koolance GPU-180 Bedienungsanleitung

The video card or motherboard should be removed from the chassis in order

to install the chipset cooler. The mounting screws are inserted from the back

side of the board.

CAUTION: Removal of the original heat sink my void your

manufacturer’s hardware warranty. Please consult the manufacturer

if unsure, and keep all original parts in case of a return/RMA.

Koolance does not recommend using a liquid cooler on video cards

or motherboards that lack standard mounting holes, or have heat

sinks that are attached with only an adhesive (rather than screws or

bolts).

Beneath the board, the plastic tabs must be

squeezed together with needle-nose pliers in

order to free the original heat sink. (Some

tabs have locking center pins which must

first be removed from the top.)

Once loosened, remove the original

heat sink. Apply a thin layer of thermal

interface compound onto the chipset if

necessary.

Remove the protective tape from the bottom

of the chipset cooler.

To help keep them secure, place rubber

washers over the metal screws from above

the board.

Through the original heat sink

mounting holes, insert both metal

mounting screws from the back of

the board. Make sure the plastic

insulating washers are placed on

each screw.

For ATI Radeon video chipsets, place the

included adhesive foam pad around the chipset

core for a flatter mounting surface.

GPU-180 Installation Guide v 1.1

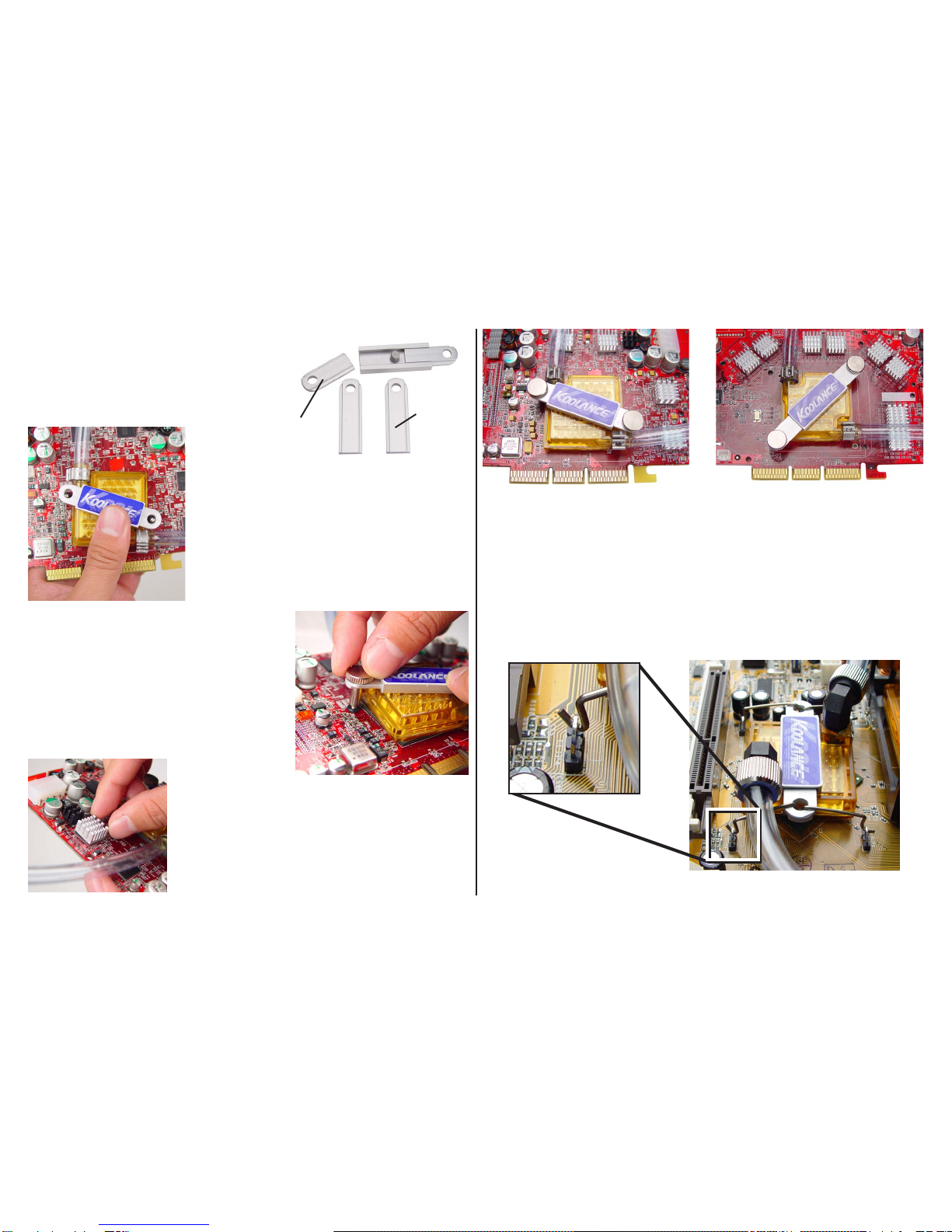

Place the liquid cooler onto the video or

motherboard chipset and align the mounting

bracket. The bracket is highly-adjustable for

proper alignment.

(NOTE: For some models of GPU-180 coolers,

you may need to re-adjust your nozzles to

provide more clearance for the bracket.)

Use the metal attachment nuts to fasten the

mounting bracket to the chipset. Hand-

tighten all video card components.

It is OK for the chipset cooler to sit

diagonally on the video card or motherboard.

Cooling efficiency will be the same.

Heat sinks are included for attachment to video

memory chips for additional cooling. Depending

on the video card, you may not require all 8 heat

sinks.

Two sets of bracket tabs are included with

the chipset cooler. Use whichever tabs

best align the cooler over the mounting

screws.

short tab long tab

(Chipset Cooler mounted on an ATI

Radeon 9800 Pro) (Chipset Cooler mounted on an

nVidia GeForce FX 5900 Ultra)

Mounting on a P-4 Northbridge Chipset

Many motherboards for P-4 chips feature heat sinks which are “hooked”

rather than bolted to the Northbridge chipset. Use the four attachment springs

included with the GPU-180 cooler to secure the bracket to this type of chipset.
