READ ME FIRST! Studying this Owner’s Manual will make you
familiar with your airbrush so you can maintain
it with confidence. Also, should you need any
parts, you can identify and order them easily.
Kopykake 3699 West 240th St. Torrance California 90505 USA
Tel: 310-373-8906 Fax: 310-375-5275
sales@kopykake.com www.kopykake.com
Large Airbrush (1/3oz)
AB025 & ACD25
Small Airbrush (1/16oz)
AB018 & ACD18
Double Action Air Valve
AB070
Airbrush Models
AB018 AB025
ACD18 ACD25
Single Action - air flows through the
airbrush whenever compressor is ON
Double Action - Air flows through the airbrush
only when airbrush lever is depressed
MAINTENANCE: CLEANING
The Basic Cleaning
What I've found to be very helpful is to keep a cup of hot water and
add a few drops of airbrush cleaner, run this mixture through the
airbrush, while working lever action the whole time. Repeat this
between each color and each fill of the cup. A complete disassembly is
normally not needed. If your buildup isn't too bad, you should be able
to clean your airbrush without taking it apart. If old color has built-up in
the airbrush, you should let the entire airbrush soak in the airbrush
cleaner solution at full strength for about 30 minutes. Then loosen the
chucking nut (AB008), pull needle (AB009) back about 1 inch, and run
full strength cleaner through it after it has soaked. Rinse the airbrush
and dry.
No color is coming out of my airbrush, and I also notice
bubbles in my color cup.
Check Fluid nozzle (AB003), and/or nozzle cap (AB002).
When any of these are clogged you will get back feed into color cup.
Getting tiny lines of color without pressing main lever.
Your needle is not seating all the way into the airbrush.
Loosen the chucking nut of the needle and see if it will go in further. If it
doesn't the tip may be dirty and needs cleaning. By simply removing
your needle and gently cleaning it by removing all color and possibly
dried color near needle tip should fix problem because the needle was
not totally seated.
My air cap leaks air.
After removing the needle, remove the air cap. Take a very
small amount of bees wax, apply this to the threads. It will seal the
threads from air leaking this can be done on any air leaks you may
have.
My airbrush is over spraying or spitting
Check the point of your needle to make sure there is no
damage such as a bend or hook, remove the air cap and clean the
inside using a Q-tip, replace your needle if bent, or nozzle if damaged,
if you still see any spits.
***DO NOT***
disassemble airbrush for Basic Cleaning!
Problem:
Solution:
Problem:
Solution:
Problem:
Solution:
Problem:
Solution:

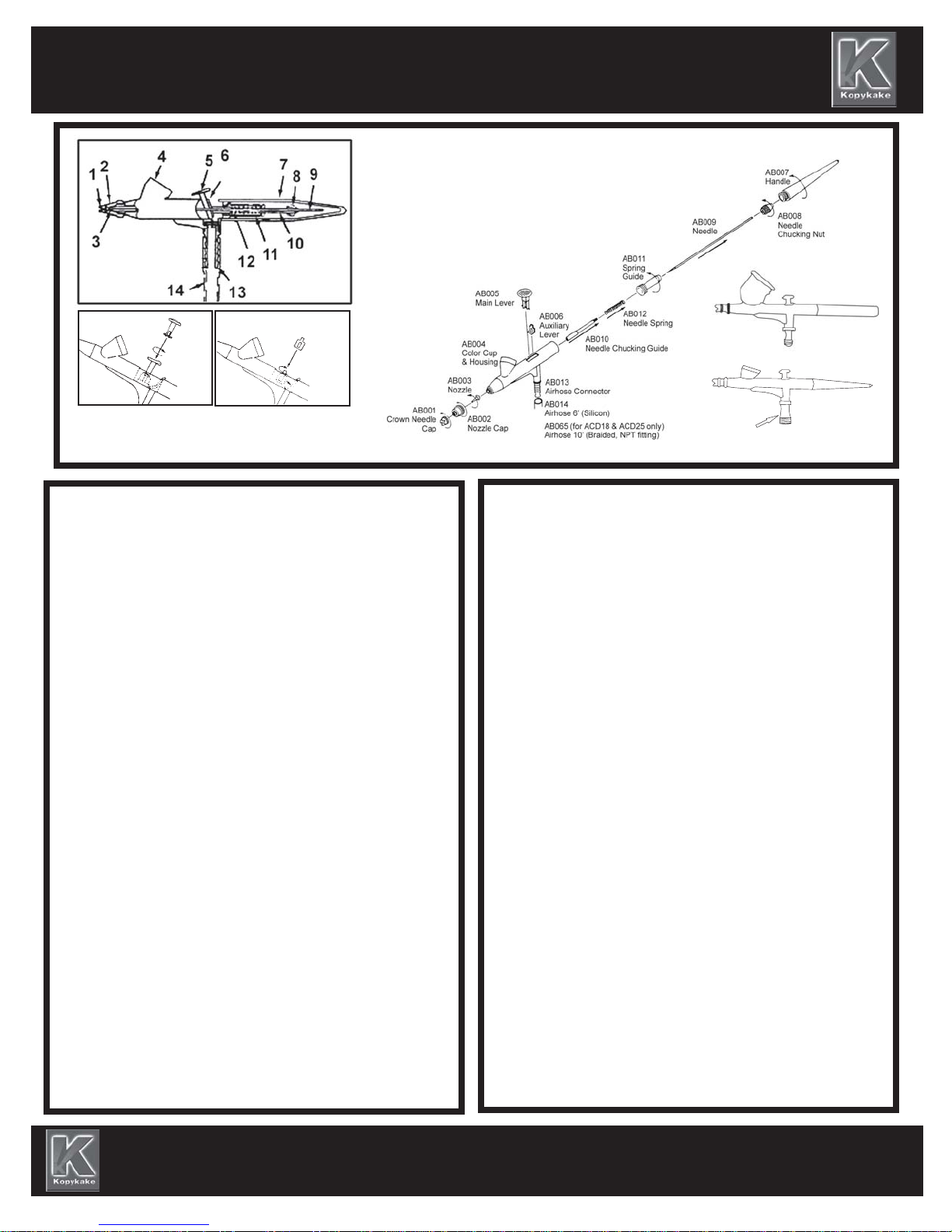

DISASSEMBLING YOUR AIRBRUSH
ASSEMBLING YOUR AIRBRUSH
Become familiar with your airbrush by studying the above
diagram. Remove each part by turning or pulling counter clockwise:
STEP 1: Disconnect the Airhose (AB014 or AB065) from the Airhose Connector
(AB0I3)
STEP 2: Remove Handle (AB007) by turning counter clockwise
STEP 3: Loosen Needle Chucking Nut (AB008)
STEP 4: Pull Needle (AB009) out, be careful not to damage the point
STEP 5: Unscrew the Spring Guide (AB011)
STEP 6: Remove the Needle Spring (AB012) and Needle Chucking Guide (AB010)
STEP 7: Remove the Main Lever (AB005) by pulling then twisting. Remove
Auxiliary lever (AB006) by pulling and twisting.
STEP 8: Remove the Crown Needle Cap (AB00I) and Nozzle Cap (AB002)
STEP 9: Using the small flat wrench provided with your airbrush, remove the
Nozzle (AB003) by placing the wrench over the two flat spots and turning
counter clockwise.
STEP 1: Using the nozzle wrench, screw in and tighten the Nozzle
STEP 2: Screw on the Nozzle Cap and hand tighten
STEP 3: Screw on the Crown Cap and hand tighten
STEP 4: Hold the airbrush as shown in Diagrams B & C. Take the Auxiliary Lever
(Diag. C) and insert inside the opening, twisting it so that the hump is
towards the back. Let it rest against the back of the opening.
STEP 5: Stop. Study the Main Lever. Notice there is a thinner, rounded section on
the flat part
under the round head. This side goes towards the back of the opening.
Refer to Diagram B. Insert the Main Lever into the opening and guide the
two pins into the two channels located on the walls inside the opening.
Move head back against the Auxiliary Lever and hold there. Hold these
parts secure then go to Step 6.
STEP 6: Insert the Needle Chucking Guide, channel down into the back of the
airbrush. Slide the Needle Spring over the Needle Chucking Guide. Insert
the Spring Guide over the Needle Spring and screw in until tight. This
spring mechanism will push the main lever and Auxiliary Lever forward.
STEP 7: Insert the Needle through the Needle Chucking Guide and slowly push all
the way forward. Screw on the Needle Chucking Nut until tight.
STEP 8: Cover the back of the airbrush with the Handle.
"" Caution: Do not apply excessive force when tightening"'.
ACCESSORIES (Not pictured)
AB015 4oz. Poly Bottle with dispenser cap
AB016 Nozzle Wrench
AB050 Moisture Trap (Barbed) - for Airmaster & KromaJet compressors
AB051 Moisture Filter with hose fitting - for Airmaster Plus compressor 91000 Airbrush Cleaner
Rev. 8-13-2010
Diagram B Diagram C
12
3
4
5
6
7
8
9
10
11
12
13
14
