kowatec miniBot Bedienungsanleitung
miniBotminiBot
Tools
Parts
Body
Feet
3 x AAA Battery
and holder Cable for LED
EV8
LED
Motor
Legs
Head
Shoulders
Assembling
Right Shoulder
Left Shoulder
Back Back
Front
LEGS
1. Left Leg
2. Right Leg
Snap the top end of the
leg on the inside slot of
the back cover Back view
Body Back Cover
Snap the legs completely
into the back body cover
Take the cable of the motor
and insert into the hole on
the back cover
Snap the right shoulder
to the body
Repeat for left shoulder
Place the front
over to the body.
Place the head
Secure the body
with screws

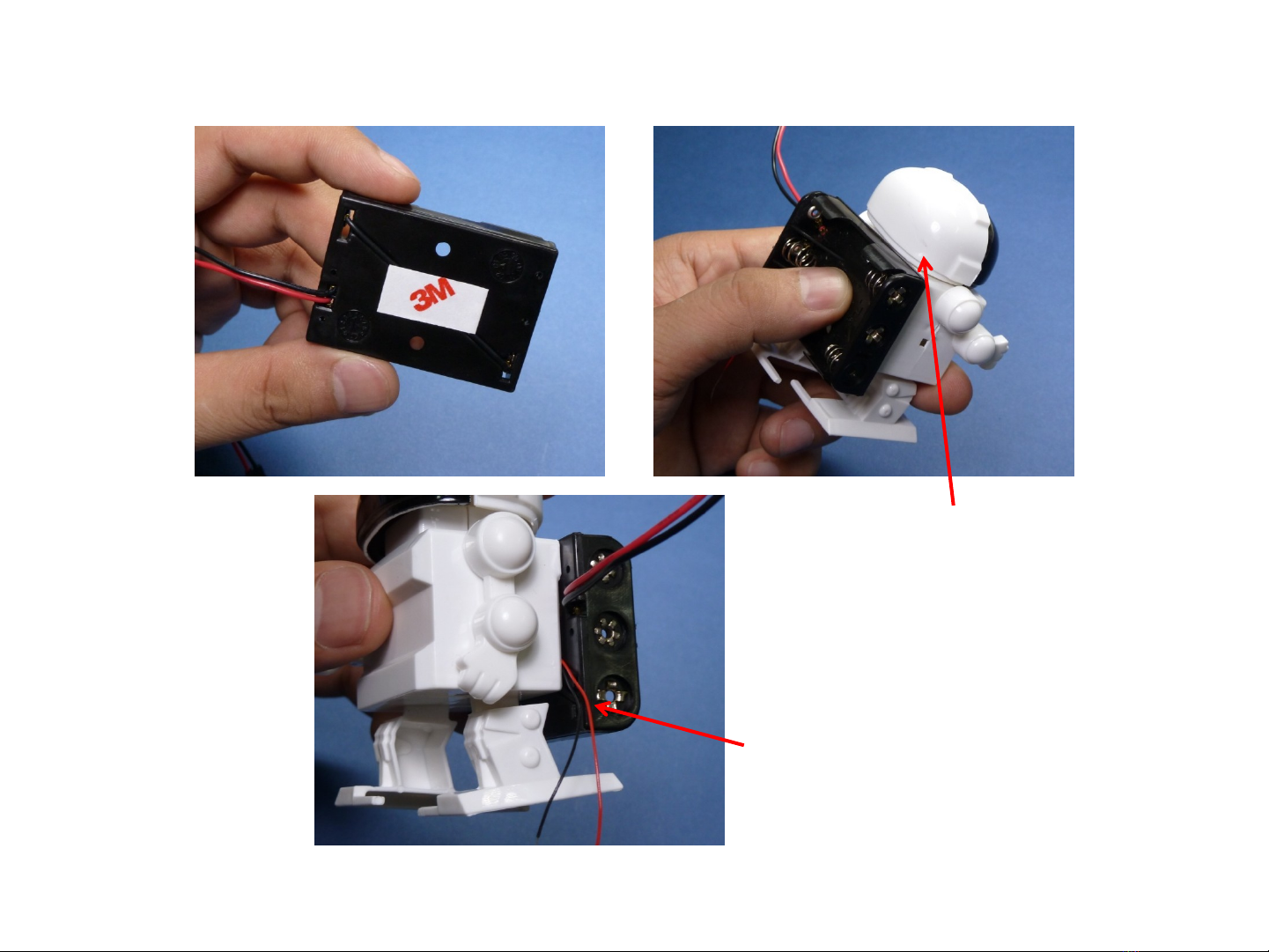

Glue the battery holder on the
back of the body. Make sure it
does not touch the head.
Make sure the motor
cables come out from here
