Kramer VM-3DT Bedienungsanleitung

-3DT Quick Start (P/N: 2900-300796QS REV 1)

P/N:

2900- 300796QS

Rev:

Scan for full manual

VM-3DT Quick Start Guide

This guide helps you install and use your VM-3DT for the first time.

Go to www.kramerav.com/downloads/VM-3DT to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VM-3DT

1:3 HDBT Distributor 1 Power supply (5V DC)

1 Quick start guide

4 Rubber feet

Step 2: Get to know your VM-3DT

# Feature Function

1 ON LED Lights green when the unit receives power

2 PROGRAM Mini USB Connector Use to send RS-232 commands. Connect to a PC to perform firmware upgrades (via

K-Upload) and work with the EDID Designer. K-Upload and EDID Designer can be

downloaded from our Web site at:www.kramerav.com/manual/EDID Designer

EDID SETUP Button

Press to capture the input EDID, force RGB mode or select the default EDID

4 ACTIVE INPUT LED Lights green when an HDMI signal is embedded on the HDBaseT input

HDBT LINK LEDs IN Lights green when a link is established with the HDBaseT transmitter

OUT

Lights green when a link is established with the HDBaseT receiver (1 to 3)

6 OUTPUTS CONNECTED LEDs Lights green when an acceptor (sink) is detected on the HDBaseT receiver connected

to the output (from 1 to 3)

7 INPUT HDBT Connector Connects to an HDBaseT source, for example

VS-44DT

8 HDBT OUT Connectors Connect to an HDBaseT acceptor (from 1 to 3), for example

TP-580R

SETUP 8-way DIP-switches

Use to set IR (DIP-switches 1-3) and RS-232 (DIP-switches 5-7) command behavior

SETUP 4-way DIP-switch

For future use

11 5V DC +5V DC connector for powering the unit

Step 3: Install the VM-3DT

To mount the VM-3DT in a rack, use an RK-1 rack adapter. Alternatively, attach the rubber feet to the underside of the VM-3DT and

place it on a table.

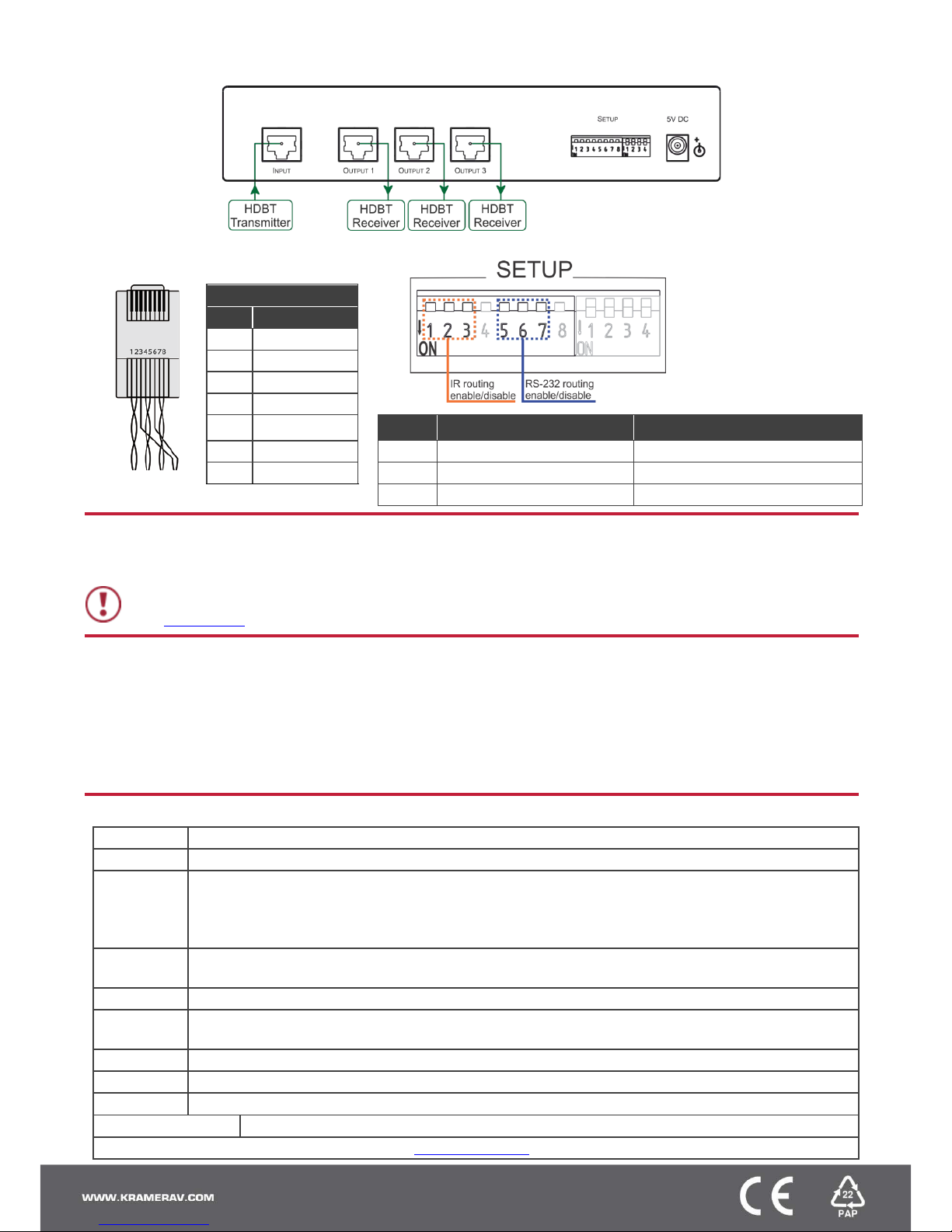

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VM-3DT. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to the VM-3DT.

RJ-45 Pinout:

DIP-Switch Setup:

For HDBaseT connectors:

Note: DIP-switches 4 and 8

are reserved for future use.

By default, all DIP-switches

are set to OFF (up).

PIN EIA /TIA 568B

PIN Wire Color

1 Orange / White

Orange

Green / White

4 Blue

5 Blue / White Out # IR Routing is enabled when: RS-232 Routing is enabled when:

Green

OUT 1

DIP 1 – OFF (up)

DIP 5 – OFF (up)

Brown / White

OUT 2

DIP 2 – OFF (up)

DIP 6 – OFF (up)

OUT 3 DIP 3 – OFF (up) DIP 7 – OFF (up)

Step 5: Connect the power

Connect the power adapter to the VM-3DT and plug the adapter into the mains electricity.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Acquire the EDID

To acquire an EDID, press the EDID SETUP button as follows:

1. Press the EDID SETUP button once.

The OUTPUTS CONNECTED LEDs flash to indicate the current EDID used: 1, 2, or 3, or all if the default EDID is currently used.

2. Press the EDID SETUP button again to enter the EDID read mode and then press repeatedely to cycle through the EDID source

options until the desired EDID source is reached: OUT 1 -> OUT 2 -> OUT 3 -> all LEDs flash (for a default EDID).

3. Wait a few seconds for the VM-3DT to read the EDID. When complete, all LEDs display the present output connection status.

Technical Specifications

Input: 1 HDBT on an RJ-45 female connector

Outputs: 3 HDBT on RJ-45 female connectors

Extension

Line / Range: HDBaseT 1.0 compliant.

Up to 40m (130ft) at 4K@60Hz (4:2:0); Up to 70m (230ft) at full HD (1080p@60Hz 36bpp).

Note: When using Kramer HDBaseT cables. This reach applies to each IN and OUT port separately, the total

end-to-end reach is the sum of all ports’ reach.

Video: Up to 4K@60Hz (4:2:0) resolution; Up to 10.2Gbps (3.4Gbps per graphic channel) data rate; Complies with

HDMI 2.0 and HDCP 1.4

Controls: EDID SETUP button; Indicator LEDs: OUTPUTS CONNECTED 1-3, HDBT LINK 1-3, ACTIVE INPUT, ON

Operating

Conditions: Operating Temperature: 0° to +40°C (32° to 104°F); Storage Temperature: -40° to +70°C (-40° to 158°F);

Humidity: 10% to 90%, RHL non-condensing

Power: Power Source: 5.2V/4A; Power Consumption: 5V DC, 3.2A

Dimensions: 21.5cm x 16.3cm x 4.4cm (8.4” x 6.4” x 1.8"); Shipping: 35.1cm x 21.2cm x 7.2cm (13.8” x 8.3” x 2.8") (W, D, H)

Weight: 0.53kg (1.17lb); Shipping Weight: 1.29kg (2.84lb)

Included Accessories: Power supply

Specifications are subject to change without notice at www.kramerav.com
