KSR Moto B 05 Bedienungsanleitung
mod.#
USER MANUAL
B 05
ENG
1
INTRODUCTION
Thanks for your purchasing of this vehicle. This model is designed for safety, built for durability, and
perfected for daily street use. The unique vehicle design, enrich of stylish and peronality, represents your
outstanding taste and favor to pursue the state of the art living attitude.
This manual describes the correct usage of this motorcycle including safety riding, simple inspection methods
and so on. For a more comfortable and safety riding, please read this manual carefully. If any questions concerning
the operation or maintenance of your vehicle, please consult a dealer.
2
IMPORTANT MANUAL INFORMATION
In this manual with some important information is distinguished by the following notations:
!WARNING It is WARNING instructions that need to follow, failure of follow coulnd be end in result severe
injuiry or lead to death to the operator.
CAUTION A CAUTION indicates with special precautions to avoid damage to the vehicle.
A CAUTION indicates important information in this manual.
CAUTION
• Please always put this manual with vehicle for rider maintenance/ dealer tracking of service records even if vehicle is
being sold.
• This manual contains the most of the vehicle information, however, the maker will continually imrprove it’s product
design and quality that lead to difference between the manual and vehicle . If you have any questions concerning this
manual, please consult your dealer.
!WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION THIS VEHICLE. ONLY OPERATE
THE VEHICLE UNTIL YOU HAVE COMPLETELY AWARE OF ADEQUATE KNOWLEDGE OF CONTROLS AND OPERATION FEA-
TURE AND YOU HAVE BEEN TRAINED IN SAFE AND PROPER RIDING TECHNIQUES. PERIODIC INSPECTIONS, WELL MAIN-
TENANCE AND GOOD RIDING SKILLS, WILL ENSURE YOUR SAFETY RIDING AND INCEASE THE PRODUCT RELIABILITY OF
THIS VEHICLE.
*Product and specications are subject to change without notice.
3
IMPORTANT MANUAL INFORMATION
Dealer label here
4
TABLE OF CONTENTS
INTRODUCTION 1
IMPORTANT MANUAL INFORMATION 2
TABLE OF CONTENTS 4
SAFETY INFORMATION 6
Safe riding 6
Protective clothing 6
Modications 7
Loading and accessories 7
Accessorries 7
Gasoline and exhaust gas 8
Other safe-riding points 8

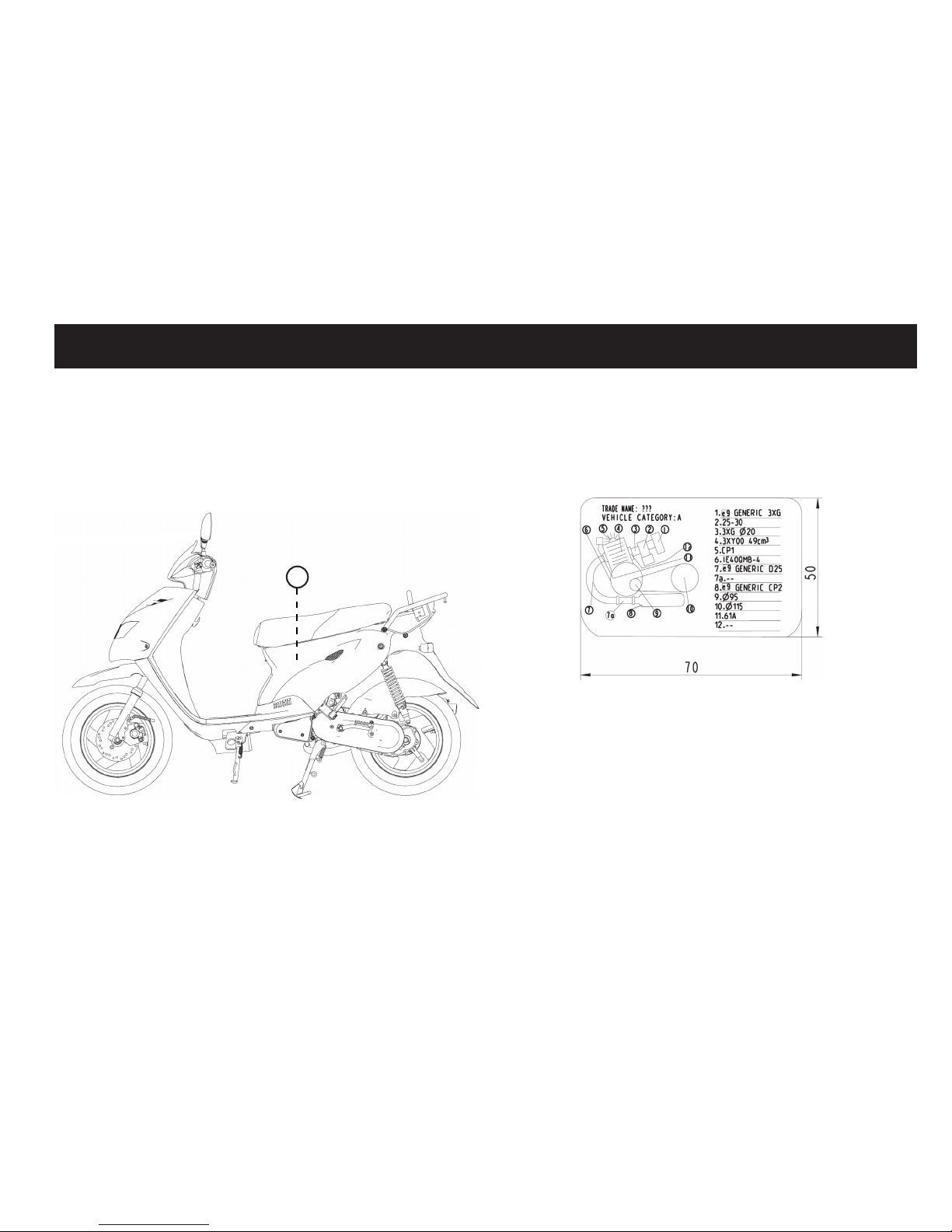

Location of label 9
DESCRIPTION OF THE VEHICLE 10
Side view (Version 0) - Left 10
Side view (Version 2) - Left 11
Side view (Various Versions) - Right 12
Controls and instruments (Various
Versions) 13
INSTRUMENT AND CONTROL
FUNCTIONS 14
Main switch 14
Dashboard unit - Analog 14
Dashboard unit - Digital 15
Handlebar switches - Left 19
Handlebar switches - Right 20
Brake lever 20
Fuel tank 20
Remove the fuel tank cap (1) 20
Install the fuel tank cap (1) 21
Fuel 21
Engine oil tank 22
Remove the engine oil tank cap (3) 22
Install the engine oil tank cap (3) 22
Catalytic converter 23
Kickstarter 23
Seat 23
Open the seat 23
Close the seat 24
Storage Luggage Box 24
Helmet hook 24
Side stand 25
Main stand 25
Rear carrier 25
USB-port (Option) 26
PRE-OPERATION CHECKS 27
Pre-operation check list 28
OPERATION AND IMPORTANT RIDING
POINTS 29
Starting the engine 29
Starting with the electric starter 29
Starting with the kickstarter 29
Starting off 30
Acceleration / Deceleration 30
Braking 31
Parking 31
Engine break in 31
PERIODIC MAINTENANCE AND MINOR
REPAIR 33
Owner’s tool kit 33
Battery cover 34
Spark plug 34
Check the spark plug 34
Final transmission oil 36
Change the nal transmission oil 36
Air lter 37
Replace the air lter 37
Carburetor 37
Throttle cable free play 37
Tires 38
Tire air pressure 38
Tire inspection 38
Rims 39
Brake lever free play 39
Front brake 39
Rear brake 40
Brake pads 40
Brake pads - Front 40
Brake shoes - Rear 41
Brake uid 41
Changing the brake uid 42
Cables 42
Throttle grip and cable 42
Lubricating the brake levers 42
Main stand 43
5
TABLE OF CONTENTS
Front fork 43
Steering 43
Wheel bearings 44
Battery 44
Charge the battery 45
Store the battery 45
Fuse 45
Replacing the fuse 45
Lighting 46
Headlight 46
Turn signal light - Front 46
Turn signal light - Rear 46
Tail light / Brake light 46
License plate light 46
TROUBLESHOOTING 47
Troubleshooting chart 48
CLEAN AND STORAGE 49
Clean the vehicle 49
Before cleaning 49
Cleaning after normal use 49
Cleaning after riding in the rain, near
the sea or on salt-sprayed roads 49
After cleaning 49
Storage 50
Short-term (for a few days) 50
Long-term (for weeks) 50
SPECIFICATIONS 51
CONSUMER INFORMATION 55
Vehicle identikation number (VIN) 55
WARRANTY INFORMATION 56
SERVICE AND MAINTENANCE 57
Important information 57
Maintenance schedule 58
Service record 59
SPACE FOR NOTES 60
6
SAFETY INFORMATION
THIS VEHICLE ARE TWO WHEEL
SINGLE TRACK VEHICLES. THE
USE OF SAVETY AND OPERATI-
ON MAY IN DIFFERENT RESULT
BY THE USE OF PROPER RIDING
TECHNIQUES OF THE OPERATOR.
TO REMIND OF OPERATOR, WHO
SHOULD KNOW THE FOLLOWING
REQUIREMENTS BEFORE RIDING.
HE OR SHE SHOULD:
• WELL TRAINED AND FIMILIAR
TO ALL THE ASPECTS OF Vehicle
OPERATION.
• FULLY READ AND AWARE OF
MAINTENANCE REQUIREMENTS
THAT NOTED IN THIS OWNER’S
MANUAL.
• OBTAIN QUALIFIED TRAINING &
LEGAL LICENSE FOR OPERATI-
ON OF THIS VEHICLE.
• WELL AND PROFESSIONAL
MAINTENANCE SERVICE FOR
OPERATOR AND CERTIFICA-
TED REPAIR SHOP/DEALER TO
ACQUIRE GOOD MECHANICAL
CONDITIONS OF VEHICLE.
Safe riding
• Always pre-check your vehicle befo-
re riding is key point to prevent an
accident.
• Please follow the maxium loads limi-
ted of operator and passenger.
• Most of accident on the motorists is
cased by automobile driver who “fai-
lure to recognize out the vehicle” and
caused mobile/vehicle accidents.
Therefore, to make yourself conspi-
cuous apprear to public will be very
effective in reducing the change of
this kind of accidents.
Therefore:
• Wear a brightly colored and protecti-
ve clothes/Jacket
• Operate the turning signals before
turning and slow down the Speed
when approaching and passthrough
the intersection
• Keep proper distance with other Mo-
torists, and let them aware of your
location
• Know your skills and limits
• Never lend your vehicle to oththers
who not qualied for riding
• Always follow the legal speed limit
on the vehicle and trafc law
• The posture of the operator and
passenger is important for proper
control. properly riding posture can
Keep vehicle in balance while riding.
• Operator should sit up-right with
two hand hold on handle bar, foot
on oorboard while driving.
• Passenger should make sure that
he/she can rmly hold on grip or
operator with foot step on footrest.
• Drving after Acohol drink or other il-
legal drugs is strickly prohibited.
• This vehicle is designed for onroad
use only. It is not suitable for off-road
use.
Protective clothing
Properly clothing yourself will keep you
safety from potential accidents:
• Always wear an approved helmet.
• With face shield to protect your eye
from dust and rain drop.
7
SAFETY INFORMATION
• The wear of proper jacket, shoes,
groves etc., can be better protection,
reducing the degree of injuiry from
un-expected accident.
• Never wear loose-tting clothes,
otherwise they could catch on the
control levers or wheels and cause
injury or an accident.
• Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protective
clothing that covers your legs, ank-
les, and feet.
Modications
Modications made to this vehicle that
not approved by maker, or the removal
of original equipment, may let vehicle
unsafe for use and cause severe per-
sonal injury. Modications may also
make your vehicle illegal touse.
Loading and accessories
Adding accessories or cargo to your
vehicle may cause the different on the
weight distribution of vehicle and in-
uence on the steering & balance.
It
may cause possibility of an accident,
please extremely caution and follow
below limitation when you equipped
with accessories. Below are some ge-
neral or accessories. Here are some
guidelines to follow if loading cargo or
adding accessories to your vehicle.
Loading
The total weight of the operator, pas-
senger (when allowed), accessories
and cargo must not exceed the maxi-
mum load limit.
Maximum load
(not include the vehicle):
155kg
When loading within this weight limit,
keep the following in mind:
• Cargo and accessory weight should
be kept as low and close to the ve-
hicle as possible. Make sure to dis-
tribute the weight as evenly as pos-
sible on both sides of the vehicle to
minimize imbalance or instability.
• Make sure that accessories and car-
go are securely attached to vehicle
before riding
• Never attach any large or heavy
items to the handlebar, front fork, or
front fender. Such items can create
unstable handling or a slow steering
response.
Accessorries
Genuine accessories have been speci-
cally designed for use on this vehicle.
If need, please contact with dealer for
detail. Since the maker can not test all
other accessories , you must perso-
nally be responble for the proper selec-
tion, installation and use of non-OEM
accessories.
Keep the following guidelines in mind,
when mounting accessories.
• Never install accessories or carry
cargo that would inuence on the
ground clearance, limit suspension
travel, steering,or obscure lights or
turning lights, reectors.
8
SAFETY INFORMATION
• Accessories on the handle bar/front
suspension area will cause bad inu-
ence on steering the vehicle. if you
will install accessories, please keep
it as light in weight and not interfere
on steering the vehicle.
This vehicle
is for On-Road transportation purpo-
se only, please do not install any of
extended cargo carrier as sulky, that
will make vehicle unstable in cross
winds and vehicle turns.
• While equip with electrical accesso-
ries, please consult with qualiled
stores, to make sure such items
will not exceed the capacity of the
vehicle’s electrical system. Unpro-
per install of such items may cause
a dangerous loss of lights, lower
engine power or even damage the
vehicle.
Gasoline and exhaust gas
• GASOLINE IS HIGHLY FLAMMAB-
LE:
• Always turn the engine off when
refueling.
• Take care not to spill any gasoli-
ne on the engine (hot) or exhaust
system when refueling.
• Do not smoke or use Mobile pho-
ne while re-fueling.
• Never start the engine or let it run for
any length of time in a closed area.
The exhaust fumes are poisonous
and may cause loss of conscious-
ness and death within a short time.
• Always turn the engine off before
leaving the vehicle and remove the
key from the main switch. When par-
king the vehicle, please note the fol-
lowing:
• The engine and exhaust system
remain hot, therefore, park the ve-
hicle in a place where pedestrians
or children are not likely to touch
these hot areas.
• Do not park the vehicle on a slope
or soft ground, otherwise it may
fall over.
• Do not lay your vehicle to near
ammable place.
• In case of swallow any gasoline, or
gasoline get into your eyes, please
see your doctor immeidately. Keep
away the gasoline to your skin and
water.
OTHER SAFE-RIDING POINTS
• Turn the signal before making turns.
• When raining or across on run on
the wet road, Iron Plates, keep your
speed low, slightly using braking to
avoid slipping or even fall down.
• Be careful when passing parked
cars. A driver might not see you and
open a door in your path.
9
SAFETY INFORMATION
LOCATION OF LABEL
1. Anti-tampering label
Symbol image
1
Inhaltsverzeichnis
Andere KSR Moto Motorrad Handbücher
Beliebte Motorrad Handbücher anderer Marken
MOTO GUZZI
MOTO GUZZI QUOTA 1100 ES Bedienungsanleitung
APRILIA
APRILIA ETV MILLE CAPONORD - PART1 02-2001 Bedienungsanleitung
Yamaha
Yamaha 2006 YZF-R1V Bedienungsanleitung
KTM
KTM Freeride E-XC 2021 Bedienungsanleitung
Fantic
Fantic Enduro 125 Bedienungsanleitung
Ducati
Ducati Supersport 750 desmodue Bedienungsanleitung
