KT SOLAR KT70704 Bedienungsanleitung
DC POWER LINK
30A 12-24V
USER MANUAL
IS570 Issue 1 06.09.2023
Model No. KT70704
1
USER MANUAL
Please refer to this user manual before using or installing this product.
SPECIFICATIONS
• Suitable for 12-24V DC operations.
• LED indicator to show live circuit once input has been connected.
• 4 mounting points allow easy and secure mounting (Stainless steel hardware included).
• Dustproof & splashproof.
• Housing manufactured from durable UV Stabilised Polycarbonate & ABS.
• Dimensions (mm): 86 (L) x 86 (W) x 22 (H).
• Connects with 50A heavy duty connectors (Grey/Black/Red/Blue).
• Single input rated to 30A draw.
• Each output rated to 15A (30A Total).
• 2.1A & 1A USB outputs (3.1A Max).
IMPORTANT INFOMATION:
Not suitable for mounting in vehicle engine bays.
FEATURES
1. Dustproof Cover
2. 50A Heavy Duty Connector Input/Output
3. Mounting Holes
4. USB Outputs
Suitable for use with 50A Heavy Duty Connectors (Grey/Black/Red/Blue)
APPROVED
2
USER MANUAL
• Remove the dustproof cover from desired ‘Input / Output’ socket and connect device via
50A Heavy Duty Connector. (15A Max per Output, 30A Total).
• Once ‘input’ is connected, DC Power Link is ’live’. LEDs will indicate ‘live’ power to circuits.
• To connect a 2.1A / 1A USB device, remove the dustproof cover and connect device at any
time. (Max total USB rating 3.1A).
• Multi use configuration of Input or Output. Sockets are omnidirectional and can connect as
many inputs (Max 3) or outputs (Max 3) as required.
OPERATION INSTRUCTIONS
DC POWER LINK
3
USER MANUAL
CONFIGURATION 1
CONFIGURATION 2
12/24V
DEVICE
12/24V
DEVICE
12/24V
DEVICE
12/24V
DEVICE
12/24V
DEVICE
Power In
Power In
Power In
Power Out
Power Out
Power Out
Power Out Power Out
12/24V
BATTERY
SOURCE
12/24V
BATTERY
SOURCE
12/24V
BATTERY
SOURCE
Important Information: Please ensure that
either 12V OR 24V devices are connected
to the DC Power Link. Using a combination
of 12V & 24V may cause damage to your
devices. We recommend suitable fuses are
placed on the positive cable to devices
chosen and also between Solar Panel
Positive to the Solar Controller selected.
Important Information: Please ensure that
either 12V OR 24V devices are connected
to the DC Power Link. Using a combination
of 12V & 24V may cause damage to your
devices. We recommend suitable fuses are
placed on the positive cable to devices
chosen and also between Solar Panel
Positive to the Solar Controller selected.
1x 12/24V Battery Source (Input)
3x 12/24V Devices (Output)
2x 12/24V Battery Source (Input)
2x 12/24V Devices (Output)
4
USER MANUAL
CONFIGURATION 3
CONFIGURATION 4
12/24V
DEVICE
12/24V
DEVICE
Power In
Power In
Power InPower In
Power In
Power Out
Power Out
12/24V
BATTERY
SOURCE
12/24V
BATTERY
SOURCE
12/24V
BATTERY
SOURCE
12/24V
BATTERY
SOURCE
Important Information: We recommend
suitable fuses are placed on the positive
cable to devices chosen and also between
Solar Panel Positive to the Solar Controller
selected.
Important Information: Select suitable
Amperage Solar Controller based on your
single 12V Solar Panel. We recommend
suitable fuses are placed on the positive
cable to devices chosen and also between
Solar Panel Positive to the Solar Controller
selected.
UNREGULATED
POWER/
12V SOLAR
SOLAR CHARGE
CONTROLLER
Regulated Power
Unregulated Power
KEY
3x 12/24V Battery Source (Input)
1x 12/24V Devices (Output)
1x 12V Battery Source (Input)
1x 12V Regulated Power Source (Input)
1x 12V Devices (Output)
5
USER MANUAL
CONFIGURATION 5
Tip: As you are fitting 3 panels in parallel configuration, the Amperages are therefore tripled. If fitting 2 panels, the Amperages
are doubled. Select the correct Solar Charge Controller Amperage. We recommend suitable fuses are placed on the positive
cable to devices chosen and also between Solar Panel Positive to the Solar Controller selected.
Recommended Suggestion: If fitting multiple 12V Solar Panels, always select Panels of the same wattage & brand.
Important Information: Please follow normal 12/24V operational procedures when using the DC Power Link. To avoid
overloading your devices and to prevent damage, please ensure that only REGULATED power is fed into your devices.
The DC Power Link does not act as a Solar Regulator.
3x Solar Source (Input)
1x Solar Regulator to Battery (Output)
Unregulated
Power In
Unregulated
Power In
Unregulated
Power Out
Unregulated
Power In
UNREGULATED
POWER/SOLAR
UNREGULATED
POWER/SOLAR
UNREGULATED
POWER/SOLAR
Regulated Power
Unregulated Power
KEY
Power Out
SOLAR CHARGE
CONTROLLER
12V
BATTERY
SOURCE
6
USER MANUAL

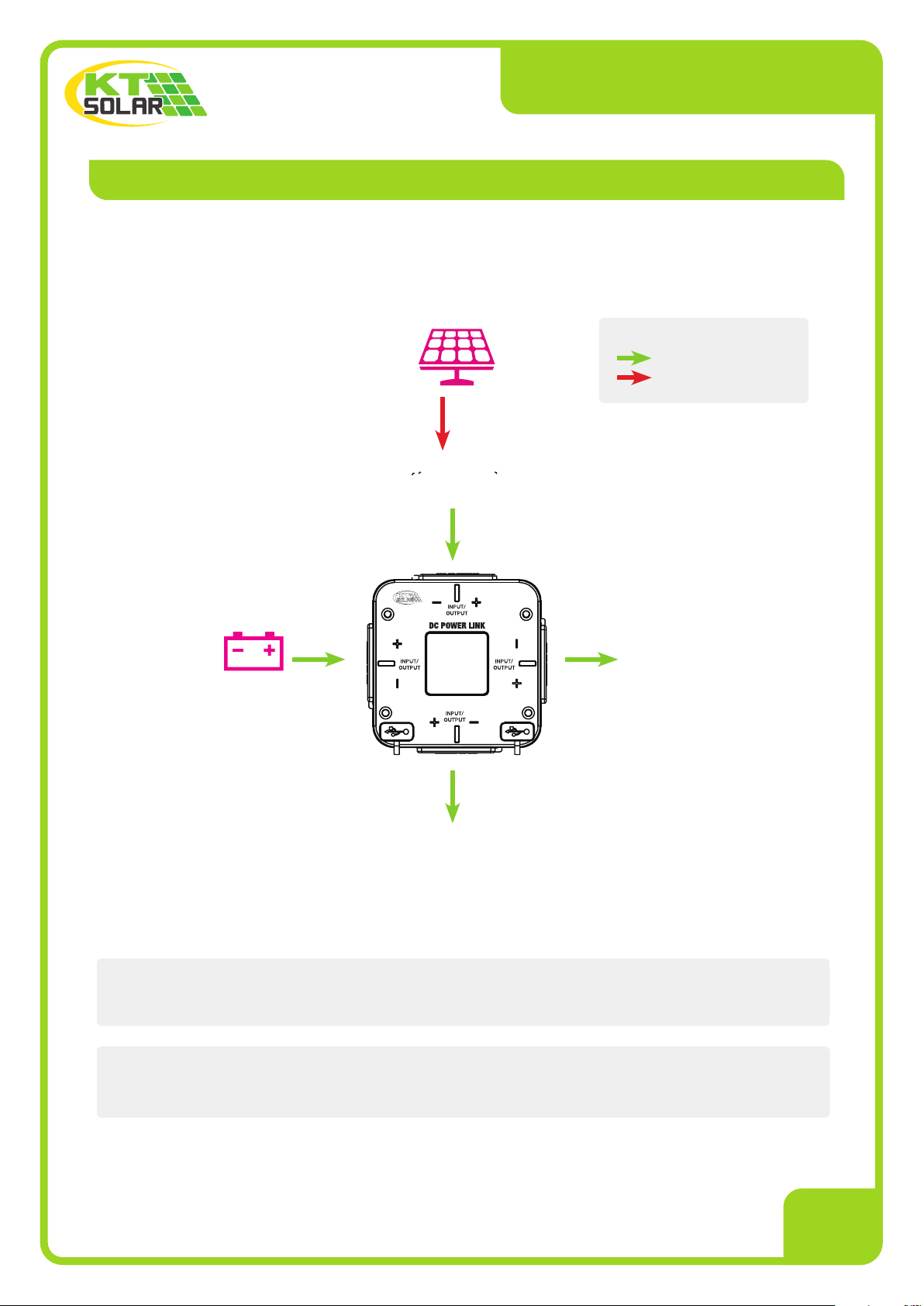

CONFIGURATION 6
12V
DEVICE
Power In Power Out
12V
BATTERY
SOURCE
Reccommended Suggestions: Selected suitable Amperage Solar Controller based on your single 12V Solar Panel. It is
recommended that suitable fuses are placed on the positive cable to devices chosen and also between Solar Panel Positive to
the Solar Controller selected.
Important Information: Please follow normal 12/24V operational procedures when using the DC Power Link. To avoid
overloading your devices and to prevent damage, please ensure that only REGULATED power is fed into your devices.
The DC Power Link does not act as a Solar Regulator.
1x 12V Battery Source (Input)
1x Unregulated Power Source
converted to regulated power using
a Solar Regulator which is then fed
into the DC Power Link (Input)
2x 12V Devices (Output)
Unregulated
Power In
UNREGULATED
POWER/SOLAR
Regulated Power
Unregulated Power
KEY
Power In
SOLAR CHARGE
CONTROLLER
12V
DEVICE
Power Out
7
USER MANUAL
Distributed by:
AUSTRALIA
Brown & Watson International Pty Ltd
Knoxfield Victoria 3180
Phone: (03) 9730 6000
Fax: (03) 9730 6050
National Toll Free: 1800 113 443
NEW ZEALAND OFFICE
Brown & Watson International Pty Ltd
19 Bell Avenue,
Mount Wellington,
Auckland 1060, New Zealand
Phone: (09) 525 4575
Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic.
telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in
its current catalogue (save and except for all bulbs and lenses whether made of glass or
some other substance) will under normal use and service be free of failures in material
and workmanship for a period of one (1) year (unless this period has been extended as
indicated elsewhere) from the date of the original purchase by the consumer as marked
on the invoice. This warranty does not cover ordinary wear and tear, abuse, alteration of
products or damage caused by the consumer.
To make a warranty claim the consumer must deliver the product at their cost to the original
place of purchase or to any other place which may be nominated by either BWI or the
retailer from where the product was bought in order that a warranty assessment may be
performed. The consumer must also deliver the original invoice evidencing the date and
place of purchase together with an explanation in writing as to the nature of the claim.
In the event that the claim is determined to be for a minor failure of the product then
BWI reserves the right to repair or replace it at its discretion. In the event that a major
failure is determined the consumer will be entitled to a replacement or a refund as well
as compensation for any other reasonably foreseeable loss or damage. This warranty is
in addition to any other rights or remedies that the consumer may have under State or
Federal legislation.
IMPORTANT NOTE
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
WARRANTY STATEMENT
