Thank you for choosing Kuassa products!
We encourage you to take the time to read this User Manual thoroughly to
ensure trouble free and proper operation of the software.

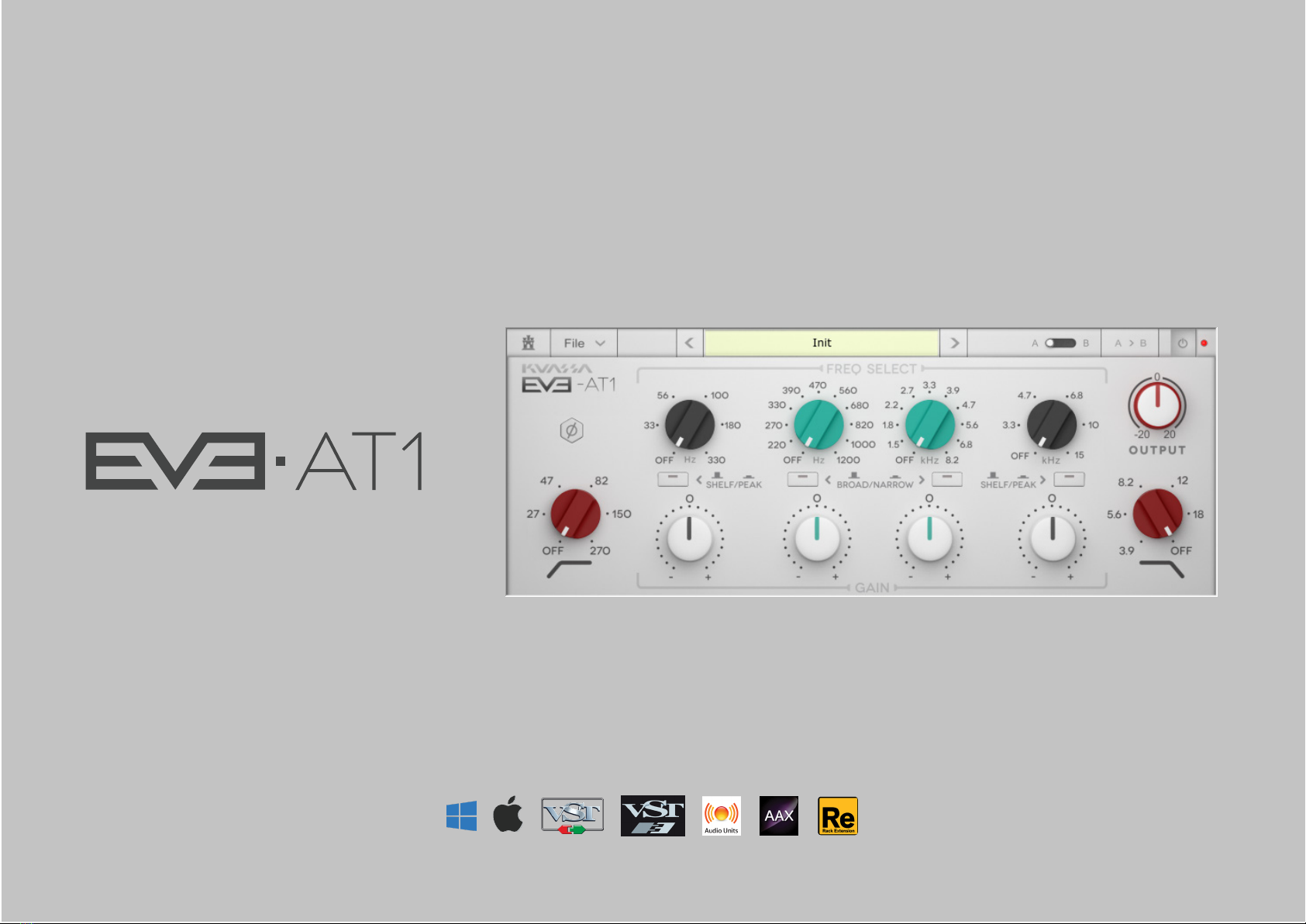

The Kuassa EVE-AT 1 consists of two individual EQs inspired by the design of
the legendary Neve* 1081 and 1084 that are known for their clear,
smooth, and very musical characteristics. We are thrilled by the sound and
present these EQs as a modern tribute to one of the most influential audio
tools ever created.
EVE-AT1 is a 4-band parametric equalizer with an additional high-pass and
low-pass filter. Inspired by the EQ section of a renowned British Classic –the
Neve*1081 –this equalizer delivers a clear, smooth, and musical sound to
shape your tracks. The EVE-AT1 possess an additional parametric band with
expanded Q bandwidth selection in the low-mid and high-mid frequency
ranges as compared to the EVE-AT4. In addition, the AT1 implements a
different high-pass and lowpass filter, giving the AT1 a slightly more
conventional frequency response in these areas. These characteristics mean
the EVE-AT1 is suitable for a broad range of
musical applications, offering flexibility, versatility and all-round utility.
*Disclaimer :
All trademarks are the property of their respective owners which are in no way associated or affiliated with Kuassa. The manufacturer names and model designations are used solely to
identify the products whose tonal and sound characteristics were studied during development.
Key Features:
• Approximately +/-18dB (Narrow Q), and +/-12 dB (Broad Q).
• Selectable broad/narrow Q bandwidth.
• Selectable shelf/peak filter mode.
• HP & LP, -18 dB/octave.
• Output trim.
System Requirements
Windows:
Windows Vista or Later (64 bit)
Core2 Duo, or AMD Phenom ii X4 or better (latest Intel i3, AMD A4, or
better is recommended) with 4GB minimum RAM
VST or VST3 compatible host/DAW
Pro Tools 11 or later for AAX format
Propellerhead Reason 7.1 or later for Rack Extension format
Macintosh:
Mac OSX 10.7 or later (64 Bit).
Core2 Duo, or better (latest Intel i3 recommended) with 4GB minimum RAM
VST, VST3, or Audio Units compatible host/DAW
Pro Tools 11 or later for AAX format
Propellerhead Reason 7.1 or later for Rack Extension format
*Disclaimer :
All trademarks are the property of their respective owners which are in no way associated or affiliated with Kuassa. The manufacturer names and model designations are used solely to
identify the products whose tonal and sound characteristics were studied during development.
Mac OSX 10.7 or later
Note for MacOS X users: you will be asked for your password upon installation.
For Mac installer(.pkg) format, double-click the installer and follow the instructions. The installer automatically point to your
Mac’s default VST/VST3/AU/AAX plug-ins and Standalone path (see below). Alternatively you can customize the installation
target to specific folder.
Here are the default folders installation path for each of our supported platforms in Mac OSX:
• Mac Audio Unit (EVE-AT1.component) : /Library/Audio/Plug-Ins/Components/
• Mac VST (EVE-AT1.vst) : /Library/Audio/Plug-Ins/VST/Kuassa/
• Mac VST3 (EVE-AT1.vst3) : /Library/Audio/Plug-Ins/VST3/
• Mac AAX (EVE-AT1.aaxplugin) : /Library/Application Support/Avid/Audio/Plug-Ins/
Windows VISTA or later
For Windows Installer (.exe), double-click the installer and follow the instructions. The installer automatically points to your
system's default plugins path (see below). Alternatively you can point the installation target to specific folder. Most VST
host already have a “Plugins” or “VSTplugins” folder inside its installation directory, or you can point the host to read any
folder you choose.
Here are the default folders installation path for each of our supported platforms:
• Windows 64-bit VST (EVE-AT1.dll) : C:\Program Files\Steinberg\VstPlugins\Kuassa\
• Windows 64-bit VST3 (EVE-AT1.vst3) : C:\Program Files\Common Files\VST3\
• Windows 64-bit AAX (EVE-AT1.aaxplugin) : C:\Program Files\Common Files\Avid\Audio\Plug-Ins\
Mac OSX 10.7 or later
On a Mac, simply delete the plug-in located on the corresponding Plug-ins folder, and delete other folders and file resources
located at,
Folders:
• /Library/Application Support/Kuassa/Default Presets/EVE-AT1/
• /Users/[User Name]/Music/Kuassa/Presets/EVE-AT1/
Files:
• /Library/Application Support/Kuassa/Misc/EVE-AT1 EULA.txt
• /Library/Application Support/Kuassa/User Manuals/EVE-AT1 Manual.pdf
• /Users/[User Name]/Music/Kuassa/Settings/EVE-AT1.setting
Windows VISTA or Later
Use “Add/Remove programs” or “Programs and Features” from the Windows Control Panel. If EVE-AT1 does not
listed, delete the .dll/.vst3/.aaxplugin file from your VST plug-in folder. After Uninstallation, manually delete other
EVE-AT1 file resources at, Folder:
• C:\Users\[User Name]\Documents\Kuassa\Presets\EVE-AT1\
Files:
• C:\Users\[User Name]\Documents\Kuassa\Settings\EVE-AT1.setting

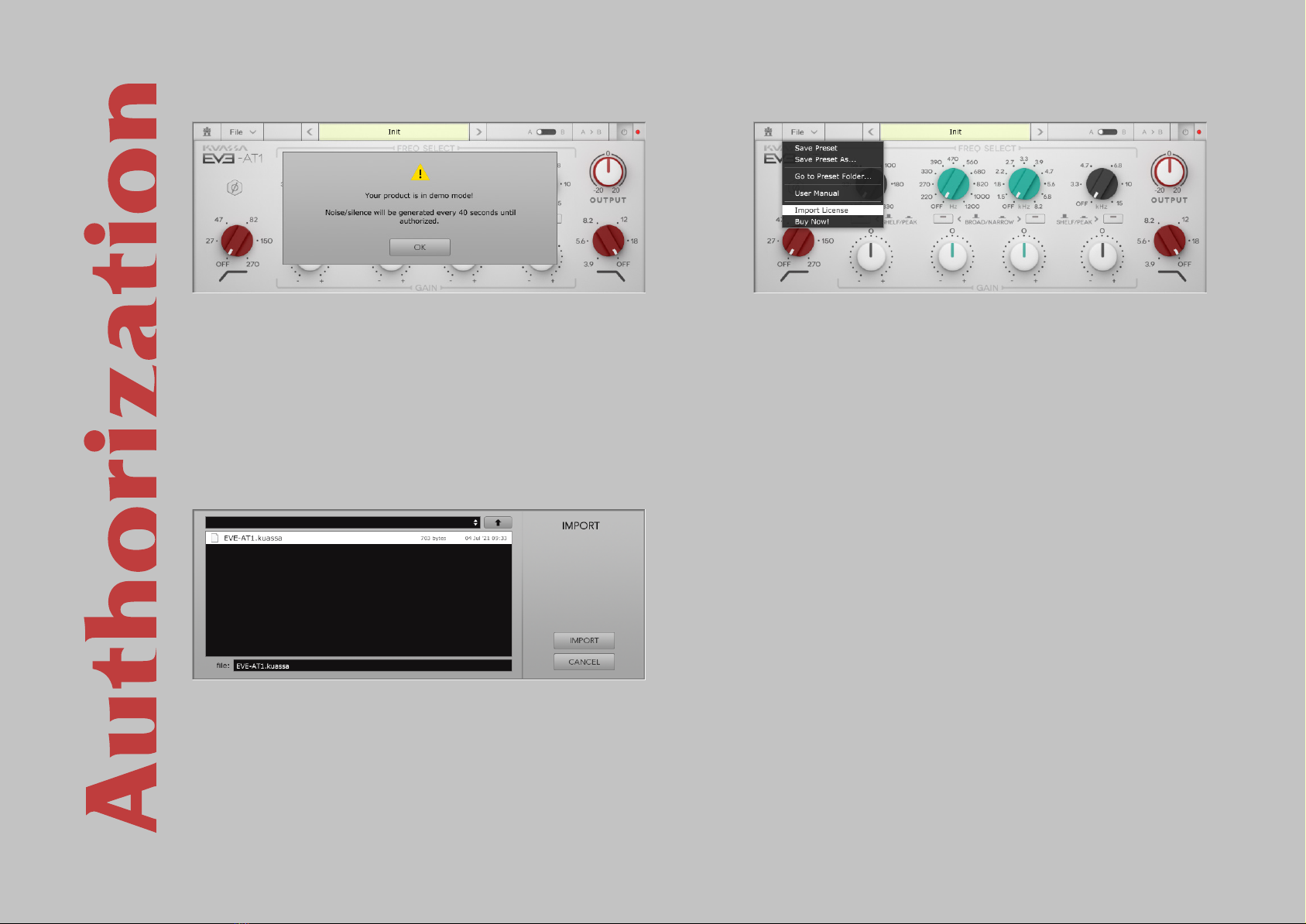

1On evaluation mode, you will see this pop-up
window when you first start the plugin. 2To start the authorization process, click the [File]
button on the top-left of the plug-in’s interface,
there, you will find a selection box titled [import
License].
3Locate the License File [EVE-AT1.kuassa] obtained
from the confirmation e-mail sent to you after you
purchase EVE-AT1 Plug-in(s) from our web store or
downloaded from member area.
Note that the License File contains your personal
information used to authorize the plug-in.
After you locate the License File, a pop-up box
confirming that you are successfully authorize your
plug-in will show.
4To check if you have completed the authorization
process, just simply load the About Box by clicking
the EVE-AT1 logo on the bottom left corner. If your
authorization is successful, either your name or your
e-mail address will be shown on the About Box. You
will also notice that the generated noise/silence on
the Evaluation Version is now gone.
5
3
2
1
4
5
6
7
8
9
10
13
12
11
Kuassa “Castle” Logo: Click to show the About Box.
File] button: The Menu button contains several functions; preset saving,
license file authorization, and shortcuts to the user manual and Kuassa
website.
Preset Selector: Select from available Presets, press left-right buttons or
select from drop down menu.
A-B Compare: Compare two different settings of the EQ.
Copy A to B: Copy settings from the “A” state to “B” state
EQ Power Button: Turns the EQ on or off.
Phase button: Click to flip the phase of the output 180 degrees SECTION.
Frequency Selector with Q Mode button: select the center frequency to be
modified, each has a corresponding Q button (broad/narrow) and
(shelf/peak) for the outer knobs.
Output Trim: Increase or decrease the track output volume after
equalization.
High Pass Filter: Five cut off points, 18 dB/octave low-cut filter. Any
frequency below the cut off point will be decreased.
Q Toggle Buttons: Changes the shape / Q value of the corresponding
frequency.
Frequency Gain: Boost or cut the corresponding frequency, approximately
+/-18 dB for Narrow Q, and +/-12 dB for Broad Q.
Low Pass Filter: Five cut off points, 18 dB/octave high-cut filter. Any
frequency above the cutoff point will be decreased.
1 6
7
2 4 5
3
10 13
9
12
8
11

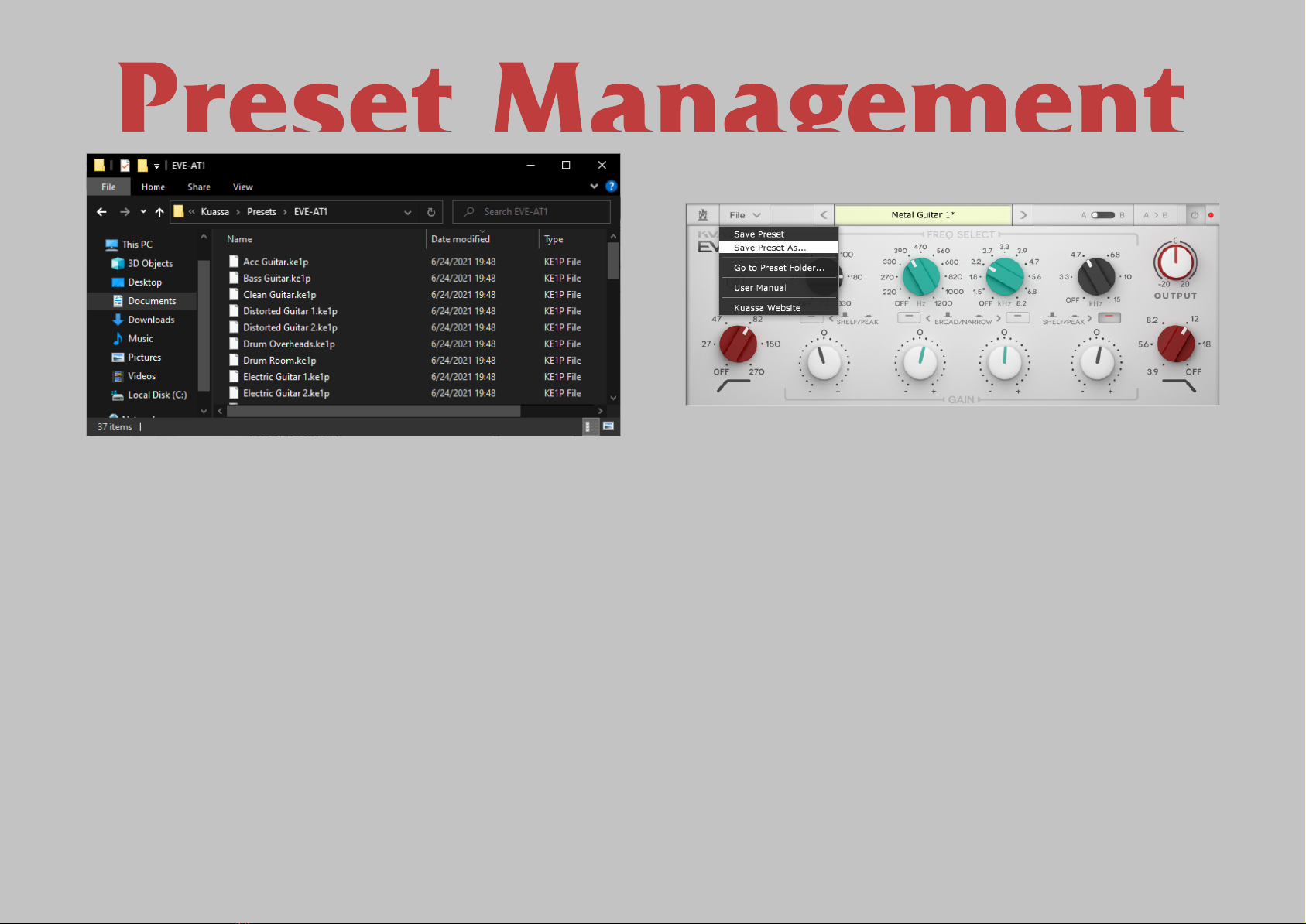

Presets for EVE-AT1 Plug-in(s) are located in the following
folders*:
• Mac: Users/[YourName]/Music/Kuassa/Presets/EVE-AT1
• Win: ~\Documents\Kuassa\Presets\EVE-AT1
All presets inside these folders will be recognized by the
plugin as individual presets, you can also create a folder to
group the preset(s). They will thus be shown on the EVE-AT1
Plug-in’s preset selector.
1
To save a preset, set your plugin to the desired parameter
settings, then select:
• “Save Preset”: Overwrites currently active preset.
• “Save Preset As”: Saves current settings into a new preset file
(*.ke1p for
EVE-AT1
).
2
When you create a new preset using “Save Preset As...”, make
sure that you have chosen the correct preset folder as
aforementioned on point 1 above to make sure that it will be
recognized automatically by EVE-AT1 plug-ins.
3
