TECHNICAL PASSPORT ENGLISH

Refrigerator NRB 17761

REQUIREMENTS -WARNINGS AND IMPORTANT RECOMMENDATIONS.. 3

DESCRIPTION OF THE APPLIANCE ............................................................................... 6

REMOVING PROTECTIVE TRANSPORTATION PARTS........................................... 7

INSTALLATION AND COMMISSIONING....................................................................... 8

INSTALLATION IN A CABINET........................................................................................... 10

ELECTRICAL CONNECTION................................................................................................ 11

USING COOLER COMPARTMEN........................................................................................ 12

USING FREEZER COMPARTMENT................................................................................... 14

CLEANING..................................................................................................................................... 18

TROUBLESHOOTING.............................................................................................................. 20

TECHNICAL SERVICE CENTER.......................................................................................... 21

CONTENTS

ENGLISH TECHNICAL PASSPORT

Refrigerator NRB 17761

REQUIREMENTS -

WARNINGS AND IMPORTANT

RECOMMENDATIONS

Thank you for choosing and

purchasing our product.

Please read carefully the remarks

provided below. After having read them,

you will be able to make the best use

of all functions of the appliance. The

quality of the appliance is guaranteed,

as our products pass 100% inspection

after completion of the production

process. Our products also undergo

extensive testing and various quality

control procedures. We are sure that you

will enjoy using your appliance.

This product complies with the

relevant European safety regulations

for electrical appliances. The product

underwent extensive testing and

thorough checking to assess its

safety and reliability. Before using the

appliance, read this manual, which

provides information about necessary

and forbidden operations. Use the

appliance only for its intended purpose;

otherwise it may be dangerous,

especially for children. Before

connecting the appliance to the mains,

check on the rating plate whether the

data corresponds to the parameters of

your mains supply. Packaging materials,

allowing for recycling should be passed

to an appropriate recycling facility.

Electrical safety of this appliance

can be provided only if it is connected

to the mains using an intact earthed

socket, installed according to relevant

standards.Be sure to check this essential

condition of the safe operation.

If you have any doubt, request a

close inspection of the mains supply

by a qualiﬁ ed professional (Act 46/9O).

When using this appliance, as well

as any other electrical device, it is

necessary to observe several basic rules:

Âdo not touch the appliance with

wet or damp hands or feet;

Âdo not pull the cord to remove it

from the socket;

Âdo not leave the appliance open

to various atmospheric factors;

Âchildren may only use the device

under adult supervision;

Âdo not remove or insert the

plug into the socket with wet hands;

before performing any cleaning or

maintenance operation, disconnect the

appliance from the mains by removing

the plug from the socket or by switching

off the mains switch;

TECHNICAL PASSPORT ENGLISH

Refrigerator NRB 17761

ÂIn the case of a failure or

malfunctioning the appliance should

be switched off, and its use should be

discontinued.

This appliance is marked according

to the European Directive 2002/96/

EU on waste electrical and electronic

equipment (WEEE).

By ensuring this product is disposed

of correctly, you will help prevent

potential negative consequences for

the environment and human health,

which could otherwise take place.

The symbol

which could otherwise take place.

on the product or

its accompanying documents indicates

that this product may not be treated as

household waste.The product should be

handed over to the applicable collection

points for the recycling of electrical and

electronic equipment Scrapping should

be performed in accordance with local

environmental regulations for waste

disposal. For more detailed information

about treatment, recovery and recycling

of such appliances, contact the

appropriate institution, local household

waste disposal service or the shop

where you purchased the product.

ATTENTION! Refrigerator using

R600a cooling agent (isobutane) and

insulation material made with use

of combustible gas, at the end of its

lifetime prior to scrapping, should be

brought to a safe condition. To perform

this procedure, contact your local store

or a specialized company.

ATTENTION! When you install your

appliance, it is important to consider

its climate class. To deﬁ ne the class,

see the data plate provided here. The

appliance operates properly within the

temperature limits listed in the table, in

accordance with its climate class.

ATTENTION! Do not close the

ventilation openings. Note that built-

in installation requires sufﬁ cient

ventilation space around the refrigerator.

ATTENTION! If you are away for a

long period of time (e.g. on vacation)

please disconnect the appliance from

the mains supply, then empty, clean

and dry the inside of it. Make sure

that the doors remained open to avoid

unpleasant odors.

ENGLISH TECHNICAL PASSPORT

Refrigerator NRB 17761

ATTENTION! Be careful not to

damage the cooling system.

When purchasing please read the

operation manual and make sure that

the warranty booklet and the purchase

receipt are properly ﬁ lled out. The

serial number and model name of the

purchased product must be identical to

those indicated in the Warranty Booklet.

No changes or corrections should be

made to the Warranty Booklet. In the

case the Warranty Booklet is ﬁ lled out

incorrectly or incompletely, contact

your retailer immediately. The warranty

period is 12 months from the date of

sale.To avoid possible misunderstanding,

keep the purchase receipt, operation

manual and Warranty Booklet coming

with the product, in a safe place for

the lifetime period. Make sure that the

Warranty Booklet and purchase receipt

are properly ﬁ lled out and have the

stamps of the retailer. If the date of

purchase is not deﬁ ned, the warranty

period is calculated from the date of

manufacturing. Warranty cover will be

void in the following cases (after the

transfer of the goods to the consumer):

Âimproper operation,

Âmechanical damages, damages

caused by exposure to chemicals,

thermal damages or improper use

of consumables (detergent or other

cleaning substances),

Âmisuse of the product, including

use for purposes other than the intended

purpose,

Âuse for commercial purposes

(restaurant, cafe, ofﬁ ce, kindergarten,

hospital, etc.),

Âdamage or abnormal operation

caused by animals or insects,

Âlock of the movable components

of the product due to the intrusion of

foreign objects, small pieces of clothing,

liquids or food residues,

Âdamages or malfunctions caused

by Force Majeure (ﬁ re, natural disasters,

etc.),

Âmaking corrections in the

Warranty Booklet or purchase receipt,

TECHNICAL PASSPORT ENGLISH

Refrigerator NRB 17761

Âunauthorized maintenance, repair, disassembly or other actions not described

in the operation manual,

Â damage caused by careless storage and/or transportation due to the fault of

the buyer, transport, trading or service organization. In this case, the customer should

submit a claim to the relevant organization,

Âdeviation from standards of mains supply or other network connections,

Âimproper installation or connection of the product,

Â replacing lamps, ﬁ lters or any removable parts made of glass and plastic.

DESCRIPTION OF THE APPLIANCE

Vertical type devices are home

electrical appliances of large capacity,

where you can freeze,store and refrigerate

any food products.

The FRAME of the appliance is

made of processed and electrostatically

painted metal panels, which guarantees

permanent aesthetic qualities for a long

period of time. INSULATING materials

are selected by the manufacturer taking

into account the requirements of constant

temperature inside the appliance while

maintaining the necessary internal

volume. The INTERIOR SPACE is capable

to accommodate products of any form due

to easy rearrangement of the shelves.

1 THERMOSTAT

2 ADJUSTABLE WIRE SHELVES

3 FRUIT AND VEGETABLE

COMPARTMENT WITH REMOVABLE SHELF

4 COMPARTMENT FOR FREEZING

FRESH FOOD — FREEZER

5 FREEZER DRAWERS

6 JARS SHELF

7 BOTTLE SHELF

8 INTERIOR LIGHT

9 OPERATION MANUAL

10 ICE TRAY

11 ICE SCOOP

12 SLIDING GUIDES

13 GASKET

ENGLISH TECHNICAL PASSPORT

Refrigerator NRB 17761

REMOVING PROTECTIVE TRANSPORTATION PARTS

Make sure that the appliance is not

damaged. All damages resulting from

transportation should be reported to

your dealer in 24 hours after receiving

the appliance.

1 Remove the protective ﬁ lm from

the door gasket.

The protective ﬁ lm must be removed

for tight closing of the refrigerator door.

Pull the end of the protective ﬁ lm,

turning it up.

2 Remove the retainers of the glass

shelves.

These plastic parts keep the shelves

from moving during transportation. The

retainers are removed as follows:

a) take the plastic part and turn to

separate it from the shelf;

b) remove the retainers by pulling

them in the outside direction.

3 The appliance is equipped with a

special antibacterial ﬁ lter, which allows

to signiﬁ cantly improve the inside air

quality, thereby guaranteeing ecological

purity of internal environment, absence

of bacteria, as well as longer periods of

food storage.

ATTENTION:

THE ANTIBACTERIAL FILTER SHOULD

BE CLEANED APPROXIMATELY

EVERY 3 MONTHS (SEE CLAUSE

“CLEANING”).

TECHNICAL PASSPORT ENGLISH

Refrigerator NRB 17761

INSTALLATION AND COMMISSIONING

1 After unpacking the appliance,

check that the mains voltage

corresponds to that indicated on the

rating plate.

2 If you don’t wish to change the

door opening side, proceed to step. 3.

Otherwise, you should swap the hinges.

To do this, we recommend putting

carefully the appliance on the back

wall in a horizontal position using

special supports to avoid squashing the

condenser and to prevent compressor

damage.

2a Remove the lower hinge axis P

and the gasket D.

2b Release the lower door.

2c Remove the hinge cover H;

remove the middle hinge C, and then

release the upper door.

2d Remove the upper axis K and

install it on the opposite side.

2d Remove the central support L.

2f Reinstall the upper door.

2g Install the hinge C and support L

on the left side. (The cover H should be

installed at the end of the procedure).

2h Install the central support L on

the right side.

2i Install the lower door.

2l Insert axle P with the gasket D.

2m Remove sliding elements of

the doors S and install them on the

opposite side.

ENGLISH TECHNICAL PASSPORT

Refrigerator NRB 17761

TECHNICAL PASSPORT ENGLISH

Refrigerator NRB 17761

When installing the appliance,

please observe the following rules:

A Do not install the appliance

near any heat sources such as heaters,

heating radiators, stoves, etc., and also

avoid installing in a location where the

unit will be exposed to direct sunlight.

B Make sure that during automatic

defrosting water ﬂ owing down the back

wall of the chamber, is collected in the

special drain trough.

C After the appliance is installed in

the chosen location, before connecting

it to the mains supply, you should leave

it standing for one hour, not moving it

anywhere.

D Before you put food into the

chambers, make sure that the appliance

is working properly

IMPORTANT! DO NOT PLACE

THE APPLIANCE CLOSE TO ANY

HEAT SOURCES.ENSURE THAT THE

CLEARANCE ABOVE THE APPLIANCE IS

NOT LESS THAN 5 CM.

INSTALLATION IN A CABINET

Cabinet dimensions for refrigerator

installation should be as speciﬁ ed in

the ﬁ gure.

 Insert the appliance into the

appropriate cabinet space, leaning it

against a wall, adjacent to the side of

the door opening. Make sure that the

side panel of the appliance is inserted

at a length of 53 mm.

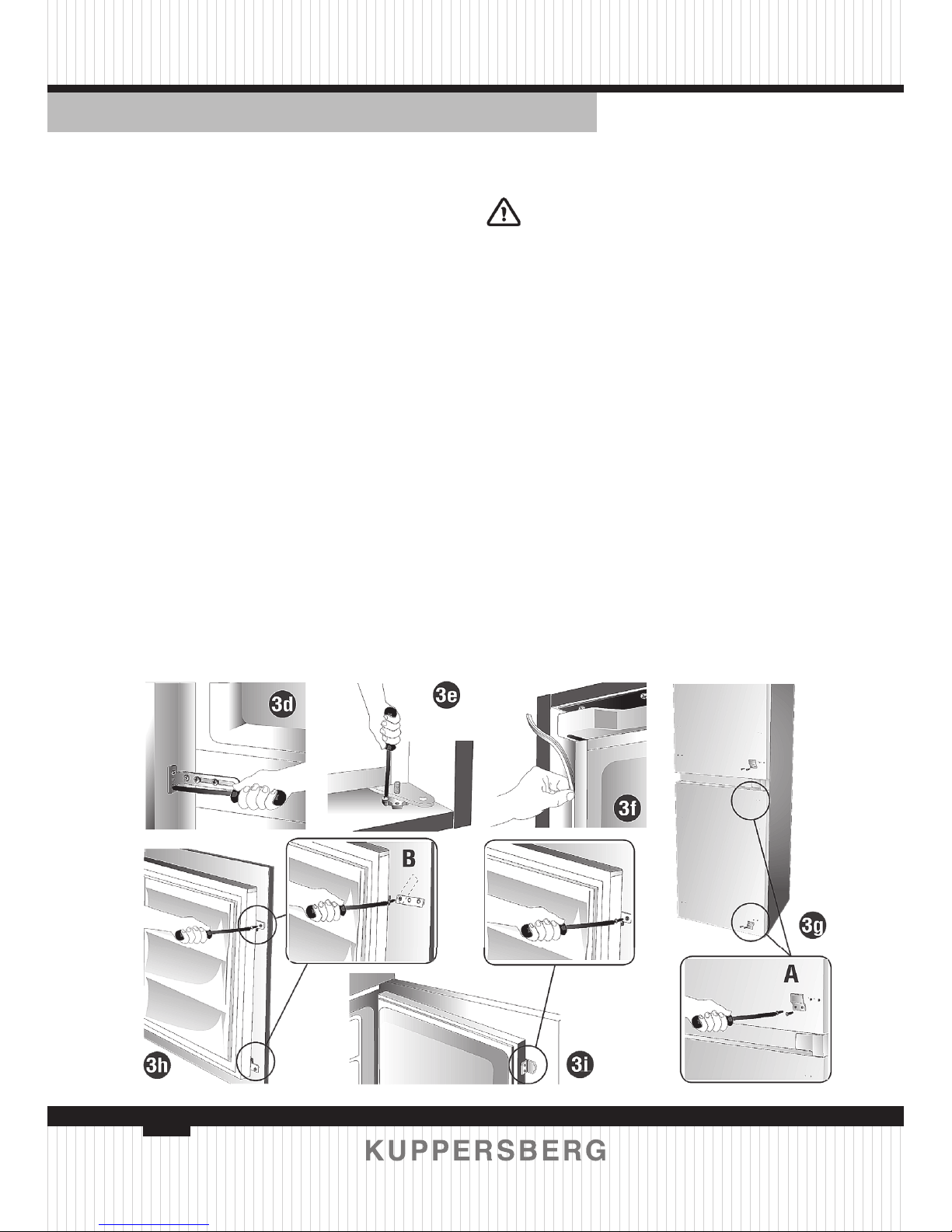

3b Adjust the foot. The top plate

should not be in contact with the

cabinet.

3b Using supplied screws, fasten

the upper part of the appliance to the

perforated plate, located above the

front panel.

3d Using special clamps, fasten the

central part of the appliance to the

cabinet wall.

Andere Handbücher für NRB 17761

Inhaltsverzeichnis

Sprachen:

Andere Kuppersberg Kühlschrank Handbücher

Kuppersberg

Kuppersberg NBM 17863 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NSFD 17793 Series Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NRV 1867 DX Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NRV 192 X Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NMFV 18591 C Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NSFD 17793 Series Bedienungsanleitung

Kuppersberg

Kuppersberg RCBU 815 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg RFCN 2011 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NRS 1857 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg RFFI 184 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NFM 200 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NRS 186 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NFFD 183 WG Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg SRB 1770 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NOFF 18769 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NFML 181 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg VBMR 134 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NFML 177 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NFD 183 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NFFD 183 BEG Bedienungsanleitung

Kuppersberg

Kuppersberg RBU 814 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NSFT 195902 Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg RFWI 1890 SIG Montage- und Wartungsanleitung

Kuppersberg

Kuppersberg NSFF 195752 Montage- und Wartungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
