TECHNICAL PASSPORT ENGLISH
Washing Machines
SAFETY NOTICE ..........................................................................................................................................3
NAME OF PARTS..........................................................................................................................................7
ACCESSORIES...............................................................................................................................................7
NAMES AND FUNCTIONS OF CONTROL PANEL.......................................................................8
LOCK AND UNLOCK THE DOOR .........................................................................................................10
USAGE INSTRUCTION FOR DETERGENT CASE.........................................................................10
HOW TO USE THE WOOL PROGRAM................................................................................................11
NORMAL USAGE..........................................................................................................................................11
HOW TO USE THE BLANKET PROGRAM........................................................................................11
HOW TO USE THE PRESET COURSE................................................................................................12
COURSE CHOOSING GUIDE..................................................................................................................13
CARE AND MAINTENANCE....................................................................................................................14
VARIOUS FUNCTIONS
CHILD LOCK FUNCTION..................................................................................................................15
ADDING CLOTHES MIDWAY..........................................................................................................15
WASHING TIPS.............................................................................................................................................15
NO TROUBLE CONDITIONS..................................................................................................................16
TROUBLE SHOOTING GUIDE...............................................................................................................17
INSTALLATION INSTRUCTIONS........................................................................................................18
SPECIFICATIONS........................................................................................................................................21
CONTENTS
3
ENGLISH TECHNICAL PASSPORT
Washing Machines
SAFETY NOTICE
(be sure to observe)
To protect the user and other
people’s health and property, be sure to
observe the following safety notice.
WARNINGS
please read this part of substance
carefully for proper operation before
using your machine.
The precautions stated here are
classifi ed as “Warning” and “Attention”
according to the damage and the
emergency caused by mlsoperatlon, and
are described respectively In line with
the marks below.
WARNING
With no respect to mark, the
misoperation may cause death or GBH.
ATTENTION
With no respect to mark, the
misoperation may cause body harm or
object damage.
This mark indicates the content of
warning or attention.
warning or attention.
This mark indicates the prohibited
action.
This mark indicates the compulsory
action to be carried out.
WARNING
Dismantling, repair or alterations
should only be carried out by
professional technician as otherwise
you may be subject to electric shock,
may cause fi re or get injured.
Electricity supply must be
unplugged with dry hands.
Otherwise, this may ause electric
shock.
Wet hands Prohibited
Damaged or loosen wire or plug
shouldlSjB not be used.
Otherwise electric shock, short circuit
or fi re may take place.
Do not damage wire.
Do not damage or alter the wire forcibly
bend, pull twist or handle the wire.
Beside, please do not put weigh on or
trap the wire.
Damage of wire may case electric
shock or fi re.
Prohibited
Do not put water in direct contact
with the unit during maintenance and
repair.
4
TECHNICAL PASSPORT ENGLISH
Washing Machines
This may cause short circuit or electric
shock.
Prohibited
Do not put gasoline, benzine,
alcohol, thinner of fabrics with these
stains into or nearto the washing
machine.
To prevent fi re or explosion which j
may cause injuries.
Prohibited
This washing machine is
equipped with the electricity wire with
bielectrode grounding socket. The
creepage protector shall be used if
possible.
To prevent electricity leak which may
cause injuries.
Grounding
Please use the single socket with
special Л Л voltage and current matched
with plug I marked specifi cation.
The share of the same socket with
other electric appliances may cause fi re
due to excessive.
Clear
Thoroughly wipe the power plug
when II dirt is adhering the prong or
around the base of the prong.
Failure to do so may cause a fi re.
Washing machine should not be
installed in humid place or in places
exposed to wind and rain
Otherwise, electricity leak causing
electric shock or fi re may occur.
electric shock or fi re may occur.
Prohibited
This washing machine is strictly
prohibited to get close to the locations
with candle, mosquito- repellent
incense, dog-end or other kinds of open
fl ame.
To avoid injuries caused by the lock
damage.
Do not operate the machine
when there is gas leak.
when there is gas leak.
Prohibited
5
ENGLISH TECHNICAL PASSPORT
Washing Machines
Keep child awayfrom the washing
spinning basket and do not place box or
shelves next to the washing machine.
children may fall into the basket
resulting in injuries.
This appliance is not intended for
use by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction prohibited
concerning use of the appliance by a
person responsible for their safety.
Prohibited
The glass door becomes hot in
process of high-temperature washing.
Do not touch the door when the
machine is on, especially children.
If you need to open the door
during high-temperature washing
program, wait until the temperature
drop to safe standard, and the door
unlocked automatically.
Packing material may be
dangerous to kids, please keep all
packing material (plastic ЬадЛЙПЛ
foam etc) far away from the kids.
Prohibited
ATTENTION
Do not pull the wire from the
socket when unplugging the unit.
To avoid electric shock or fi re cause
by short ciruit may result.
Prohibited
Electricity supply must be
unplugged with dry hands during
maintenance and repair.
Otherwise, electric leakage causing
injuries may occur.
If the power cord or supply cord
is damaged, the manufacturer or its
service agent or similarly qualifi ed
person must replace it in order to avoid
a hazard.
Do not wash, rinse and spin the
water proof fabric or cloth.
Sleeping bag, raincoat, cover of
skiing, utilities, bicycles, cars and
motors. Otherwise may lead to injury
by abnormal vibration during spinning
6
TECHNICAL PASSPORT ENGLISH
Washing Machines
or damage the washing machine, wall,
fl oor and clothes.
Prohibited
Keep hands and feet away from
the buttom of the washing when it is
motion.
Ports in motion beneath the unit may
cause injuries.
Prohibited
Water leakage
Water supply hose should be
tightly II screwed to the unit.
Failure to do so may result in water
leakage. Used fora long period of time, the
unitmay result in water leakage caused
by loosen union nut. So please check it in
time and screw tightly again.
Please unplug the unit when not
Sfer using the unit fora long period of
time.
Electric shock or leakage may occur
due to deformation of plastic parts of the
unit.
Water of above 50°С should not be
used for washing .
Electric shock or leakage may occur
due to deformation of plastic parts of
the unit.
Prohibited
Do not stand on or put weight on
the top of the
Otherwise, deformation and damage
may causing injuries.
Two people are required in
moving or Prohibited transportation.
Prohibited
Water leakage
Check water supply hose connection
fl B by turning on the water before
washing. To prevent damages caused by
possible water leakage due to loosen
screw or not tightly.
7
ENGLISH TECHNICAL PASSPORT
Washing Machines
The new hose-sets supplied with the appliance are to be used and that old
hose-sets should not be reused.
Do not block the ventilation openings on the bottom of washer by carpeting
when the washer is installed on a carpeted fl oor.
Please turn off the water tap when not using the unit.
To prevent damages caused by water leakage.

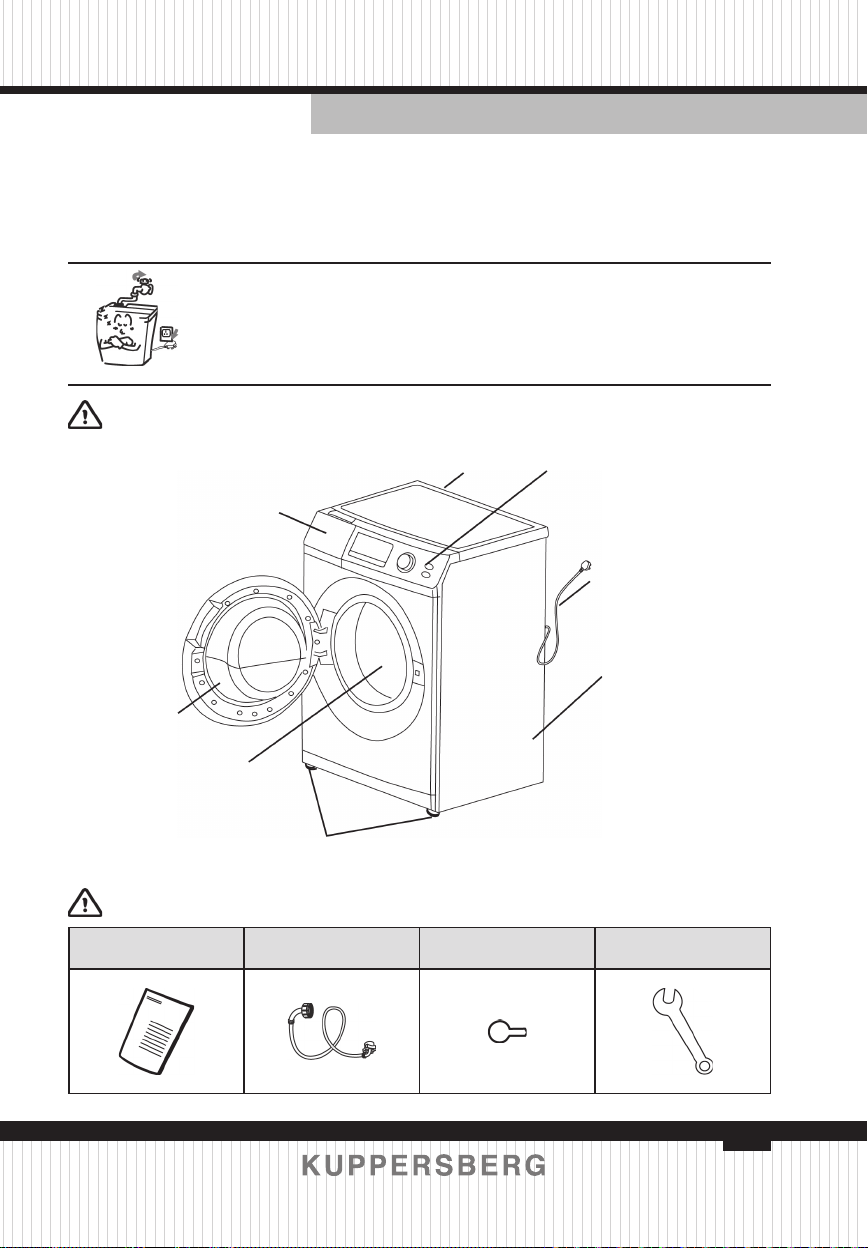

NAME OF PARTS
ACCESSORIES
Instruction
manual Water Supply Hose Lid
(4Piece) Spanner
Adjustable Leg
Wash/Spin Tub
Washer Door
Detergent Case
Water inlet Valve Control Panel
Power Cord
Frame
8
TECHNICAL PASSPORT ENGLISH
Washing Machines

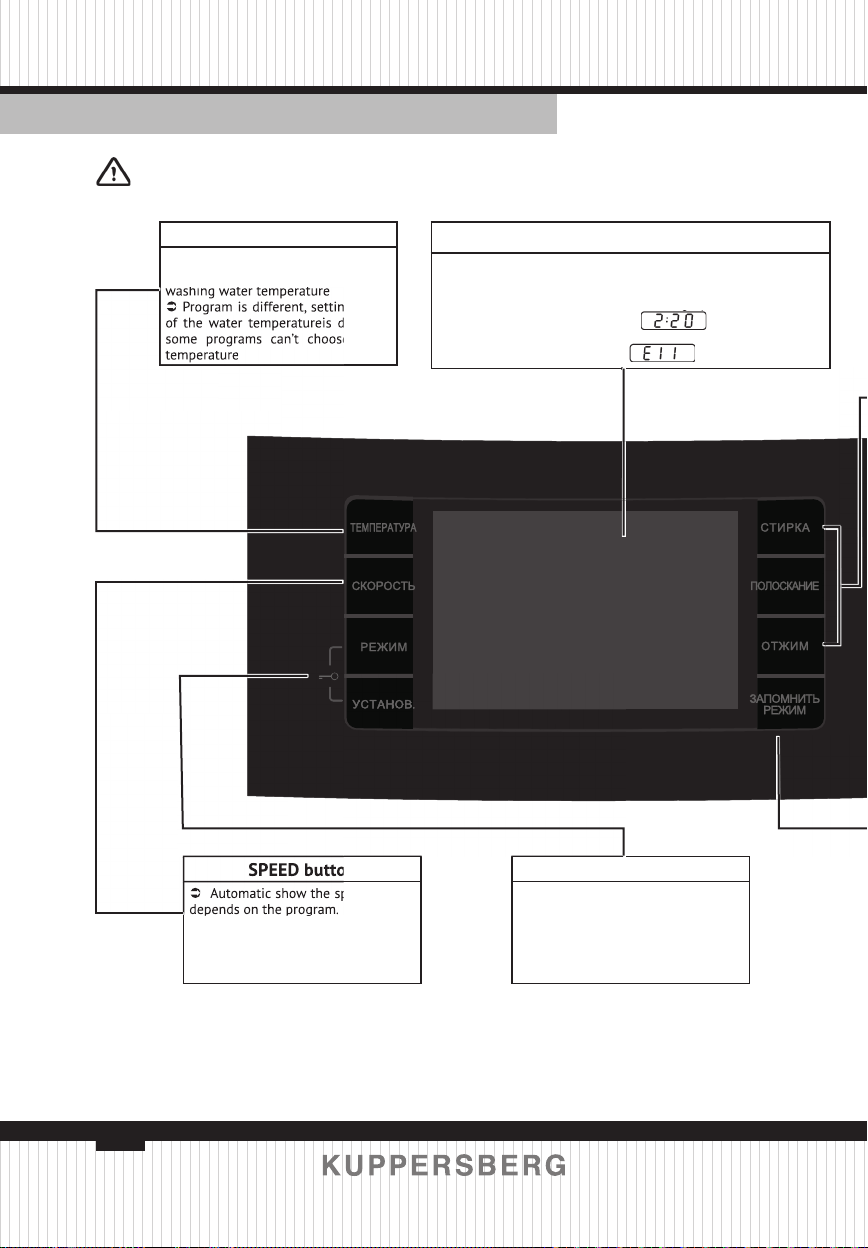

NAMES AND FUNCTIONS OF CONTROL PANEL
Warm button
According to the types and stain
of washing clothes to choose the
washing water temperature
Program is different, setting range
of the water temperatureis different,
some programs can’t choose water
temperature
SPEED button
Automatic show the speed of spin
depends on the program.
You can set the speed of spin as
the request, and the speed rang of
spin limits when you handle several
programs.
FUNCTION/SET button
Put these two Buttons at the same
time according in 5 seconds long, you
can set the child lock function
You can choose different kinds of
wash function by Function Button, and
then confrim by Set Button.
Display window
When the power is on, the window will display spinning speed
and so on.
The window will display the left time during operation.
For example: left time is 2h 20m.
The window will display the left time during operation.
When there is error, the window will display error code. For
example: no water entering in.
SPEED button
Automatic show the speed of spin
depends on the program.
washing water temperature
Program is different, setting range
of the water temperatureis different,
some programs can’t choose water
temperature
9
ENGLISH TECHNICAL PASSPORT
Washing Machines

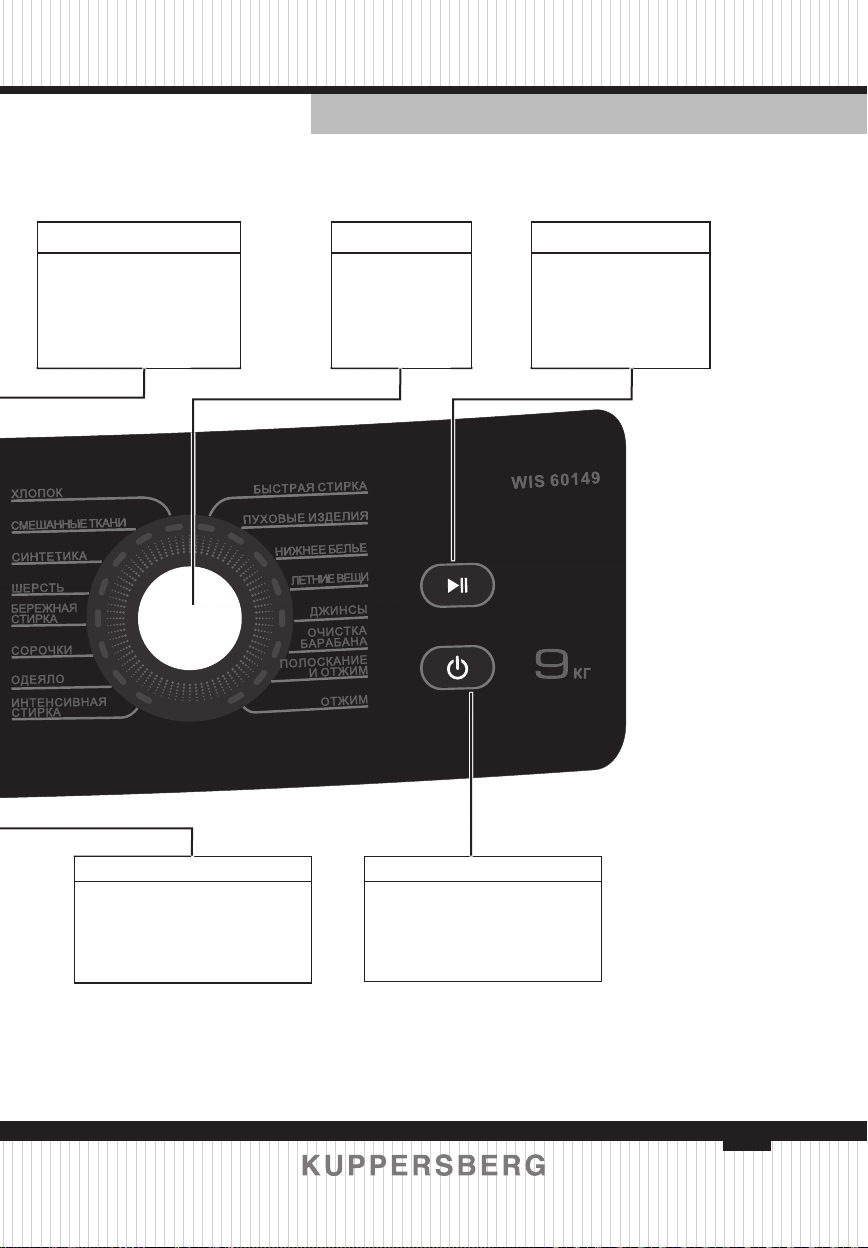

POWER ON/OFF button
Press this button to turn on/off the
power.
When washing has fi nished, the
power will be turned off automatically.
FAVORITE button
It keeps the memory after washing
program.
Process button
You can choose the wash
times , rise times and spin times.
When process is going with
fl ashing of lights to mark, and
the digital window displays
time.
START/PAUSE button
Press this button to start
the operation.
Press this button to
pause the operation, and
press it again to continue
the rest program.
PROGRAM knob
Choose the right
course according to
the type and stained
of clothes.
10
TECHNICAL PASSPORT ENGLISH
Washing Machines

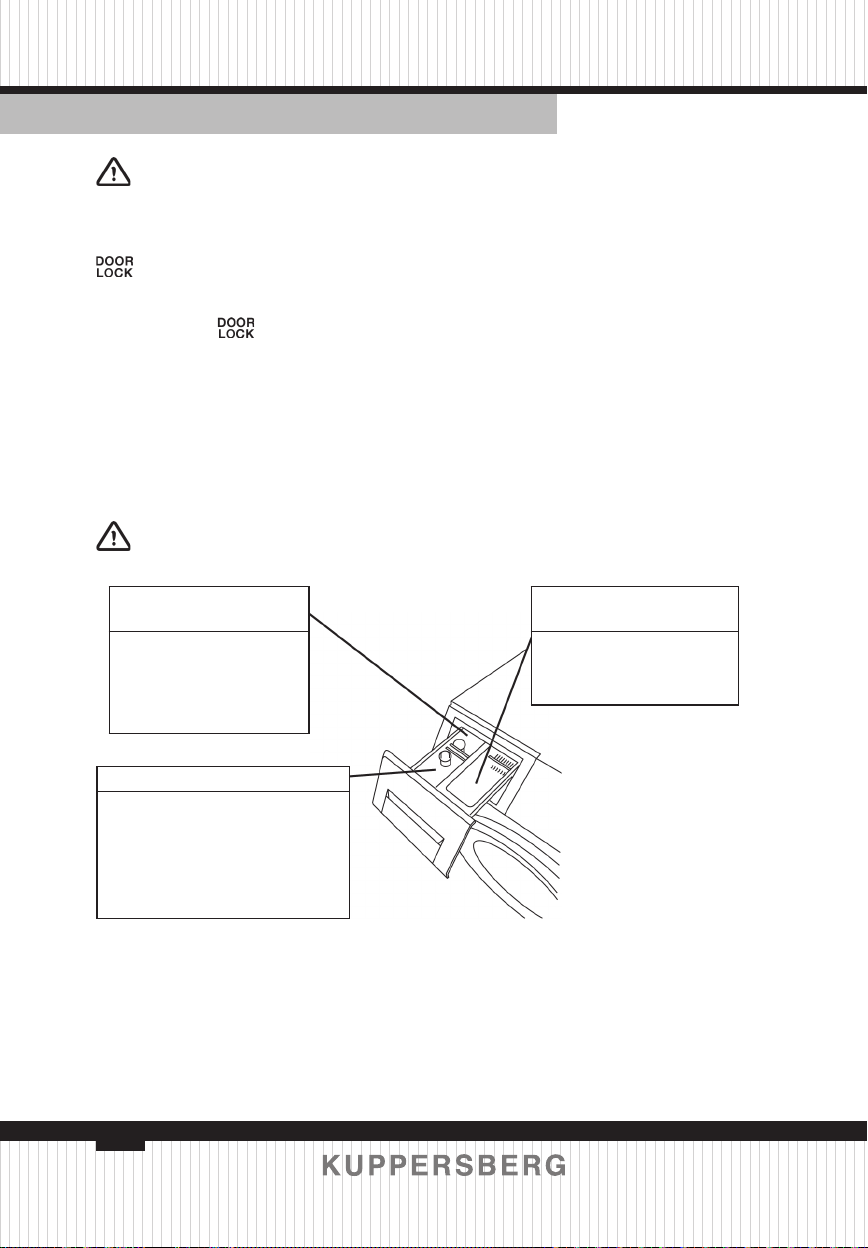

LOCK AND UNLOCK THE DOOR
Lock the door
The door will be locked automatically when the machine gets started, and the
light will turn on at the time.
Unlock the door
When the light is on, press START/PAUSE button, the Wash/Spin tub stop,
then the door will be unlocked after 2 minutes.
The door will be unlocked after 2 minutes if you directly pulled out the
electrical plug.
Foam spill over if you open the door during washing process, use towel to
clean it.
The door can not be unlocked in high temperature or high water level.
Liquid detergent
and Bleach
Use low bubble liquid
synthetic detergents.
For the concentrated liquid
detergents, diluted it double
times with water, then pour into
.the case.
Softener
Put into the case before washing it
will be poured into the tub automatically
at the last round of rinse.
For the concentrated detergents, use
corresponding proportion of water to
dilute it, then pour it into the case.
No exceed to the full mark line.
Powder synthetic
detergents
For the undissolved
detergents, for example: powder
state soap, dissolve it in advance,
then pour into the case.
High bubble Washer powder or detergent is forbidden.
Use the detergent in accordance with the instruction by its manufacturer.
Excessive detergents will cause too much bubble and affect the rinse, also
create function faults.
Choose suitable detergents in accordance with the type and color of clothes,
the water temperature and the stain.
USAGE INSTRUCTION FOR DETERGENT CASE
Inhaltsverzeichnis
Sprachen:
Andere Kuppersberg Waschmaschine Handbücher
Kuppersberg
Kuppersberg WIS 50106 Montage- und Wartungsanleitung
Kuppersberg
Kuppersberg WM 490 W Montage- und Wartungsanleitung
Kuppersberg
Kuppersberg WIS 56149 G Montage- und Wartungsanleitung
Kuppersberg
Kuppersberg WM 1477 Montage- und Wartungsanleitung
Kuppersberg
Kuppersberg WD 1488 Montage- und Wartungsanleitung
Kuppersberg
Kuppersberg WIS 46106 Montage- und Wartungsanleitung
Kuppersberg
Kuppersberg WM 581 W Montage- und Wartungsanleitung
Kuppersberg
Kuppersberg WIS 56149 G Montage- und Wartungsanleitung
Kuppersberg
Kuppersberg WM 410 W Montage- und Wartungsanleitung
