Kuppersbusch GSV 4500 Bedienungsanleitung

User manual

Dishwasher

Istruzioni per

l’uso

Lavastoviglie

Manual de

instrucciones

Lavavajillas

GSV 4500

Contents

Safety information 2

Product description 3

Control panel 4

Use of the appliance 5

Setting the water softener 5

Use of dishwasher salt 6

Use of rinse aid 7

Loading cutlery and dishes 8

Use of detergent 10

Setting and starting a washing programme

Washing programmes 12

Care and cleaning 13

What to do if… 14

Technical data 15

Installation 15

Water connection 16

Electrical connection 17

Environment concerns 17

Subject to change without notice

Safety information

For your safety and correct operation of

the appliance, read this manual carefully

before installation and use. Always keep

these instructions with the appliance

even if you move or sell it. Users must

fully know the operation and safety fea-

tures of the appliance.

Correct use

• The appliance is designed exclusively for

domestic use.

• Only use the appliance to clean household

utensils that are applicable for dishwash-

ers.

• Do not put solvents in the appliance. Risk

of explosion.

• Put the knives and all items with sharp

points in the cutlery basket with their

points down. If not, put in a horizontal po-

sition in the upper basket.

• Use only branded products for dishwash-

ers (detergent, salt, rinse aid).

• If you open the door while the appliance is

in operation, hot steam can escape. Risk

of skin burns.

•Donotremovedishesfrom the dishwasher

before the end of the washing programme.

• When the washing programme is comple-

ted, disconnect the mains plug from the

mains socket and close the water tap.

• Only an authorised service engineer can

repair this appliance. Use only original

spare parts.

• Do not do repairs yourself to prevent injury

and damage to the appliance. Always con-

tact your local Service Force Centre.

General safety

• Persons (including children) with reduced

physical sensory, mental capabilities or

lack of experience and knowledge must

not use the appliance. They must have su-

pervision or instruction for the operation of

the appliance by a person responsible for

their safety.

• Obey the safety instructions from the man-

ufacturer of the dishwasher detergent to

prevent burns to eyes, mouth and throat.

• Do not drink the water from the dishwash-

er. Detergent residues can stay in your ap-

pliance.

• Always close the door when you do not

use the appliance to prevent injury and not

to stumble over the open door.

• Do not sit or stand on the open door.

Child safety

• Only adults can use this appliance. Chil-

dren must get supervision to make sure

that they do not play with the appliance.

• Keep all the packaging away from children.

There is a risk of suffocation.

• Keep all detergents in a safe area. Do not

let children touch the detergents.

• Keep children away from the appliance

when the door is open.

Installation

• Make sure that the appliance is not dam-

aged because of transport. Do not con-

nect a damaged appliance. If necessary,

contact the supplier.

• Remove all packaging before first use.

• A qualified and competent person must do

the electrical installation.

• A qualified and competent person must do

the plumbing installation.

• Do not change the specifications or modify

this product. Risk of injury and damage to

the appliance.

• Do not use the appliance:

– if the mains cable or water hoses are

damaged,

– if the control panel, worktop or plinth

area are damaged, that you can get ac-

cess to the inner side of the appliance.

Contact your local Service Force Centre.

• Do not drill into the sides of the appliance

to prevent damage to hydraulic and elec-

trical components.

Warning! Carefully obey the

instructions for electrical and water

connections.

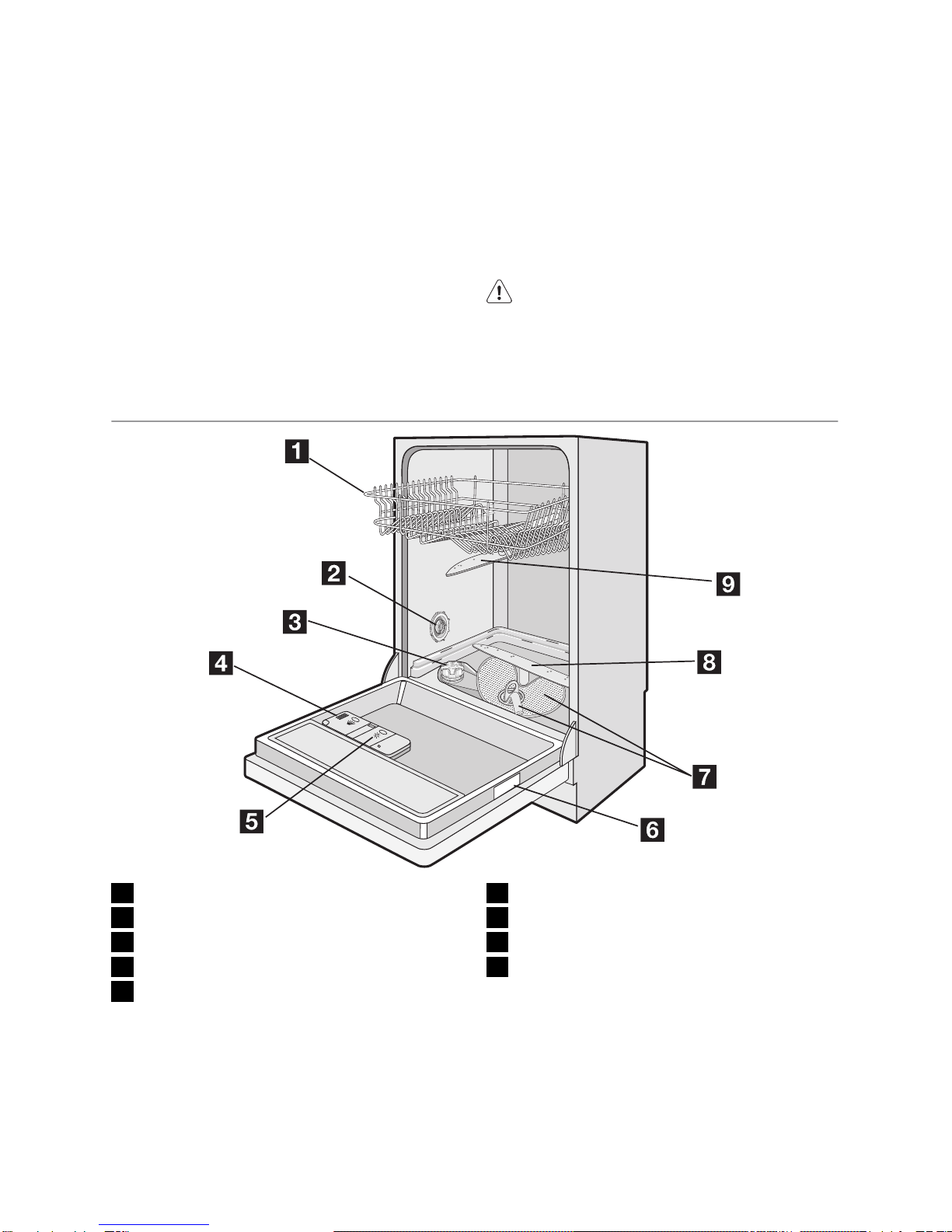

Product description

1Upper basket

2Water hardness dial

3Salt container

4Detergent dispenser

5Rinse aid dispenser

6Rating plate

7Filters

8Lower spray arm

9Upper spray arm

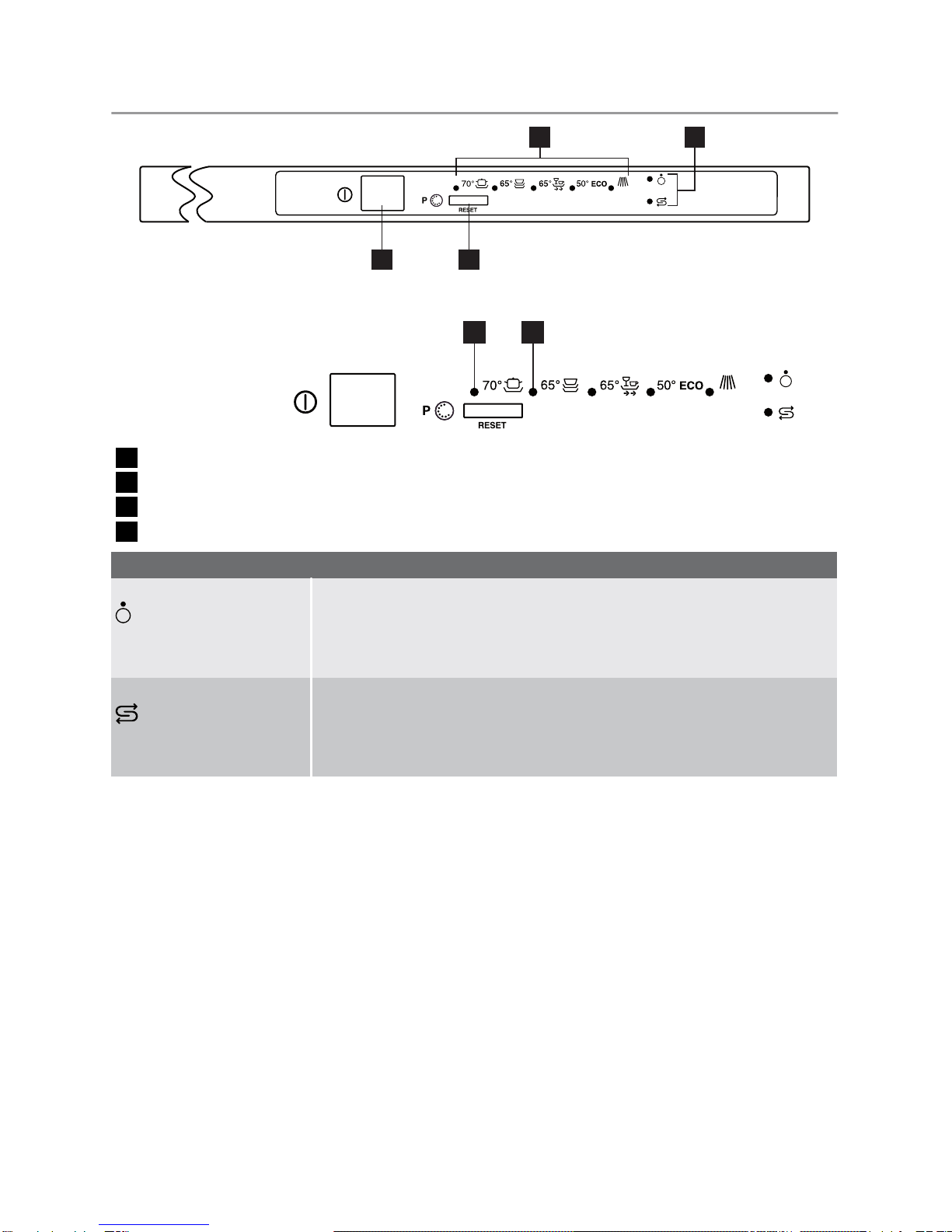

Control panel

1On/off button

2Programme selection/cancel button (RESET)

3Indicator lights

4Programme indicator lights

Indicator lights

End-of-programme Comes on when the washing programme is completed. Auxiliary func-

tions:

• Level of the water softener.

• Activation/deactivation of the audible signals.

• An alarm when the appliance has a malfunction.

Salt

Comes on when it is necessary to fill the salt container. Refer to the chap-

ter 'Use of dishwasher salt'.

After you fill the container, the salt indicator light can continue to stay on

for some hours. This does not have an unwanted effect on the operation

of the appliance.

1) When the salt container is empty, the related indicator light does not come on while a washing

programme operates.

Programme selection/cancel button

Use the programme selection/cancel button

for these operations:

• To set the washing programme. Refer to

the chapter 'Setting and starting a washing

programme'.

• To set the water softener. Refer to the

chapter 'Setting the water softener'.

• To deactivate/activate the audible signals.

Refer to the section 'Audible signals'.

• To cancel a washing programme in pro-

gress. Refer to the chapter 'Setting and

starting a washing programme'.

Setting mode

The appliance is in setting mode when all the

programme indicator lights are off and the

end-of-programme indicator light flashes.

The appliance must be in setting mode for

these operations:

– To set a washing programme.

– To set the water softener level.

– To deactivate/activate the audible signals.

The appliance is not in setting mode when

only one programme indicator light is on.

Cancel the programme to go back to the

setting mode. Refer to the chapter 'Setting

and starting a washing programme'.

Programme indicator lights A and B

Apart the selection of the corresponding

washing programme, these lights have an

auxiliary functions:

• The adjustment of the water softener level.

• Deactivation/activation of the audible sig-

nals.

Audible signals

You can hear an audible signal:

• At the end of the washing programme.

• When the appliance has a malfunction.

The activation of the audible signals is set at

the factory.

Do these steps to deactivate the audible sig-

nals:

1. Switch on the appliance.

2. Make sure that the appliance is in setting

mode.

3. Press and hold the programme selection/

cancel button until programme indicator

light A flashes and programme indicator

light B comes on.

4. Press the programme selection/cancel

button again.

– Programme indicator light A comes on.

– Programme indicator light B starts to

flash.

5. Wait until programme indicator light A

goes off.

– Programme indicator light B continues

to flash.

– The end-of-programme indicator light

comes on.

The audible signals are activated.

6. Press the programme selection/cancel

button again.

– The end-of-programme indicator light

goes off.

The audible signals are deactivated.

7. Switch off the appliance to save the op-

eration.

Do these steps to activate the audible sig-

nals:

1. Do the above procedure until the end-of-

programme indicator light comes on.

Use of the appliance

Refer to the following instructions for each

step of procedure:

1. Make a check if the water softener level

is correct for the water hardness in your

area. If necessary set the water softener.

2. Fill the salt container with dishwasher salt.

3. Fill the rinse aid dispenser with rinse aid.

4. Load cutlery and dishes into the dish-

washer.

5. Set the correct washing programme for

the type of load and soil.

6. Fill the detergent dispenser with the cor-

rect quantity of detergent.

7. Start the washing programme.

If you use detergent tablets, refer to the

chapter 'Use of detergent'.

Setting the water softener

The water softener removes minerals and

salts from the water supply. Minerals and

salts can have bad effect on the operation of

the appliance.

Water hardness is measured in equivalent

scales:

• German degrees (dH°).

• French degrees (°TH).

• mmol/l (millimol per litre - international unit

for the hardness of water).

•Clarke.

Adjust the water softener to the water hard-

ness in your area. If necessary, contact your

local water authority.

Water hardness Water hardness setting

°dH °TH mmol/l Clarke manually electronically

51 - 70 91 - 125 9,1 - 12,5 64 - 88 210

43 - 50 76 - 90 7,6 - 9,0 53 - 63 2 9

37 - 42 65 - 75 6,5 - 7,5 46 - 52 2 8

29 - 36 51 - 64 5,1 - 6,4 36 - 45 2 7

23 - 28 40 - 50 4,0 - 5,0 28 - 35 2 6

19 - 22 33 - 39 3,3 - 3,9 23 - 27 2 5

Water hardness Water hardness setting

°dH °TH mmol/l Clarke manually electronically

15 - 18 26 - 32 2,6 - 3,2 18 - 22 1 4

11 - 14 19 - 25 1,9 - 2,5 13 - 17 1 3

4 - 10 7 - 18 0,7 - 1,8 5 - 12 1 2

< 4 < 7 < 0,7 < 5 1

1) No use of salt required.

You must set the water softener man-

ually and electronically.

Manual adjustment

The appliance is set at the factory at po-

sition 2.

1. Open the door.

2. Remove the lower basket.

3. Turn the water hardness dial to position

1 or 2 (refer to the chart).

4. Install the lower basket.

5. Close the door.

Electronic adjustment

The water softener is set at the factory

at level 5.

1. Switch on the appliance.

2. Make sure that the appliance is in setting

mode.

3. Press and hold the programme selection/

cancel button.

4. Release the programme selection/cancel

button when programme indicator light A

starts to flash and programme indicator

light B comes on.

5. Wait until programme indicator light B

goes off.

– Programme indicator light A starts to

flash.

– The end-of-programme indicator light

starts to flash.

6. Press the programme selection/cancel

button one time.

– Programme indicator light A starts to

flash.

– The setting function of the water soft-

ener is activated.

– The end-of-programme indicator light

flashes to show the level of the water

softener.

Example: 5 flashes, pause, 5 flashes,

pause, etc. = level 5.

7. Press the programme selection/cancel

button one time to increase the water

softener level by one step.

8. Press the on/off button to save the oper-

ation.

Use of dishwasher salt

Caution! Only use dishwashers salt.

Types of salt that are not applicable for

dishwashers cause damage to the water

softener.

Caution! Grains of salt and salty water

on the bottom of the appliance can

cause corrosion. Fill the appliance with

salt before you start a washing

programme to prevent corrosion.

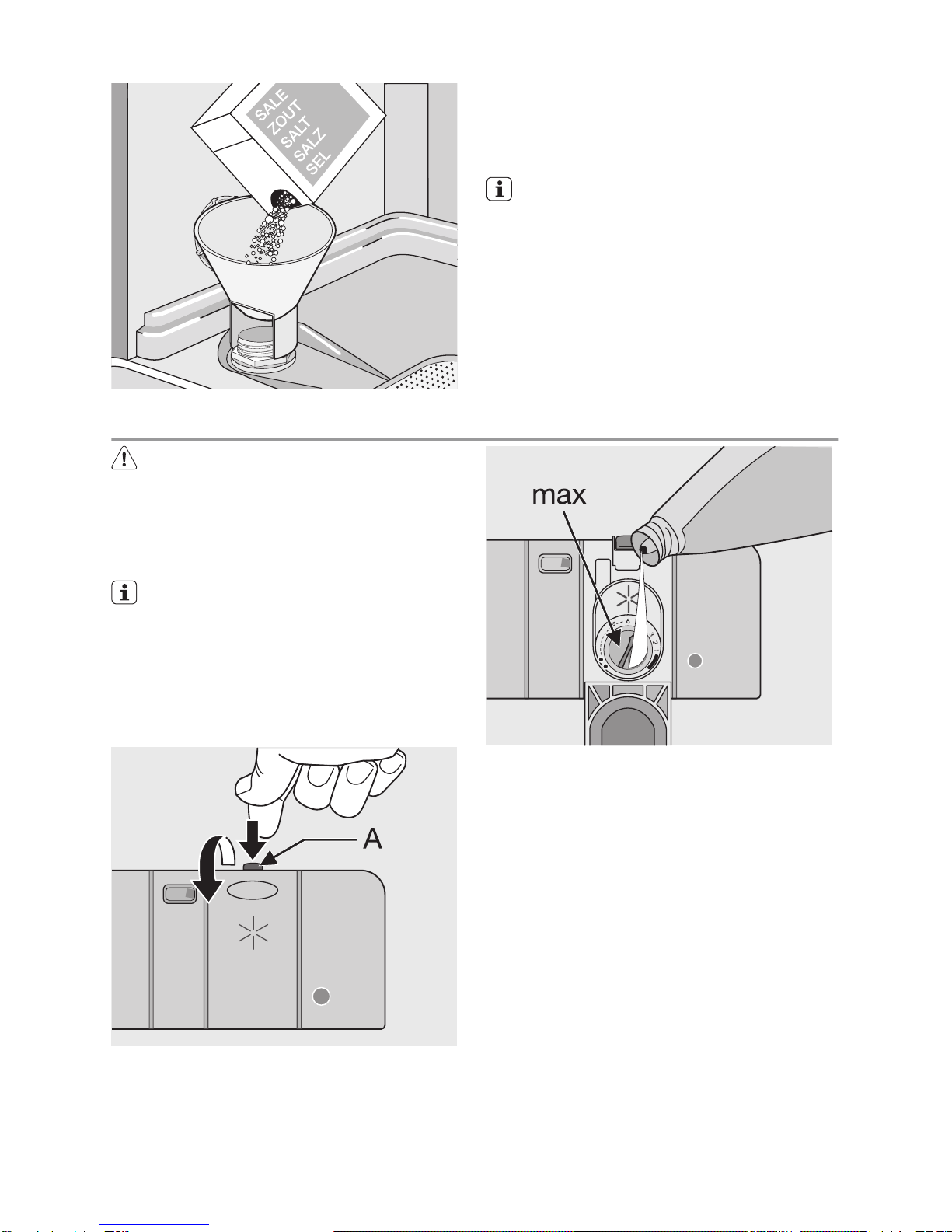

Do these steps to fill the salt container:

1. Turn the cap anticlockwise to open the

salt container.

2. Fill the salt container with 1 litre of water

(only the first operation).

3. Use the funnel to fill the salt container with

salt.

4. Remove the salt around the opening of

the salt container.

5. Turn the cap clockwise to close the salt

container.

It is normal that water overflows from the

salt container when you fill it with salt.

When you set electronically the water soft-

ener to level 1, the salt indicator light does

not stay on.

Use of rinse aid

Caution! Only use branded rinse aid for

dishwashers.

Do not fill the rinse aid dispenser with

other products (e.g. dishwasher clean-

ing agent, liquid detergent). This can

cause damage to the appliance.

Rinse aid makes it possible to dry the

dishes without streaks and stains.

Rinse aid is automatically added during

the last rinsing phase.

Do these steps to fill the rinse aid dispenser:

1. Press the release button (A) to open the

rinse aid dispenser.

2. Fill the rinse aid dispenser with rinse aid.

The mark 'max.' shows the maximum

level.

3. Remove the spilled rinse aid with an ab-

sorbent cloth to prevent too much foam

during the subsequent washing pro-

gramme.

4. Close the rinse aid dispenser.

Fill the rinse aid dispenser when the rinse aid

indicator (B) becomes clear.

Adjusting the rinse aid dosage

The rinse aid is set at the factory at position

You can set the rinse aid dosage between

position 1 (lowest dosage) and position 6

(highest dosage).

1. Turn the rinse aid dial to increase or de-

crease the dosage.

– Increase the dosage if there are water

droplets or limescale on the dishes.

– Decrease the dosage if there are

streaks, whitish stains or bluish layers

on the dishes.

Loading cutlery and dishes

Helpful hints and tips

Caution! Only use the appliance for

household utensils that are applicable

for dishwashers.

Do not use the appliance to clean objects

that can absorb water (sponges, household

cloths, etc.).

• Before you load cutlery and dishes, do

these steps:

– Remove all food remainings and debris.

– Make burnt, remaining food in pans soft.

• While you load cutlery and dishes, do

these steps:

– Load hollow items (e.g. cups, glasses

and pans) with the opening down.

– Make sure that water does not collect in

the container or in a deep base.

– Make sure that cutlery and dishes do not

lie inside one another.

– Make sure that cutlery and dishes do not

cover other cutlery and dishes.

– Make sure that glasses do not touch

other glasses.

– Put small objects in the cutlery basket.

• Plastic items and pans with non-stick

coatings can keep water droplets. Plastic

items do not dry as well as porcelain and

steel items.

• Put light items in the upper basket. Make

sure that the items do not move.

Caution! Make sure that the spray arms

can move freely before you start a

washing programme.

Warning! Always close the door after

you load or unload the appliance. An

open door can be dangerous.

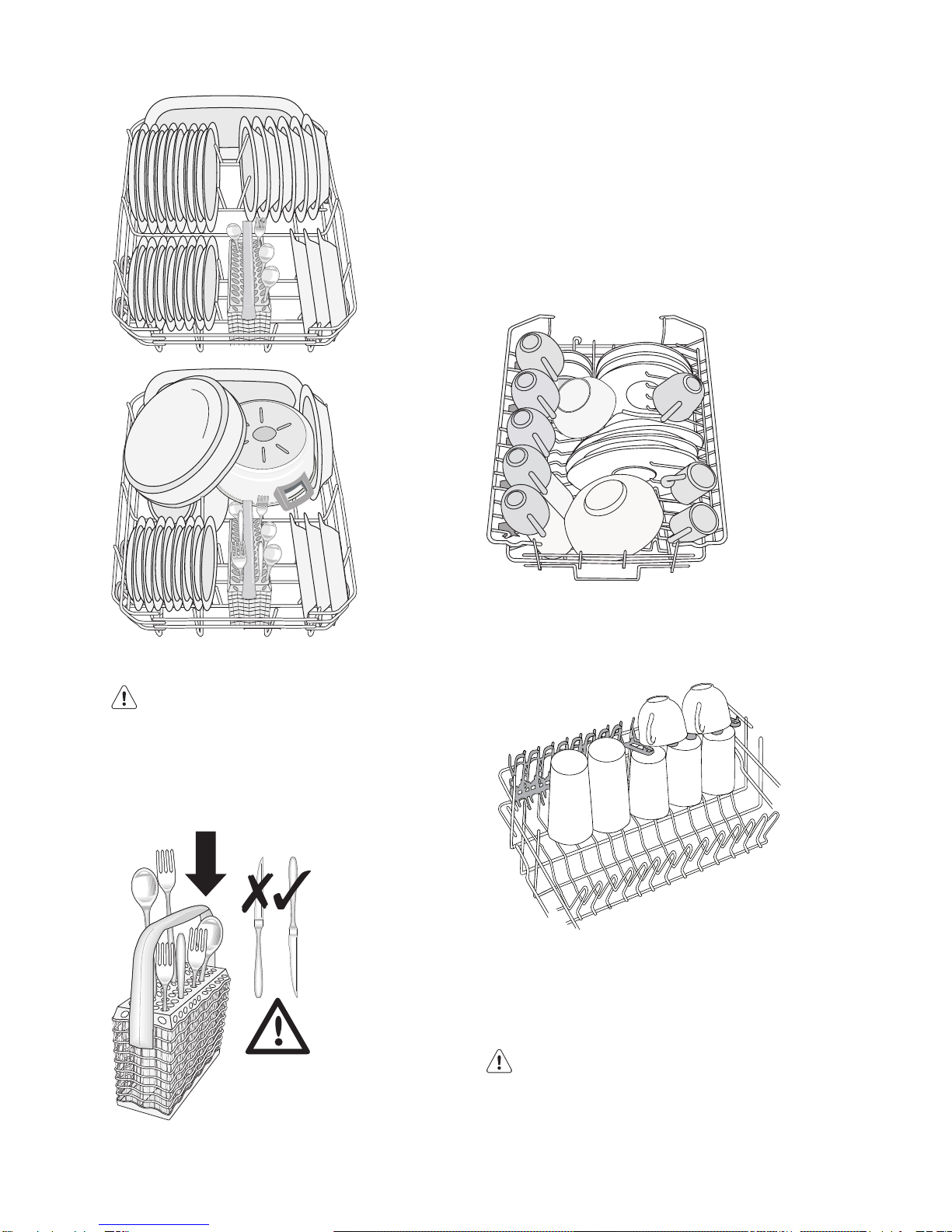

Lower basket

Put saucepans, lids, plates, salad bowls and

cutlery in the lower basket. Arrange service

dishes and large lids around the edge of the

basket.

Cutlery basket

Warning! Do not put long-bladed knives

in a vertical position. Arrange long and

cutlery horizontally in the upper basket.

Be careful with sharp items.

Put forks and spoons with the handles down.

Put knives with the handles up.

Mix spoons with other cutlery to prevent

them to bond together.

Use the cutlery grid.

If the dimensions of the cutlery prevent use

of the cutlery grid, you can easily remove it.

Upper basket

The upper basket is for plates (maximum 24

cm in diameter), saucers, salad bowls, cups,

glasses, pots and lids. Arrange the items to

let water touch all surfaces.

Put glasses with long stems in the cup racks

with the stems up. For longer items, fold the

cup racks up.

Adjustment of the height of the upper

basket

If you put large plates in the lower basket, first

move the upper basket to the upper position.

Caution! Adjust the height before you

load the upper basket.

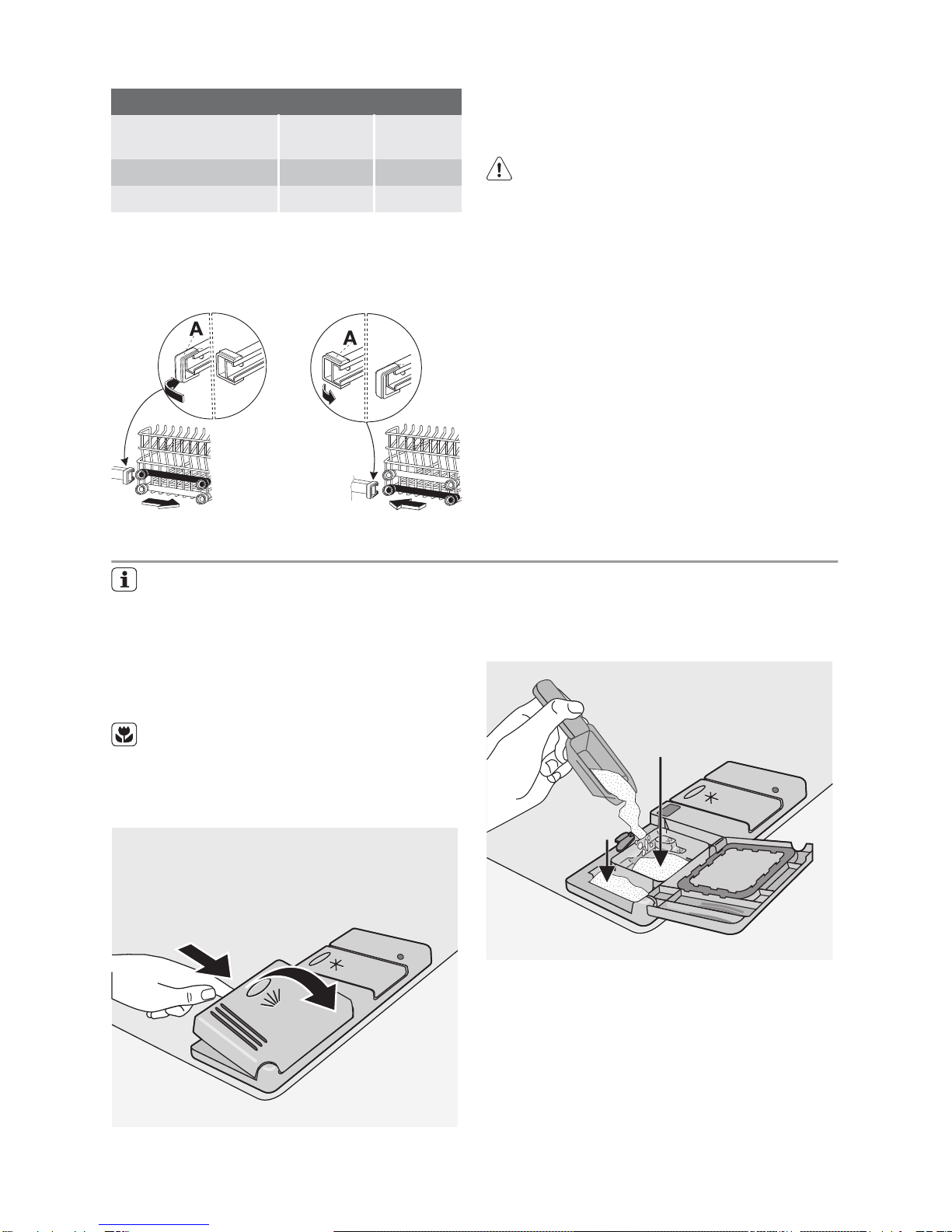

Maximum height of the dishes

upper bas-

ket lower

basket

Upper position 20 cm 31 cm

Lower position 24 cm 27 cm

Do these steps to move the upper basket to

the upper position:

1. Move the front runner stops (A) out.

2. Pull the basket out.

3. Put the basket in the upper position.

4. Put back the front runner stops (A) in their

initial position.

Caution! If the basket is in the upper

position, do not put cups on the cup

racks.

Use of detergent

Only use detergents (powder, liquid or

tablet) that are applicable for dishwash-

ers.

Follow the data on the packaging:

• Dosage recommended by the manu-

facturer.

• Storage recommendations.

Do not use more than the correct quan-

tity of detergent to save an environment.

Do these steps to fill the detergent dispenser:

1. Open the lid of the detergent dispenser.

2. Fill the detergent dispenser (A) with de-

tergent. The marking shows the dosage:

20 = approximately 20 g of detergent

30 = approximately 30 g of detergent.

3. If you use a washing programme with

prewash phase, put more detergent in

the prewash detergent compartment (B).

4. If you use detergent tablets, put the de-

tergent tablet in the detergent dispenser

(A).

Andere Handbücher für GSV 4500

Inhaltsverzeichnis

Andere Kuppersbusch Spülmaschine Handbücher

Kuppersbusch

Kuppersbusch IGV 659 Bedienungsanleitung

Kuppersbusch

Kuppersbusch EDW 1503 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 6407.0 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 643.1 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IGVS 6507.0 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IGVS669 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 653.1 Bedienungsanleitung

Kuppersbusch

Kuppersbusch New Structure ITRONIC HL Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 448 Series Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 634.5 Bedienungsanleitung

Kuppersbusch

Kuppersbusch 450 Series Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 634 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 647 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 459 Series Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 6506.0 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 6406.0E Bedienungsanleitung

Kuppersbusch

Kuppersbusch 634 Series Bedienungsanleitung

Kuppersbusch

Kuppersbusch IGV 699 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 6508.0 GE Bedienungsanleitung

Kuppersbusch

Kuppersbusch IGV6509.5 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 6504.0E Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 447.0 Bedienungsanleitung

Kuppersbusch

Kuppersbusch IG 458.1 W Bedienungsanleitung

Kuppersbusch

Kuppersbusch IGV 6504.3 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
