CONTENTS
Safety information 2
Safety Instructions 3
Operation 5
Daily Use 7
Hints and tips 8
Care and cleaning 8
Troubleshooting 9
Technical information 12
Installation 12
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Cleaning and user maintenance shall not be made by
children without supervision.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices and
other working environments
–By clients in hotels, motels, bed and breakfast and other
residential type environments
•Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
2
•Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by
the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
•Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or
wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• The appliance must be earthed.
• All electrical connections should be
made by a qualified electrician.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
3
Service or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use
WARNING! Risk of injury,
burns, electrical shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level of
environmental compatibility. This gas is
flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not store flammable gas and liquid in
the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
Care and cleaning
WARNING! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons in
the cooling unit. Only a qualified person
must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
4
OPERATION

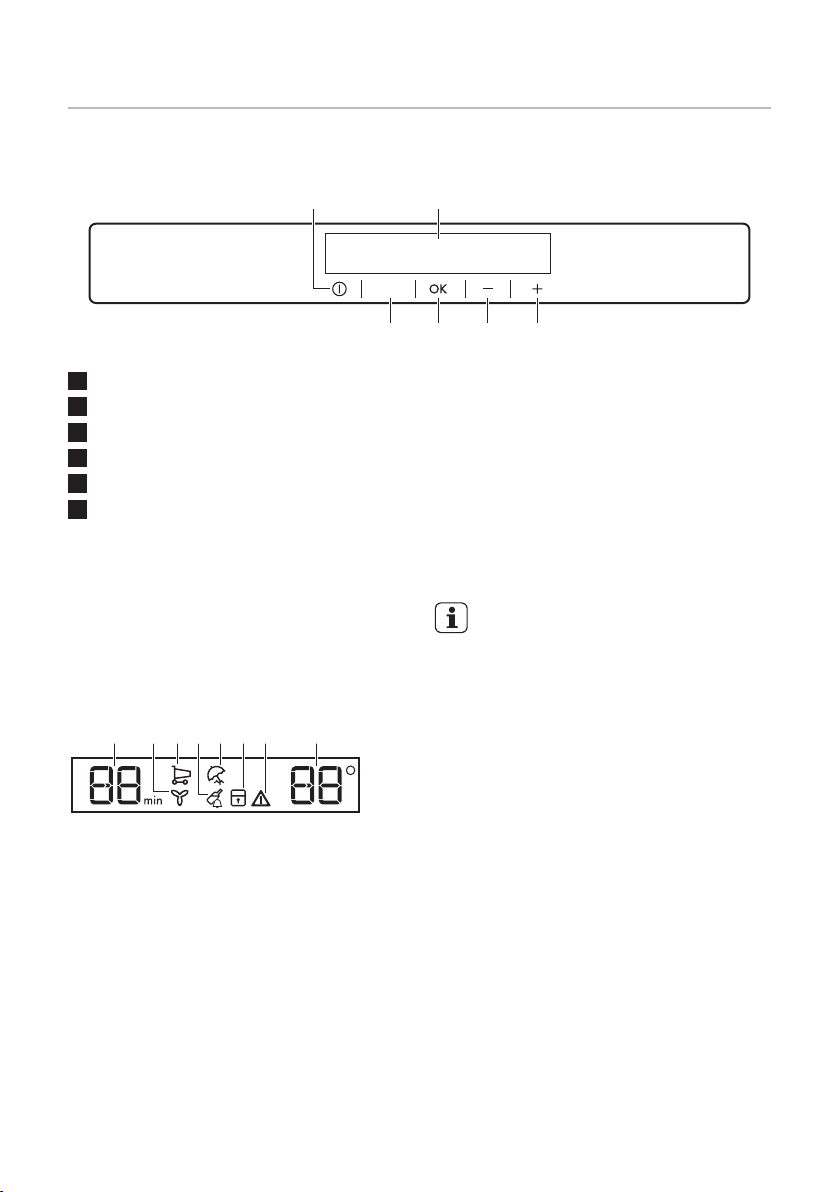

Control Panel
1 2
3
456
Functions
1ON/OFF button
2Display
3Temperature warmer button
4Temperature colder button
5OK button
6Functions button
It is possible to change predefined sound of
buttons to a louder one by pressing
together the Functions button and
Temperature colder button for some
seconds. Change is reversible.
Display
A HE F GCB D
A) Timer function
B) SuperCooling function
C) IntesiveCooling function
D) DrinksChill function
E) Holiday function
F) ChildLock function
G) Alarm indicator
H) Temperature indicator
Switching on
1. Connect the mains plug to the power
socket.
2. Press the ON/OFF button if the display
is off.
The alarm buzzer may sound after a few
seconds. If "DEMO" appears on the
display, the appliance is in
demonstration mode. Refer to
"Troubleshooting...".
To reset the alarm refer to "High
temperature alarm".
The temperature indicators show the set
default temperature.
To select a different set
temperature refer to
"Temperature regulation".
Switching off
To switch off the appliance do these steps:
1. Press the ON/OFF button for 5
seconds.
2. The display switches off.
3. To disconnect the appliance from the
power disconnect the mains plug from
the power socket.
Temperature regulation
The default set temperature for the fridge is
+5°C.
Set the temperature of the fridge by
pressing the temperature button.
The temperature indicator shows the set
temperature.
5
The set temperature will be
reached within 24 hours. After a
power failure the set
temperature remains stored.
DrinksChill function
The DrinksChill mode is to be used to set
an acoustic alarm at the preferred time,
useful, for example, when you want to
rapidly chill a bottle of wine for a certain
length of time.
1. To switch on the function press
Functions button until the
corresponding icon appears.
The DrinksChill indicator flashes.
The timer shows the set value (30 minutes)
for a few seconds.
2. Press the temperature colder button or
temperature warmer button to change
the Timer set value from 1 to 90
minutes.
3. Press OK to confirm.
DrinkChill indicator is shown. The Timer
starts to flash (min).
At the end of the countdown the DrinksChill
indicator flashes and an audible alarm
sounds.
4. Press OK to switch off the sound and
terminate the function.
It is possible to deactivate
the function at any time
during the countdown by
pressing Functions until
DrinksChill indicator flashes
and then pressing OK to
confirm.
It is possible to change the
time during the countdown
and at the end by pressing
the temperature colder
button and the temperature
warmer button.
ChildLock function
To lock any possible operation through the
buttons select the ChildLock function.
1. To switch on the function:
a. Press Functions until the
corresponding icon appears.
The ChildLock indicator flashes.
b. Press OK to confirm.
The ChildLock indicator is shown.
2. To switch off the function:
a. Press Functions until the ChildLock
indicator flashes.
b. Press OK to confirm.
The ChildLock indicator goes off.
IntensiveCooling function
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the IntensiveCooling function to chill the
products more rapidly and to avoid
warming the other food which is already in
the refrigerator.
1. Press the Functions until the
corresponding icon appears.
The IntensiveCooling indicator flashes.
2. Press OK to confirm.
The IntensiveCooling indicator is shown.
To switch off the function before
its automatic end repeat the
procedure until the
IntensiveCooling indicator goes
off.
The IntensiveCooling function
shuts off automatically after
approximately 6 hours. The
function switches off by
selecting a different fridge set
temperature.
Holiday function
This function allows you to keep the
appliance closed and empty during a long
holiday period without the formation of bad
odours.
1. Press the Functions until the
corresponding icon appears.
The Holiday indicator flashes. The
temperature indicator shows the set
temperature.
2. Press the OK to confirm.
The Holiday indicator is shown.
6
The function switches off by
selecting a different set
temperature.
Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door open
alarm conditions are indicated by:
• flashing Alarm indicator
• acoustic buzzer
When normal conditions are restored (door
closed), the alarm will stop.
During the alarm, the buzzer can be
switched off by pressing any button.
SuperCooling function
The activation of the SuperCooling function
increases the energy consumption.
If the function is activated
automatically the SuperCooling
indicator is not shown (refer to
"Daily use").
1. To switch on the function press
Functions until the corresponding icon
appears.
2. To switch off the function press
Functions in order to select an other
function or press Functions until you
can see none of the special icons.
DAILY USE
Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
For better use of space, the front half-
shelves can lie over the rear ones.
Positioning the door shelves
The model is equipped with a variable
storage box which is fitted under a door
shelf compartment and can be slide
sideways.
For more thorough cleaning, the top and
bottom door shelves can be easily removed
and refitted in position
Using Removable Drawer
Place fruit, vegetables and bottles in the
special bottom drawer provided (see the
diagram).
SuperCooling function
The refrigerator compartment is equipped
with a device that allows for rapid cooling of
foods and more uniform temperature in the
compartment.
This device activates by itself when needed,
for example for a quick temperature
recovering after door opening or when the
ambient temperature is high.
7
Allows you to switch on the device manually
when needed (refer to "SuperCooling
Function").
The SuperCooling device stops
when the door is open and
restarts immediately after the
door closing.
HINTS AND TIPS
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound from
coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the
compressor when refrigerant is pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation (a
natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor switches
on or off.
Hints for energy saving
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice on the
evaporator. If this happens, set the
Temperature Regulator toward warmer
settings to allow automatic defrosting
and so a saving in electricity
consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene bags
and place on the glass shelf above the
vegetable drawer.
• For safety, store in this way only one or
two days at the most.
• Cooked foods, cold dishes, etc..: these
should be covered and may be placed
on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or polythene
bags to exclude as much air as possible.
• Bottles: these need a cap and should be
stored on the door bottle shelf, or (if
equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic, if
not packed, must not be kept in the
refrigerator.
CARE AND CLEANING
WARNING! Refer to Safety
chapters.
8
General warnings
CAUTION! Unplug the
appliance before carrying out
any maintenance operation.
This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging
must therefore only be carried
out by authorized technicians.
The accessories and parts of
the appliance are not suitable for
washing in a dishwasher.
Periodic cleaning
CAUTION! Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
CAUTION! Take care of not to
damage the cooling system.
CAUTION! When moving the
cabinet, lift it by the front edge
to avoid scratching the floor.
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean and
free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and save
electricity consumption.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special
container at the back of the appliance, over
the motor compressor, where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of the
refrigerator compartment channel to
prevent the water overflowing and dripping
onto the food inside.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
WARNING! If the cabinet will be
kept on, ask somebody to
check it once in a while to
prevent the food inside from
spoiling in case of a power
failure.
TROUBLESHOOTING
WARNING! Refer to Safety
chapters.
9
What to do if...
Problem Possible cause Solution
The appliance does not oper-
ate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con-
nected to the mains socket
correctly.
Connect the mains plug to the
mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The appliance is noisy. The appliance is not sup-
ported properly.
Check if the appliance stands
stable.
Audible or visual alarm is on. The cabinet has been re-
cently switched on or the
temperature is still too high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The temperature in the ap-
pliance is too high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The door is left open. Close the door.
The temperature in the ap-
pliance is too high.
Contact a qualified electrician
or contact the nearest Author-
ized Service Centre.
A rectangular symbol is
shown instead of numbers
on the Temperature Display.
Temperature sensor prob-
lem.
Contact the nearest Authorized
Service Centre (the cooling sys-
tem will continue to keep food
products cold, but temperature
adjustment will not be possi-
ble).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Authorized
Service Centre.
The compressor operates
continually.
Temperature is set incor-
rectly.
Refer to "Operation" chapter.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart on
the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool to
room temperature before stor-
ing.
10
Inhaltsverzeichnis
Sprachen:
Andere Kuppersbusch Kühlschrank Handbücher
Kuppersbusch
Kuppersbusch KG 1781 Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKE 150-2 Bedienungsanleitung
Kuppersbusch
Kuppersbusch 78441 Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKE 159 series Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKEF2380-0 Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKE 339-1 Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKF 209-4 Bedienungsanleitung
Kuppersbusch
Kuppersbusch FK2500.1i Bedienungsanleitung
Kuppersbusch
Kuppersbusch FKG8340.0i Bedienungsanleitung
Kuppersbusch
Kuppersbusch KE 320-4-2T Bedienungsanleitung
Kuppersbusch
Kuppersbusch FKF8800.0i Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKE 166-0 Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKE269-5T2 Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKE 159-6 Bedienungsanleitung
Kuppersbusch
Kuppersbusch FK3800.0i 923761022 Bedienungsanleitung
Kuppersbusch
Kuppersbusch CN228220X Bedienungsanleitung
Kuppersbusch
Kuppersbusch FKG8310.0i Bedienungsanleitung
Kuppersbusch
Kuppersbusch FKGF8800 0i Series Bedienungsanleitung
Kuppersbusch
Kuppersbusch FKG8500 1i Series Bedienungsanleitung
Kuppersbusch
Kuppersbusch IKE 318-5-2T Bedienungsanleitung
Beliebte Kühlschrank Handbücher anderer Marken
Bonnet Neve
Bonnet Neve SKYVIEW PLUS Bedienungsanleitung
Zanussi Electrolux
Zanussi Electrolux ZERB 8441 Bedienungsanleitung
Sharp
Sharp SJ-BA31IEXW2-EU Bedienungsanleitung
CORBERO
CORBERO CC2300MCW Bedienungsanleitung
KitchenAid
KitchenAid 2205264 Bedienungsanleitung
Stengel
Stengel KU 1101 A++ Bedienungsanleitung
