Dear Customer,
Congratulations on your choice. We
are certain that this modern, functional
and practical device made with first rate
quality materials will fully satisfy your
requirements.
Please read all the sections in this
INSTRUCTION MANUAL before using the
hood for the first time in order to obtain
maximum performance from the device
and avoid faults which may arise from
incorrect use as well as minor problem
solving.
For optimal performance, the external duct
should not exceed FOUR METRES, have
more than two 90 ° angles and its diameter
should be at least Ø120.
•Disconnect the device before
performing any work on the interior,
e.g. during cleaning or maintenance.
•The excessive accumulation of
grease in the hood and metal filters
may cause dripping and fire risks,
therefore it is necessary to wash
the inside of the hood and the metal
filters at least once a month.
•This device can be used by children
aged 8 and over and persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge, if they have been given
supervision or proper training in the
safe use of the device and if they
understand the dangers involved.
Children should not play with the
device. Cleaning and maintenance
should be performed by the user
and not by unsupervised children.
•Check that the power voltage and
frequency match those indicated
on the label located on the inside
of the hood. A suitable earth must
be connected (except for Class II
devices, marked with on the
technical data plate).
•For installation, a connection
method isolated from the fixed
installation should be incorporated,
in accordance with installation
regulations (adjusted to the strength
to be endured and with a minimum
opening between the contacts of
3mm) under overvoltage category
III conditions, for the emergency
shutdown, cleaning or light
replacement. In no event should the
earth pass through this switch. This
switch can be replaced with a plug if
it is accessible in normal use.
• If the power lead is damaged it must
be replaced by the manufacturer, its
after-sales service or by qualified
personnel in order to avoid potential
danger.
•Air should not be extracted by ducts
used to expel fumes from equipment
powered by gas or other fuels.
•The room must be adequately
ventilated when the hood will be
Safety Instructions
GB
used simultaneously with equipment
powered by energy other than
electricity e.g. gas cookers.
•The excessive accumulation of
grease in the hood and metal filters
may cause dripping and fire risks,
therefore it is necessary to wash
the inside of the hood and the metal
filters at least once a month.
•Do not produce flames under the
hood.
•The bottom of the hood must be
fitted at least 65cm above gas or
combination hobs. Observe the
minimum limits set by WORKTOP
MANUFACTURER’S MINIMUM
LIMITS. This distance may be
reduced if mentioned in the hood
installation instructions.
•Never leave gas burning without
a pan above it. The grease
accumulated in the filters may drip
or catch fire when the temperature
is increased.
•Avoid cooking under the hood if
the metal filters are not fitted e.g.
while they are being cleaned in the
dishwasher.
•We recommend you wear gloves
and use extra caution when cleaning
the inside of the hood.
•Your hood is designed for domestic
use and only for the extraction
and purification of gases from food
preparation. Use for other purposes
is at your own risk and may be
dangerous. The manufacturer is not
responsible for damage caused by
improper use of the device.
•For repairs please contact the
manufacturer’s nearest Technical
Assistance Department which will
always use genuine parts. Repairs
or modifications by unauthorized
personnel may result in damage
to equipment or malfunction,
endangering safety.
•This device complies with the
European Directive 2012/19/EU on
electrical and electronic devices
entitled “Electrical and Electronic
Equipment Waste “. The directive
provides the framework applicable
throughout the European Union for
the return and recycling of electrical
and electronic equipment waste
responsible for his/her safety. Keep
children away from the device and
never let them play with it .
GB
Program the working time
Proceed as follows:
1.-Choose the required speed.
2.-Press “timer”. The light will begin to flash.
3.-The duration of the “timer” is 10 min.
4.-During the programmed time, fan speed
can be changed.
The intensive speed is autoprogramed and
will change to speed 2 after approximately 10
minutes.
Instructions for use

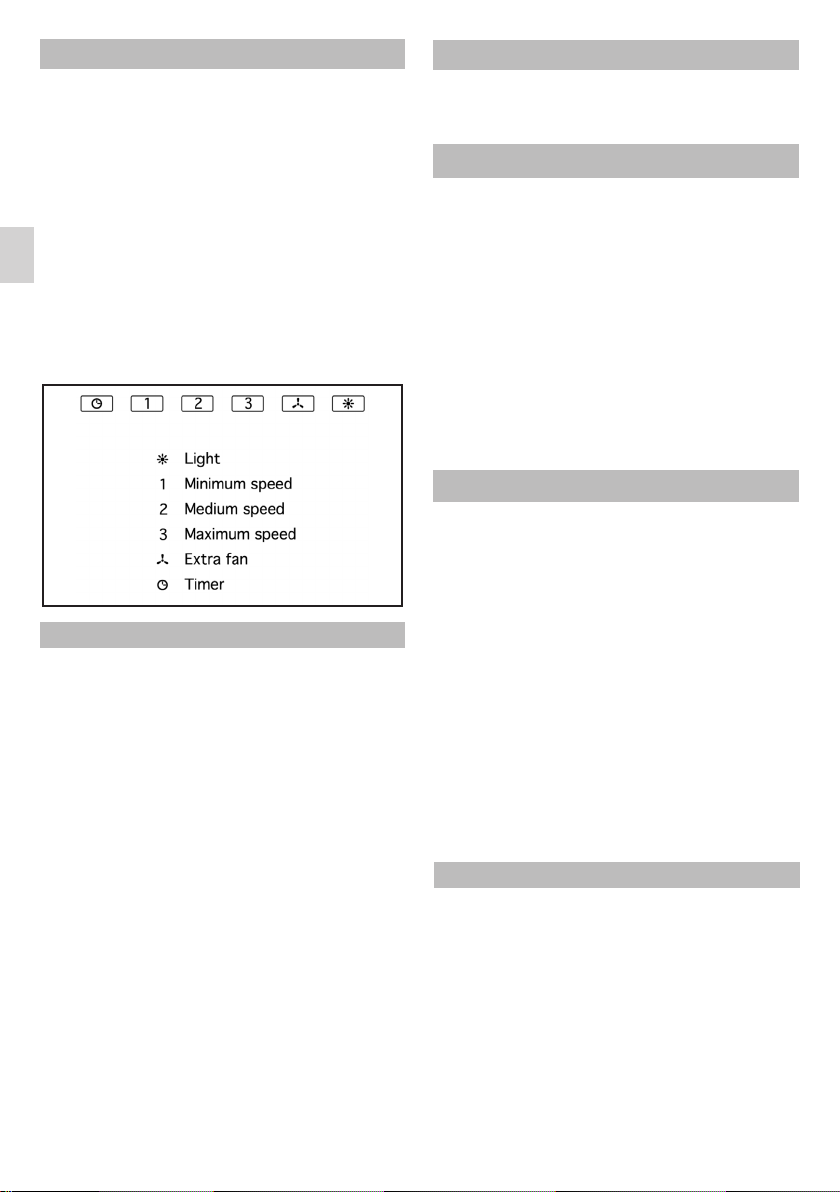

You can activate or deactivate the cooker
hood by operating the functions shown in the
diagram.
Switch on the extractor fan a few minutes
before you start to cook in order to ensure that
a steady air flow has been established before
fumes appear.
Allow the extractor fan to run for several
minutes after you have finished cooking
(between 3 to 5 minutes) in order to expel all
the grease from the outlet duct. This prevents
the return of grease, smoke and smells.
Changing light bulbs
For changing the light bulbs please
contact the manufacturer’s nearest
Technical Service.
•If your kitchen hood is made of stainless
steel, use proprietary cleaners mentioned in
the product instructions.
•If your kitchen hood is painted, use lukewarm
water and a neutral soap.
•Never use metallic scourers, nor abrasive or
corrosive products.
•Dry the kitchen hood using a cloth that
does not produce fibres. Do not use vapour
cleaners.
•To remove the filters from their fittings, press
lightly on the locks and then pull them off.
Cleaning the hood body
Cleaning the metal filters
•To remove the filters from their fittings, press
lightly on the locks and then pull them off.
•The metal filters can be cleaned by soaking
them in hot water with neutral detergent until
the fat dissolves and then rinsing them under
the tap or using special anti-grease products.
They can also be washed in a dishwasher.
In this case, it is advisable to stack them
vertically to avoid food residues to stick to
them.
•Cleaning in a dishwasher may damage the
metallic surface (blackening it), although this
will not affect its fat retention capacity.
•Once clean, leave them to dry off and then fit
them onto the kitchen hood.
During cleaning and maintenance
work, make sure the safety instructions
are complied with.
Cleaning and maintenance
GB
Problem solving
Proceed with the following checks before calling the Technical Service:
Active charcoal filters (Optional)
When exterior gas extraction is not possible, then the kitchen hood may be set to
purify the air by recycling it through active charcoal filters.
The active charcoal filters have an active life of between three to six months,
depending on the individual conditions of use. These filters cannot be washed nor
regenerated. They must be replaced once their useful life comes to an end.
The manufacturer reserves the right to make changes and corrections to its products as
it deems necessary, without altering their basic characteristics.
Problem Possible cause Solution
The kitchen hood does
not work.
The mains cable is not
connected to the network.
There is no current in the
network.
Connect the mains cable to
the network.
Provide current to the network.
The kitchen hood does
not extract sufficiently
or vibrates.
Filters are saturated with fat.
Obstruction in the air outlet.
Change or clean the active
charcoal and/or metal filters.
Remove the obstruction.
A,D NICHT ENTHALTEN
DE
A,D EJ INGÅR
SE
A,D NON COMPRESO
IT
A,D NÃO INCLUÍDO
PT
A,D PAS INCLU
FR
A,D NOT INCLUDED
GB
A,D НЕ ВКЛЮЧЕНЫ
A,D ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΟΝΤΑΙ
GR
A,D NIET INBEGREPEN
NL
A,D NO INCLUIDO
ES
RU

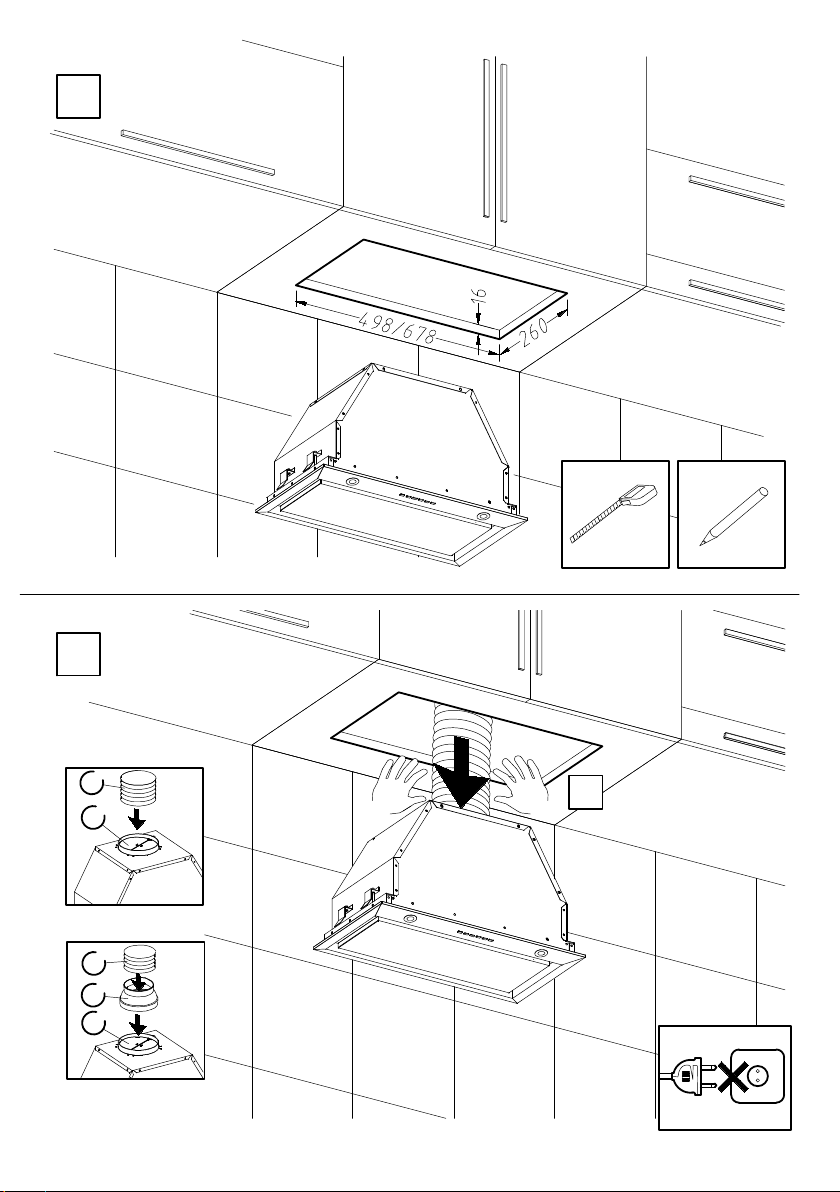

1
2
2.1
A
Ø150
AØ120
C1x
B
1x
B
1x
3
3.1
4
4.1
3.3
3.2
4.1
M4x60 (4x)
5.1
5.2
5.2
5.3
5a
5b
5.1
D5.4
