Kustom DE50 Bedienungsanleitung
OWNER’S MANUAL
Congratulations on the purchase of your new Kustom® Deep End® Series bass amplier. This model
utilizes an exclusive preamp design that combines a 12AX7 tube, known for its robust tonal qualities,
with solid-state circuitry that provides consistency of performance and reliability. The result is rich,
dynamic tone that is perfect for a wide variety of playing styles and environments. Inside this manual
you’ll nd details about your Deep End® Series model. Everyone at Kustom wishes you many years of
enjoyment with your new amplier!
kustom.com
DE50
FCC Statements
1. Caution: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
2. Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
1.) Passive Bass Input - this is a 1/4-inch, 2-conductor input jack for plugging in your instrument. It is
intended for bass guitars, but will accept other instruments as well.
2.) Active Bass Input - this is a 1/4-inch, 2-conductor input jack for instruments with active electronics
or high output.
3.) Tube Gain - adjust this control clockwise to increase the amount of gain. Set this control in its lower
ranges to achieve the cleanest tones. As this control is turned clockwise, you’ll begin to hear the grit
and growl of a classic overdriven tube amp. At maximum settings, thicker, more aggressive tones
are produced. Note: Gain is applied to the tube stage before the tone controls.
4.) Bass - this passive EQ adjusts the low frequency equalization of the amplier.
5.) Mid - this passive EQ adjusts the mid-range frequency equalization of the amplier.
6.) Treble - this passive EQ adjusts the high frequency equalization of the amplier.
7.) Master- this controls the overall volume level of the amplier. Note: Your DE50 features an
exclusive Kustom® circuit called Organic Clipping™. When the Master volume level is turned up to
its higher ranges, this power amp circuit reacts like an all-tube amp, generating lower order, musical
harmonics and natural clipping characteristics like the best all-tube designs. It provides the classic
power amp “growl” that bass players know and love, with a smooth transition from clean to grind.
8.) Jewel Light - when lit, this jewel light lets you know that the amplier is on.
9.) Power - this switch turns the AC power to the amplier On and Off.

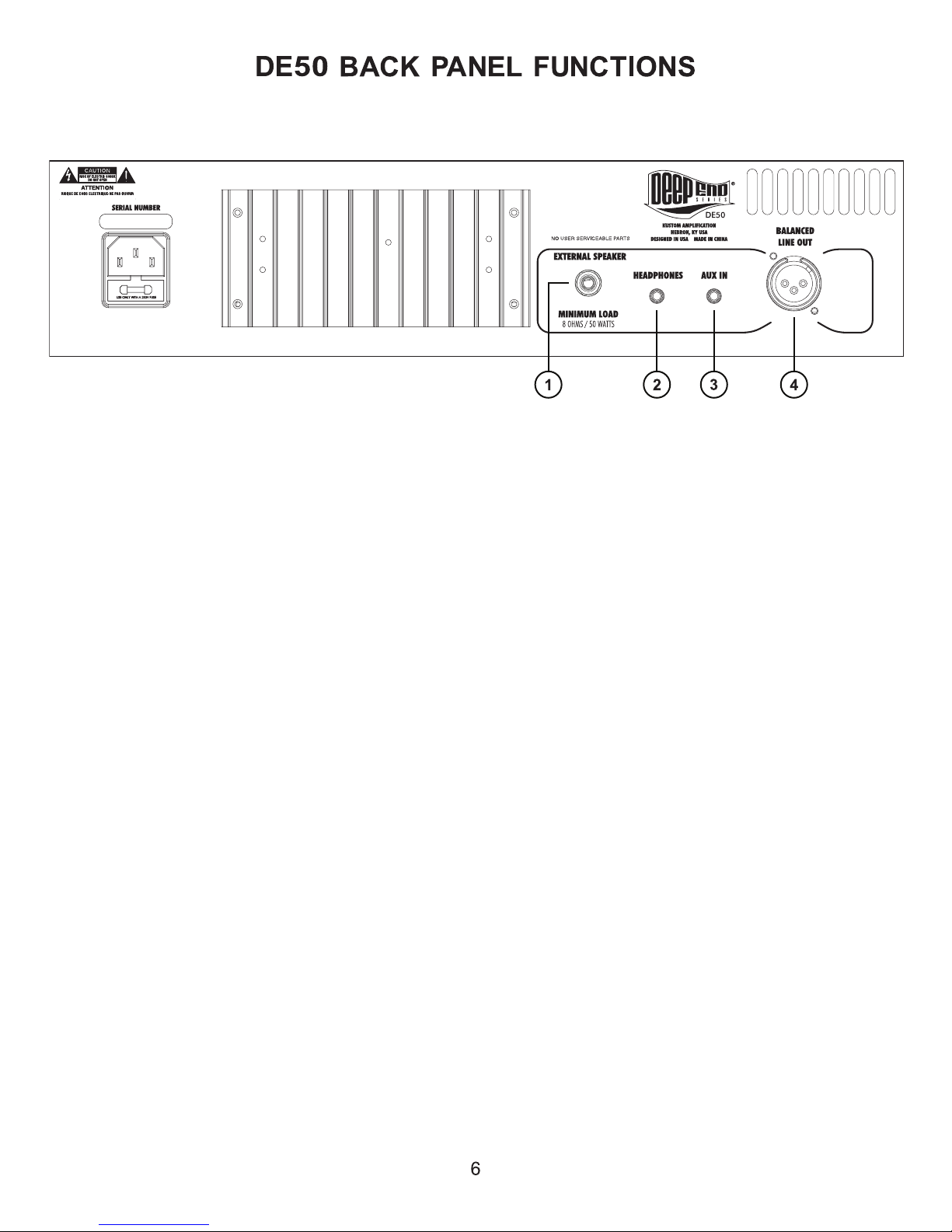

1.) External Speaker - this is a 2-conductor, 1/4-inch speaker output jack. Rating is 8 Ohms minimum.
For full power, use an 8-Ohm speaker load. Higher impedance loads will result in lower power levels to
the speaker. The signal path to the internal speaker is disconnected when using this jack.
2.) Headphones - this is a 3-conductor, 1/8-inch, stereo jack. The amplier’s internal speaker is
disconnected when this jack is used.
3.) AUX In - this is a 3-conductor, 1/8-inch, stereo jack that allows playback from a Compact Disc, MP3
player, or other audio device. The volume is controlled by the device that is plugged into this jack.
4.) Balanced Line Out - this XLR jack is used to connect the amplier to a mixer or other line level
amplier. The output for this jack is pre EQ, so only the gain setting will be reected on this output.
1.) AC Power Cord Receptacle - AC power cord can be removed for easy storage and replacement
if damaged. Insert the AC cord (provided) rmly into the AC receptacle. NOTE: Replace the AC power
cord if protective jacket is damaged or ground pin is damaged or removed.
2.) Fuse - The fuse is located in a fuse tray just below the receptacle. Replace only with same type
and size. For your convenience, a spare fuse is located inside the fuse tray toward the front. To replace
fuse, remove AC power cord. Remove fuse tray by pulling the tab located above the fuse symbol away
from the receptacle.
Speaker
Input Impedance
Auxilliary Input
Signal to Noise Ratio
Gain
Tube
Dimensions / Weight
Headphones Output
Power Requirements
DirectOutput
Output Power
Input
80 dB typical
71dB
Preamp
Dual
1 X 10 Inch
50 Watts, RMS
Electronically balanced XLR
Stereo 1/8-inch high impedance input
Stereo 1/8-inch jack
Bass
Treble
Mid
Inches / Pounds
cm / kg
3
USA /Canada
Europe
UK
Australia
Japan
18dB range @ 450Hz
23dB range @ 8kHz
28dB range @ 40Hz
48.3 (H) x 42.0 (W) x 29.8 (D), 17.0 kg.
19.0 (H) x 16.5 (W) x 11.75 (D), 37.5 lbs.
100VAC / 50- 60Hz,
120 120VAC / 60Hz, W nominal
240VAC / 50Hz,
240VAC / 50Hz,
30VAC / 50Hz,2
(all controls @ max)
1-12A X7
0dB: 1 Meg Ohm, -6dB: 100K Ohm
8 Ohms @ 5% THD
Kustom Deep End
®
Amplifier Tone
Controls
120W nominal
120W nominal
120W nominal
120W nominal
