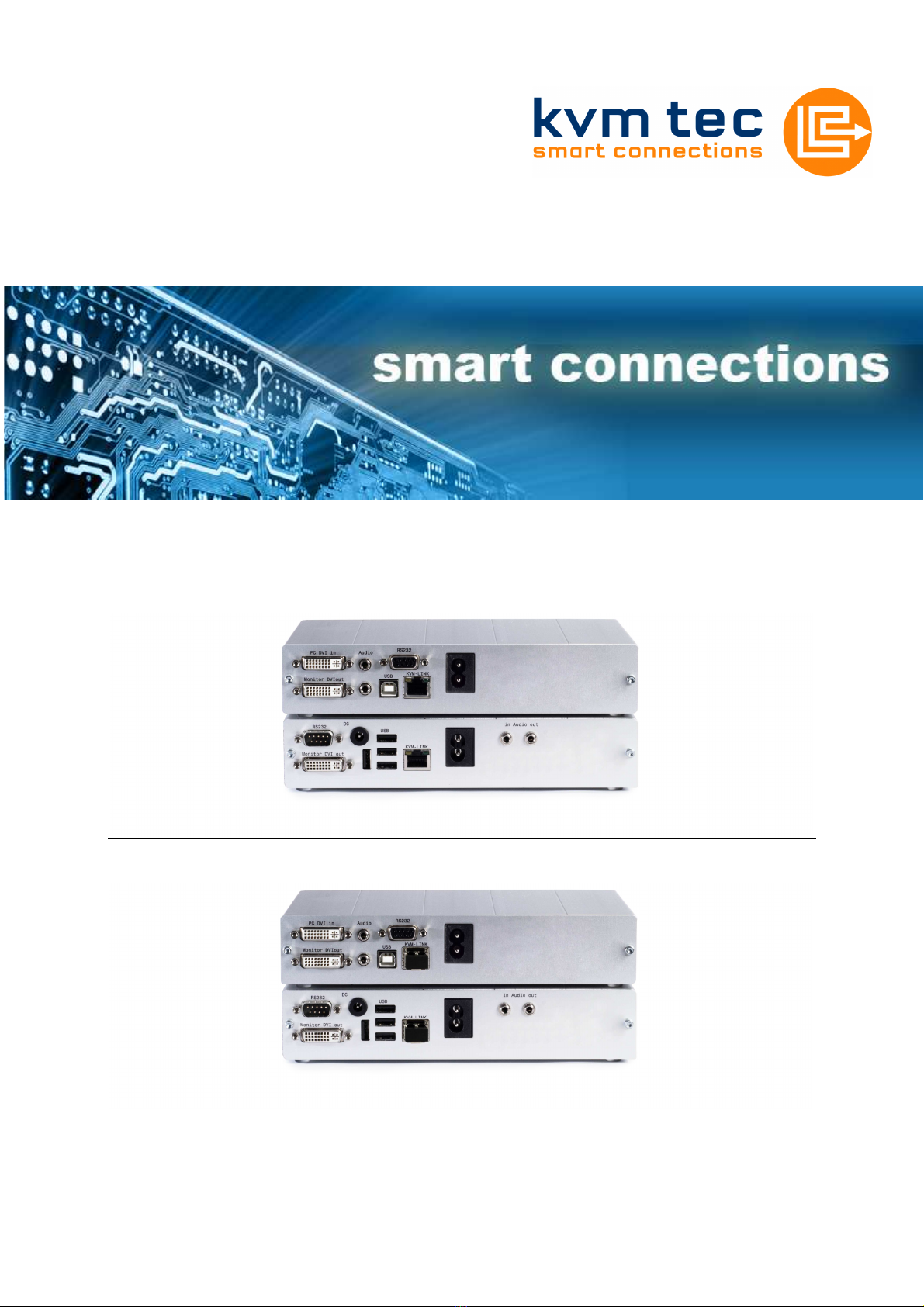

Profiline PROVX1/PROVX1-F KVM Extender

Instruction Manual

Part No.

PROVX1

Part No.

6301

PROVX1-F

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 2-

www.kvm-tec.com

1PROVX1 Package contents

1x PROVX1(-F) / PC 1x USB/Audio cable

1x PROVX1(-F) / Monitor 1x Instruction manual

2x Power cable 2pol. 8x Rubber feet

1x DVI-cable 2x SFP Modul-Multimode (only by Fibre)

Specifications

Max. ambient temperatur: 45° Celsius

Dimensions: 220 x 45 x 130mm

Weight: 1547g per Set

Power input: 12W per device

Material: anodized aluminium

Power supply: internal 100-240V

3Installation

Connect all the cables from your PC as shown in the following diagram.

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 3-

www.kvm-tec.com

3.1 Plug in/unplug the CATx cable

The Masterline MVX CATx Extender is delivered with an RJ45 socket.

Plug the CATx cable with the corresponding RJ45 plug (see section 7

requirements for CATx cable) into the RJ45 socket. Check that the plug is

latched in place to prevent faults.

To remove the CATx cable press the latch down and slowly pull the cable

out.

3. Plug in/unplug the LWL cable

The Masterline MVX Fibre Extender is delivered with a multimode SFP

module as standard. If a different SFP module is used, remove the black

dust protector from the SFP module and pull the metal latch of the module

forwards until it’s at a right angle, then the SFP module may be removed.

To plug in the new SFP module into the extender follow the same steps in

reverse.

To connect the fibre cable check that dust protector has been removed

and slot the fibre cable in until latch has clicked in to place. To remove the

fibre cable press on the latch and slowly remove the cable.

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 4-

www.kvm-tec.com

4Start up

Switch on all devices. Both Extender units will start an automated

initialisation process, signified by a blinking red status light, this may take

a few seconds. When the status light turns green, all signals will be

transmitted.

SVX Status LED

Verbindung

Videosignal

rot

 

orange





grün





 





5Mounting Options

5.1 Rackmounting Kit

Our rack mounting kits make installation convenient.

Optional (Part No. 6430)

5. Underdesk Mounting Kit

Optional (Part No. 6735)

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 5-

www.kvm-tec.com

6Menu / Settings

To enter the menu, use a keyboard connected to the remote Extender

and press the „Scroll Lock“ key five times in quick succession.

The menu will be displazed (Fig.1). Sub-menus are accessed by

pressing the appropriate key.The currently installed firmware version is

displayed below the menu.

6.1 Menu Item „U“

Used to perform a firmware update. The latest version of the firmware

can be downloaded from www.kvm-tec.com. Each update file is

accompanied by a detailed description of the update process.

Menu USB High Speed M

U = Update Flash FW

M = USB Memory Option

L = Lock Menu disabled

I = Monitor sync disabled

O = DDC Opt remote monitor

V = VGA parameter

Q = Exit

FW Version Rem=1178 Loc=1178

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 6-

www.kvm-tec.com

6. Menu Item „M“

Allows the user to enable/disable

the memory option. When

activated USB flash storage and

external storage devices may be

used via the Extender.

If your Extender was provided with

this functionality you can turn it on

and off from this menu at any

time.

If the Extender didn't come with

this functionality, it can be upgraded by your dealer.

In this case, the menu displays the ID of the device (Fig. 2).

Consult your dealer and submit the ID of the device. They can send you

the appropriate unlock code.

After entering the correct code the Extender will restart and will display

“memory“ in the title of the main menu.To return to the main menu press

“ESC“.

6.3 Menu Item „L“

Here the Extender menu can be

locked. When enabled, access to

the menu will be locked 5 minutes

after start up. This prevents

unauthorized access to the

Extender menu. The Extender

must be restarted to enter the

main menu again (turn the power

supply off and on).

The menu is enabled or disabled

from this screen by pressing “0“ or

“1“ respectively(Fig. 3). To return to the main menu press “ESC“.

USB High Speed Memory Option

Enable: send ID to distributor

ID = 3fe687d5

Enter matching code

code = --------

Fig. 2

Fig. 3

Lock Menu 5 Min after

Power-On is disabled

Enter 1 for enable or

0 for disable:

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 7-

www.kvm-tec.com

6.4 Menu Item „I“

The monitor synchronization can

be turned on and off. When

enabled, the refresh rate of the

graphics card of the PC and that

of the remote monitor are adjusted

to match one another. The

advantage of this is to ensure that

transmission remains smooth

when the screen content changes

rapidly (e.g. When using

multimedia applications).

Not all monitors support this method so by default this option is disabled.

To activate simply press the "1" key in this menu. Should the monitor

start to flicker, this option can be disabled again by pressing the “0“ key.

To return to the main menu press “ESC“.

6.5 Menu Item „O“

In this menu you can define DDC information is used by the

PC.Pressing “0“ specifies that the DDC information from the monitor

attached to the remote Extender should be used. Pressing “1“ specifies

that the DDC information from the monitor attached to the local Extender

should be used.

Pressing “2“ saves the currentDDC information allowing the system to

continue on the same after the Extender has been restarted.

Using the keys “4“ through “8“ sets the system to use a predefined

resolution which is saved (Fig. 5).

To return to the main menu press “ESC“.

Fig. 5

DDC Options (0)

0 = remote monitor

1 = local monitor

2 = fix actual DDC

4 = KVM-TEC fixed 1024x768

5 = KVM-TEC fixed 1280x1024

6 = KVM-TEC fixed 1680x1050

7 = KVM-TEC fixed 1920x1080

8 = KVM-TEC fixed 1920x1200

Monitor sync disabled

Enter 1 for enable or

0 for disable:

Fig. 4

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 8-

www.kvm-tec.com

6.6 Menu Item „V“

This is where VGA preferences can be set and optimised.

By pressing the “F1“ and “F4“ keys the display area can be moved up

and down. “F2“ and “F3“ shift the display area left and right.

By using the “F5“ and “F6“ keys the display area can be reduced or

enlarged to fit the display area of the monitor.

Press the “space bar“ to change the rate of change of the above settings.

By repeatedly pressing the “space bar“ this is set back to 1.

Use the “M“ button to switch the video mode between “Auto“ – the mode

is automatically detected and set by the Extender, “DVI“ – only DVI input

is detected, and “VGA“ – only VGA input is detected.

For automatic adjustment and positioning of the image area, press “K“.

Press “I“ to reset parameters to default values.

To save the settings and exit the menu press “S“ – for an exit without

saving press “Q“.

Shift up F1 F4 down 0

Shift <- F2 F3 -> 0

Zoom out F5 F6 in 2200

Pixelfine - F7 F8 + 0

Space = 1/10 steps

M = Video Mode Auto

K = Automatic seek

I = Init VGA Table

S = Save – exit

Q = Quit – no save

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 9-

www.kvm-tec.com

6.7 Menu Item „N“

This menu sets the volume of the audio input on the remote extender

(microphone). Default value is „5“ and can amplified up to „9“ and

reduced down to „0“. At „0“ the audio input on the remote extender is

disabled.

6.8 Menu item „Q“

To close the extender menu press the “Q“ key.

Audio Input Gain (5)

0 = Off

1 – 9 = Amplification Level

KVM-TEC PROVX1(-F) Ver. 1.0 Long

kvm-tec electronic gmbh – 2522 Oberwaltersdorf – Kulturstrasse 1 – Austria

Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email office@kvm-tec.com

- 10-

www.kvm-tec.com

7Requirements

Requirements for Cat5/6/7 cables:

The pins are connected 1:1

Caution: the cable pairs must be twisted to EIA/TIA-568A (rare) or

EIA/TIA-568 B (common) pairs!

Erroneous assignments can not be found with a simple cable tester.

The pins for the green pair of wires are not adjacent to one other! The

cable must at the very least meet the Cat5 specifications and be suitable

for Gigabit transmission.

Applicable standards: Class D ISO/IEC 11801:2002 or EN 50173-

1:2002.

Schema EIA/TIA-568 B

Requirements fibre

Multi-Mode (standard)

Included with the MVX1-F is a LWL Multimode –

SFP Module which allows a transmission distance

of up to 500m.

Requires dedicated fibre connection, cable type

Duplex Multimode 50/125µ(OM2), LC connector

Single-Mode (optional)

LWL Singlemode – SFP Module up to 20km transmission distance

Requires dedicated fibre connection, cable type Duplex Singlemode, LC

connector

LWL Singlemode – SFP Modul BiDi up to 20km transmission distance

Requires dedicated fibre connection, cable type Singlemode, LC

connector

Pin Color

1Orange/White

2Orange

3Green/White

4Blue

5Blue/White

6Green

7Brown/White

Brown

Shielded installation cable with min.

cross section of 24AWG throughout the

length, shield is continguous and

connected to both ends.

Shielded patch cable is allowed for

connection to the device.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere KVM-TEC Extender Handbücher

KVM-TEC

KVM-TEC Smartline Dual SVX2 Series Bedienerhandbuch

KVM-TEC

KVM-TEC media4Kconnect Bedienungsanleitung

KVM-TEC

KVM-TEC 6701i Bedienungsanleitung

KVM-TEC

KVM-TEC masterEASY Bedienerhandbuch

KVM-TEC

KVM-TEC 6935 Bedienungsanleitung

KVM-TEC

KVM-TEC INDUSTRYFLEXline Bedienungsanleitung

KVM-TEC

KVM-TEC Matrixline 2000 Series Bedienungsanleitung

KVM-TEC

KVM-TEC SMARTflex Bedienungsanleitung

KVM-TEC

KVM-TEC USBflex Original Betriebsanleitung

KVM-TEC

KVM-TEC USBflex Original Betriebsanleitung

KVM-TEC

KVM-TEC ECOsmart KT-6035 Bedienungsanleitung

KVM-TEC

KVM-TEC masterEASY Bedienungsanleitung

KVM-TEC

KVM-TEC MASTERflex Bedienungsanleitung

KVM-TEC

KVM-TEC media4Kconnect Bedienungsanleitung

KVM-TEC

KVM-TEC SmartLINE SVX Bedienungsanleitung

KVM-TEC

KVM-TEC USBflex Bedienungsanleitung

KVM-TEC

KVM-TEC MATRIXLINE Original Betriebsanleitung

KVM-TEC

KVM-TEC FLEXLINE KT-6011L Original Betriebsanleitung

KVM-TEC

KVM-TEC Masterline MVX1-F Bedienungsanleitung

KVM-TEC

KVM-TEC USBflex 6031 SET Original Betriebsanleitung

KVM-TEC

KVM-TEC media4Kconnect 6930 DP1.2 Merkblatt

KVM-TEC

KVM-TEC 4K Multiview Commander Original Betriebsanleitung

KVM-TEC

KVM-TEC ScalableLine KT-6990L Bedienungsanleitung

KVM-TEC

KVM-TEC FLEXLINE KT-6011 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
