Kyocera FS-7028M Bedienungsanleitung

Duplexer

Duplexeinheit

Module recto-verso

Unità duplex

Duplexor

Instructions

Anleitung

Instructions

Istruzioni

Instrucciones

For the Kyocera Laser Printers

Für Kyocera Laserdrucker

Pour imprimantes laser Kyocera

Per le stampanti laser Kyocera

Para las impresoras láser Kyocera

English

Deutsch

FrançaisItalianoEspañol

We shall have no liability or responsibility to customers or any other person or

entity with respect to any liability, loss or damage caused or alleged to be caused

directly or indirectly by equipment sold or furnished by us, including but not

limited to, any interruption of service, loss of business or anticipatory profits, or

consequential damages resulting from the use or operation of the equipment or

software.

Caution

NO LIABILITY IS ASSUMED FORANY DAMAGE CAUSED BY IMPROPER

INSTALLATION.

Notice

The information in this manual is subject to change without notification.

Additional pages may be inserted in future editions. The user is asked to excuse

any technical inaccuracies or typographical errors in the present edition.

No responsibility is assumed if accidents occur while the user is following the

instructions in this manual.

The contents of this manual are protected by copyright. No part of this manual may

be reproduced or copied by any means without the permission of the copyright

holder.

Regarding Tradenames:

PRESCRIBE is a registered trademark of Kyocera Corporation.

According to Council Directive 89/336/EEC and 73/23/EEC

Manufacturer’s name: Kyocera Corporation, Printer Division

Manufacturer’s address: 2-14-9 Tamagawadai, Setagaya Ward, Tokyo 158-8610, Japan

declares that the product

Product name: Dupex Unit

Model number: DU-31 (as tested with Page Printer FS-7000+ and other enhancement

optional units: PF-30, DF-31, UF-1, BC-1 and HD-2)

Conforms to the following product specifications.

EN 55 022:1994 Class B

EN 60 950:1992+A1+A2+A3+A4

The manufacturer and its merchandising companies retain the following technical documentation in

anticipation of the inspection that may be conducted by the authorities concerned.

User’s instruction that conforms to the applicable specifications

Technical drawings

Descriptions of the procedures that guarantee the conformity

Other technical information

KYOCERA ELECTRONICS EUROPE GmbH

Tetsuo Okada, President

Revised Date:

Contact in Europe:

KYOCERA ELECTRONICS EUROPE GmbH

Mollsfeld 12

40670 Meerbusch, Germany

Phone: +49 21 59 918 0

Fax: +49 21 59 918 100

Declaration of Conformity

Manufacturer’s name: Kyocera Corporation, Printer Division

Manufacturer’s address: 2-14-9 Tamagawadai, Setagaya Ward, Tokyo 158-8610, Japan

declares that the product

Product name: Duplex Unit

Model number: DU-31 (as tested with FS-7000+ and enhancement option units: as PF-30,

DF-31, UF-1, BC-1 and HD-2)

Description of device: This Page Printer Model FS-7000+ is the 28ppm; A3 size and utilized plain

paper; laser; dry toner etc.. The printer can be equipped with several

enhancement optional units as a paper feeder as PF-30, a document finisher

DF-31, etc..

English

Deutsch

FrançaisItalianoEspañol

Conforms to the following product specifications.

AS/NZS 3548:1995

(EN 55 022: 1994 Class B)

IEC60 950

(EN 60 950:1992+A1+A2+A3+A4)

The manufacturer and its merchandising companies retain the following technical documentation in

anticipation of the inspection that may be conducted by the authorities concerned.

User’s instruction that conforms to the applicable specifications

Technical drawings

Descriptions of the procedures that guarantee the conformity

Other technical information

David Finn

Managing Director

Date:

Unit 8, 43-45 Herbert Street,

Artarmon NSW 2064, Australia

Phone: +61 2-9-906-8075

Fax: +61 2-9-906-8153

Warning

FCC Regulations state that any unauthorized changes or modifications to

this equipment not expressly approved by the manufacturer could void the

user’s authority to operate the equipment.

Note: The equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

The equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications.

Operation of the equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the interfer-

ence at his own expense.

Radio interference requirement in European countries

The optional universal feeder DU-31 is intended for use with the printer

models FS-7000, FS-7000+ and FS-9000 which are type tested and catego-

rized as a Class B computing device in accordance with the EN55022 rules.

A device in the Class B category may cause interference to radio or television

reception, particularly in a residential installation.

English

Deutsch

FrançaisItalianoEspañol

Information to users:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guaranteee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

❒Reorient or relocate the receiving antenna.

❒Increase the separation between the equipment and receiver.

❒Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

❒Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the manufacturer for compli-

ance could void the user’s authority to operate the equipment.

Contents

Introduction .............................................................................................................6

Names of Parts.........................................................................................................6

Installing the Duplexer ............................................................................................7

Duplex Printing .......................................................................................................9

Clearing Paper Jams ..............................................................................................14

Paper Selection ......................................................................................................20

Specification ..........................................................................................................26

Introduction

The DU-31 duplexer is an optional duplex printing unit for the Kyocera Page

Printers.

Before using the DU-31 duplexer, please read this manual, then carefully follow all

instructions given for installing and using the duplexer. Adhere to any cautions and

warnings indicated on the unit itself.

Retain this manual in an easily accessible place.You may need it for future

consultation if you later have questions about the operation or what to do in case of

troubles.

Packing List

DU-31 1

Instruction manual (this booklet) 1

Names of Parts

Before installing the duplexer, please study the following part names. These names

are used in describing procedures for installing and using the duplexer.

Duplexer (DU-31)

Transparent plastic cover

(two covers)

Installation rails

English

Deutsch

FrançaisItalianoEspañol

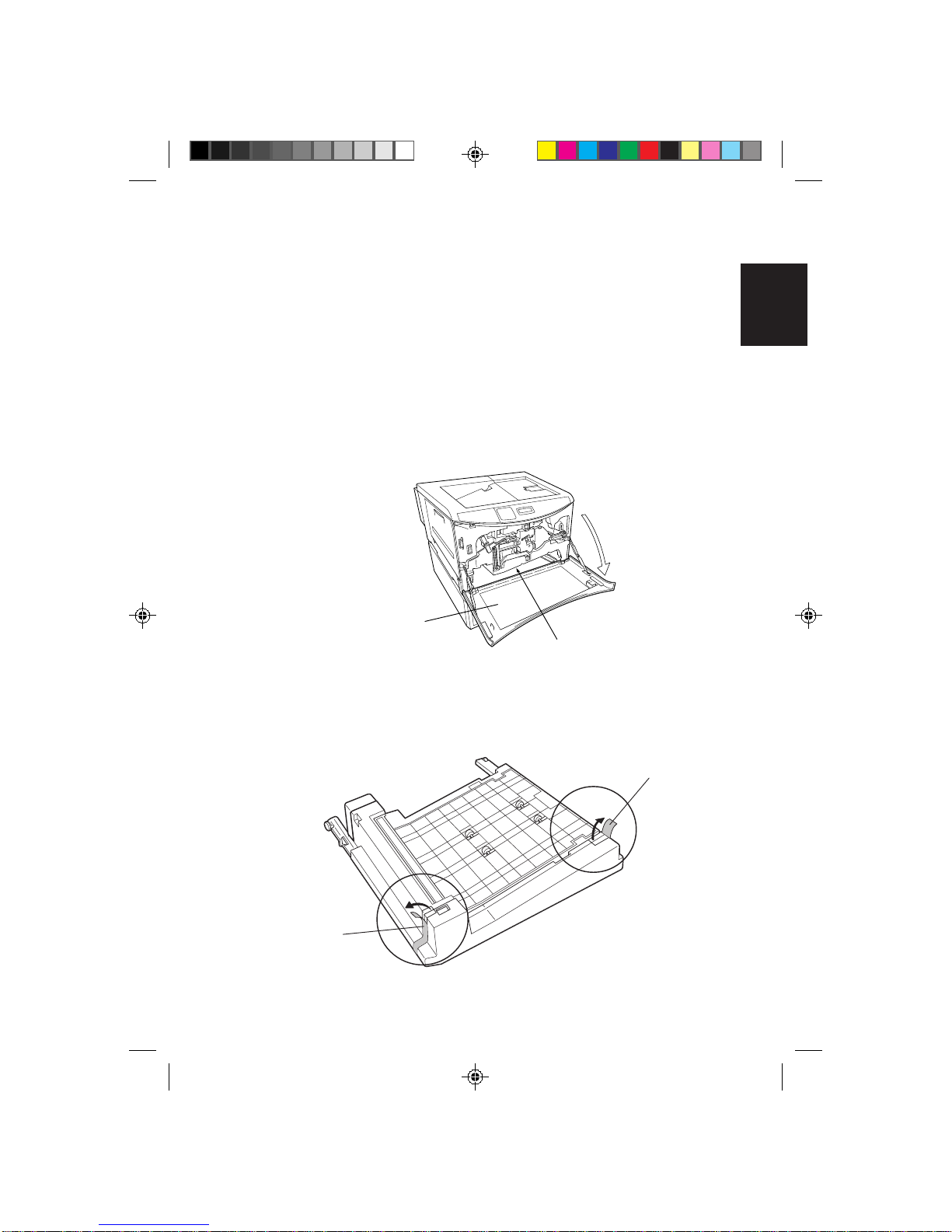

Installing the Duplexer

Open the front cover of the printer, and install the DU-31 in the vacant space below

the transfer unit.

CAUTION Before installing (or removing) the optional duplexer, be sure

to turn off the printer’s power and disconnect the power cord

plug from theAC outlet.

1. Open the printer’s front cover.

2. After removing the duplexer from the packing materials, remove the

adhesive tape holding the cover in place.

Front cover

Installation space for the

DU-31

Tape

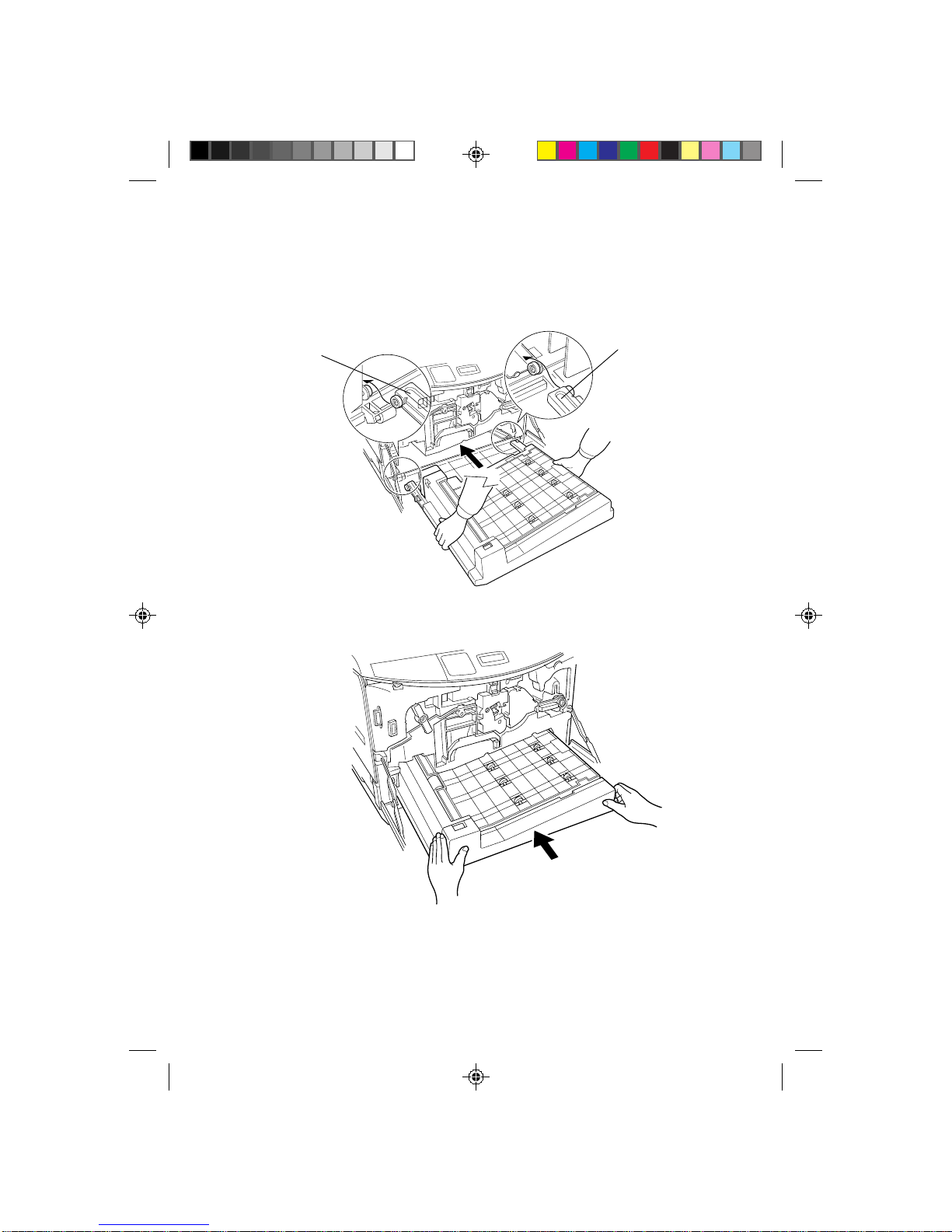

3. Remove the duplexer from the packing materials and install in the printer

as shown in the figure. Install so that the left and right rails are correctly

resting on the rails of the printer.

4. Push the DU-31 all the way into the printer.

5. Close the printer’s front cover. This completes installation of the duplexer.

Rail

English

Deutsch

FrançaisItalianoEspañol

Duplex Printing

After the duplexer is installed, the duplex printing menu is added to the printer’s

mode selection menu as shown below (added menu enclosed in frame), and it is

used to switch the duplex printing mode on/off and to set the orientation for duplex

printing.

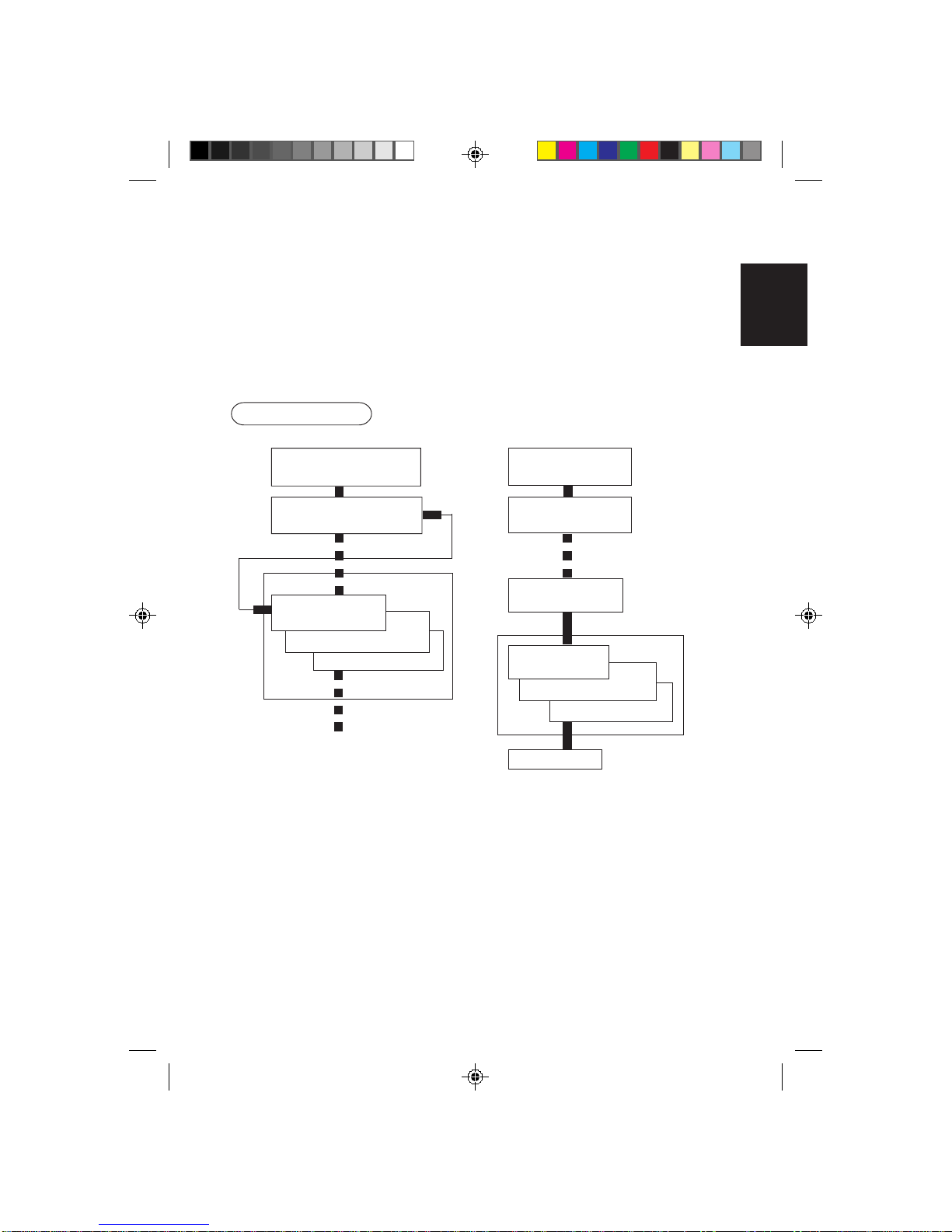

Mode selection menu

The duplex printing mode is explained on the following pages.

Ready

PAR 600 A4 001

Paper handling >

Duplex mode

None

Short edge bind

Long edge bind

(FS-7000 only)

Ready

PAR 600 A4 001

Interface >

Parallel

Paper type

Normal

Duplex mode

None

Short edge bind

Long edge bind

Others >
