DIGITAL ATOMIC WALL CLOCK

Table of Contents

INITIAL SETUP .......................................................................................2

LCD FEATURES .......................................................................................3

BUTTONS (back view) ..........................................................................3

SET TIME, DATE, ETC. ..........................................................................3

FAHRENHEIT/CELCIUS TEMPERATURE DISPLAY.............................4

TIME ALARM............................................................................................4

ACTIVATE/DEACTIVATE ALARM ..........................................................5

SNOOZE...................................................................................................5

LOW BATTERY INDICATOR...................................................................5

TEMPERATURE TREND ARROWS ........................................................5

OUTDOOR SENSOR RECEPTION ICON..............................................6

RESTART ..................................................................................................6

ATOMIC TIME SEARCH - WWVB .........................................................6

OVERLAY USE .........................................................................................6

Model: W86111 www.lacrossetechnology.com/support pg. 2

POSITION CLOCK ..................................................................................6

POSITION OUTDOOR SENSOR ...........................................................7

SPECIFICATIONS ...................................................................................7

CARE AND MAINTENANCE ...................................................................8

WARRANTY AND SUPPORT INFORMATION.......................................8

FCC STATEMENT ....................................................................................9

INITIAL SETUP

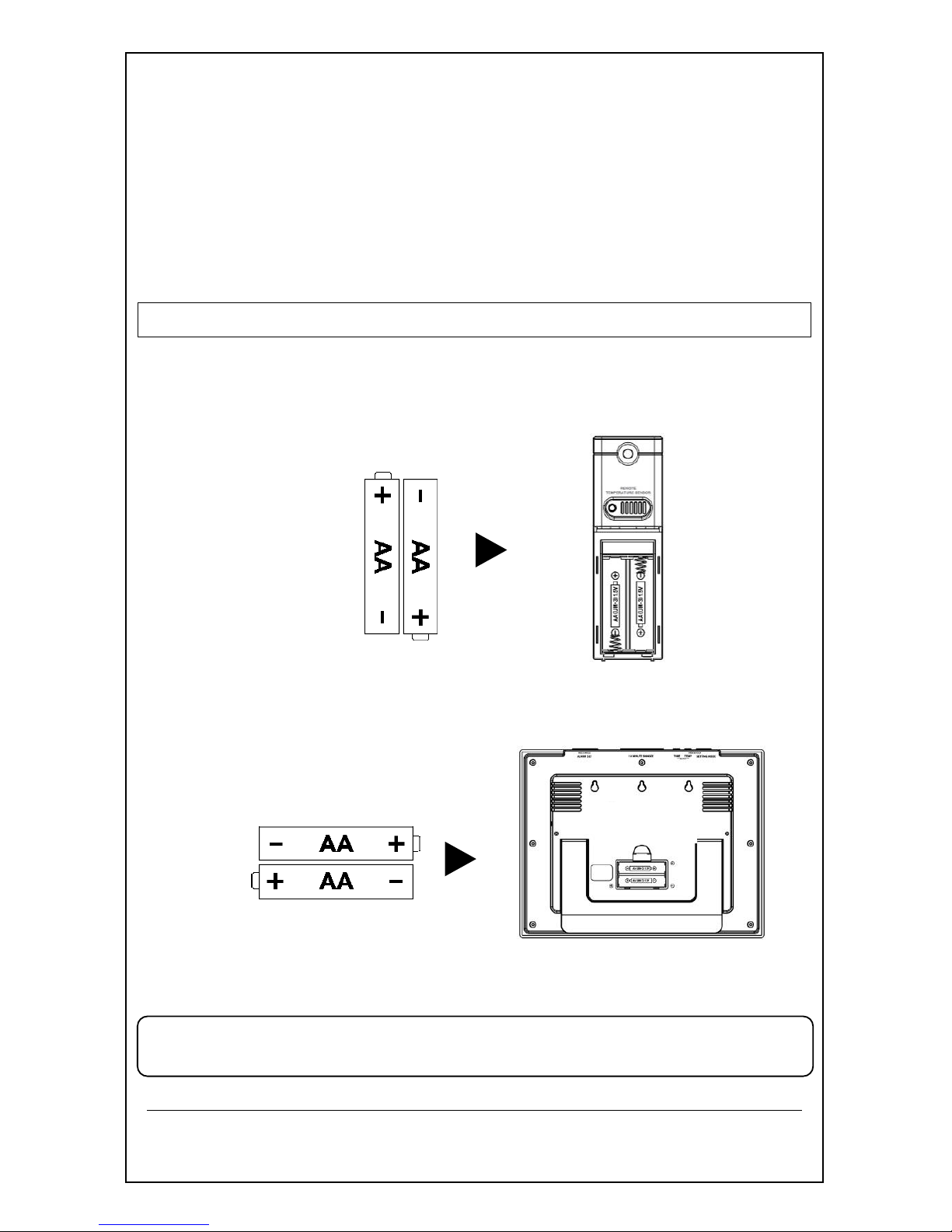

Step 1: Insert 2 new AA batteries (not included) into the

TX141v2 sensor. Observe the correct polarity. The red

LED will flash when transmitting.

Step 2: Insert 3 new AA Alkaline batteries (not included) into

the clock. Observe correct polarity.

Step 3: After 5 minutes, place the sensor outside in a shaded

location. Maximum range is 300 feet (91 meters) open air.

Note: If the outdoor Temperature area shows dashes after 3

minutes, remove the batteries and start from step 1.

Model: W86111 www.lacrossetechnology.com/support pg. 3

LCD FEATURES

BUTTONS (back view)

SET TIME, DATE, ETC.

1. Hold the °F/°C button to enter time set mode.

2. Press the +or - button to adjust values.

3. Press the °F/°C button to confirm adjustments and move

to the next item.

Settings order:

1. WWVB Reception

2. Time Zone

3. DST Indicator,

4. 12/24 Hour Time Format

5. Hour

6. Minutes,

7. Year

8. Month

9. Date

Note: Day of the week sets automatically.

Radio-

controlled

Time +

Alarm

Indoor

Temperature

Trend Arrows

Weekday +

perpetual

Calendar

Outdoor

Temperature

+ Trend

Arrows

ALARM SNOOZE - + °F/°C

Model: W86111 www.lacrossetechnology.com/support pg. 4

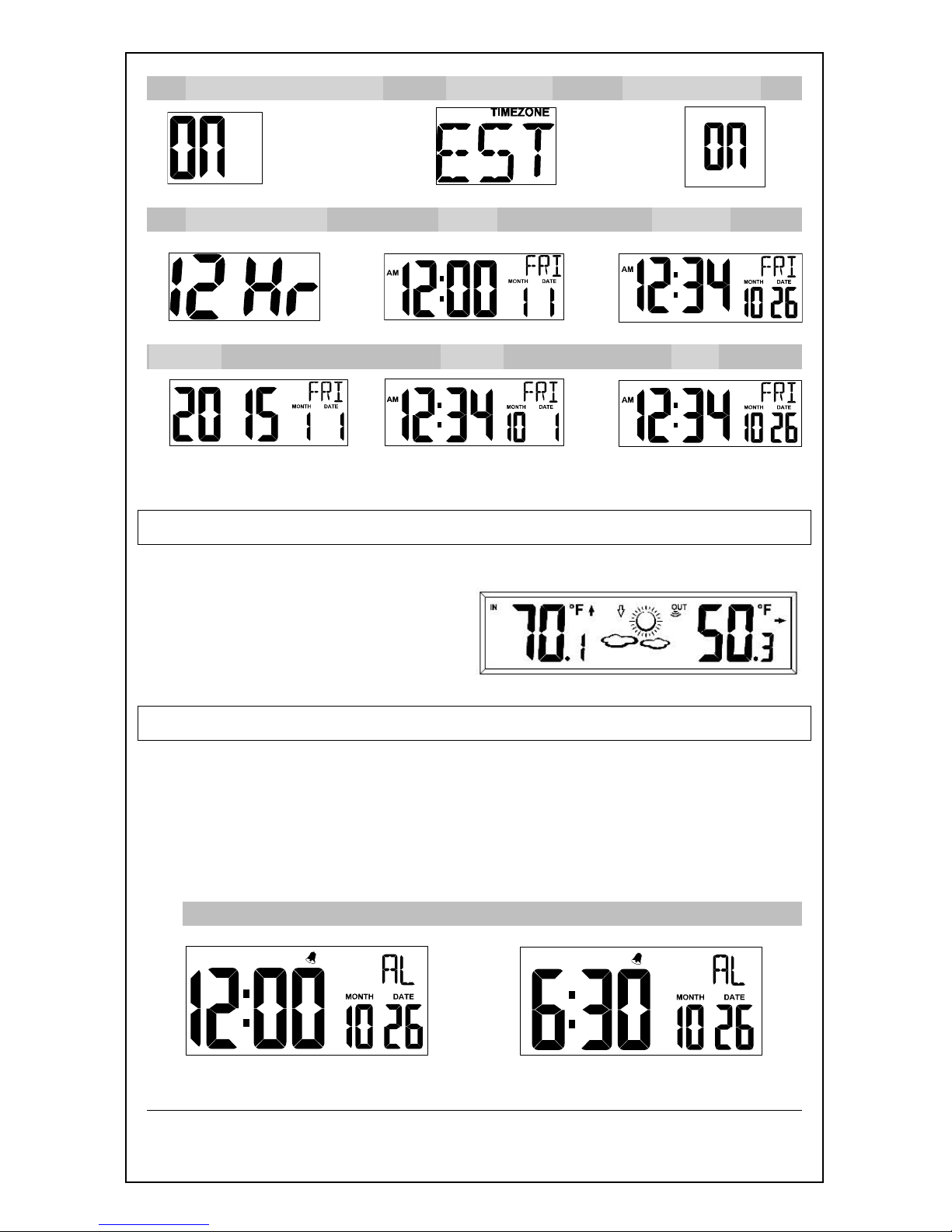

1. WWVB Time On/Off 2. Time Zone 3. DST Indicator

4. 12Hr/24Hr Time 5. Hours 6. Minutes

9. Year 10. Month 11. Date

Press the °F/°C button to exit or wait 20 seconds to exit.

FAHRENHEIT/CELCIUS TEMPERATURE DISPLAY

Press the °F/°C button to select Fahrenheit or Celsius

temperature display.

TIME ALARM

1. Hold the ALARM button to enter alarm time set mode.

2. The letters AL will appear in the weekday area.

3. Use the +or - buttons to adjust values.

4. Press the ALARM button to confirm adjustments and move

to the next item.

1. Hours 2. Minutes

DST

WWVB

Model: W86111 www.lacrossetechnology.com/support pg. 5

ACTIVATE/DEACTIVATE ALARM

Press the ALARM button once to view alarm time.

Press the ALARM button again to activate the alarm.

Bell icon appears.

Press the ALARM button again to deactivate the alarm.

The bell icon disappears.

SNOOZE

Press the SNOOZE button to silence alarm for 10 minutes.

Zz will show.

When in snooze mode, press the ALARM button to stop

alarm for one day.

Note: The alarm is crescendo sound. The alarm will sound for 2

minutes and then shut off completely.

LOW BATTERY INDICATOR

Low battery icon indicates low battery for clock or sensor.

When displayed in Outdoor Temperature section, replace

batteries in the outdoor sensor.

When displayed in Indoor Temperature section, replace

batteries in the clock.

TEMPERATURE TREND ARROWS

The temperature (2°F/1°C) trend indicators update every 30

minutes or less.

Temperature has risen in the past 3 hours.

Temperature has not changed in the past 3 hours.

Temperature has fallen in the past 3 hours.

Model: W86111 www.lacrossetechnology.com/support pg. 6

OUTDOOR SENSOR RECEPTION ICON

When the signal is successfully received from the

outdoor transmitter, this icon will be solid.

This icon will flash when searching for the outdoor

transmitter signal.

If reception is not successful, the icon will not be shown in

LCD.

RESTART

Restart: If the outdoor temperature shows dashes, remove

batteries from the digital clock & sensor and press any button

20 times. After 15 minutes, return to Step 1 under Initial

Setup.

ATOMIC TIME SEARCH - WWVB

Hold the –button to start or stop the atomic time

signal search.

WWVB Icon will flash

For information about WWVB visit:

www.nist.gov/pml/div688/grp40/wwvb.cfm

OVERLAY USE

Use the included overlays to change the red accents to

black to best fit your room and decor.

POSITION CLOCK

The clock has a pullout stand to sit on a desk or table, or

hanging holes to wall mount.

For best WWVB reception orientate the clock with the front

of the back facing Ft. Collins, Colorado.

Choose a location 6 feet or more from electronics such as

cordless phones, gaming systems, televisions, microwaves,

routers etc.

Place within range of the outdoor sensor.

WWVB

Icon

Model: W86111 www.lacrossetechnology.com/support pg. 7

The maximum transmitting range in open air is 300 feet (91

meters). Obstacles such as walls, windows, stucco, concrete

and large metal objects can reduce the range.

POSITION OUTDOOR SENSOR

Mount the outdoor sensor on a north-facing wall or in any

well shaded area. Under an eave or deck rail is preferred.

The maximum transmitting range to the clock is over 300

feet (91 meters) in open air, not including walls.

SPECIFICATIONS

Indoor:

Temperature Range:

+32°F to +122°F (0°C to 50°C)

Interval:

About every 30 seconds

Outdoor:

Temperature Range:

-40°F to 140°F (-40°C to 60°C)

Alkaline Batteries:

-20°F to 140°F (-28.8°C to 60°C)

Lithium Batteries:

-40°F to 140°F (-40°C to 60°C)

NOTE:

Temperatures below - 20°F (-28.8°C) require

Lithium batteries in the outdoor sensor.

Distance:

Over 300 ft. (91 meters)

RF 433MHz (open air)

Interval:

About every 30 seconds

Power:

Clock

2-AA, IEC, LR6 batteries (not included)

TX141v2 Sensor:

2-AA, IEC, LR6 batteries (not included)

Battery Life:

Clock

Battery life is over 12 months when using

reputable battery brands

TX141v2 Sensor:

Battery life is over 24 months when using

reputable battery brands for both Alkaline and

Lithium batteries

Dimensions:

Clock:

11” W x 1.1” D x 8.54” H

(280 x 28 x 217 mm)

TX141v2 Sensor:

5.08” H x 1.58” W x 0.83” D

(129 x 40.13 x 21mm)

Model: W86111 www.lacrossetechnology.com/support pg. 8

CARE AND MAINTENANCE

Do not mix old and new batteries

Do not mix Alkaline, Standard, Lithium or Rechargeable

Batteries

Always purchase the correct size and grade of battery suitable for

the intended use.

Replace all batteries of a set at the same time.

Clean the battery contacts and also those of the device prior to

battery installation.

Ensure the batteries are installed correctly with regard to polarity

(+and -).

Remove batteries from equipment with is not to be used for an

extended period.

Remove expired batteries promptly.

WARRANTY AND SUPPORT INFORMATION

La Crosse Technology, Ltd. provides a 1-year limited time warranty

(from date of purchase) on this product relating to manufacturing

defects in materials & workmanship.

Before returning a product, please contact our friendly

customer support with questions or visit our online help

(manuals and FAQS):

Phone: 1-608-782-1610

Online Product Support: www.lacrossetechnology.com/support

Product Registration:

www.lacrossetechnology.com/support/register

View full warranty details online at:

www.lacrossetechnology.com/warranty_info.pdf

Warranty Address:

La Crosse Technology, Ltd

2830 S. 26th St.

La Crosse, WI 54601

Protected under U.S. Patents:

5,978,738 | 6,076,044 |RE43903

Model: W86111 www.lacrossetechnology.com/support pg. 9

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any

other antenna or transmitter.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference

caused by unauthorized modifications to this equipment. Such

modifications could void the user authority to operate the equipment.

in part, or duplicated or processed using electronic, mechanical or chemical

process without the written permission of the publisher. This booklet may

contain errors or misprints. The information it contains is regularly checked

and corrections are included in subsequent editions. We disclaim any

responsibility for any technical error or printing error, or their

consequences.

All trademarks and patents are recognized.

Inhaltsverzeichnis

Andere La Crosse Uhr Handbücher

La Crosse

La Crosse 616-1410 Bedienungsanleitung

La Crosse

La Crosse 433-3236 Bedienungsanleitung

La Crosse

La Crosse 519-1416 Bedienungsanleitung

La Crosse

La Crosse illuminations BBB87283 Bedienungsanleitung

La Crosse

La Crosse M78786 Bedienungsanleitung

La Crosse

La Crosse BBB86088 Bedienungsanleitung

La Crosse

La Crosse WT525 Bedienungsanleitung

La Crosse

La Crosse 3128 Bedienungsanleitung

La Crosse

La Crosse 404-4070 Bedienungsanleitung

La Crosse

La Crosse BBB86088 Abmessungen

La Crosse

La Crosse 404-3950 Bedienungsanleitung

La Crosse

La Crosse BBB86095 Bedienungs- und Wartungshandbuch

La Crosse

La Crosse WT535 Bedienungsanleitung

La Crosse

La Crosse 513-1211.513-1211A Bedienungsanleitung

La Crosse

La Crosse EXECUTIVE ATOMIC CLOCK 3.0 Bedienungsanleitung

La Crosse

La Crosse 404-4040 Bedienungsanleitung

La Crosse

La Crosse WS-8147U-IT Bedienungsanleitung

La Crosse

La Crosse WS-8115U-IT Bedienungsanleitung

La Crosse

La Crosse 433-3836 Bedienungsanleitung

La Crosse

La Crosse WT-8112U-BK Bedienungsanleitung

La Crosse

La Crosse 616-1908v2 Bedienungsanleitung

La Crosse

La Crosse 515-1316 Installationsanleitung

La Crosse

La Crosse 404-3261 Bedienungsanleitung

La Crosse

La Crosse 617-249 Bedienungs- und Wartungshandbuch

Beliebte Uhr Handbücher anderer Marken

Silicon Laboratories

Silicon Laboratories SI5324 Bedienungsanleitung

Heathkit

Heathkit GC-1005 Bedienungsanleitung

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Bedienungsanleitung

Andrew O'Malley

Andrew O'Malley DOTKLOK Bedienungsanleitung

ALGE-Timing

ALGE-Timing ASC3 Bedienungsanleitung

Bodet

Bodet Profil 960 Bedienungsanleitung

Nixie Clock

Nixie Clock Divergence Meter Bedienungsanleitung

La Crosse Technology

La Crosse Technology WS-8256-AL Bedienungsanleitung

Mini Gadgets

Mini Gadgets MCPro Bedienungsanleitung

Casio

Casio TMR-200 Bedienungsanleitung

Progetti

Progetti ILTEMPOSTRINGE Handbuch

BVItech

BVItech BV-101 Bedienungsanleitung

Progetti

Progetti KALIMERO Handbuch

La Crosse Technology

La Crosse Technology WT-3141b Handbuch

La Crosse Technology

La Crosse Technology W86531 Bedienungsanleitung

Sharp

Sharp SPC900 Bedienungsanleitung

La Crosse Technology

La Crosse Technology 404-50447 Bedienungsanleitung

Datexx

Datexx DF0063 Bedienungsanleitung
