EN QUICK START GUIDE

PLUS 7

7770.053

QUICK START GUIDE

La San Marco S.p.A.

EN ENGLISH

cod. 7770.053

EDITION May 2012

MACHINE DESCRIPTION

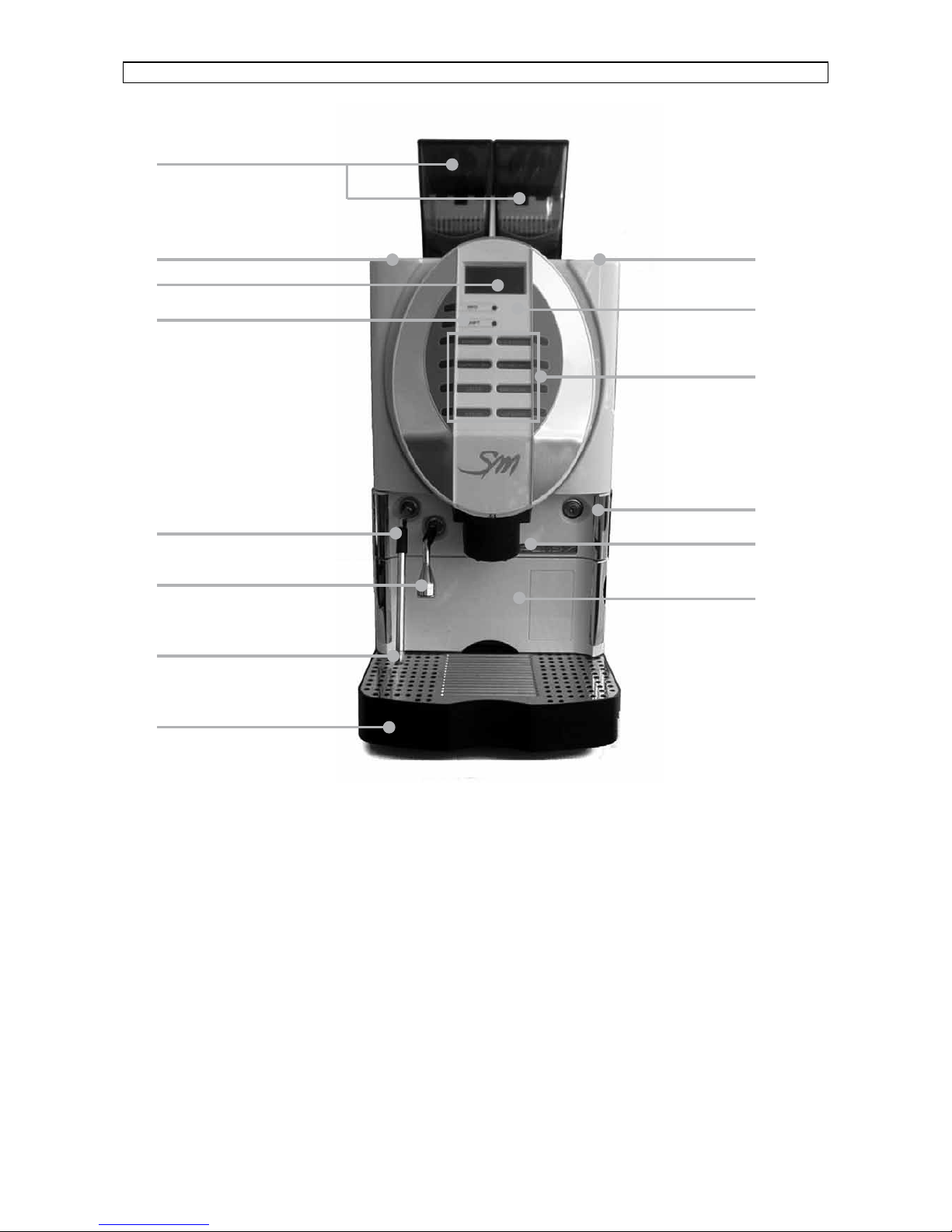

LEGEND

1 . COFFEE HOPPER

2 .

3 . CARD READER (OPTIONAL)

4 . DOOR POWDER COFFEE

5 . DISPLAY

6 . INFO BUTTON

7 . SHIFT BUTTON

8 . DOSES BUTTON

9 . RUBBER PROTECTION

10 .

11 . HOT WATER DISPENSER

12 . COFFEE MACHINE DOOR LOCK

13 . STEAM WAND

14 . ADJUSTABLE COFFEE DISPENSER

15 . DRIP TRAY

16 . GROUNDS BIN

Only for US market (ETL Sanitation): The equipment shall be installed with backow protection to comply with applicable

federal, state and local codes.

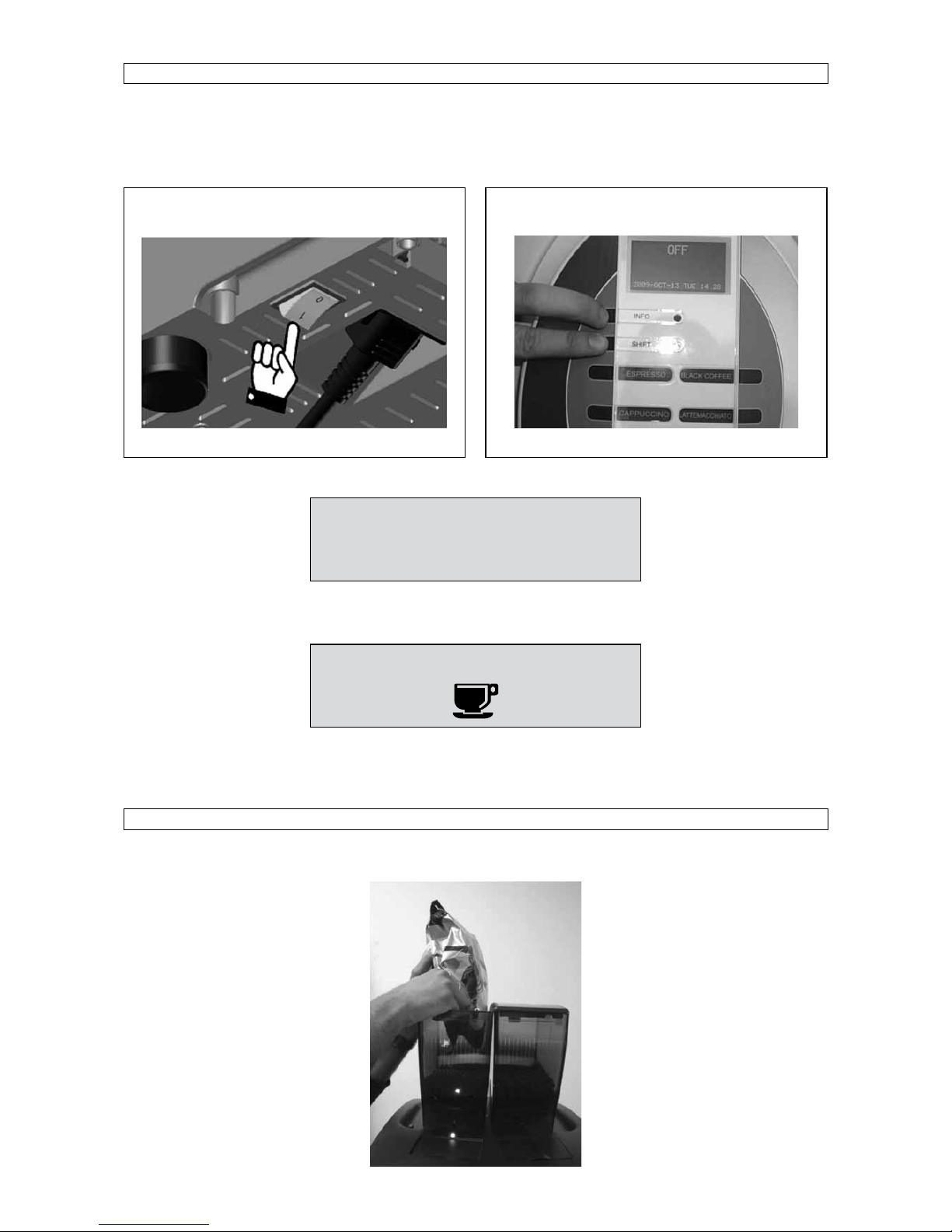

STARTING UP

After checking that the machine door is closed and the ground bin and the drip tray are inserted, power on the machine

by means of the main switch underneath the machine basement (Fig. A).

keep key SHIFT pressed and then press key INFO, (Fig. B) and the machine will set itself to on state.

(FOR SELF CONFIGURATION, keep key SHIFT pressed and then press key INFO, afterwards insert the waiter pass-

word 61111).

A) Power on the machine by means the main switch

underneath the machine basement.

Fig. A

B) Keep key SHIFT pressed and then press key INFO.

Fig. B

When the boiler temperature of 50°C (1 22°F) is reached, the machine carries out a group rinsing. The display shows:

G. AUTO CLEANING

When the set-up temperature is reached, the keypad lights are on and the display shows.

For machine conguration Standard or Self:

SELECT DRINK

FILL IN BEAN HOPPER AND CANISTER

Fill in the required amount for daily consumption in order to keep coffee and product always fresh.

DISPLAY THE AVAILABLE DRINKS SELECTION AND BOILERS TEMPERATURE

Press the INFO key with the machine in SELECT DRINK mode to display the available drinks selection:

B1 ESPRESSO

BLACK COFFEE B2

B3 CAPPUCCINO

LATTE MACCHIATO B4

B5 CHOCO

MOCHA B6

B7 STEAM

HOT WATER B8

Press SHIFT button once or twice to display the second or third dose drinks menu. Where B1 / B8 indicate the numbers

of the drink keys.

Press twice the INFO key with the machine in SELECT DRINK mode to display the boilers temperature:

COFFEE TEMPERATURE

XXX

STEAM TEMPERATURE

YYY

Where XXX indicates the coffee boiler temperature and YYY indicates the steam boiler temperature.

DISPENSING

1) COFFEE/CAPPUCCINO/CHOCO DISPENSING

Adjust the coffee dispenser to the correct height and place a cup under it then press the desired dose key. For Waiters’

Card place the smart card above the proper reader before pressing the dose key. The display shows:

XXXXXXXX

Where “XXXXXXXX” indicates the selected dose key name.

The lling up of the cup icon indicates the amount of drink being dispensed.

PLEASE NOTE:

• Pressing the same dose key during dispensing can stop the selected dose (not available for Self conguration).

• By means of the SHIFT button the 8 selections can be tripled for a total of 24 drink doses. Press SHIFT button once

or twice to switch the second or third dose drinks menu.

2) HOT WATER DISPENSING

Place a cup under the hot water outlet, and press the hot water dose key. Dispensing will be automatically stopped once

the programmed dose is over. The display shows:

HOT WATER

PLEASE NOTE:

• Pressing the same dose key during dispensing may stop the selected dose.

WARNING:

Hot water cannot be dispensed simultaneously with steam.

3) DECAFFEINATED DISPENSING (not available for Self conguration)

Adjust the coffee dispenser to the correct height and place a cup under it, then open the decaffeinated coffee door, the

display shows:

- Pour in the powdered coffee.

SELECT DRINK

- Close the decaffeinated door.

- Press the desired dose key. The display shows.

The selected dose will be dispensed without the activation of the grinders.

XXXXXXXX

PLEASE NOTE:

If the decaffeinated door is not closed, or if the dose button is not selected, the machine will automatically cancel this

function after 20 seconds. The coffee group will carry out a cleaning cycle of the brewing chamber. The display shows:

4) EXTRAMILK DISPENSING (only LM machine, not available for Self conguration)

Press any milk-based key and keep it pressed, after 2 seconds foamed milk will start being dispensed, the display shows:

EXTRA MILK

By releasing the pressed key, dispensing will be stopped.

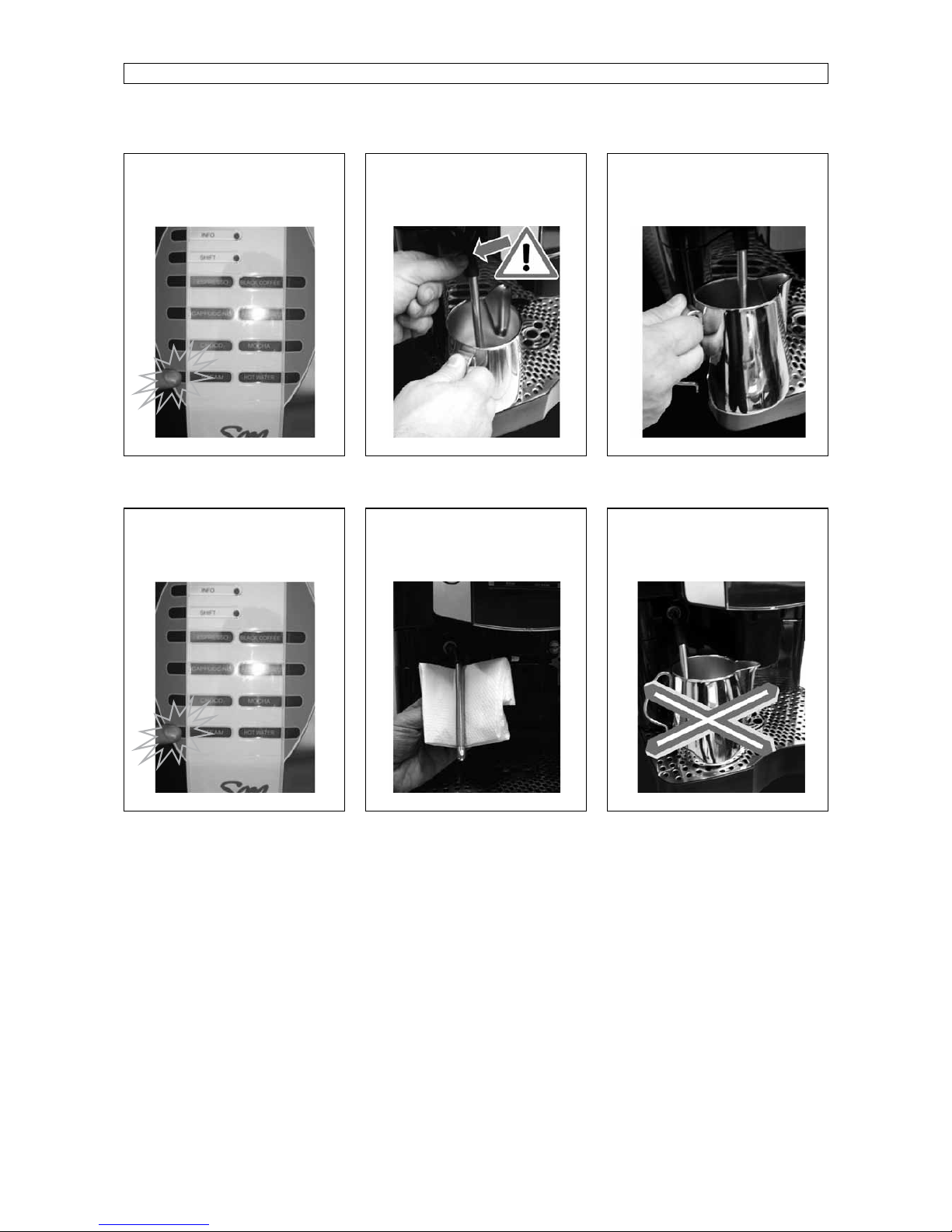

STEAM WAND USE AND CLEANING

STEAM WAND NOT AVAILABLE FOR MACHINE IN SELF CONFIGURATION

1) Before using the steam wand

press the steam button to

purge the nozzle.

2) Use the steam wand to foam or

heat any liquid into the jug by

handling the rubber protection.

3) Press the steam button to stop

the delivery before removing

the jup.

4) After using the steam wand

press the steam button to

purge the nozzle.

5) Clean the steam wand by

means of a cloth.

6) DO NOT leave the steam wand

into any liquid at any time.

WE STRONGLY RECOMMEND TO USE AND CLEAN THE STEAM WAND AS ABOVE SHOWN

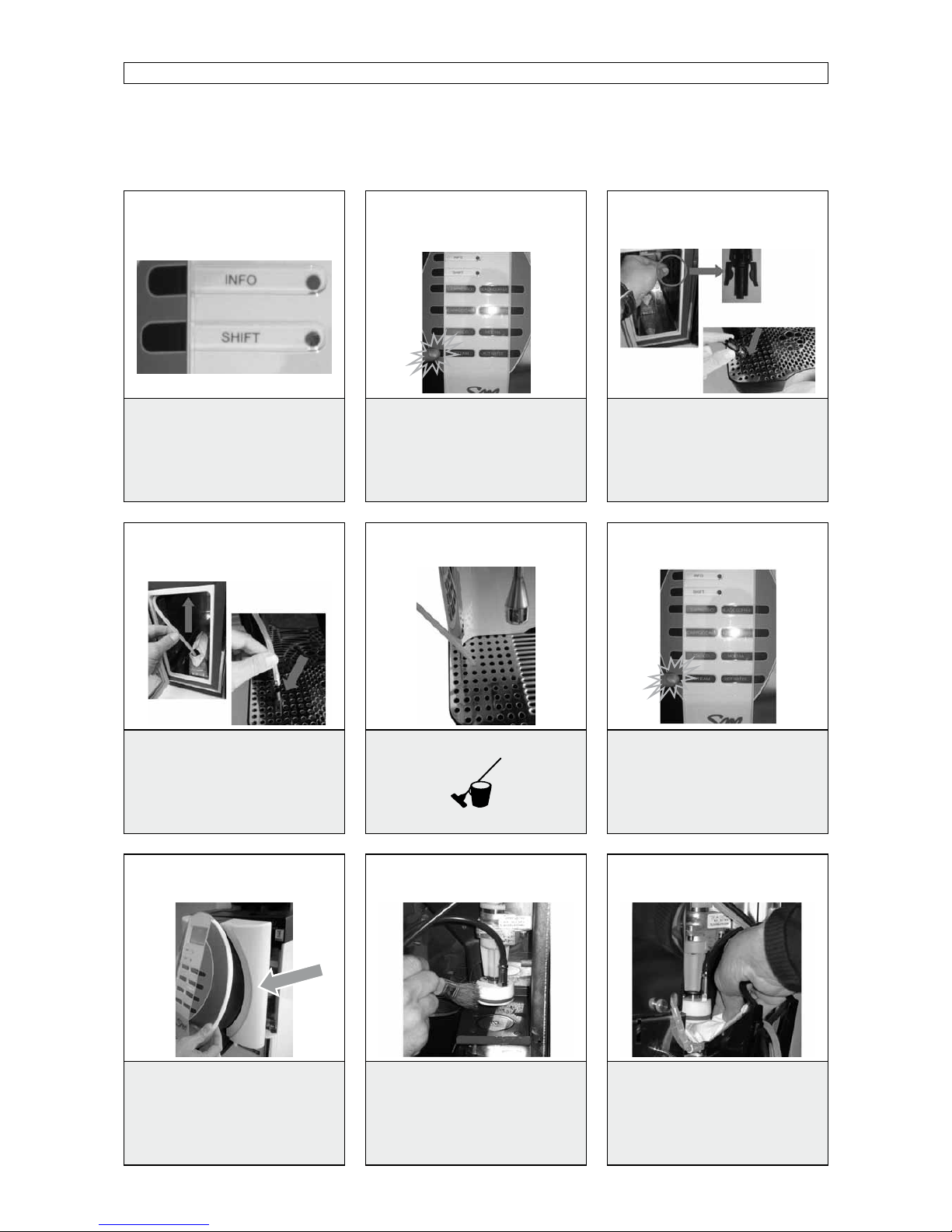

AUTOMATIC CLEANING OF POWER CLEANER -COFFEE GROUP- MIXER - MILK FROTHER

AT THE END OF EACH WORKING DAY, AND/OR IN CASE THE MACHINE WILL NOT BE USED SOME

TIME, WE STRONGLY RECOMMEND TO CARRY OUT AUTOMATIC CLEANING OF THE COFFEE

GROUP,THE MIXER AND THE MILK FROTHER.

1 Keep (Shift) key pressed for ve

seconds (for SELF congura-

tion insert the waiter password

61111).

2 Press (N°7) key to start the

Power cleaner cycle ( press N°4

key to skip the Power cleaner).

3 Insert the black pipe support

in the drip tray grid and press

(N°7) key.

PRESS B 7 TO START

PRESS B 4 TO SKIP

POWER CLEANER 

GROUP CLEANING 

MIXER CLEANING 

MILKER CLEANING 

POWER CLEANER

Insert the black pipe support

into the hole in the drip tray grid

PRESS B 7 TO START

POWER CLEANER

Insert the black pipe support

into the hole in the drip tray grid

PRESS B 7 TO START

4 Insert the silicone tube into

the black support and press

(N°7) key.

5 Wait the end of the Power

cleaner cycle delivery.

6 Press (N°7) key to start the

group cleaning cycle.

POWER CLEANER

Remove the silicone tube from the

milk box and place it into the

black support

PRESS B 7 TO START

POWER CLEANER

ENDS IN XX Sec.

PRESS B 7 TO START

POWER CLEANER √



GROUP CLEANING 

MIXER CLEANING 

MILKER CLEANING 

7 Open the machine door. 8 Clean the group from any cof-

fee residues.

9 Clean the group lters by

means of a cloth.

GROUP CLEANING

OPEN FRONT PANEL

AND CLEAN COMPONENT

GROUP CLEANING

CLEAN &

CLOSE FRONT PANEL

GROUP CLEANING

CLEAN &

CLOSE FRONT PANEL

10 Open the front door -1-, insert

the detergent tablet into the

brewing chamber -2-

11 Close the front door. 12 Wait the end of the group clean-

ing cycle delivery.

GROUP CLEANING

INSERT CLEANSER

GROUP CLEANING

INSERT CLEANSER

GROUP CLEANING

ENDS IN XX sec.

13 Press (N°7) key to start the

Mixer cleaning cycle.

14 Wait the end of the Mixer clean-

ing cycle delivery.

15 Press (N°7) key to start the

milker cleaning cycle.

PRESS B 7 TO START

POWER CLEANER √



GROUP CLEANING √



MIXER CLEANING 

MILKER CLEANING 

MIXER CLEANING

ENDS IN XX Sec.

PRESS B 7 TO START

POWER CLEANER √



GROUP CLEANING √



MIXER CLEANING √



MILKER CLEANING 

16 Take the milk feeding tube out

of the milk box.

17 Prepare a solution of water

and detergent (q.ty 200ml for

standard version, 500ml if milk

pump present) by following the

instructions indicated in the

product label.

18 Insert the milk feeding tube into

a container with detergent.

MILKER CLEANING

INSERT

CLEANING SOLUTION

PRESS B7 TO START

MILKER CLEANING

INSERT

CLEANING SOLUTION

PRESS B7 TO START

MILKER CLEANING

INSERT

CLEANING SOLUTION

PRESS B7 TO START

19 Press (N°7) key to start the

milker cleaning cycle.

20 At the end of the milker clean-

ing cycle the display will show:

- Put the milk infeed pipe into a

glass of cold water.

- Press (N°7) key, the milk frother

will start dispensing another

cleaning cycle only with water.

MILKER CLEANING

ENDS IN XX Sec.

MILKER CLEANING

REPEAT CLEAN

USING ONLY WATER

PRESS B7 TO START

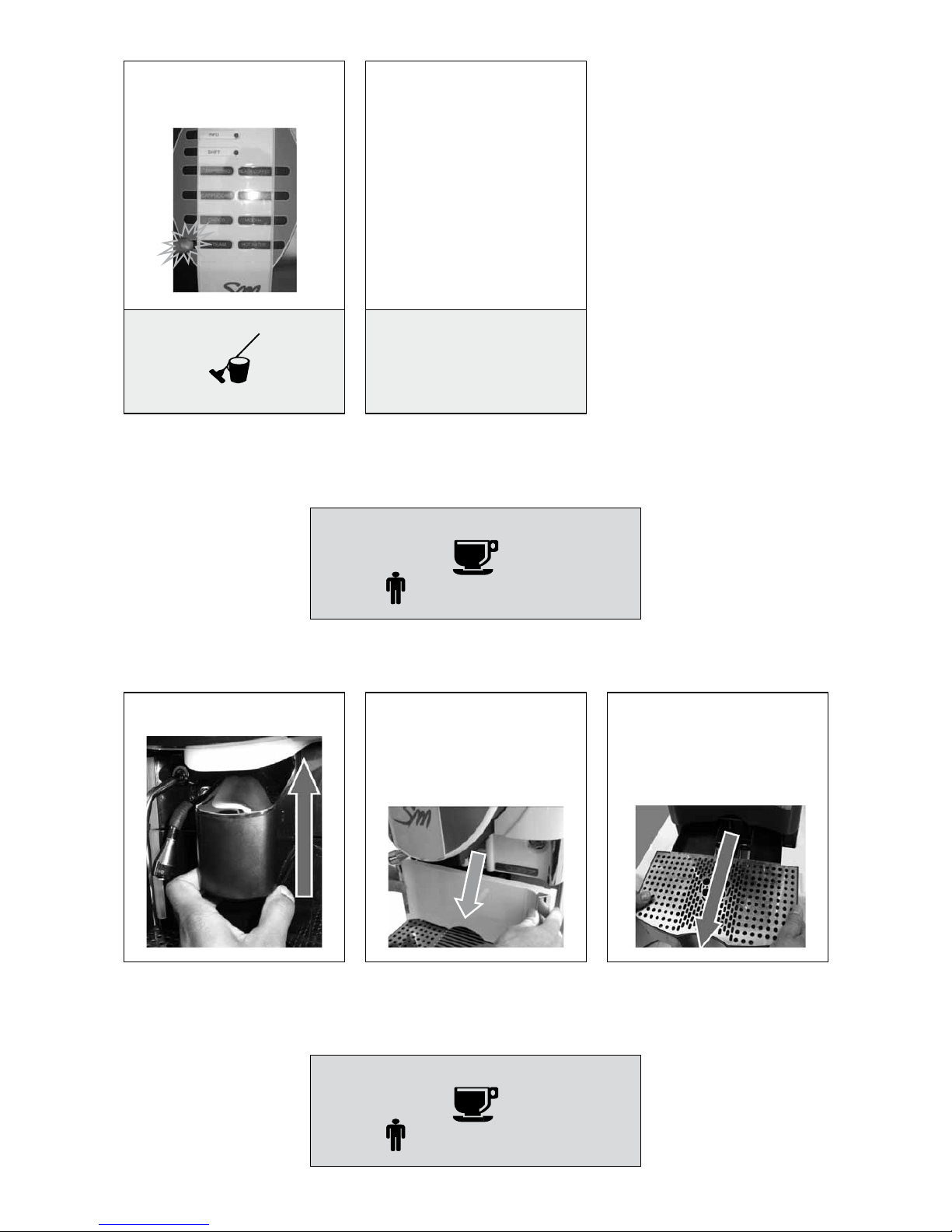

AT THE END OF THE BOILER CLEANING CYCLE THE DISPLAY WILL SHOW:

SELECT DRINK

GROUNDS BIN OPEN

21 Lift the coffee outlets com-

pletely.

22 Remove and empty the grounds

bin.

23 Remove and empty also the

drip tray. (only for machines

without direct water discharge).

WAIT AT LEAST 5 SECONDS, THE DISPLAY WILL SHOW:

SELECT DRINK

GROUNDS BIN OPEN
