Lamona LAM2850 Leitfaden

Instructions & Installation

LAM2850

Island Extractor

www.howdens.com/appliance-registration

See back page for product serial number

Page _ 3

Dear Customer,

Congratulations on your choice of domestic appliance.

The user manual will help you use your product quickly and safely.

• Please read this user manual before installing and using the oven.

• Always follow the safety instructions.

• Keep this user manual within easy reach for future reference.

• Please read any other documents supplied with the product.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful tips about usage.

This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and

Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent

potiential negative consequences for the environment and human health. The symbol on this product

indicates that this product may not be treated as household waste. Instead it should be handed over to

the applicable collection point for recycling or electrical and electronic equipment. Disposal must be carried

out in accordance with local environmental regulations for waste disposal. For more detailed information

please contact your local council household waste site.

This product complies with EU RoHS Directive (2011/65/EU) It does not contain harmful and prohibited

materials specified in the Directive.

Warning for possible hazards to health and property.

Warning possibility

Technical specifications may be changed without prior notice to improve the quality of the product.

Figures in this manual are schematic and may not exactly match your product.

of electric shock.

Product information correct at the time of publication in June 2017.

The company has a policy of continuous product development and reserves the right to change any

products and specifications given in this manual.

Page _ 4

Index

Before using the extractor 05

Safety 05

General 05

Safety for Children 05

Fire Safety 06

70yticirtcelEhtiWgnikroWnehWytefaS

General Information & Operation 08

r ContentsotcartxE08

Control Panel Layout 08

Using Your Cooker Hood 09

Care and maintenance 10

General Cleaning 10

Grease Filters 10

Carbon Filters 11

Replacing the Lamps 11

Installation 12

Methods of Extraction 12

Extraction Via Ducting 12

Extraction Via Recirculation 12

Before Beginning Installation 13

Installation Fixing Method Outline

Installation

Building and Fixing Extractor

Electrical Connections

Technical Specifications

Trouble Shooting

Your Guarantee

16 - 17

Page _ 5

• Make sure that you have removed all packaging, wrappings, stickers and from the Extractor

• It is recommended that you clean the extractor’s surface before using for the time.

Before using the Extractor

Safety

Important!

Always switch off the electricity

supply at the mains during

installation, maintenance and

cleaning.

• This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance in

a safe way and understand the

hazards involved. Children shall

not play with the appliance.

Cleaning and user maintenance

shall not be made by children with-

out supervision.

• Caution: The appliance and its

accessible parts can become hot

during operation. Children younger

than 8 years old should stay away

unless they are under permanent

supervision.

• The cooker hood must be

installed in accordance with the

instructions and all measurements

followed.

• All installation work must be

carried out by a competent person

or qualified electrician.

• Please dispose of the packing

material carefully. Children are

vulnerable to it.

• Pay attention to the sharp edges

inside the cooker hood especially

during installation and cleaning.

•If the cooker hood is damaged, do

not attempt to use.

• If the supply cord is damaged, it

must be replaced by the

manufacturer, its service agent or

similarly qualified persons in order

to avoid a hazard.

• Cooker hood is for domestic use

only (see guarantee page for

definition).

• Use suitable and appropriate

fittings for mounting the hood.

Fire Safety

Ventilation

Page _ 6

Important Safety Information

• Do not leave frying pans

unattended during use because

overheated fats or oils might catch

fire.

• Never leave naked flames under

the cooker hood.

• There is a fire risk if cleaning is

not carried out in accordance with

the instructions.

• Do not flambé under the cooker

hood.

• Do not use the cooker hood

without the grease filters or if the

filters are excessively greasy!

• The minimum distance between

the pan supports on the hob and

the lowest part of the cooker hood.

(When the cooker hood is located

above a gas appliance) shall be a

minimum of 650mm.

(Coal or oil 750mm)

• When in extraction mode, air in

the room is being removed by the

cooker hood. Please make sure

that proper ventilation measures

are being observed. The cooker

hood removes odours from room

but not steam.

• The air must not be discharged

into a flue that is used for

exhausting fumes from appliances

burning gas or other fuels.

• Make sure the ducting has no

bends sharper than 90 degrees as

this will reduce the efficiency of the

cooker hood (max duct length 3m,

150mm Ø).

• Always put lids on pots and pans

when cooking.

• Large quantities of vapour and

steam can be produced very quickly.

This steam may condense onto the

cold metallic surfaces of the

extractor (This is not a fault with

either the hob or extractor if

correctly installed.) The amount of

this condensation on any particular

surface will depend on many factors

including the general ventilation

within the kitchen, the type of food

being cooked and the duration.

• There shall be adequate

ventilation of the room when the

cooker hood is used at the same

time as appliances burning gas or

other fuels.

Electrical Safety

Page _ 7

Important Safety Information

• Do not use high level grills or

BBQ type products under this

extractor.

• In case of any damage, switch

off the product and disconnect

it from the mains. To do this,

turn off the fuse at the fuse box.

Make sure that fuse rating is

compatible with the product.

Using lids on pans can help reduce

the amount of steam being released

and subsequent condensation.

Induction hobs offer a powerful,

more efficient heating process but

do not generate the higher levels of

ambient heat that would normally

help dissipate vapour and steam as

with older hob technology.

• The manufacturer refuses to

accept any responsibilty for damage

to or damages arising from failure

to observe this instructions.

• Ensure the ducting for cooker

hood has the same diameter all the

way through and at the outlet.

• If the cooker hood is installed for

use above a gas appliance then the

provision for ventilation must be in

accordance with the Gas Safety

Codes of Practice BS.6172,

BS.5440 & BS.6891 (Natural Gas)

and BS.5482 (LP Gas) 1994, the

Gas Safety (Installation & Use)

Regulations, the Building

Regulations issued by the

Department of the Environment, the

Building Standards (Scotland)

(Consolidated) Regulations issued

by the Scottish Development

Department.

Page _ 8

General Information & Operation

Control Panel Layout

Extractor Contents

Struts x 8

Reducer

Ceiling plate

Chimney sections

Extractor body and glass

Cable grid

Fixings

2. 3. 4. 5.1.

1. Light on/off

2. Extractor Power off

3. Extractor power level 1

4. Extractor power level 2

5. Extractor power level 3

Page _ 9

Using Your Cooker Hood

Ideally

Caution - Accessible parts may become hot when used with cooking appliances.

you should turn on your hood ten minutes before you start to cook, or at the very least when you

begin cooking. You should also run your hood for ten minutes after you have cooking.

Make sure that it has been installed by a suitably person, as per the installation instructions.

Induction Hobs - Metal Surfaces of the Extractor and Condensation

Large quantities of vapour and steam can be produced very quickly. This steam may condense onto

the cold metallic surfaces of the extractor and even the splash back area if tiled, glazed etc. (This is not

a fault with either the hob or extractor if correctly installed).

The amount of this condensation on any particular surface will depend on many factors including the

general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on pans

can help reduce the amount of steam being released and subsequent condensation. Induction hobs offer

a powerful, more efficient heating process but do not generate the higher levels of ambient heat that would

normally help dissipate vapour and steam as with older hob technology.

Page _ 10

Before cleaning or attempting any type of maintenance, always make sure that the electricity

supply is disconnected.

The manufacturer declines all liability in cases where the instructions for the appropriate installation,

maintenance and use of the extractor hood are not observed.

If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call

the service number on the rear cover of this booklet or a suitably repairer.

General Cleaning

Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use

abrasive cleaners.

Care and Maintenance

The Grease Filters

Your extractor includes a grease which helps

to protect your kitchen & furniture from greasy

residues by out grease particles.

• Over time, the grease may become a

risk if the greasy residue is allowed to build up.

• To prevent a hazard, the grease

should be cleaned.

• Depending on use, this should be done every

10-15 days or for light usage once a month.

•

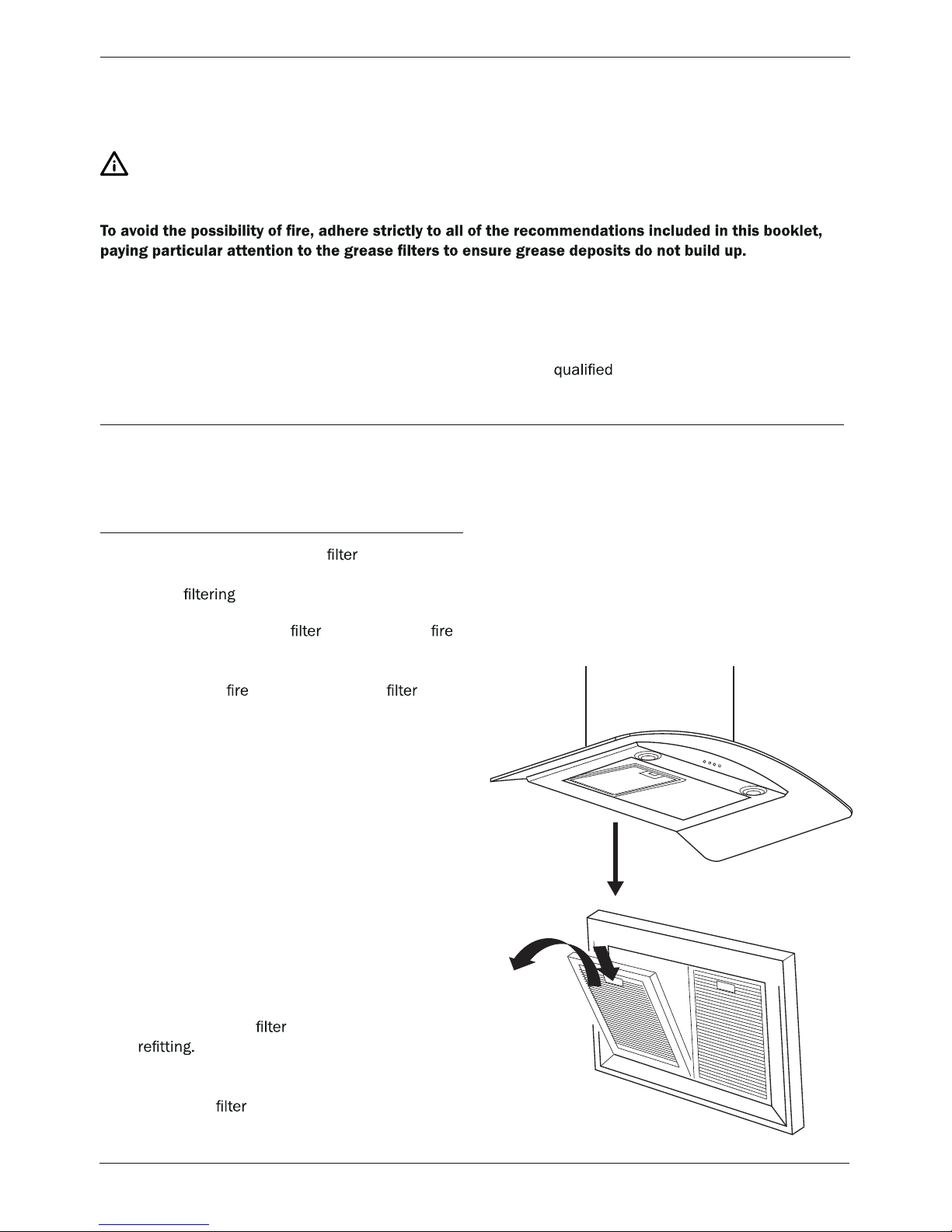

First remove the grease filters by pushing the

in the button on the handle and pulling the

filter away from the cooker hood.

Soak the grease filters in hot water and

washing up liquid for at least 3 minutes.

The use a soft brush to loosen any grease

deposits that have formed. Rinse the filters

thoroughly with hot water. Repeat the process

if necessary.

• If grease filters are washed in a dishwasher

(60˚c) the plastic may discolour

• Allow the grease to dry completely before

• The extractor must never be operated without

the grease in position.

Inhaltsverzeichnis

Andere Lamona Dunstabzugshaube Handbücher

Lamona

Lamona LAM2500 Bedienungsanleitung

Lamona

Lamona LAM2875 Bedienungsanleitung

Lamona

Lamona LAM2301 Bedienungsanleitung

Lamona

Lamona LAM2300 Fehlerbehebungshandbuch

Lamona

Lamona LAM2410 Leitfaden

Lamona

Lamona HJA2480 Bedienungsanleitung

Lamona

Lamona LAM2803 Bedienungsanleitung

Lamona

Lamona HJA2450-2 Fehlerbehebungshandbuch

Lamona

Lamona LAM2876 Bedienungsanleitung

Lamona

Lamona CBT625/2X/1/UK Bedienungsanleitung

Lamona

Lamona HJA2450 Fehlerbehebungshandbuch

Lamona

Lamona HJA2230 Handbuch

Lamona

Lamona LAM2502 Fehlerbehebungshandbuch

Lamona

Lamona LAM2853 Bedienungsanleitung

Lamona

Lamona NBT625/2NX Bedienungsanleitung

Lamona

Lamona HJA2543 Bedienungsanleitung

Lamona

Lamona LAM2304 Bedienungsanleitung

Lamona

Lamona LAM2877 Bedienungsanleitung

Lamona

Lamona HJA2480-1 Fehlerbehebungshandbuch

Lamona

Lamona LAM2475 Leitfaden

Lamona

Lamona LAM2550 Bedienungsanleitung

Lamona

Lamona LAM2505 Leitfaden

Lamona

Lamona LAM2703 Leitfaden

Lamona

Lamona LAM2950 Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
