1. Important pre-recommendations and information on the use of power distribution units (PDU)
1.1 Introduction

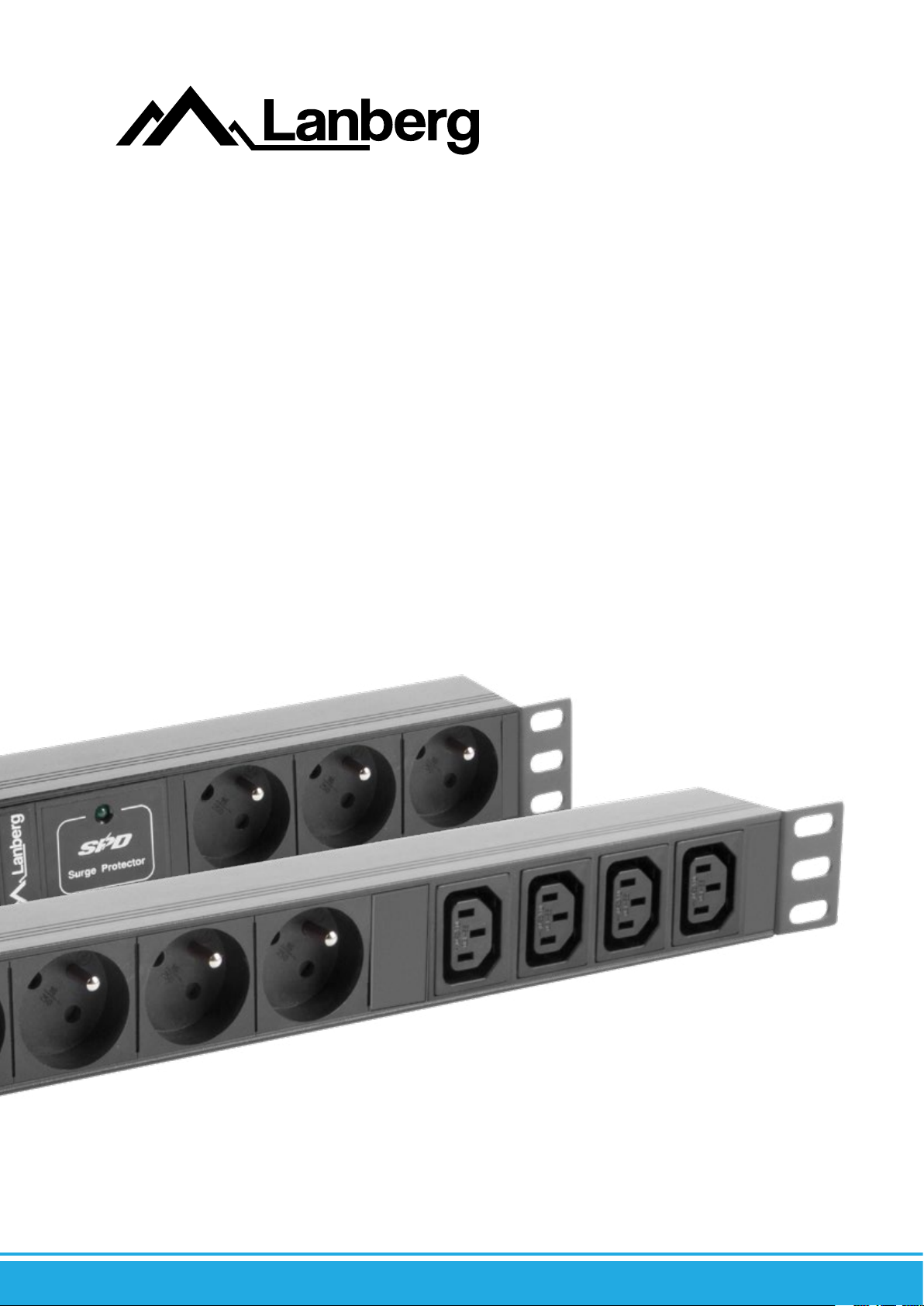

PLEASE SAVE THIS MANUAL - This set of recommendations and manual instructions, for Lanberg the use of power distribution units
(PDU), including the following models supported:
• PDU-03E-0200-BK, PDU-03E-0200-IEC-BK
• PDU-03F-0200-BK, PDU-03F-0200-IEC-BK
• PDU-04E04I-0200-BK, PDU-04E04I-0200-IEC-BK
• PDU-06E-0200-BK
• PDU-07E-0200-BK, PDU-07E-0200-IEC-BK, PDU-PRO-07E-0200-BK
• PDU-07F-0200-BK, PDU-07F-0200-IEC-BK, PDU-PRO-07F-0200-BK
• PDU-08E-0200-BK, PDU-08F-0200-BK
• PDU-08I-0200-C20-BK, PDU-02I1906I-0200-C20-BK
• PDU-09E-0300-BK, PDU-09F-0300-BK
• PDU-02I1908I-0200-C20-BK, PDU-10I-0200-IEC-BK
contains logistical, technical instructions and regulations that must be followed during the transport, assembly, usage and maintenance of the, above
mentioned, products. Do not use the device, before reading the manual thoroughly, and appropriately following all safety information, included within
the manual. Keep this manual for later use. All pictures, illustrations contained in this manual are for visual purposes only. The information in this manual
has been veried and is considered sucient. The Supplier is not liable for any inaccuracies that may be contained in this document, nor does he / she is
responsible for updating, maintaining current information within this manual or to notify its users or organizations regarding manual updates. Lanberg
owners, in particular, will not be responsible for any hardware, software or data (stored or used along with) the product, including repair, replacement,
integration, installation or recovery of hardware, software or data, in case of misuse of the power distribution unit (PDU) and / or its components.
Lanberg owners reserve the right to introduce changes to this manual, at any given time, and without notice. The products mentioned in this manual,
including documentation, are the property of the owners of the Lanberg brand and / or its licensors, and are provided only under contract. Any use or
reproduction of these products, including documentation, is prohibited, except as expressly permitted under the applicable license terms.
NOTE: For the most up-to-date version of this manual, please visit our website at www.lanberg.eu.
1.2 Compliance with legal and regulatory requirements concerning safety and environment
This product complies with the European Union (EU) safety and environmental regulations.
The products listed in this manual are authorized in the EU by obtaining a European Union Declaration of Conformity which complies
with the essential requirements and other relevant provisions
of the following directives and that the following harmonized
standardsapply.
The Declaration of Conformity (CE) is on the page: www.lanberg.eu
NOTE: The use of the WEEE symbol (crossed out bin symbol) means
that this product cannot be treated as household waste. Proper
disposal of used equipment avoids risks to human health and the
environment, resulting from the possible presence of hazardous
substances, mixtures and components in the equipment, as well
as, improper storage and processing of such equipment. Selective
collection also allows you to recover materials and components, from which the device was manufactured. For more information about
the recycling of this product, please contact the retail outlet, where the product was purchased, or request information from the local
authority. The use of the RoHS symbol means, that this particular product is manufactured in accordance with the European RoHS
standard. Main goal of this norm, is to reduce the amount of hazardous substances getting into the environment, resulting from electrical
and electronic waste. The use of the CE symbol means that the product is safe and compliant with EU standards and requirements.
1.3 General safety instructions and precautions
• Usage of this particular device does not require any specialized training nor electrical qualications. The power distribution unit (PDU)
performs a similar function as a regular power supply strip (domestic use only) with switch and overvoltage protection in applications
such as: server rooms, data centers, surveillance or CCTV systems of small / medium / large companies etc.
• PDU is designed to operate in a controlled environment (Controlled temperature and humidity, device should work indoors,
without any conductive contaminants [dust, ammable gases, corrosive substances, etc.]).
• All potential assembly, connections, wiring and circuits in which the PDU strip will be used, must be made in a manner compliant with
the local electricity regulations, and in such a way, as to eliminate the risk of stepping on or tripping over them. Use only power cables
with VDE and CE certication when connecting loads to the strip.
• The power socket should be easily accessible and located near the device. Be sure to connect the strip to the grounded outlet.
• Do not disassemble the case of the PDU. Inside the device there are no parts that can be repaired by the user. Refer (including
replacement of varistors) servicing to qualied maintenance personnel.
• During the warranty period it is forbidden to replace the elements of the PDU. The varistors can be replaced by qualied technical personnel.
• Do not place any containers lled with water (e.g. cups, bottles, etc.) or other substances that could get into the device to avoid the
dangers associated with improper handling of the PDU. Internal short-circuit of the PDU system can lead to hazards such as spikes,
re or electric shock.
• In case of the smoke coming from the device, promptly disconnect the mains power supply. In the event of a re, immediately
disconnect the mains and notify the re department of the situation by dialing the proper number in the country of your stay.
• In the case of mandatory maintenance requirement, it should be performed or supervised by a person with appropriate electrical
qualications.
• Before taking any action related to connecting or disconnecting the cables of the strip (PDU), make sure, beforehand, it is turned o
(half of the red switch with the white circle icon should be tilted down).
• Make sure that all elements previously attached to the power distribution unit (PDU), as well as the strip itself, are properly screwed to
