Lanix Ilium Alpha 9 Bedienungsanleitung

Ilium Alpha 9

User Guide

Contents

1.For your safety ...............................................................................................................1

2.Learn about the phone ..................................................................................................2



Overview .........................................................................................................................2



Function Keys ................................................................................................................2

3.Before using ...................................................................................................................3



Insert SIM cards and TF card........................................................................................3



Charge the Battery.........................................................................................................5

4.Getting started................................................................................................................5



Basic Function ...............................................................................................................6



Home screen...................................................................................................................6



Touch screen..................................................................................................................8

5.Communication..............................................................................................................8



Make a call ......................................................................................................................8



Ongoing call....................................................................................................................9



Incoming call..................................................................................................................9



Send a Message...........................................................................................................10

6.Multimedia.....................................................................................................................10



Camera..........................................................................................................................10



Music .............................................................................................................................12

7.Connection....................................................................................................................12



Airplane mode..............................................................................................................13



WLAN.............................................................................................................................13



Bluetooth.......................................................................................................................13



USB................................................................................................................................14

8.Features ........................................................................................................................14



Face ID...........................................................................................................................14



Group Selfie..................................................................................................................14



Main Camera Bokeh.....................................................................................................15



Front Camera Bokeh....................................................................................................15



Notch Screen Gesture .................................................................................................15



New navigation mode..................................................................................................16



Wireless charging........................................................................................................16

9.Operation ......................................................................................................................16



Smart Gestures ............................................................................................................16



Suspend option............................................................................................................19

10.Warnings and notes ...................................................................................................19

1.For your safety

Please read this manual before using the cell phone to ensure your safety and proper use.

SWITCH OFF IN HOSPITALS

Please abide by relevant provisions or regulations. Please turn off your mobile phone near medical

equipment.

SWITCH OFF WHEN REFUELING

Don’t use the phone at a refueling point. Don’t use near fuel or chemicals.

MICRO SIM CARDS AND SD CARD ARE PORTABLE

Keep your phone, phone parts and accessories out of children’s reach.

BATTERY

Please do not destroy or damage the battery, it can be dangerous and cause fire. Please do not throw

battery in fire to avoid hazard. When battery cannot be used, please dispose in safe environment. Do not

try to dismantle the battery. If the battery or authorized charger is broken or old, please stop using them,

and replace with certified genuine battery.

For first time using, please discharge completely and charge the battery in 100% full and continue

charging one more hour with authorized charger.

USE QUALITY EQUIPMENT

Use authorized equipment to avoid danger.

ROAD SAFETY COMES FIRST

Give full attention while driving, Park before using your phone. Please follow traffic rules of local city

town.

INTERFERENCE

All wireless devices may be susceptible to cause interference, which could affect performance.

SWITCH OFF IN AIRCRAFT

Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile

phone in an aircraft.

2.Learn about the phone

Overview

Infrared Lamp

Rear Camera 1

Light Sensor

Rear Camera 2

3 Receiver 11 Flash lamp

Front Camera

Card tray

Infrared Camera

Fingerprint Sensor

Volume key

Speaker

Screen Lock / Power Key

Microphone

8 Type-C port

Function Keys

Keys

Functions

Screen Lock /

Power Key

Press to turn on/off the screen.

Press and hold to reboot, power off the phone, and turn

airplane mode or silent.

Volume Key Press to adjust the volume of device.

Multi Task Key

(on the screen)

Tap to open the list of recently used apps.

Click the circle button to clean all of recently used apps.

Home Key

(on the screen)

Tap to return to Home screen.

Long press to access Google™ search.

Back Key

(on the screen)

Tap to return to the previous screen.

3.Before using

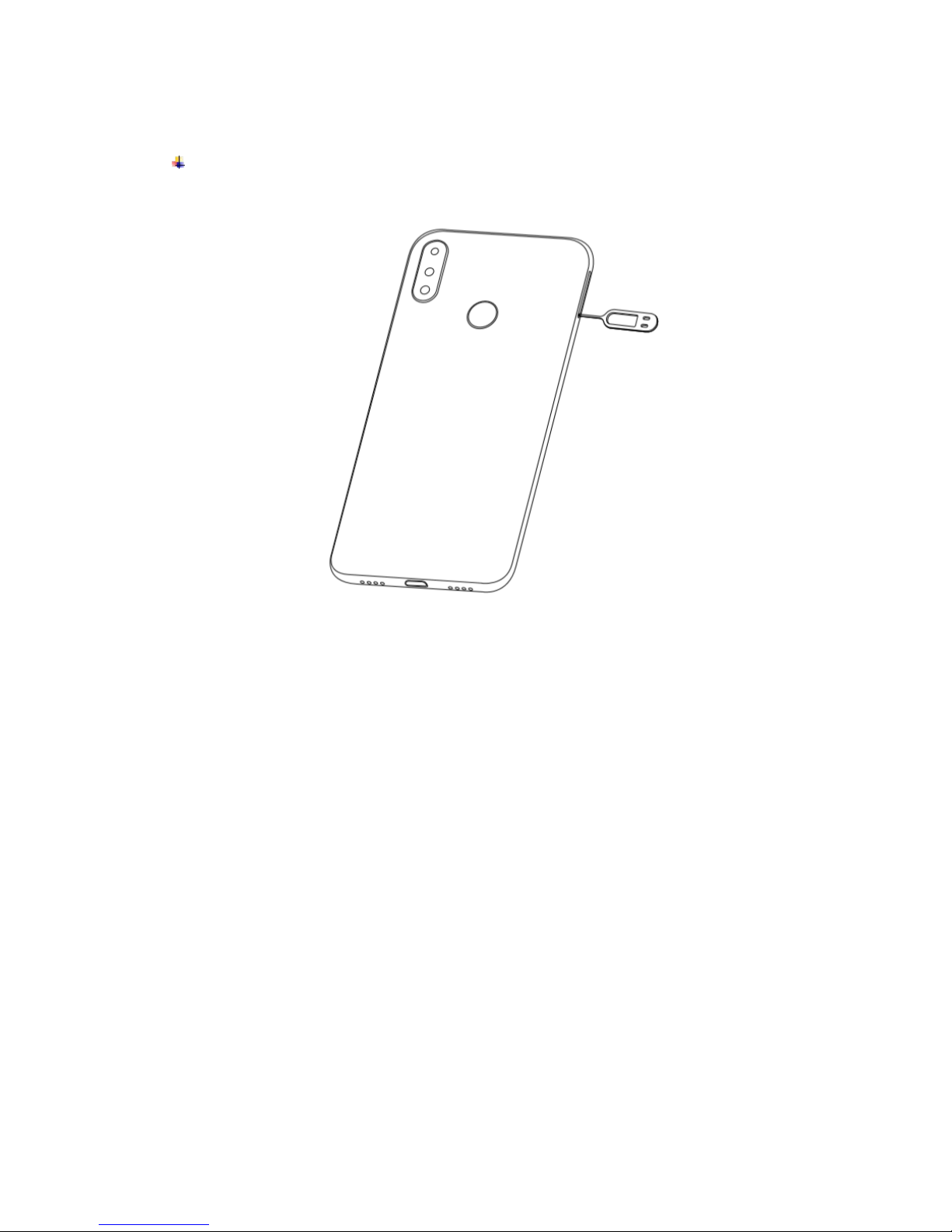

Insert SIM cards and TF card

1) Stick into the pin hole with eject tool, and then card tray will be out of phone.

2) Put SIM cards and TF card to card tray correctly.

Card 1 supports Micro SIM card.

Card 2 supports TF card.

Note: TF card can be used as internal storage.

Option 1: Notification Center --> Tap the notice to set up --> Use as internal storage

--> Next --> Erase & Format

Option 2: Settings --> More settings-->Storage & USB --> Format as internal

storage--> Erase & Format

3) Push the card tray into the phone.

Note:

SIM card and TF card support hot plugging.

Do not remove the cards while the device is transferring data. Doing so may cause

data to be lost or damage to the cards and device.

The SIM card and TF card are small parts. Please keep away from Children to avoid

swallowing the card by accident.

Please do not touch the metal surface of SIM and TF cards and keep them away from

electromagnetic field to avoid damaged data.

Charge the Battery

Charge the battery before using it.

1) Connect the USB cable to the USB power adaptor, and then plug the end of the USB

cable into the USB Port.

2) The phone has a built-in wireless charging coil. Batteries can be recharged using

wireless chargers. Place the center of the back of the phone in the center of the

wireless charger. Connect the USB cable to the USB power adaptor, and then plug

the end of the USB cable into the USB Port of the wireless chargers.

Note:

The phone must be placed accurately on the wireless charger.

Do not put the metal interferences on the wireless charger.

OTG and wireless charging function can not be used at the same time.

Wireless charging maybe affect the FM function, FM and wireless charging function

can not be used at the same time.

If there is a foreign object between the phone and the wireless charger, the charger

may not be able to charge normally.

Please do not use wireless chargers in areas where network signals are weak, may

not be able to receive the network.

Do not place too close to a card with a magnetic bar or chip (ID card and bank card

etc.) to avoid the card lose magnetism.

Please keep the distance more than 20cm between the charger implanted medical

device (pacemakers, implants, etc.) to avoid potential interference to the medical

device.

Please keep it away from fire, water and other liquid.

Not toys for fun, please keep it away from children.

The charging equipment must meet the Qi standard to be use.

Note:

The battery of mobile phone is fixed. It cannot remove.

4.Getting started

Basic Function

Turn on the phone

Press and hold the power key for a while to turn on the phone.

Turn off the phone

Long press the power key until a menu shows. Choose “Power off’’ to turn off the

phone.

Restart the phone

Option 1: Long press the power key until a menu shows. Choose “Reboot’’ to restart

the phone.

Option 2: Long press the power key till 11s above to auto restart the phone.

Lock the screen

Option 1: Press the power key to turn off the screen and lock it

Option 2: In the Home screen, double tap the screen to lock it.

Option 3: The screen will auto lock if you don't use the phone for a while.

Unlock the screen

Press the power key, and then slide to top for unlocking.

Home screen

The Home screen is your starting point to access all the features on your phone. It

displays application icons, widgets, and other features. You can customize the Home

screen with different wallpaper and display the items you want.

Status Bar

At the top of the screen, it displays the time, signal, battery information.

Notification Center

Swipe down from the top edge to see more details of the new notification, such as

messaging, missed call, Wi-Fi network available etc. Tap the notification and drag to

left or right to delete it.

Settings-->Notification-->Notification Center to manage it.

Control Center

Slide down from the top edge to open the control center.

In the control center, it’s a quick access to Mobile data, Wi-Fi, Flashlight, Sound,

VoWiFi, and Bluetooth.

Launcher Menu

Long press on an empty spot to open the launcher menu. You can change the

Wallpaper, Edit Desktop. It’s a quick access to Desktop Settings, Arrange and

Search.

Screen Recorder:

Tap to record your operating

process, and the videos can

be save and share to others.

Tap to see more functions

Move an application

Touch & hold the icon you want to move. Drag the icon to move or cross at the edge

of the screen to move into another screen.

Uninstall an application

Touch & Drag the icon you want to uninstall to the top. Long press the icon to appear

the hover box, display the application information, click the application information to

enter the application information, Tap “Uninstall” to uninstall.

Creating a folder

Drag an icon on the top of another one to create a folder. Open the folder and then

tap the “Folder” to rename it.

Touch screen

The way to control mobile phone is using your finger on touch icons, buttons, menu items,

the onscreen keyboard, and other items on the touch screen.

•Touch: To act on items on the screen, such as application and settings icons, to type

letters and symbols using the onscreen keyboard, or to press onscreen buttons, you

simply touch them with your finger.

•Touch & hold: Touch & hold an item on the screen by touching it and not lifting your

finger until an action occurs.

•Drag: Touch & hold an item for a moment and then, without lifting your finger, move

your finger on the screen until you reach the target position. You can drag items on the

Home screen to reposition them and you can drag to open the Notification Center.

•Swipe or slide: To swipe or slide, quickly move your finger across the surface of the

screen, without pausing when you first touch (so you don’t drag an item instead). For

example, you slide the screen up or down to scroll a list, and in the same way

Calendar views you can swipe quickly across the screen to change the range of time

visible.

•Pinch: In some applications (Such as Maps) you can zoom in and out by placing finger

and thumb on the screen at same time and pinching them out together (to zoom out)

or spreading them apart (to zoom in).

•Rotate the screen: On most screens, the orientation of the screen rotates with the

phone as you turn it from upright to its side and back again. You can turn this feature

on and off.

5.Communication

Make a call

•Touch the phone icon on the Home screen.

•Enter the phone number you want to dial.

•Touch the phone icon to dial the number that you entered.

Inhaltsverzeichnis

Andere Lanix Handy Handbücher

Lanix

Lanix LX1 Bedienungsanleitung

Lanix

Lanix LT520 Bedienungsanleitung

Lanix

Lanix Ilium S700 Bedienungsanleitung

Lanix

Lanix Z11 Bedienungsanleitung

Lanix

Lanix X260 Bedienungsanleitung

Lanix

Lanix ILIUM L200 Bedienungsanleitung

Lanix

Lanix Ilium M1 Bedienungsanleitung

Lanix

Lanix LX11 Bedienungsanleitung

Lanix

Lanix Alpha950 XL Bedienungsanleitung

Lanix

Lanix Ilium S620 Bedienungsanleitung

Lanix

Lanix L1200 Bedienungsanleitung

Lanix

Lanix ILIUM s420 Bedienungsanleitung

Lanix

Lanix L1050 Bedienungsanleitung

Lanix

Lanix L1100 Bedienungsanleitung

Lanix

Lanix Ilium S600 Bedienungsanleitung

Lanix

Lanix X400 Bedienungsanleitung

Lanix

Lanix L610 Bedienungsanleitung

Lanix

Lanix S410 Bedienungsanleitung

Lanix

Lanix Ilium S220 Bedienungsanleitung

Lanix

Lanix Z20 Bedienungsanleitung

Lanix

Lanix W20 Bedienungsanleitung

Lanix

Lanix Ilium L420 Bedienungsanleitung

Lanix

Lanix L900 Bedienungsanleitung

Lanix

Lanix X510 Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS655.2 Bedienungsanleitung
