Lantech IPWMR-3006 Bedienungsanleitung

IPWMR-3006 / 3004

IWMR-3006 / 3004

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + up to

2 LTE 4G + 2 serial ports + Gigabit Ethernet Switch

User Manual (Hardware)

Apr. 2020

Recommendation for Shielded network

cables

STP cables have additional shielding material that is used to reduce external

interference. The shield also reduces the emission at any point in the path of the cable.

Our recommendation is to deploy an STP network cable in demanding electrical

environments. Examples of demanding indoor environments are where the network

cable is located in parallel with electrical mains supply cables or where large inductive

loads such as motors or contactors are in close vicinity to the camera or its cable. It is

also mandatory to use an STP cable where the power device (like IP camera) is used

outdoors or where the network cable is routed outdoors.

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the

equipment, its specification or this manual without prior notice, in the

interest of improving performance, reliability, or servicing. At the time of

publication all data is correct for the operation of the equipment at the

voltage and/or temperature referred to. Performance data indicates typical

values related to the particular product.

No part of this documentation or information supplied may be divulged to

any third party without the express written consent of Lantech

Communications Global Inc. Products offered may contain software which

is proprietary to Lantech Communications Global Inc. The offer or supply of

these products and services does not include or infer any transfer of

ownership.

Interference Issues

This Equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a commercial or industrial installation. This equipment generates, uses,

and can radiate radio frequency energy. It may cause harmful interference

to radio communications if the equipment is not installed and used in

accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy. It may cause harmful

interference to radio communications if the equipment is not installed and

used in accordance with the instructions. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

1. Hardware Description............................ 2

1.1. Physical Dimension....................................... 2

1.2. IP Protection................................................. 2

1.3. Front Panel................................................... 6

1.4. LED Indicators.............................................. 7

2. Hardware Installation ............................ 8

2.1. Hardware installation.................................. 8

2.2. DIN-Rail Mounting....................................... 9

2.3. Wall Mount Plate Mounting .......................10

2.4. Wiring the Power Inputs............................12

2.5. Wiring the Fault Alarm Contact.................13

2.6. Cabling .......................................................14

2.7. SIM..............................................................17

2.8. Serial Ports.................................................19

3. Console Management.......................... 20

3.1. Connecting to the Console Port....................20

3.2. Login in the Console Interface......................21

1.Hardware Description

Lantech I(P)WMR-3006/3004 series is a next generation industrial multi-function VPN

router.

In this paragraph, it will describe the Industrial multi-function VPN router’s hardware

spec, port, cabling information, and wiring installation.

1.1.Physical Dimension

Metal case. IP-30,

IPWMR-3006, IPWMR-3004, IWMR-3006, IWMR-3004: 74(W) x 142 (D) x 152 (H) mm

1.2.IP Protection

The IP Code, Ingress Protection Rating, sometimes also interpreted as International

Protection Rating, classifies and rates the degree of protection provided against the

intrusion (including body parts such as hands and fingers), dust, accidental contact, and

water in mechanical casings and with electrical enclosures. It is published by the

International Electrotechnical Commission (IEC)

Solid particle protection

The first digit indicates the level of protection that the enclosure provides against access

to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid

foreign objects.

Level

Object size

protected against

Effective against

—

No protection against contact and ingress of objects

>50 mm

Any large surface of the body, such as the back of a

hand, but no protection against deliberate contact

with a body part

>12.5 mm

Fingers or similar objects

>2.5 mm

Tools, thick wires, etc.

>1 mm

Most wires, screws, etc.

Dust protected

Ingress of dust is not entirely prevented, but it must

not enter in sufficient quantity to interfere with the

satisfactory operation of the equipment; complete

protection against contact

Dust tight

No ingress of dust; complete protection against

contact

Liquid ingress protection

The second digit indicates the level of protection that the enclosure provides against

harmful ingress of water.

Level

Protected

against

Testing for

Details

Not

protected

—

Dripping

water

Dripping water (vertically

falling drops) shall have no

harmful effect.

Test duration: 10 minutes

Water equivalent to 1 mm

rainfall per minute

Dripping

water when

tilted up to

15°

Vertically dripping water

shall have no harmful effect

when the enclosure is tilted

at an angle up to 15°from

its normal position.

Test duration: 10 minutes

Water equivalent to 3 mm

rainfall per minute

Spraying

water

Water falling as a spray at

any angle up to 60°from

the vertical shall have no

harmful effect.

Test duration: 5 minutes

Water volume: 0.7 litres per

minute

Pressure: 80–100 kPa

Splashing

of water

Water splashing against

the enclosure from any

direction shall have no

harmful effect.

Test duration: 5 minutes

Water volume: 10 litres per

minute

Pressure: 80–100 kPa

Water jets

Water projected by a

nozzle (6.3 mm) against

enclosure from any

direction shall have no

harmful effects.

Test duration: at least

15 minutes

Water volume: 12.5 litres per

minute

Pressure: 30 kPa at distance

of 3 m

Powerful

water jets

Water projected in powerful

jets (12.5 mm nozzle)

against the enclosure from

any direction shall have no

harmful effects.

Test duration: at least

3 minutes

Water volume: 100 litres per

minute

Pressure: 100 kPa at

distance of 3 m

Immersion

up to 1 m

Ingress of water in harmful

quantity shall not be

possible when the

enclosure is immersed in

Test duration: 30 minutes

Immersion at depth of at

least 1 m measured at

bottom of device, and at least

water under defined

conditions of pressure and

time (up to 1 m of

submersion).

15 cm measured at top of

device

Immersion

beyond 1 m

The equipment is suitable

for continuous immersion in

water under conditions

which shall be specified by

the manufacturer.

Normally, this will mean

that the equipment is

hermetically sealed.

However, with certain types

of equipment, it can mean

that water can enter but

only in such a manner that

it produces no harmful

effects.

Test duration: continuous

immersion in water

Depth specified by

manufacturer

Powerful

high

temperature

water jets

Protected against close-

range high pressure, high

temperature spray downs.

—

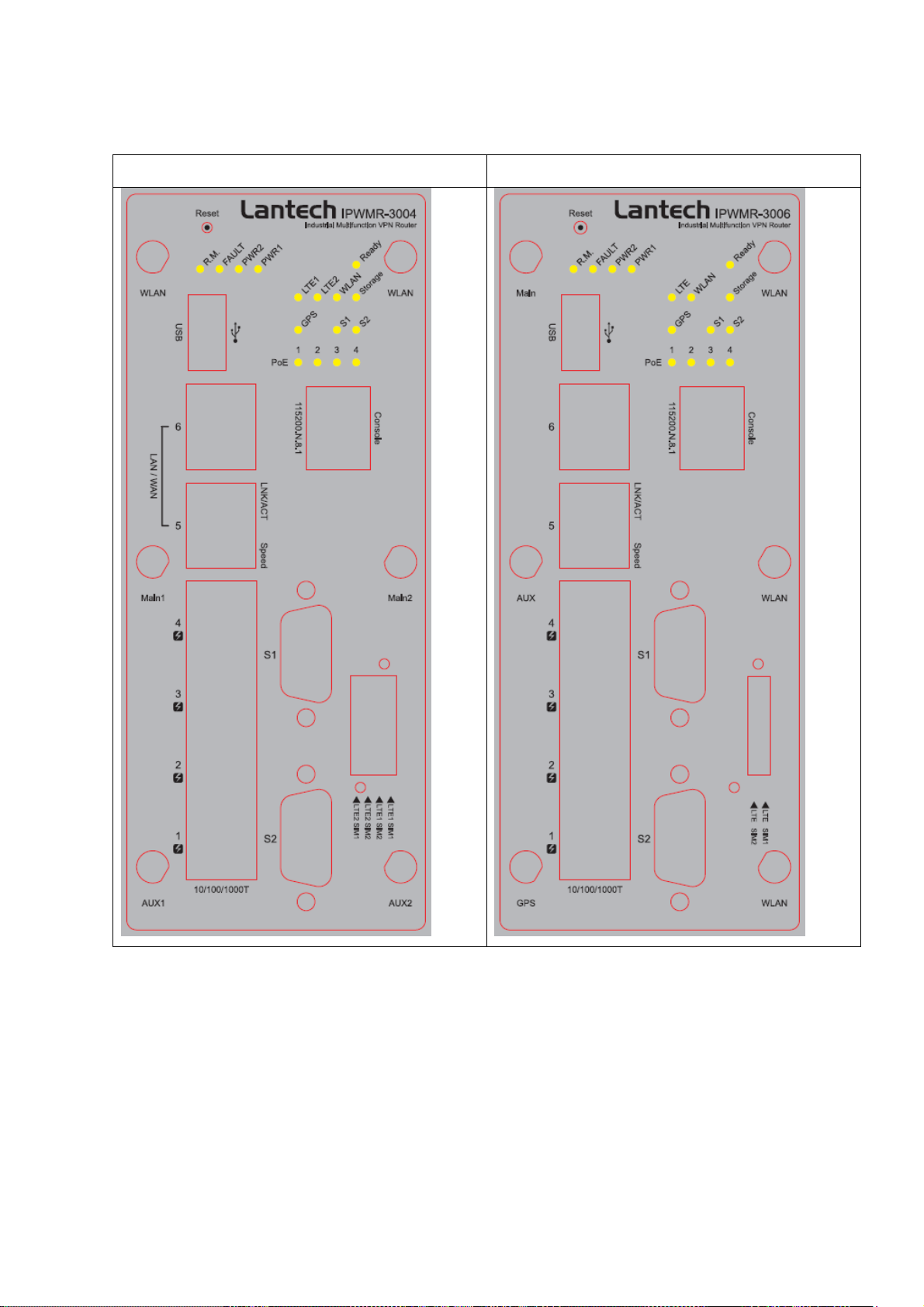

1.3.Front Panel

IPWMR-3004

IPWMR-3006
