PTB-1 Pan Tilt Base

Read the following steps carefully to understand and learn how to operate your new pan/tilt

base. The base can hold up to 65lbs. and is rated IP54.

Install Notes

Read this user’s manual thoroughly and retain it for future reference.

Use a damp cloth to clean the unit.

Never attach anything to this unit that could lead to danger.

Do not install this unit to a surface that could become unstable such as a stand, tripod,

shelf or table.

Install the unit in an open area away from heat sources.

Always use the voltage listed on the unit.

Keep objects and cables away while the unit is in operation.

Do not electrically overload this unit to prevent a risk of fire.

Contact an electrician for installation if you are not familiar with electrical wiring.

How to Mount the Pan/Tilt Base

1. Determine the location you want to mount the base to.

2. Attach the pan/tilt base to your surface using the four

corner thru-holes at the base of the unit. Use the provided

bolts to mount the base. Be sure the unit will move freely

and won’t contact the wall, ceiling or pole during

operation.

3. Bolt your device to the mounting plate on top of the unit

and secure it tightly. If necessary, use the included 8x10”

mounting plate.

Optional: Connect your device to one of the individual +/-

leads on the base. Seal off the additional wire if not used.

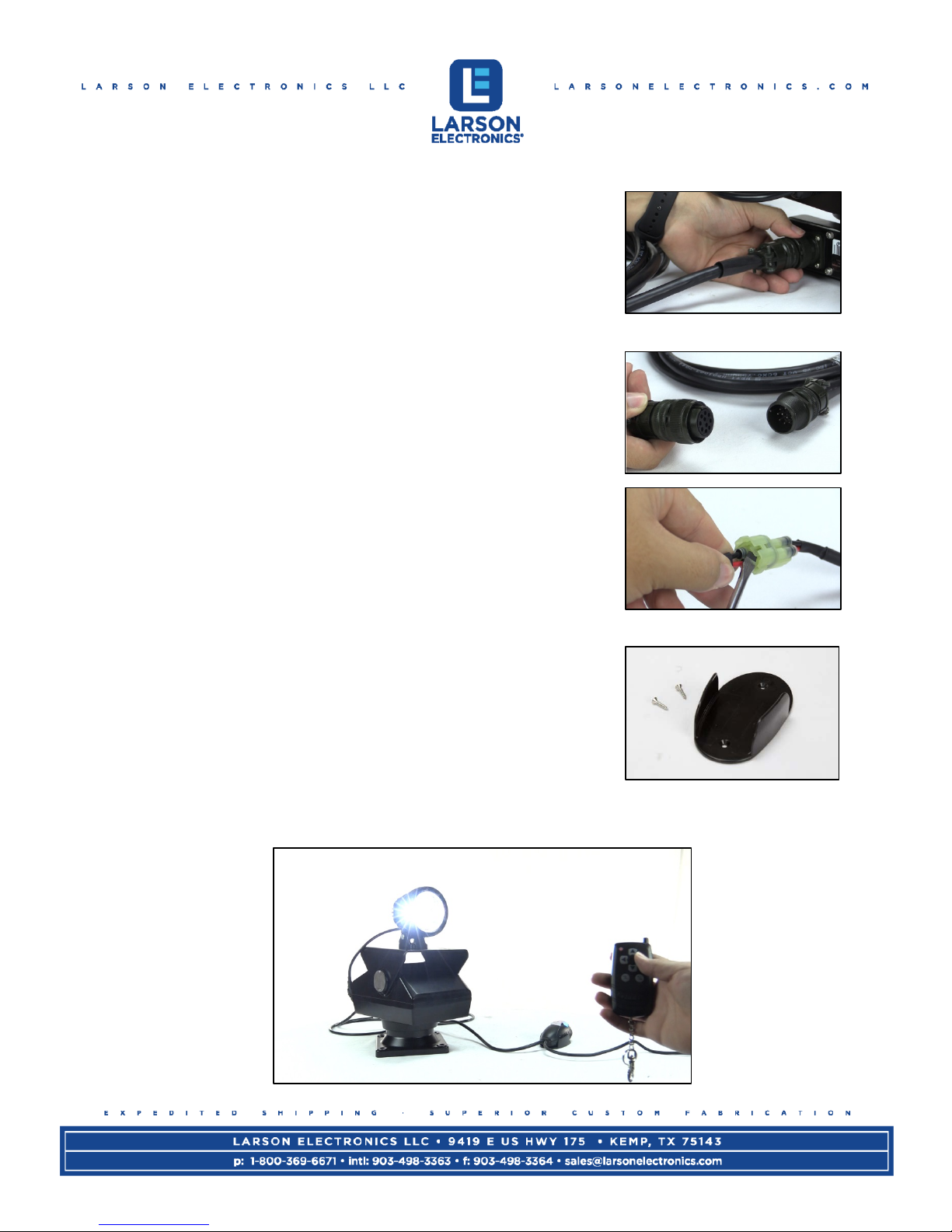

Page 2 of 5

PTB-1 Pan Tilt Base

4. Attach and run the power cables. Take the 25’ cable

w/inline remote and securely attach the female connection

to the base.

5. Attach the hardwired remote to the other end of the cable

by screwing the female end of the remote assembly to the

male end of the wire harness.

6. If your unit will be hardwired, keep the flying leads

attached to the remote and hardwire the unit. Use the pin

tab to remove the flying leads and attach the cigarette

plug adapter if needed.

7. Find a location to mount the base for the hardwired

remote. Use the two screws provided.

8. Apply power to the unit to ensure proper function.

Page 3 of 5

PTB-1 Pan Tilt Base

Remote Control

•

ON/OFF – Power’s the unit on or off.

•





DOWN



LEFT



RIGHT - Moves the pan/tilt base in the corresponding

direction.

LOCK Remote Functionality

Press the



LEFT +



RIGHT buttons on the

hardwired remote simultaneously or press the

/button on the wireless remote.

A BLUE backlight on the hardwired remote

indicates the remote functionality is LOCKED. A

RED backlight indicates the remote functionality

is UNLOCKED and both the wired and

hardwired remotes will function.

Page 4 of 5

PTB-1 Pan Tilt Base

Specifications

Materials Aluminum die-casting/Aluminum Plate

Color Black

Rotating angle Pan 0˚to 355˚±5˚, Tilt -60˚to +30˚±5˚

Rotating speed Pan 6.2˚/sec ± 0.6˚, Tilt 3.1˚/sec ± 0.6˚

Loading weight 66 lbs. at 70mm from Tilt table surface to center gravity

Power Consumption Pan: 6W, Tilt: 15W

Operating Temperature -25°C to + 50˚C

Weight 24 lbs.

Dimensions 12" L x 10" H x 8" W

Rating IP54

Page 5 of 5

PTB-1 Pan Tilt Base

Command Protocols

No Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7

1Command FFh Receiver ID 00h 04h DATA1 DATA2 CHECKSUM

Description

2Command FFh Receiver ID 00h 02h DATA1 DATA2 CHECKSUM

Description

3Command FFh Receiver ID 00h 08h DATA1 DATA2 CHECKSUM

Description

4Command FFh Receiver ID 00h 10h DATA1 DATA2 CHECKSUM

Description

5Command FFh Receiver ID 00h 20h 00h 00h CHECKSUM

Description

6Command FFh Receiver ID 00h 40h 00h 00h CHECKSUM

Description

7Command FFh Receiver ID 01h 00h 00h 00h CHECKSUM

Description

8Command FFh Receiver ID 00h 80h 00h 00h CHECKSUM

Description

9Command FFh Receiver ID 00h 00h 00h 00h CHECKSUM

Description

10 Command FFh Receiver ID 00h 03h 00h PRESET ID CHECKSUM

Description

11 Command FFh Receiver ID 00h 05h 00h PRESET ID CHECKSUM

Description

12 Command FFh Receiver ID 00h 07h 00h PRESET ID CHECKSUM

Description

13 Command FFh Receiver ID 00h 0Fh 00h 00h CHECKSUM

Description

14 Command FFh Receiver ID 00h 09h 00h 01~02h CHECKSUM

Description

15 Command FFh Receiver ID 00h 0Bh 00h 01~02h CHECKSUM

Description

Command

PAN LEFT

DATA1:PAN SPEED(00~3Fh),DATA2:TILT SPEED(00~3Fh)

PAN RIGHT

TILT DOWN

DATA1:PAN SPEED(00~3Fh),DATA2:TILT SPEED(00~3Fh)

TILT UP

AUX OFF

AUX ON

ZOOM TELE

ZOOM WIDE

FOCUS NEAR

SETPRESET

PRESET ID=00~7Fh

FOCUS FAR

P/T/Z/F STOP

GOTO PRESET

PRESET ID=00~7Fh

CLEAR

PRESET

PRESET ID=00~7Fh

REMOTE

RESET
