Larson Electronics GL-9900 Handbuch

Wireless Remote Controlled LED

Spotlight - Perm. Mount

INSTRUCTION GUIDE

Part# GL-9900

Congratulations

You are now the owner of one of the ﬁnest remote control searchlights available today. Thank you for

letting Larson Electronics assist you in your lighting application needs. We're proud of our products and

the technology that we've developed to ensure our customers the most durable, versatile and powerful

searchlights in the lighting industry.

Please read these instructions before using your new Remote Control Spotlight from Larson Electronics.

The GL-9900 is a Portable Searchlight designed to

be permanently or temporarily attached to a vehicle

for your specific use. The 2-Speed Searchlight with

Directional Flexibility is controlled by a wireless

remote, which gives the operator a full 370°

horizontal rotation and a 135° vertical tilt with

fingertip control. The GL-9900 provides superior light

penetration with state of the art LED technology.

GL-9900 Hard Wired - Permanent Mount:

GL-9900 Searchlight

Wireless Remote Control

Permanent Mounting Shoe

(Press spring lock to release and remove light.)

Permanent Mounting Gasket

MOUNTING INSTRUCTIONS

Temporary (Suction):

1. Always clean mounting surface with a clean

cloth.

2. Remove light from permanent mount shoe by

depressing spring-loaded lock and sliding light

out.

3. Place suction base on clean, dry surface and

move side lever into the locked position.

WARNING: Check the suction cup frequently to

ensure that suction strength is maintained.

Temperature variations, rough terrain, grease and

dirt affect the length of time that the suction cup will

remain in place. Suction mounting is not

recommended for road use.

Permanent:

1. On clean, dry surface, place gasket and shoe

in desired location. Using 3/16” screws, attach

shoe to vehicle.

2. Slip the Golight into the shoe. Verify that the

spring lock secures the Golight into the shoe.

An optional magnetic mounting shoe is

available (see web store).

Route the power cord into the vehicle through a

door frame and connect to 12V power outlet.

PROGRAMMABLE REMOTE INSTRUCTIONS

The GL-9900 is controlled with a programmable

remote with 2187 different channels. This feature

allows you the freedom to change the channel

selection, and the receiver relearns the new

selection.

PROGRAMMING THE TRANSMITTER.

This light has been pre-programmed at the factory, it

is not necessary to re-program the transmitter, but is

recommended.

PROGRAMMABLE REMOTE INSTRUCTIONS

The GL-9900 Light is controlled with a programmable

remote with 2187 different channels. This feature

allows you the freedom to change the channel

selection, and the receiver re- learns the new

selection. This light has been pre-programmed at the

factory, and it is not necessary to re-program the

transmitter, unless you experience outside

interference. To program transmitter:

1.IMPORTANT Disconnect power.

2.Remove battery cover from remote control.

3.Set the 7 dip switches to a selection of your

choice. There are 3 positions on each; positive,

negative and neutral. Use a small screwdriver and

select a position for each dip switch. *Please note

that the orientation of the +/- switch positions may

vary among different models of wireless remote

controls.

4.Insert both GP 23A 12V batteries. Be sure

batteries have adequate charge.

5.Replace battery cover.

a. Depress the on/off button and hold it down.

Red LED will light.

b. While holding the on/off button down,

reinstall the power (replace fuse or connect

vehicle battery).

c. Keep on/off button depressed for 5-6

seconds, and then release. The light should

now be programmed.

BATTERY INSTALLATION AND REMOVAL FOR

TRANSMITTER

Remove Battery Cover: remove the Phillips head

screw securing the battery cover then remove the

cover. With the battery compartment now exposed,

insert batteries according to correct polarity.

Remove the batteries by gripping the positive end of

each battery and lifting.

Use only 12v-A23 batteries in the Golight remote

control

OPERATION OF GL-9900

1.Place your light into the mounting shoe or attach

to the outside of your vehicle (see mounting

instructions).

2.Plug light into your vehicle’s cigarette lighter outlet

or 12 Volt direct battery hookup.

3.Using the remote control, turn on the light by

depressing the on/off button.

4.With the 4-way arrows on the remote control,

rotate your light to the desired location.

Depending upon conditions, the wireless remote

may be used up to 80 feet from the GL-9900.

5.The speed of the light rotation can be controlled

by depressing the tortoise/hare button one time

and by depressing it again to restore the original

speed.

6.Unplug and remove light from vehicle. Store the

light and remote control in optional carrying case

when not in use to extend the life of your GL-

9900.

USAGE:

» This light is intended for off-road and utility use only

» This light is intended to be mounted outside the

vehicle while in use

» This light may only be disassembled and repaired

by an authorized representative

MISUSE:

» This light is not approved for road or highway use

» This light is not approved for underwater use

» This light is not approved for inverted mounting

» This light is not approved for use inside a vehicle or

enclosure and power should be disconnected prior to

placing the light in such circumstance

» This light may be damaged if operated in icing

conditions

» This light may only be dismantled by an authorized

Larson Electronics representative.

» Any violation of the above referenced misuses

will be considered grounds for warranty refusal

IMPORTANT SAFETY INFORMATION

This symbol is to alert you to important operating

or servicing instructions that appear in your

instructions.

Always follow basic safety

precautions when using

this product to reduce the

risk of injury, fire or electric shock.

This light is for off road and utility use only. It

is not designed for road use as a driving light.

The GL-9900 complies with Part. 15.105 of the

FCC Rules. This equipment has been tested and

found to comply with the limits for a Class B

digital device. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed and

used in accordance with the instructions, may

cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encouraged

to try to correct the interference by one or more

of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment

and receiver.

•Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced

radio/TV technician for help.

FCC RULE Part. 15.21 - Changes or

modiﬁcations made by the user not expressly

approved by Larson Electronics, LLC. for

compliance could void the user’s authority to

operate the equipment.

PARTS / ACCESSORIES

Contact manufacturer for GL-9900 parts and

accessories.

Should further information not covered by these

instructions be required, please contact Larson

Electronics at 1-800-369-6671 or

sales@larsonelectronics.com for further assistance.

Please visit LarsonElectronics.com for Warranty

and Return information.

Dieses Handbuch passt für folgende Modelle

Andere Larson Electronics Arbeitsleuchte Handbücher

Larson Electronics

Larson Electronics EPL-BS-70LED-6XMB-150X12 Handbuch

Larson Electronics

Larson Electronics EPL-FL-26 Bedienungsanleitung

Larson Electronics

Larson Electronics LEDP5W-12LT Bedienungsanleitung

Larson Electronics

Larson Electronics EHL-LED-15W-50-HR Bedienungsanleitung

Larson Electronics

Larson Electronics WAL-WBC-500LTL-LED-100 Bedienungsanleitung

Larson Electronics

Larson Electronics WDL-12-IPS-LED-1227 Bedienungsanleitung

Larson Electronics

Larson Electronics EHL-LED-7W-25-1523 Bedienungsanleitung

Larson Electronics

Larson Electronics WAL-SBDL-WP60E-XX-1227 Bedienungsanleitung

Larson Electronics

Larson Electronics EPL-QC-16C-2X50LED-RT-100 Bedienungsanleitung

Larson Electronics

Larson Electronics WAL-DL-60LED-M-GCR50-SP0002 Bedienungsanleitung

Larson Electronics

Larson Electronics WL-LED-12-M Bedienungsanleitung

Larson Electronics

Larson Electronics WAL-QP-2X500LTL-LED-100 Bedienungsanleitung

Larson Electronics

Larson Electronics WAL-TP.S-2XRL16-LED Bedienungsanleitung

Larson Electronics

Larson Electronics WAL-BP-3XLED-CPR Bedienungsanleitung

Larson Electronics

Larson Electronics RSLED Bedienungsanleitung

Larson Electronics

Larson Electronics EPL-16C-1MLED Bedienungsanleitung

Larson Electronics

Larson Electronics EPL-QC-16C-2X50LED-RT-X12V-C1D1-12.3-100-EPP Bedienungsanleitung

Larson Electronics

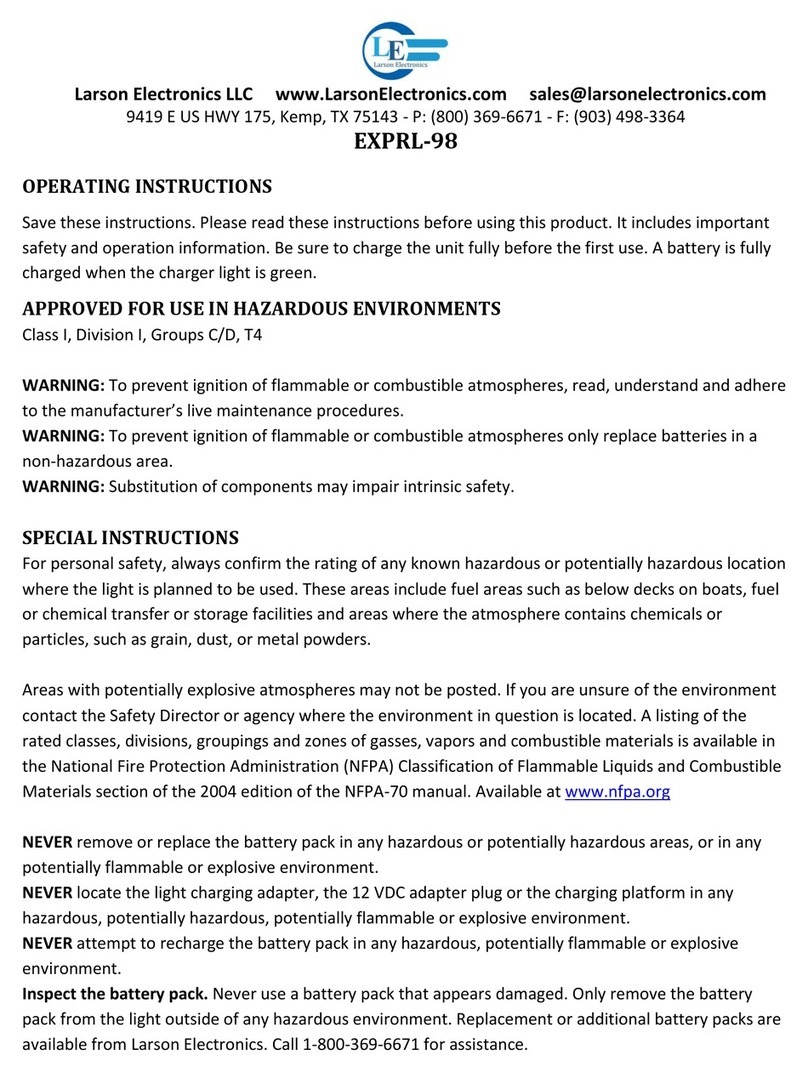

Larson Electronics EXPRL-98 Bedienungsanleitung
