Laserworld Ecoline Series Bedienungsanleitung

Manual / Bedienungsanleitung

Ecoline Series

EL-200RGY

Please spend a few minutes to read this manual fully

before operating this laser!

Bitte lesen Sie diese Bedienungsanleitung sorgfältig

vor Inbetriebnahme dieses Showlasersystems!

rev. 04/2014

English

Deutsch

Manual: EL-200RGY

page 2 / 18

Rechtlicher Hinweis:

Die Firma Laserworld AG behält sich das

Recht vor, Änderungen an ihren Produkten

vorzunehmen, die der technischen Weiter-

entwicklung dienen. Diese Änderungen wer-

den nicht notwendigerweise in jedem Einzel-

fall dokumentiert.

Diese Betriebsanleitung und die darin ent-

haltenen Informationen wurden mit der ge-

botenen Sorgfalt zusammengestellt. Die Fir-

ma Laserworld AG übernimmt jedoch keine

Gewähr für Druckfehler, andere Fehler oder

daraus entstehende Schäden.

Die in dieser Bedienungsanleitung genann-

ten Marken und Produktnamen sind Waren-

zeichen oder eingetrageneWarenzeichen der

jeweiligen Titelhalter.

Legal notice:

Thank you for purchasing this Laserworld

product. Due to continual product develop-

ments and technical improvements, Laser-

world (Switzerland) AG reserves the right to

make modications to its products.

This manual and its content have been made

with due care but Laserworld (Switzerland)

AG cannot however, take any responsibility

for any errors, omissions or any resulting da-

mages forthwith.

The brands and product names mentioned

in this manual are trade marks or registered

trade marks of their respective owners.

Manual: EL-200RGY

page 3 / 18

Content:

1. Product and package contents

2. Preliminary warning notices

3. Initial operations, safety instructions

4. Working on the device

5. Service notes

6. Warnings and other notices on the device

7. Device connections

8. Operation

Final statement

Technical data sheet

Laser specications

Manual: EL-200RGY

page 4 / 18

1. Scope of delivery & details

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 1 x manual

1 x power cable 2 x key

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see in-

formation on device & in this manual.

2. Make sure that the device is not connec-

ted to mains during installation.

3. Installation has to be done by technical

experienced and qualied persons ac-

cording to safety regulations of the res-

pective country.

4. Always ensure that maximum permis-

sible exposure (MPE) is not exceeded

in areas accessible to the public or

members of sta.

5. In some countries an additional ins-

pection by technical control institutes

could be necessary.

6. Connect an easily accessible inter-

lock connector or circuit breaker

to the projector.

7. The power supply should be easily acces-

sible.

8. When installing the laser mount it with

a minimum distance of 15 cm from walls

and objects.

9. For safe setup e.g. on walls or ceilings

please use a safety cord. The safety cord

should be able to withstand tenfold the

weight of the device. Please follow the

accident prevention regulations of pro-

fessional associations and/or comparable

regulations for accident prevention.

10. If the device has been exposed to great

temperature changes, do not switch it

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.

2. Do not use the device if there are any visible damages on housing, connector panels,

power supplies or power cords.

3. Never look directly into the light source of a laser projector. Danger of damage to the

eyes or even blindness in extreme circumstances!

4. Do not operate the device at high humidity, in the rain or in dusty environments.

5. Protect device against dripping or splashing water. Do not place any liquid lled

containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered

with in any way.

Manual: EL-200RGY

page 5 / 18

on immediately. Condensation (or any

moisture/water formed)may damage this

device.

11. Never use dimmer, RC or other electroni-

cally switched sockets. Whenever possib-

le, do not use the laser projector together

with large appliances (especially fog ma-

chines) on the same mains!

12. Ensure sucient ventilation and do not

place the device on any warm or heat ra-

diating surface. Especially the ventilati-

on openings must not be covered!

13. Ensure that device does not get over-

heated. Make sure that the device is not

exposed to spotlights (especially moving

heads). Heat of spotlights could overheat

laser in a little while and leads to a degra-

dation of performance.

4. Working on the device

1. This product has no user serviceable parts inside and should

only be maintained and serviced by a qualied engineer.

2. Be sure that the mains plug is not connected to the power

supply while installing or opening the device (e.g. for

cleaning).

3. Take o all reecting things like rings, watches etc. befo-

re starting to work with or at the projector.

4. Only use non-reecting tools to work on device.

5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wave-

length of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of

the laser system dramatically and expires

any warranty claim.

• Quick on/o switching of this device will

reduce durability of the laser diode dra-

matically.

• Avoid sharp knocks and shocks to this

device and ensure sucient protection

during transportation. Look after your La-

serworld product.

• To increase durability of your laser,

protect device against overheating:

-Always ensure sucient ventilation.

-Do not face spotlights (especially mo-

ving heads) to the device.

-Check temperature after approx. 30

minutes with each new installation.

If necessary install the projector at a

place with dierent temperature.

-Keep the device dry. Protect it from

moisture, rain and damp.

-Switch o device when it is not nee-

ded. Diodes are switched on and can

wear out even if there is no visible la-

ser output.

• Open the device at regular intervals and

remove any dust, particularly around fans

and laser. Otherwise the risk of overhe-

Manual: EL-200RGY

page 6 / 18

ating is imminent and will void the war-

ranty.

• If there are traces of fog uid in the pro-

jector, clean it and change the position of

the fog machine.

• The devices of Ecoline, Evolution, Club

and Proline Series are not meant for pro-

fessional applications. After approx. one

hour of operation, the device should cool

down for about 15 minutes.

• As for troubleshooting, please check the

FAQ on our website www.laserworld.com

• Removal of the warranty label as well

as damages to the device caused by

improper handling, neglect of the sa-

fety instructions and service notes will

void the warranty.

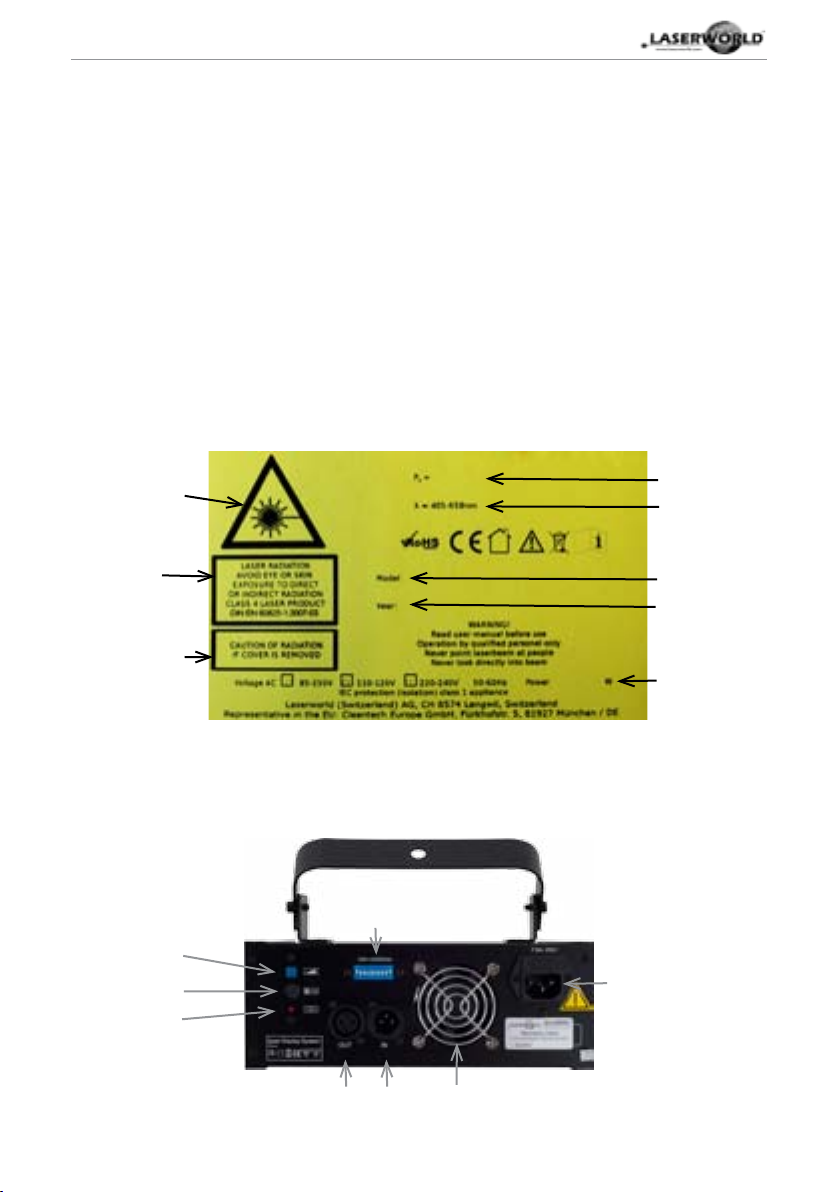

6. Warnings and other notices on the device

Laser radiation!

Avoid exposure

to beam.

Laser class 3b

Caution of

radiation if cover

is removed Power supply

& consumption

Model type

Wavelength

Output power

Production

year

Please read manual before operation

Use in enclosed spaces only!

7. Device connections

connection for power

supply

trim pot for

music-sensitivity

DMX address

DMX out DMX in

microphone

LED signal

fan

Manual: EL-200RGY

page 7 / 18

8. Operation

1. Connect the power cable to the device and then to the mains

2. Insert key and turn it‚ON‘

3. Press„ON“ to switch the device on

4. Your device runs in auto mode:

5. Your device runs in music mode:

Control the music-sensitivity by the trim pot at the front side of the device. The LED is

ashing when the device is triggered.

6. Your device runs in DMX mode if ‘10‘ is switched o:

Connect a DMX controller to operate the laser.

Use the switches 1 - 9 to set the DMX address of the laser. Each switch represents a num-

ber. To dene a number use the preceding number and multiply it by 2:

The laser uses 13 DMX channels, so make sure that the next device uses an address that

doesn’t overlap with this range.

Switch 12345678910

Number 1 2 4 8 16 32 64 128 256 Mode Switch

Manual: EL-200RGY

page 8 / 18

Channel Value Function

1 0 - 63 Laser o

64 - 125 Sound mode

126 - 191 Automatic mode

192 - 255 DMX mode

2 0 - 255 Pattern selection

3 0 - 255 Strobe eect

4 0 - 255 Point speed

5 0 - 255 x axis positioning

6 0 - 255 y axis positioning

7 0 - 255 Zoom / size

8 1- 39 Color: yellow

40 - 79 Color: red

80 - 119 Color: green

120 - 159 original pattern

160 - 199 color change

9 above 200 Reset (shortly)

10 1 - 79 drawing (increasing part of the pattern)

80 - 119 see above: automatically with increasing speed

120 - 255 change color

11 0 - 150 mirorring y axis (increasing part of the pattern)

151 - 255 see above; automatically

12 0 - 180 Rotation around its own axix (clockwise)

181 - 217 Auto-rotation around its own axix (clockwise)

218 - 255 Auto-rotation around its own axis (counter

clockwise

13 0 - 100 pattern (starting from rigth to left)

101 - 130 see above (automatically)

131 - 255 see above (automatically incl. color changing)

Please note that not each pattern can be combined with each eect.

7. To turn o the device switch it o („OFF“), switch the key to‚OFF‘ and disconnect the

power cable from the mains.

Manual: EL-200RGY

page 9 / 18

Final statement

Laserworld products are tested and product packaging is inspected before leaving our

warehouse.

Users must to follow the local safety regulations and warnings within this manual and adhere

to any regulations within its place of use. Damages through inappropriate use will void any

liability or warranty of our products.

Due to continual product developments, please check for the latest update of this product

manual at www.laserworld.com. If you do have any further questions, then please contact

your dealer/place of purchase or use our contact section on our website.

For service issues, please contact your dealer/place of purchase and ensure only genuine

Laserworld spare parts are used in any service repairs.

Errors and Omissions excepted and products are subject to change.

Laserworld (Switzerland) AG

Kreuzlingerstrasse 5

8574 Lengwil-Oberhofen

SWITZERLAND

Registered oce:

8574 Lengwil-Oberhofen / Switzerland

Company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

CEO: Martin Werner

VAT no. (Switzerland): 683 180

UID (Switzerland): CHE-113.954.889

VAT no. (Germany): DE258030001

WEEE-Reg.-No. (Germany): DE 90759352

www.laserworld.com

[email protected]

representative according to EMVG:

Cleantech Europe GmbH

Managing Director: Thomas Schulze

Fürkhofstr. 5

81927 München / GERMANY

Manual: EL-200RGY

page 10 / 18

Inhaltverzeichnis:

1. Lieferumfang & Hinweise

2. Einleitende Warnhinweise

3. Schritte zur Inbetriebnahme, Sicherheitshinweise

4. Sicherheitshinweise für Arbeiten am Gerät

5. Pege- und Wartungshinweise

6. Warnhinweise und Spezikationen am Gerät

7. Geräteanschlüsse & Bedienelemente

8. Bedienung

Abschließende Erklärung

Technische Daten

Laserleistungsdaten

Andere Handbücher für Ecoline Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Laserworld Beleuchtungsausrüstung Handbücher

Laserworld

Laserworld GREEN-2000 Bedienungsanleitung

Laserworld

Laserworld CS-300G DMX Bedienungsanleitung

Laserworld

Laserworld FX Series Bedienungsanleitung

Laserworld

Laserworld Club Series Bedienungsanleitung

Laserworld

Laserworld EL 200 LED Bedienungsanleitung

Laserworld

Laserworld GREEN-1500 Bedienungsanleitung

Laserworld

Laserworld Ecoline SeriesEL-200RGY Bedienungsanleitung

Laserworld

Laserworld 25K Bedienungsanleitung

Laserworld

Laserworld Evolution Series Bedienungsanleitung

Laserworld

Laserworld Club Series Bedienungsanleitung

Laserworld

Laserworld Club Series Bedienungsanleitung

Laserworld

Laserworld RS 400 G US Bedienungsanleitung

Laserworld

Laserworld GREEN-100 Bedienungsanleitung

Laserworld

Laserworld Evolution ES-600B Bedienungsanleitung

Laserworld

Laserworld PRO-350R-650 Bedienungsanleitung

Laserworld

Laserworld EL-60 G Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Laserworld

Laserworld EL-500RGB KeyTEX Bedienungsanleitung

Laserworld

Laserworld HIGH PRO-OEM Bedienungsanleitung

Laserworld

Laserworld Proline PRO-800RGB Bedienungsanleitung

Laserworld

Laserworld MH-OEM Bedienungsanleitung

Laserworld

Laserworld Pro-3000RGB Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Laserworld

Laserworld Ecoline Series Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung

Silvair

Silvair MESH-CEDRP Bedienungsanleitung
