Laserworld GREEN-600 Bedienungsanleitung

GREEN-600

USER MANUAL

Please read this manual carefully before you initially start-up!

USER MANUAL: Laserworld GREEN-600

Date: 01/2008

Page

DAN ER LASER RADIATION!

A oid direct eye exposure!

Laser radiation can cause eye damage and/or skin damage

All protecti e measures for a safe operation of this laser must be applied.

1. SAFETY INSTRUCTIONS

- If the de ice has been exposed to drastic temperature fluctuation, do not

switch it on immediately. The arising condensation water might damage your

de ice. Lea e the de ice switched off until it has reached room temperature.

- The laser must only be used for shows. The operation is only allowed if it is

controlled by a skilled and well-trained operator.

- Ne er lea e this de ice running unattended and keep it away from children

and unauthorized persons.

- Keep away from heaters and other heating sources. In order to safeguard

sufficient entilation, lea e 50 cm of free space around the de ice.

- Ne er direct the laser beam to people or animals.

- CAUTION LASER DIODE: Ne er unscrew the housing!

There are no ser iceable parts inside the de ice. Maintenance and ser ice

operations shall only be carried out by authorized dealers.

- Always disconnect from the mains when the de ice is not in use or before

cleaning it.

- HEALTH HAZARD! Never look directly into the light source, as

sensitive persons may suffer an epileptic shock!

USER MANUAL: Laserworld GREEN-600

Date: 01/2008

Page

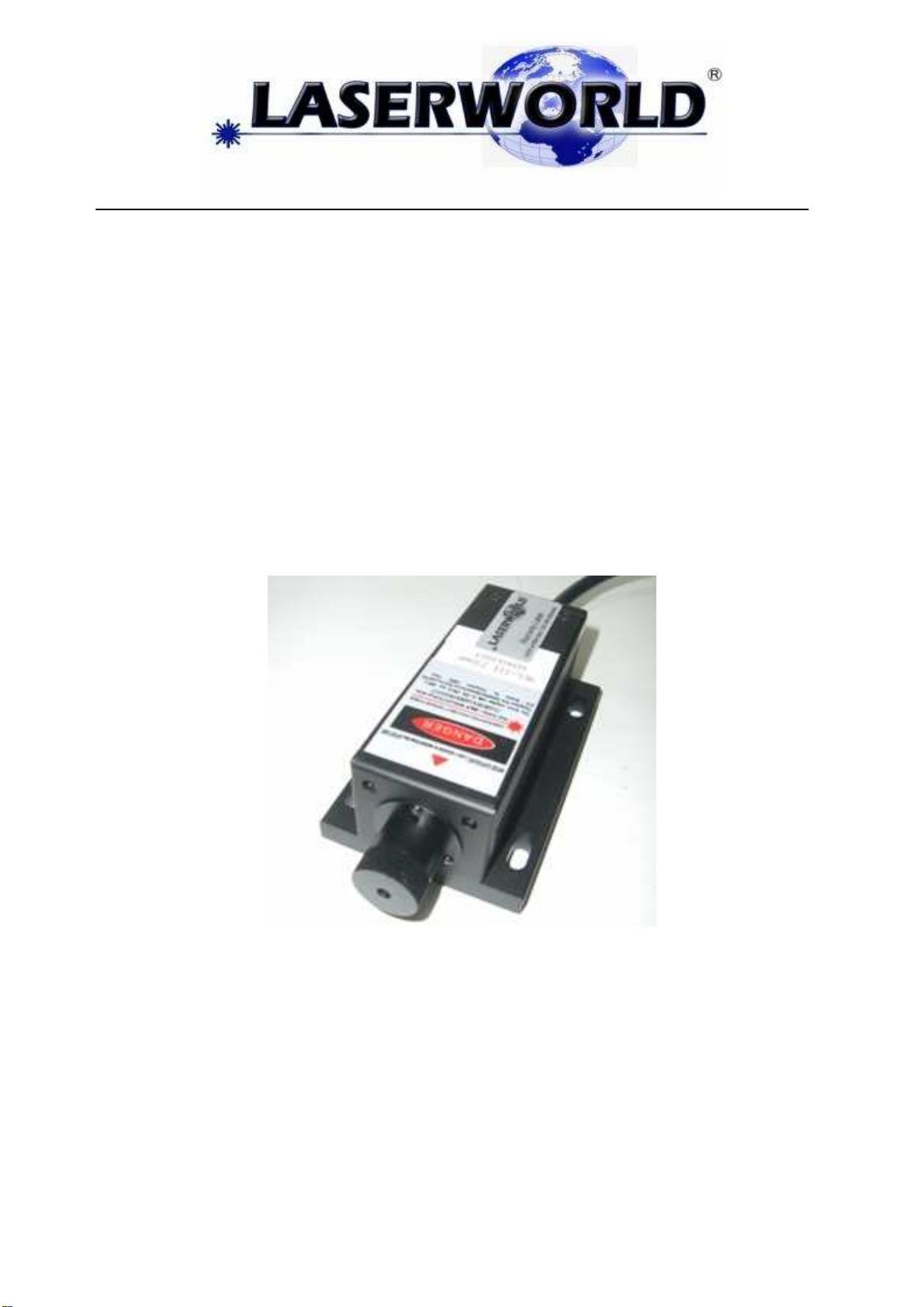

reen diode pumped solid state lasers:

REEN-600

Low cost solid state 532 green laser - used in collimation, laser medical

treatment, scientific experimentation, optics instrument, laser display, and

lighting etc.

Technical Specifications:

•

low cost laser diode with analogue modulated PSU

•

GREEN: guaranteed: 500mW/532nm; typical: 600mw/532nm

•

Operating mode: CW

•

Warm-up time (minutes): <15min

•

Power stability (rms, over 4 hours): <5%

•

M2 factor: <1,2

•

Beam divergence, full angle (mrad): <1.5

•

Beam diameter at the aperture (mm): ~2mm

•

Beam height from base:24,8mm

•

Spectral linewidth: <0,1nm

•

Polarization ration: >100:1 (0 or 90 degree)

•

Operating temperature: 10-35°C

•

Expected lifetime: 10000 hours

•

Net weight of laser head (kg): 0.645

•

Dimensions of laser head (mm): 140,8mm x 73mm x 46,2mm

•

Dimensions: 135mm x 130mm x 61mm (L x W x H)

•

Power Supply: 110~230V 50/60 Hz

•

Analogue modulation: 10KHz

USER MANUAL: Laserworld GREEN-600

Date: 01/2008

Page

EU- Declaration of Conformity

We hereby confirm that the following de ice

Laserworld REEN-600

complies with the essential safety requirements, laid down in the regulations of the

committee to assimilate the pro isions of law of all participating EU states on the

electromagnetic compatibility (98/336/EWG).

The de ice has been classified considering the following EU-norms on

electromagnetic compatibility:

DIN EN 55103-1: 1996

DIN EN 55103-2: 1996

DIN EN 61000-3-2:2000 + A2: 2005

DIN EN 61000-3-3:1995 + A1: 2001

Assessment of compliance of the product with the requirements relating to the Low Voltage

Directi e (LVD) was based on the following standards:

DIN EN 60065 : 2002

This declaration is executed on behalf of the GREEN-600 Importer:

Laserworld (Switzerland) A

Oberstrasse 1

8274 Tägerwilen

SWITZERLAND

Authorized person:

Super isory board Ms Rhea Gössel

place of business: 8274 Tägerwilen / SWITZERLAND

company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

www.laserworld.com

info@laserworld.com

representati e according to EMVG:

Cleantech Europe GmbH

Managing Director: Thomas Schulze

Fürkhofstr. 5

81927 München / DE
