Laserworld GREEN-75E Bedienungsanleitung

GREEN-75E

USER MANUAL

Please read this manual carefully before you initially start-up!

USER MANUAL: Laserworld GREEN-75E

Date: 01/2008

Page

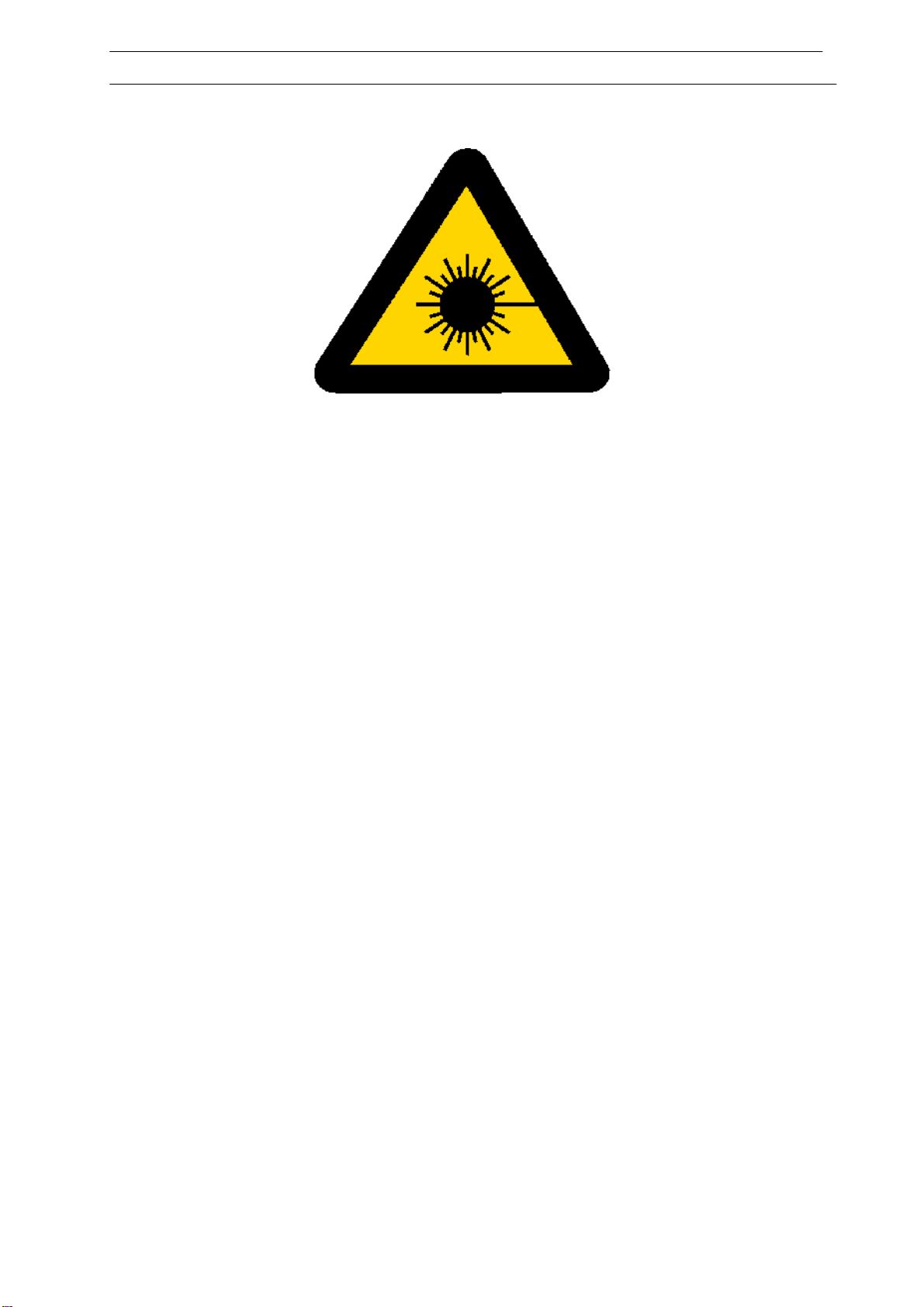

DAN ER LASER RADIATION!

Avoid direct eye exposure!

Laser radiation can cause eye damage and/or skin damage

All protective measures or a sa e operation o this laser must be applied.

1. SAFETY INSTRUCTIONS

- I the device has been exposed to drastic temperature luctuation, do not

switch it on immediately. The arising condensation water might damage your

device. Leave the device switched o until it has reached room temperature.

- The laser must only be used or shows. The operation is only allowed i it is

controlled by a skilled and well-trained operator.

- Never leave this device running unattended and keep it away rom children

and unauthorized persons.

- Keep away rom heaters and other heating sources. In order to sa eguard

su icient ventilation, leave 50 cm o ree space around the device.

- Never direct the laser beam to people or animals.

- CAUTION LASER DIODE: Never unscrew the housing!

There are no serviceable parts inside the device. Maintenance and service

operations shall only be carried out by authorized dealers.

- Always disconnect rom the mains when the device is not in use or be ore

cleaning it.

- HEALTH HAZARD! Never look directly into the light source, as

sensitive persons may suffer an epileptic shock!

USER MANUAL: Laserworld GREEN-75E

Date: 01/2008

Page

reen diode pumped solid state lasers:

REEN-75E

Low cost solid state 532 green laser - used in collimation, laser medical

treatment, scientific experimentation, optics instrument, laser display, and

lighting etc.

Technical Specifications:

•

low cost laser diode & TTL PSU

•

GREEN: ca. 75mW/532nm

•

Wavelength (nm): 532

•

Output power (mW): 75mW

•

Operating mode: CW

•

Warm-up time (minutes): <1min

•

Power stability: <10%

•

Beam divergence, full angle (mrad): <1.5

•

Beam diameter at the aperture (mm): 1,5

•

Operating temperature: 10-35°C

•

Expected lifetime (hours): 5000

•

Net weight of laser head (kg): 0.1

•

Dimensions of laser head (mm): 30mm * 30mm * 80mm

•

Power Supply: 220V 50/60 Hz

•

TTL modulation: 5V

USER MANUAL: Laserworld GREEN-75E

Date: 01/2008

Page

EU- Declaration of Conformity

We hereby con irm that the ollowing device

Laserworld REEN-75E

complies with the essential sa ety requirements, laid down in the regulations o the

committee to assimilate the provisions o law o all participating EU states on the

electromagnetic compatibility (98/336/EWG).

The device has been classi ied considering the ollowing EU-norms on

electromagnetic compatibility:

DIN EN 55103-1: 1996

DIN EN 55103-2: 1996

DIN EN 61000-3-2:2000 + A2: 2005

DIN EN 61000-3-3:1995 + A1: 2001

Assessment o compliance o the product with the requirements relating to the Low Voltage

Directive (LVD) was based on the ollowing standards:

DIN EN 60065 : 2002

This declaration is executed on behal o the GREEN-75E Importer:

Laserworld (Switzerland) A

Oberstrasse 1

8274 Tägerwilen

SWITZERLAND

Authorized person:

Supervisory board Ms Rhea Gössel

place o business: 8274 Tägerwilen / SWITZERLAND

company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

www.laserworld.com

in o@laserworld.com

representative according to EMVG:

Cleantech Europe GmbH

Managing Director: Thomas Schulze

Fürkho str. 5

81927 München / DE
