ENGLISH

1. PRECAUTIONS

Signs

Various warnings and cautions are provided throughout this manual along with signs.

Remember each sign and its explanation listed below for your safety and proper

operation of the unit.

Caution

Warning

Improper handling may cause electric

shock DANGER.

DO NOT disassemble the unit.

Don't sign.

Must-Do sign.

Be sure to remove the line cord plug

from the outlet.

Do not disassemble the unit. There is a high voltage present inside, possibly leading to an

electric shock.

Do not use any voltage of the power source other than designated.

Do not share a single outlet with another plug. These may lead to fire or shock hazards.

Do not damage, break, or modify the power cord. Do not put a heavy object on, yank, or

forcefully bend the cord, either. These may damage the cord, possibly resulting in a fire or

electric shock.

If any anomaly occurs, for example, heat or smoke is generated or obnoxious odor is emitted,

unplug the unit immediately and contact your dealer for servicing. There is a danger that

further use may cause a fire or electric shock.

Do not modify the unit. Modifications may cause a fire and/or electric shock.

Warning

Improper handlingmay causebodily accidents including

death andserious injury.

Improperhandling may harmthe human body or material.

This operation manual is prepared for safe and proper use of the unit.

Please follow all the instructions to avoid possible danger to yourself

or others and damage to the unit.

If foreign matter should get in the unit (including a piece of metal, water, or liquid),

disconnect the plug from the outlet immediately and contact your dealer for servicing. There

is a danger that further use may cause a fire or electric shock.

Do not place the unit on an uneven or tilted surface. This may result in injuries due to the unit

dropping or falling off.

Do not put a water-filled container or a metal object on top of the unit. If water is spilled or

the metallic object slips inside, a fire or shock hazard may be caused.

Do not place the unit near kitchen counter or humidifier. Oil, smoke, or steam generating

from them may cause fire or shock hazards.

Do not yank the power cord to disconnect from the outlet. Hold the plug with your hand to do

so, or the cord may be damaged, possibly leading to a fire or electric shock.

Remove the line cord plug from the outlet before transferring the unit, or it may damage the

cord, possibly leading to a fire or electric shock.

Make sure to insert the power plug as far as it will go. Improper insertion of the plug may

develop fire or shock hazards.

Do not insert or drop any other time card than specified into the slot. Such misuse may cause

a fire or electric shock.

If the unit should be dropped or the case be broken, unplug the unit and contact your dealer

for servicing. Further use may lead to a fire or shock hazard.

Be careful not to contact the print head as you may get hurt or burned .

Do not install the unit in a humid or dusty environment. It may cause a fire or electric shock.

Do not plug or unplug the unit with a wet hand. You may get an electric shock.

Daily Care

For cleaning, turn the power off and wipe the case clean of dust and dirt with a dry

cloth, etc.

Caution

Lithium battery contains perchlorate material - special handling may apply.

Please go to web site http://www.dtsc.ca.gov/hazardouswaste/perchlorate for information

about proper methods of disposal.

ENGLISH

2. FEATURES

The time table program provides the following functions:

Automatic switching between black and red printing

The two-color printing system makes it possible to easily see an

employee's in and out time.

Automatic activation of an external time signal

The unit can be programmed to externally putout a signal when

it's time to start or quit, or for breaks.

Automatic switching among six print columns (Columns 1-6)

The auto-switching function of a column to print records in

prevents punching failure or error.

It has selectable three pay periods, weekly, bi-weekly or monthly

pay period system.

Monthly card automatically sense the front or back of the card,

therefore assuring no erroneous date printing.

If the closing date for payroll processing does not fall on the end

of a month, the unit can be set to any desired closing date.

The day advance time function makes it possible to print out on

the same line of a time card for the previous working day even

when leaving the office after midnight.

An easy-to-see analog clock is provided on its front for users'

convenience.

User-friendly operation and easy setting enhances users' comfort.

You can usually obtain technical support and order

accessories from the store where you bought the clock.

To contact Lathem, go on-line to www.lathem.com or

call 800-241-4990 (404-691-1065 outside USA ).

Location of Controls

Daylight saving time indication

Current date

SU MO TU WE TH FR SA

Day of the week indication

Current time AM or PM

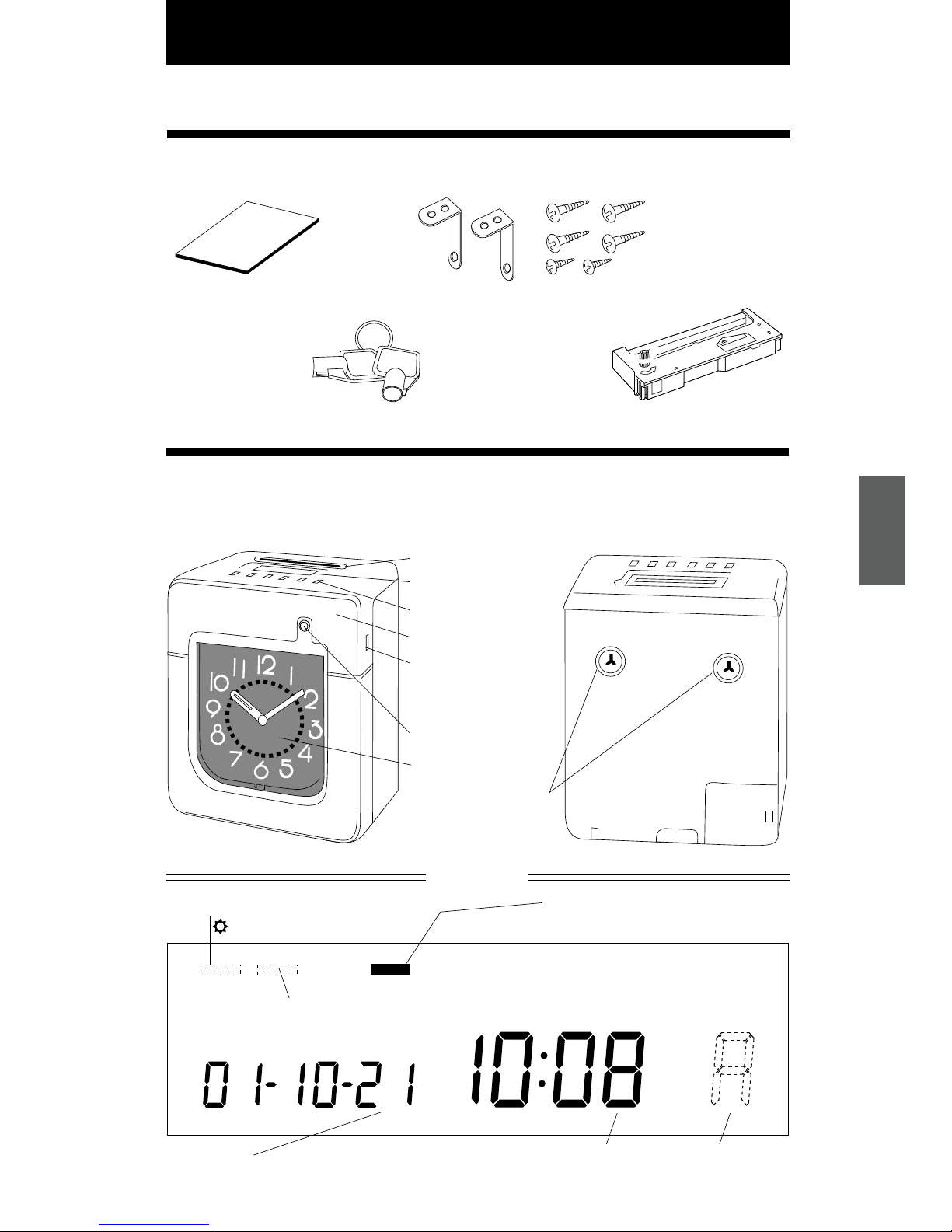

BEFORE USING TIME RECORDER

Accessories

Operation Manual Wall mount fittings

Ribbon cassette

Keys

Card slot

Display

Control button

Panel cover

Analog clock

Panel open button

(at both sides

of the unit)

Key hole

Wall-mounting

hole

12Hr.

12 HOUR indication

ENGLISH

Panel cover

Installing Ribbon Cassette

1 Unlock the unit. While holding

down the panel open buttons at both

sides of the unit, lift the panel cover

away from you.

2 Turn the knob on the cassette in the

arrow-indicated direction to make the

ribbon taut.

To insert the ribbon cassette inside

the unit, lift the panel house away from

you first. Then thread the ribbon

between the ribbon mask and the print

head. Slide the latch on the lower side

of the cassette into projections on the

unit. Then let the cassette snap into

place.

When having difficulty inserting the

ribbon, insert it while turning the knob.

Make sure that the ribbon is placed

between the print head and the ribbon

mask as illustrated in the figure at left.

Put the panel cover on the hook at

the back of the unit. Lower it toward

this side to close and lock the unit.

Panel cover

Panel open button

(at both sides of the unit)

Key hole

Panel house

Ribbon cassette

Print head

Ribbon

Ribbon mask

Mounting Unit on Wall

The unit can be mounted on a wall using the supplied mounting fittings. To mount the

unit on a wall, take the following steps:

The supplied screws are intended

for use on a thick wooden wall or

wooden column. Do not use

them on any other materials.

There is a danger that the unit

may come off etc.

1 Install the two larger screws into a wall

10 cm (3.94") apart. Be sure to keep about

3 mm (0.12") of the screw head out of the

wall.

2 Mount the wall mount fittings

as shown on the right.

Environmental Conditions

Avoid placing the unit in environments that are:

humid or dusty

exposed to direct sunshine

subject to frequent or continuous vibrations

outside the temperature range between -5˚ and 45˚C

affected by chemicals or ozone

3.94" (10cm)

0.12"

(3mm)

ENGLISH

Once the AC line cord is plugged into the outlet, the unit can be used immediately as

basic operation has been pre-set at the factory, including the time and the closing date.

See 3 BEFORE USING TIME RECORDER.

Do not let any metallic object get into the slot including paper clips. Do not

forcefully push in a card, either. These may cause the unit to malfunction.

4. DAILY OPERATIONS

It is easy to operate the unit. Just insert a time card. The card is then automatically

pulled in, printed and then ejected.

The unit is designed to print in black on the first column when no time table program

is set. Usually it is necessary to set the time table program in order to automatically

print colors and to change columns to print records in. For a temporary change of a

column, however, manual operation is also available: just push the button for any

desired column before inserting a time card.

The button for the column selected lights up.

If any setting needs to be changed, such as for a closing date or other items, See 5

SETTING.

Inhaltsverzeichnis

Andere Lathem Uhr Handbücher

Lathem

Lathem 900E Bedienungsanleitung

Lathem

Lathem 2000 - 4000 Series Bedienungsanleitung

Lathem

Lathem 100E Bedienungsanleitung

Lathem

Lathem 8800 Series Bedienungsanleitung

Lathem

Lathem 2121 Bedienungsanleitung

Lathem

Lathem TruAlign 800P Bedienungsanleitung

Lathem

Lathem DWA-4000 Bedienungsanleitung

Lathem

Lathem 700E Bedienungsanleitung

Lathem

Lathem PAYCLOCK PC50 Bedienungsanleitung

Lathem

Lathem 2000 - 4000 Series Bedienungsanleitung

Lathem

Lathem 4000 Series Bedienungsanleitung

Lathem

Lathem Airtime AT-DDC4 Bedienungsanleitung

Lathem

Lathem Airtime AT-DDC4 Bedienungsanleitung

Lathem

Lathem LTR4-512 Bedienungsanleitung

Lathem

Lathem DWA-4000 Bedienungsanleitung

Lathem

Lathem 2121 Bedienungsanleitung

Lathem

Lathem 1600E Bedienungsanleitung

Lathem

Lathem PC100-R Bedienungsanleitung

Lathem

Lathem LTR-512 Montageanleitung

Lathem

Lathem 2000 Bedienungsanleitung

Lathem

Lathem PC700 Bedienungsanleitung

Lathem

Lathem LTR4-512 Bedienungsanleitung

Lathem

Lathem 1000E Bedienungsanleitung

Lathem

Lathem DDC2-RS Bedienungsanleitung

Beliebte Uhr Handbücher anderer Marken

Silicon Laboratories

Silicon Laboratories SI5324 Bedienungsanleitung

Heathkit

Heathkit GC-1005 Bedienungsanleitung

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Bedienungsanleitung

Andrew O'Malley

Andrew O'Malley DOTKLOK Bedienungsanleitung

ALGE-Timing

ALGE-Timing ASC3 Bedienungsanleitung

Bodet

Bodet Profil 960 Bedienungsanleitung

Nixie Clock

Nixie Clock Divergence Meter Bedienungsanleitung

La Crosse Technology

La Crosse Technology WS-8256-AL Bedienungsanleitung

Mini Gadgets

Mini Gadgets MCPro Bedienungsanleitung

Casio

Casio TMR-200 Bedienungsanleitung

Progetti

Progetti ILTEMPOSTRINGE Handbuch

BVItech

BVItech BV-101 Bedienungsanleitung

Progetti

Progetti KALIMERO Handbuch

La Crosse Technology

La Crosse Technology WT-3141b Handbuch

La Crosse Technology

La Crosse Technology W86531 Bedienungsanleitung

Sharp

Sharp SPC900 Bedienungsanleitung

La Crosse Technology

La Crosse Technology 404-50447 Bedienungsanleitung

Datexx

Datexx DF0063 Bedienungsanleitung
