LCG LEAD PACK 14 Bedienungsanleitung

www.lc-group.ca

USER MANUAL

LEAD PACK 14

LCG-B314IP

(14x3W RGB 3-in-1)

www.lc-group.ca

Catalogue

1. Summary................................................................................................................ 3

2. Safety Instruction................................................................................................... 4

3. Outside Size Picture ............................................................................................... 5

4. Main Function ........................................................................................................ 6

5. DMX Control Function............................................................................................ 7

6. Display Operation instruction ................................................................................ 8

7. Infrared keyboard operation................................................................................ 13

8. Operating Control Instruction .............................................................................. 14

9. XLR cable connecting ........................................................................................... 14

10. Trouble Shooting.................................................................................................. 15

Please read over this manual before operating the light

LEAD PACK 14(LCG-B314IP)-User Manual

1. Summary

Summary

Thank you for purchasing our LEAD PACK 14. Please read these instructions carefully before begin

and

operate the fixtures according to these instructions to avoid any possible damages and

accidents causes

by misusage

Product introduction

LED LEAD PACK 14 light uses casting aluminum housing

, designed in a fashion of hydrodynamic

form.

Appearance shows. It adopts high power

3-in-1

LED, which refers to single LED is made of R,G,B

3-IN-1 LED, And long life span, low consumption, good

color mixing effect and high brightness are the

most prominent features. Each kind of LED can be independently dimmed. The built-in program includes

dimming, strobe, eotic, gradual change, fading and so on.

It uses power switch, performs low weight and

consumption, stable

capability and long life. International standard DMX 512 signal is requested.

Packing List

LEAD PACK 14 1 PC

DMX Signal Cable 1 Set

Power cable 1 PC

User Manual

Warranty Card

IR Remote Control

LEAD PACK 14(LCG-B314IP)-User Manual

2. Safety Instruction

Safety Notes

! Enquire the skilled people before any repair;

! Always make sure disconnect from the power source before setting up, serving and moving;.

!Avoid direct eye exposure to the fixture when it is on;

Safety instruction

●Make sure the power supply voltage are consistent with this lights，Ensure the use of voltage is in the range

of the request technical parameter.

●Before the installation, please check the light’s fasteners and mechanical structure have been received in

good condition and appear no damage.

●

This light is designed for indoor use;

working

temperature is lower than 40 degree.

●The fixtures maybe mounted in any position provided there is adequate room for ventilation. Make sure

there are no inflammable and explosive items (ornaments) in 0.5 meters away.

●Yellow / green cabling earthling safety; no flicker when the fixture is working on.

LEAD PACK 14(LCG-B314IP)-User Manual

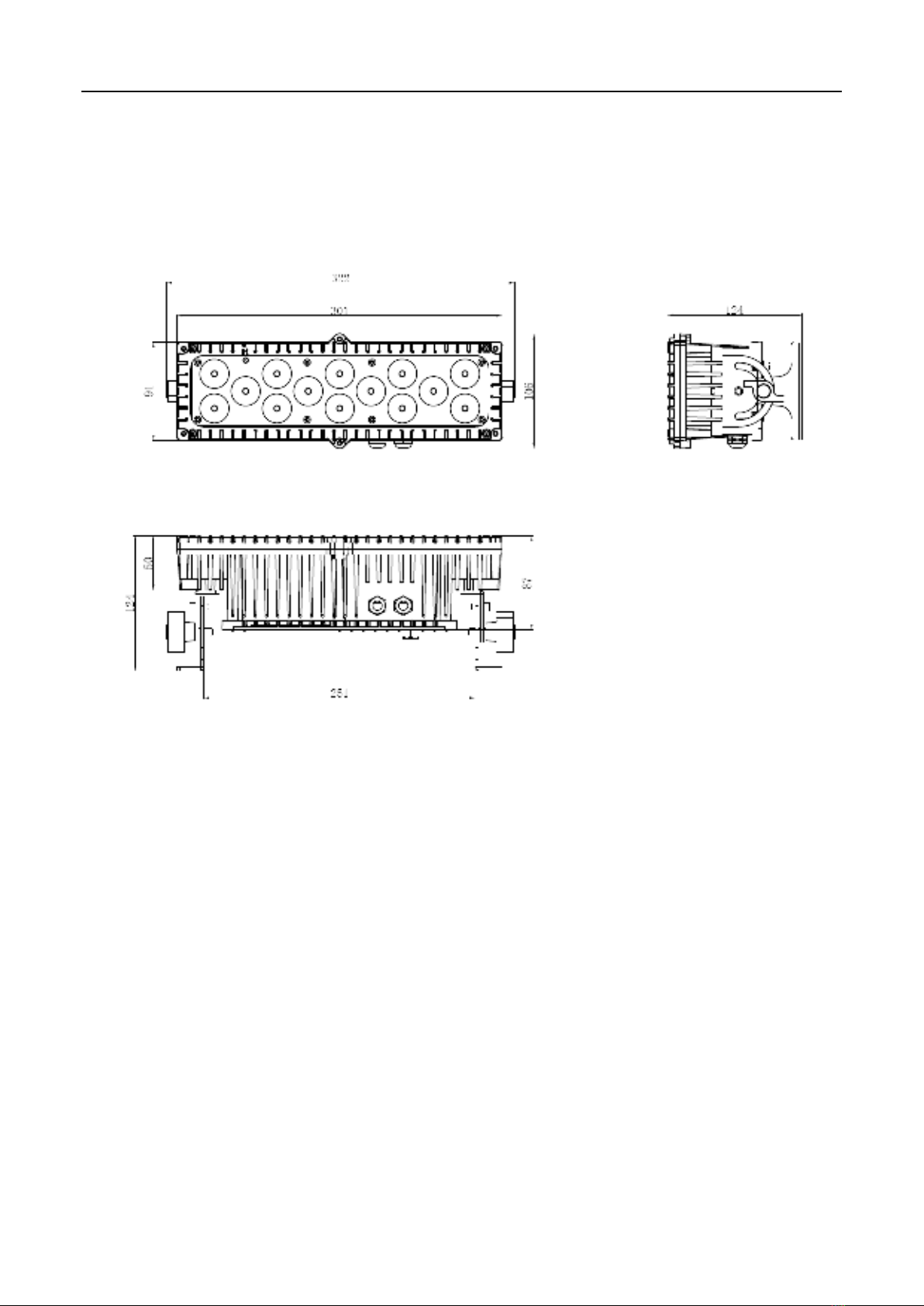

3. Outside Size Picture

LEAD PACK 14(LCG-B314IP)-User Manual

4. Main Function

Input voltage: AC 100V-264V/47-63HZ

Power Consumption：50W

Maximum Power: 50W

Lamp Type：3W LED 3-in-1 R、G、B

(14PCS)

Life span: 50000~100000hours

PWM Dimmer：1500HZ(16666 grades)

Control Signal：DMX512

Control mode：stand alone/ Master/Slaver

Infrared keyboard control

IR Remote Included

Channel：7CH/5CH/3CH

Function Effect: dimmer, strobe, gradual change

Touch buttons, automatic lock key

Cooling mode: Natural Convection

Anti-electricity intension：1.5KV

Insulation Resistance:>2MΩ

Beam Angle: 25°(15°,45°,60° Optional)

Net Weight: 2.4KG

IP Rate：IP65

Dimension: 30*8*9CM

LEAD PACK 14(LCG-B314IP)-User Manual

5. DMX Control Function

DMX Channels

3CH 5CH 7CH Value Function

CH1

0-255

Dim all

CH1

CH2

0-255

CH2 CH3 CH3 0-255 G

CH3 CH4 CH4 0-255 B

- - CH5

0-29 No effect

30-59

AUTO 1(R,G,B,RG,RB,GB)

60-89

AUTO 2(R

↑

↓

↑

↓

↑

↓

)

90-119 AUTO 3(R↑G↑,R↓G↓,R↑B↑,R↓B↓,B↑G↑,B↓G↓)

120-149 AUTO 4(R↑G↑B↑,R↓G↓B↓)

150-179 AUTO 5(Rainbow effect: B,BG↑,BG,B↓G,G,GR↑,GR,G↓

R,R,RB↑,RB,R↓B)

180-209 CHASE1

210-255 CHASE2

- - CH6 0-255 Auto speed, slow->fast

- CH5 CH7

0-5 No strobe

6-115 Normal strobe(slow to fast)(Synchronous)

116-130 Random burst strobe(slow to fast)(Asynchronous)

131-170 Electronic Sine wave(slow to fast)

171-210 Opening pulse(slow to fast)

211-250 Closing pulse(slow to fast)

251-255 No strobe

LEAD PACK 14(LCG-B314IP)-User Manual

6. Display Operation instruction

MENU : access the menu or return to a previous menu option

ENTER: select the current menu option

UP: menu selection or parameter increments

DOWN: menu selection or parameters decrease

Menu Tree

TAB

LEVEL1

LEVEL2

LEVEL3

LEVEL4

ADDR(Address)

001-512

STAT(Static

control) R 0-255 *

G 0-255 *

B 0-255 *

SHUT 0-255 *

SET(Set) CAL(Calibration) R 0-255

G 0-255

B 0-255

USE YES/NO

CHMD(Channel

mode) 7CH

5CH

3CH

DIM(Dimming

mode)

LIN(linear)/SQR(square

law)/ISQR(inverse square

law)/SCUR(S-curve)/LIN.(linear

smooth)/SQR.(square law

smooth)/ISQR.(inverse square

law smooth)/SCUR.(S-curve

smooth)

LEAD PACK 14(LCG-B314IP)-User Manual

LOCK YES/NO

AUTO(Auto) AT01 RUN.. *

. RUN.. *

AT05 RUN.. *

ATSP(Auto speed) 0-255(S)

CHS1（Chase 1）

RUN.. *

CHS2（Chase 2）

RUN.. *

PROG（Program）

CHS1（Chase 1）SC01（Scene 1）R 0-255

. . G 0-255

. . B 0-255

. . SHUT 0-255

. . AUTO NONE,AT01-AT05

. . ATSP 0-255(S)

. . TIME 0-255(S)

. . WAIT 0-25.5(S)

. . USE YES/NO

. SC25（Scene 25）

CHS2（Chase 3）

INFO

（Information)

SOFT(Software

version) Vx.x

POW(Power

reduction) xxx%

TEM(temperature) xxxC

LOAD(Load) ST L（

Setting load)

YES/NO

PR L（Program

load) YES/NO

SEND(Send) YES/NO

Instructions：

When enter to the “*” position displayed on the LED, the light will automatically set as master and send

data to external. Other fixtures can receive this data and will synchronously running without manually set as

slave. When power cycle it will jump to the “*” position and running again.And in these position it will not

return back to the default display after two minutes.

6.1 DMX ADDRESS SETTING

1) Press the 【ENTER】button in 【ADDR】menu, then enter to the DMX address setting.

2) Press the【UP/DOWN】button to select【1-512】numerical value.

LEAD PACK 14(LCG-B314IP)-User Manual

3) Press the【ENTER】button to escape and save.

6.2 STATIC SETTING

1) Press the【ENTER】button in 【S TAT】menu, then enter to the static setting.

2) Press the【UP/DOWN】button to select 【RED】，【GREEN】，【BLUE】and【SHUT】.

3) Press the【UP/DOWN】button to set up the【0-255】numerical value.

4) Press the【ENTER】button to escape and save.

6.3 COLOR CAST CALIBRATION SETTING

1) Press the【ENTER】button in 【CAL】menu, then enter to the color cast calibration setting.

2) Press the【UP/DOWN】button to select 【RED】，【GREEN】...【BLUE】

3) Press the【UP/DOWN】button to set up the【0-255】numerical value.

4) On the【USE】interface, pressing【YES】button means valid,【NO】means invalid.

5) Press the【ENTER】button to escape and save.

Illustrations: When pressing the【YES】button which means valid on the【USE】interface, the actual output value

of RED...WHITE is output in accordance with the percentage which the color cast calibration value divides 255.

6.4 CHANNEL MODE SETTING

1) Press the【ENTER】button in 【CHMD】menu, then enter to the channel mode setting.

2) Press the【UP/DOWN】button to select【7CH】，【5CH】，【3CH】

3) Press the【ENTER】button to escape and save.

6.5 DIMMING MODE SETTING

1) Press the【ENTER】button in【DIM】menu, then enter to the dimming mode setting.

2) Press the【UP/DOWN】button to select【LIN】，【SQR】，【ISQR】，【SCUR】，【LIN.】，【SQR.

】，【ISQR.】and【SCUR.】.

3) Press the【ENTER】button to escape and save.

Illustrations：When setting【LIN.】，【SQR.】，【ISQR.】and 【SCUR.】in 【DIM】menu, there will be

added a little delay dimming effect for smooth..

Dimming curve:

Linear curve: square law curve: Inverse Square law curve: S-curve:
