Installation steps
1. Bottom cover assembly
2. Frame installation
Flyball installation steps
6 through joints
connect to be
bottom half ball

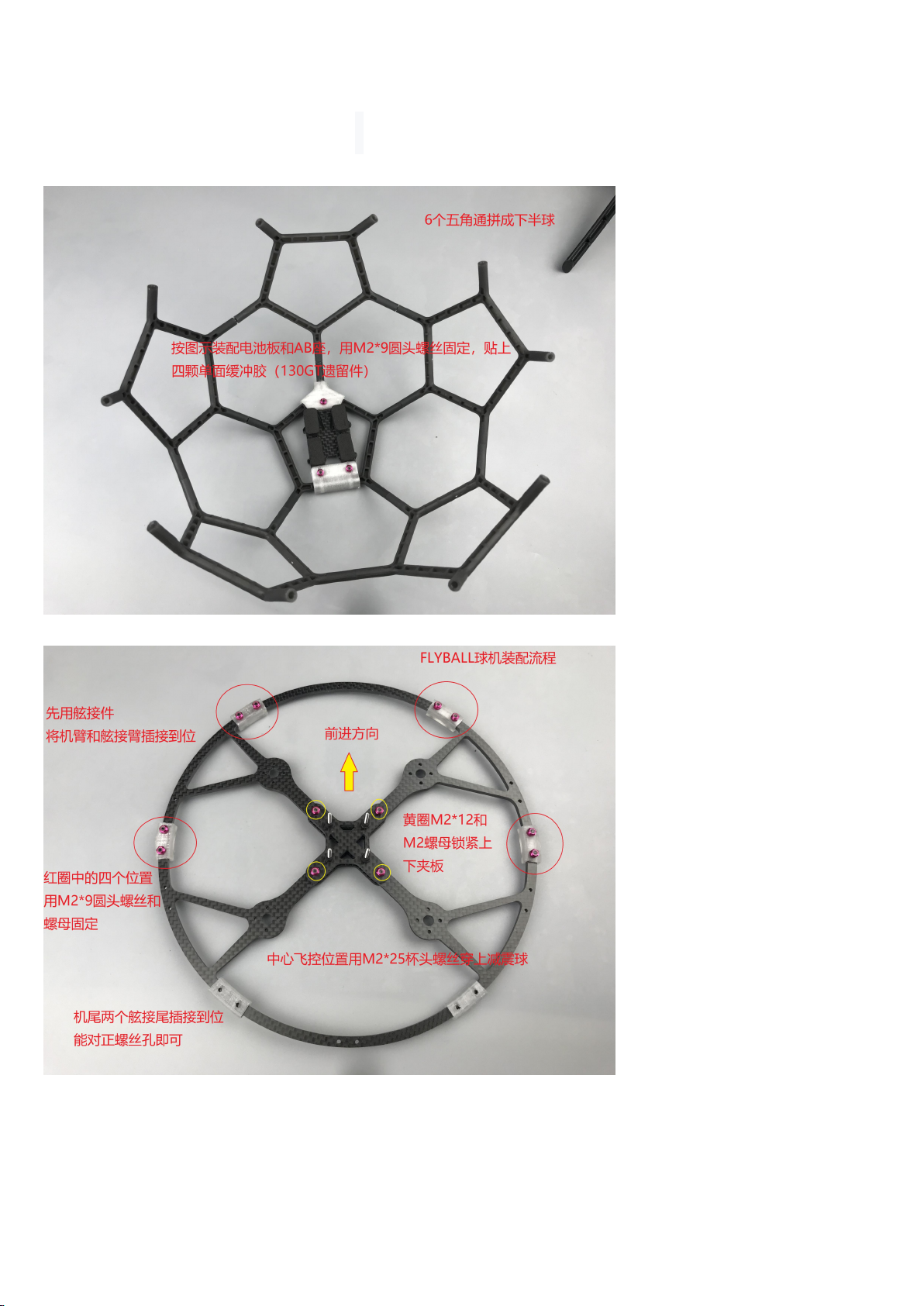

As shown in the figure,
the battery panel and
A-B block are assembled
by fixing with M2*9
screws, and affixed with
four single-sided buffer
glue (130GT leftover
pieces).
3. Soldering
Flyball soldering
Connect the two sections
of 16# power cord, weld
XT60, and set the heat
shrinkable tube for heat
sealing
Divided 300mm
red&black line into
two parts and added
tin at both ends.
Tin added on 12V
soldering joint
Set the heat
shrinkable tube to
heat seal

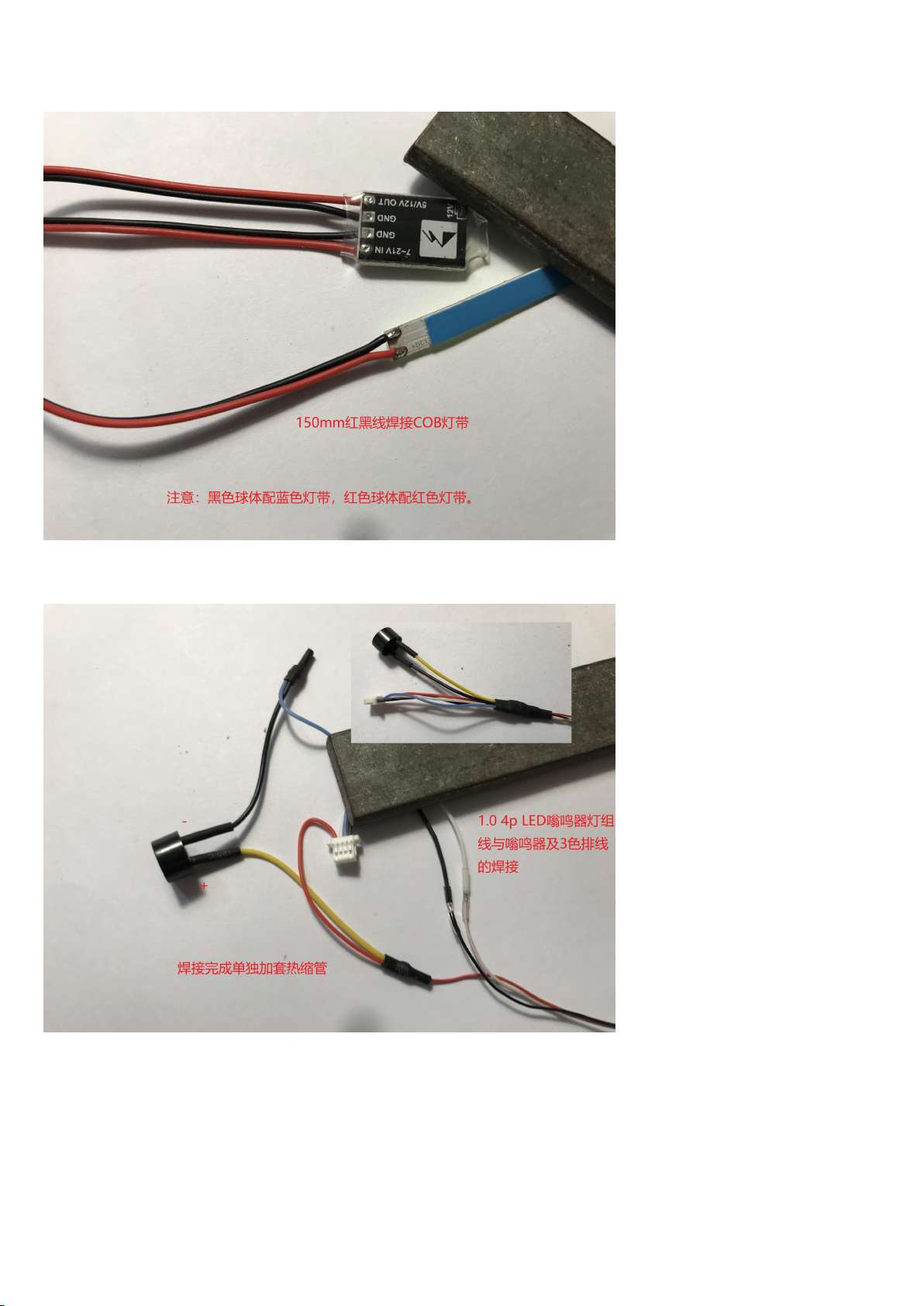

150mm red and black
wire welding COB
lamp belt
Note: black ball with
blue tape, red ball with
red tape
Welding of 1.4P LED
hum assembly line and
3-color row line
Add heat shrinkable tube
separately after welding

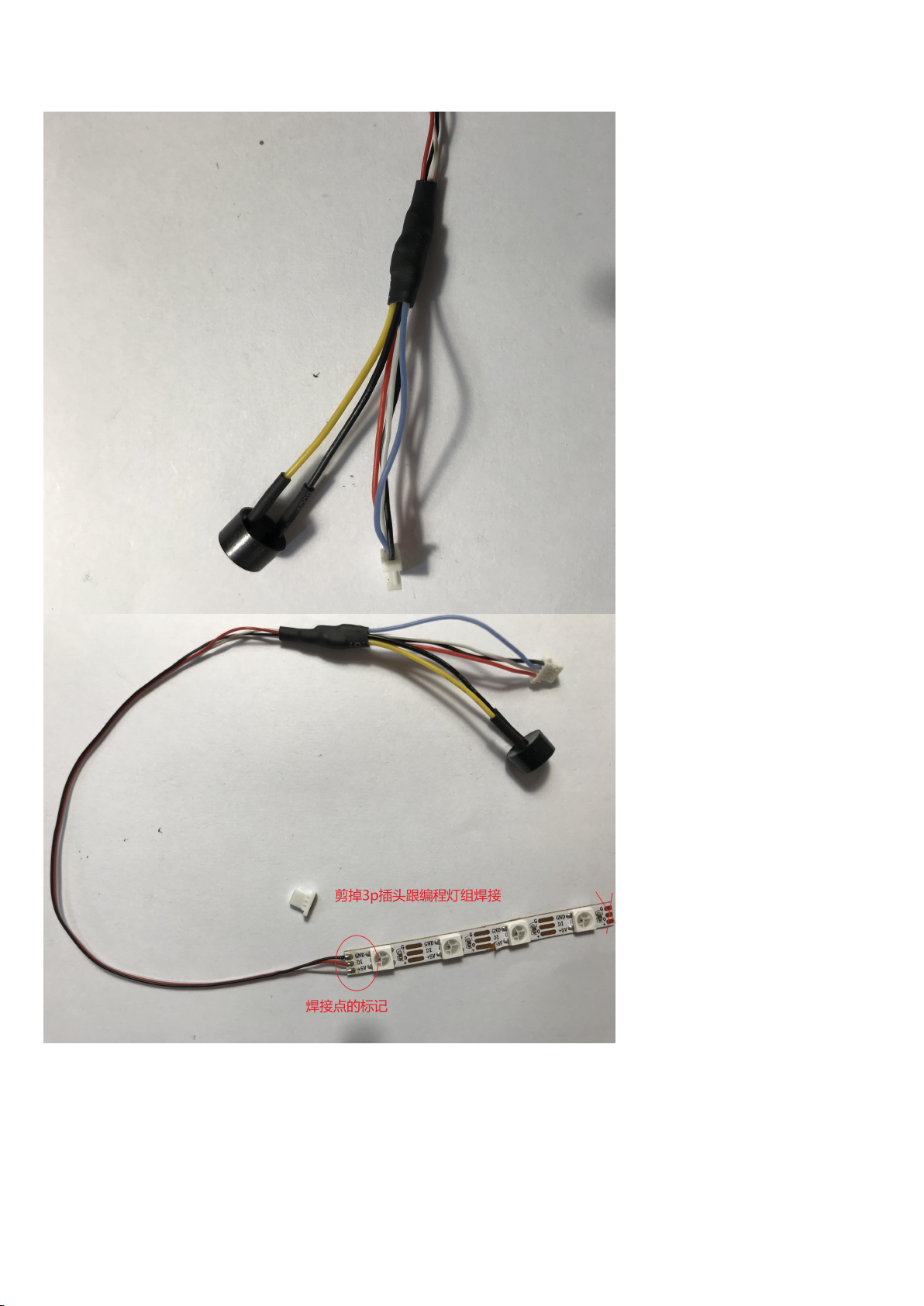

Cut off the 3P plug and
solder it to the
programming lamp
Marking of welding points
4. Casing, LED installation

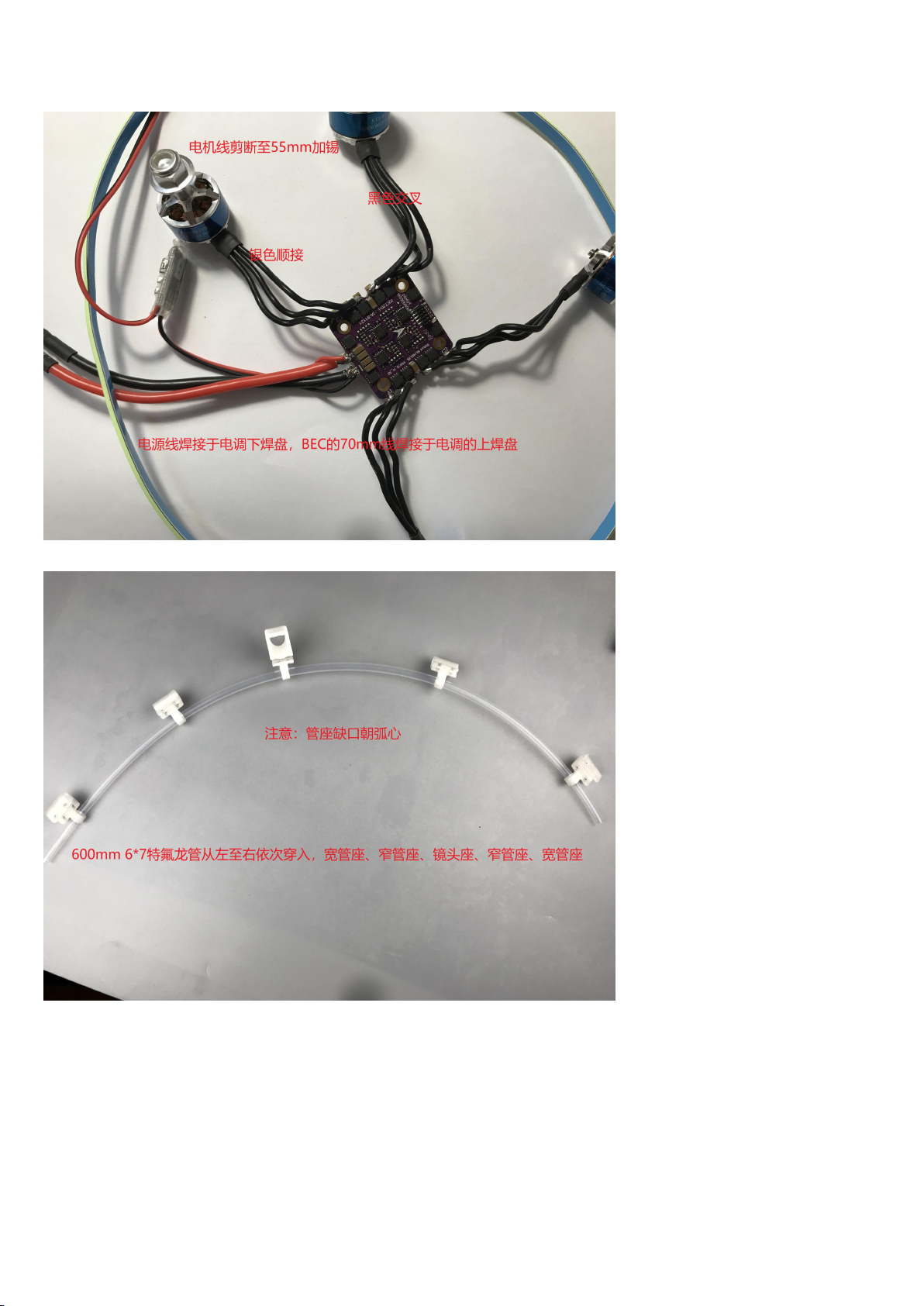

Cut the motor wire with
remaining 55mm and tin;
black crossing
Silver sequential
The power cord is soldered
to the lower pad of the
ESC, and the BEC 70mm
wire is soldered to the
upper pad of the ESC
Note: The notch of
the tube seat faces to
the arc center
600mm 6*7 Teflon tube
passes through the wide
tube seat, narrow tube seat,
lens seat, narrow tube seat,
and wide tube seat from left
to right.

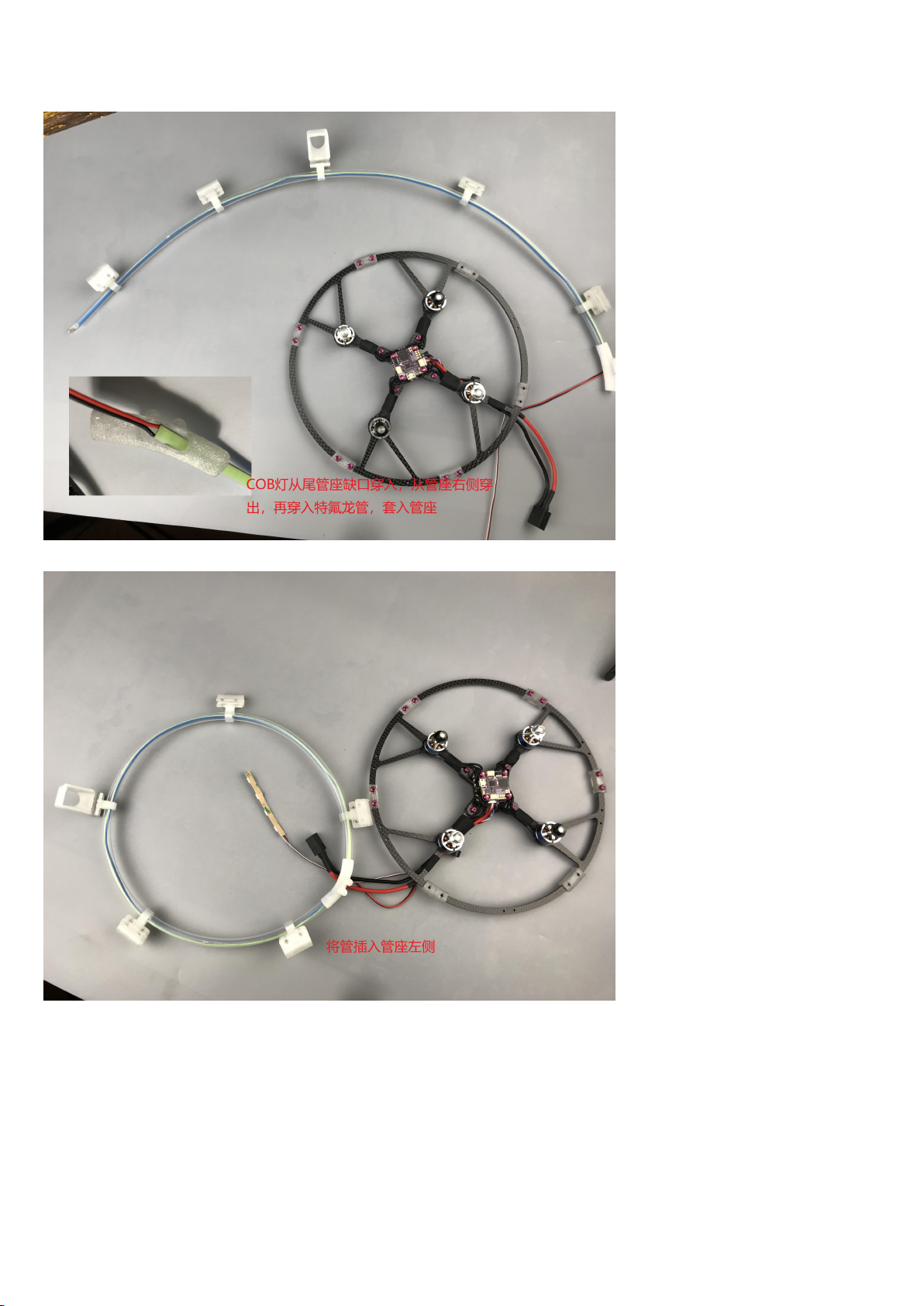

The COB lamp penetrates
through the notch of the tail
tube seat, exits from the right
side of the tube seat, then
penetrates the Teflon tube, and
sets it into the tube seat.
Insert the tube into the left
side of the tube seat
5. Frame and protective installation
Assemble the COB
lamp

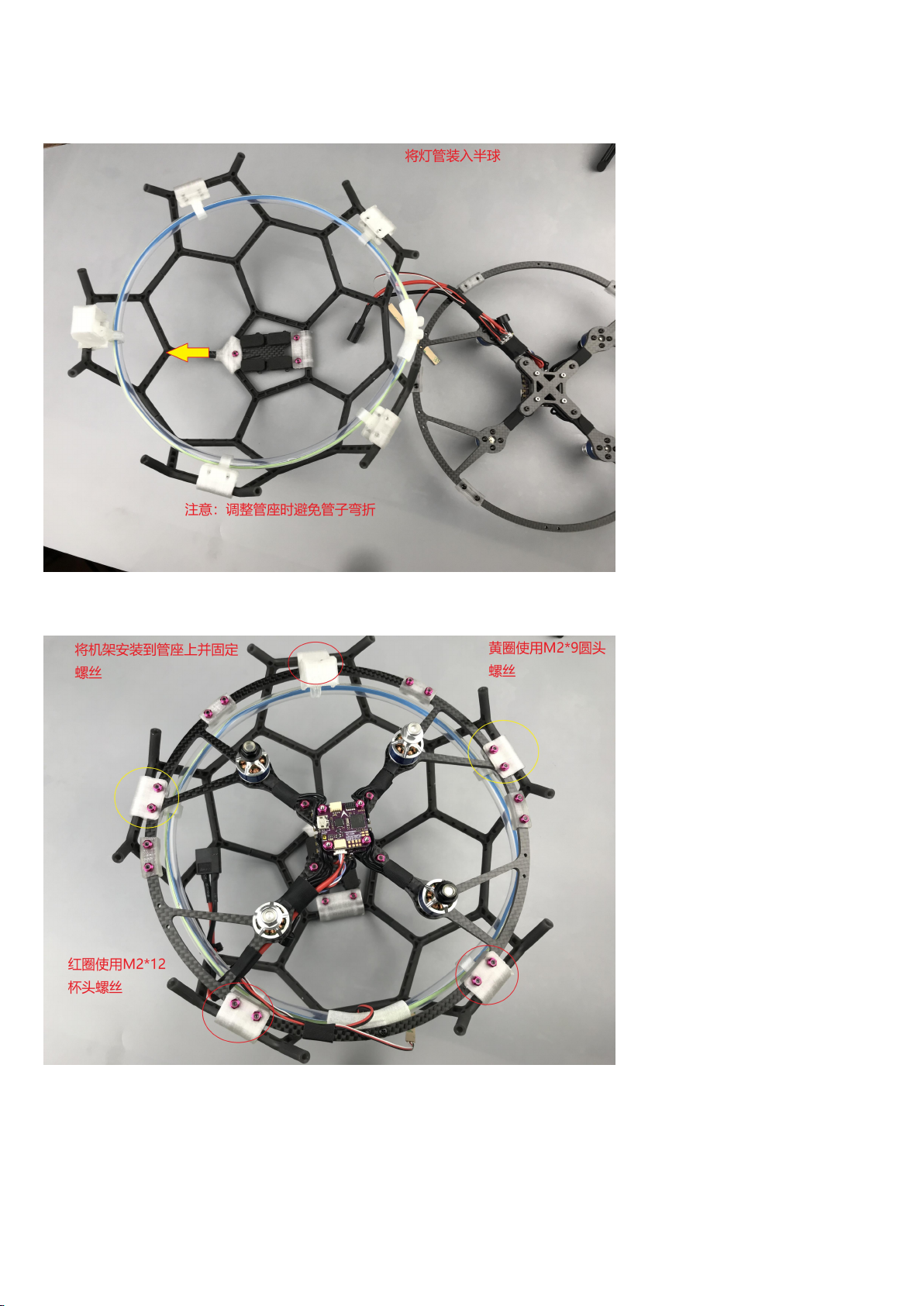

set onto the bottom
half ball
Note: Avoid bending the
lamp tube
when adjusting the tube
seat
Install the frame
onto tube seats
by fixing screws.
M2.9 round
head screws
were used
on the
yellow circle
M2*12 cup-head
screws were
used on the
red circle
6. Connecting with receiver
Use acetate tape to
tie the light cord to
the side arm
Tie the power cord
with a cable tie
Plug in the receiver cable
and thread the plug to the
bottom (for the receiver
version, paste it on top of
the flight controller, tie it
with a cable tie, and paste
the antenna on the end of
the cable tie)
7.Install the propeller correctly, pay attention to the direction of rotation of the propeller, and
sort out the connecting lines so that the rotation of the propeller should not be affected.
8.The installation of protective cover on upper flyball
11 black pentagons and 1
red pentagon form the
upper ball (if it is a red
ball, then it is 11 red and 1
white
Install the A-B tail lamp
socket, and fix the B socket
with M2*9 round head
screws and nuts
