Leadtek GPS LR9553D
Bluetooth Data Logger & Receiver
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 2
TABLE OF CONTENTS
1. Introduction...........................................................................................................3
2. Features................................................................................................................4
3. Hardware ..............................................................................................................5
4. Package Contents...............................................................................................6
5. Install Leadtek Navigator ...................................................................................7
6. Test Leadtek GPS LR9553D...........................................................................15
7. How to change cycle time................................................................................29
8. Install the USB Driver .......................................................................................31
9. Appendix A: Limited Warranty.........................................................................34
10. Appendix B: Specifications ..............................................................................35
11. Appendix C: Safety Information ......................................................................38
12. Appendix D: GPS FAQ.....................................................................................39
13. Appendix E: Regulatory notices......................................................................45
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 3
1. Introduction
Thank you for purchasing Leadtek GPS LR9553D. Leadtek LR9553D, based on cutting edge
SiRFStar III technology, is a high performance, low power, 20-channel GPS data logger and
receiver with wireless capability. As such it is a highly compatible Bluetooth solution with
extraordinary configurability and sensitivity. Not to forget its appealing ergonomics—sleek, round
and lightweight. The innovative switch-mode design not only makes for easy activation but also
enables more power saving when LR9553D is used as a pure data logger which records your
tracking data from the received GPS signals. It provides users enough space to store their tracking
data including the GPS position, date and time- up to 240 hrs in the continuous mode. It is not
necessary to export the data until the memory is full. LR9553D also comes equipped with mini
USB interface both for easy charging and for users to be able to export their recorded points to
Google earth and Google Maps without a hitch. If using with your digital camera and the
convenient application software*, you can easily integrate your valuable photos with the GPS data
you have recorded and make them your forever sweet memories.
*The application software, locr, enclosed in the Leadtek GPS LR9553D CD-ROM is a very
complete and easy-to-use tool for you to integrate your photos and the GPS data. Please register
on line now! If you want to open your GPS file via Google earth or Google map directly, please
make use of the converter program in the CD and refer to the instruction.
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 4
2. Features
20-channel all-in-view tracking
Cold/Warm/Hot Start: 42/35/1 sec. respectively
Reacquisition time: 0.1 sec.
Built-in rechargeable and power-saving battery
Operation time: 10~12 hours, in continuous mode
Built-in high WAAS for accurate navigation
Neck strap eyelet design, easy to carry
Data logging up to 240 hours/ 60,000 waypoints
3-mode slide switch: Off/Navi & Log/ Log only
Interface: BT/USB
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 5
3. Hardware
1.USB connector (Charging & GPS data downloading)
2.LED indicator
LED 1 (GPS)-Green
State Always on Quick blinking Slowly blinking
Description Memory full to stop 3D fixed GPS signal acquisition
LED 2 (Bluetooth)-Blue
State Quick blinking Slowly blinking No
Description BT on, but not connected
yet
BT connected BT off
LED 3 (Power)-Red
State Always on Quick blinking No
Description Battery is charging Low power Battery is fully charged
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 6
4. Package Contents
Leadtek GPS LR9553D Bluetooth data logger and receiver x 1
Leadtek Navigator & Locr PC client CD ROM x 1
Warranty Card x 1
Quick Guide x 1
Neck eyelet strap x 1
USB cable x 1
Car charger x 1
Travel charger (optional) x 1
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 7
5. Install Leadtek Navigator
Install in PC
Step 1
Before installing Leadtek Navigator, make sure that you have installed Microsoft ActiveSync to
your PC. Insert the software CD-ROM into the CD-ROM drive.
The following screen should appear automatically. If not, run “install.exe”.
Click “Leadtek Navigator” to initialize installation.
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 8
Step 2
The installation dialog box and the copyright statement appear.
Click “Next”.
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 9
Step 3
The dialog box of Destination Location appears, showing the default destination folder. To change
it, click Browse to select a different folder for installation. If you do not wish to change the
destination folder, click "Next".
Step 4
Select ”Leadtek GPS Products”, and then click “Next”.
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 10
Step 5

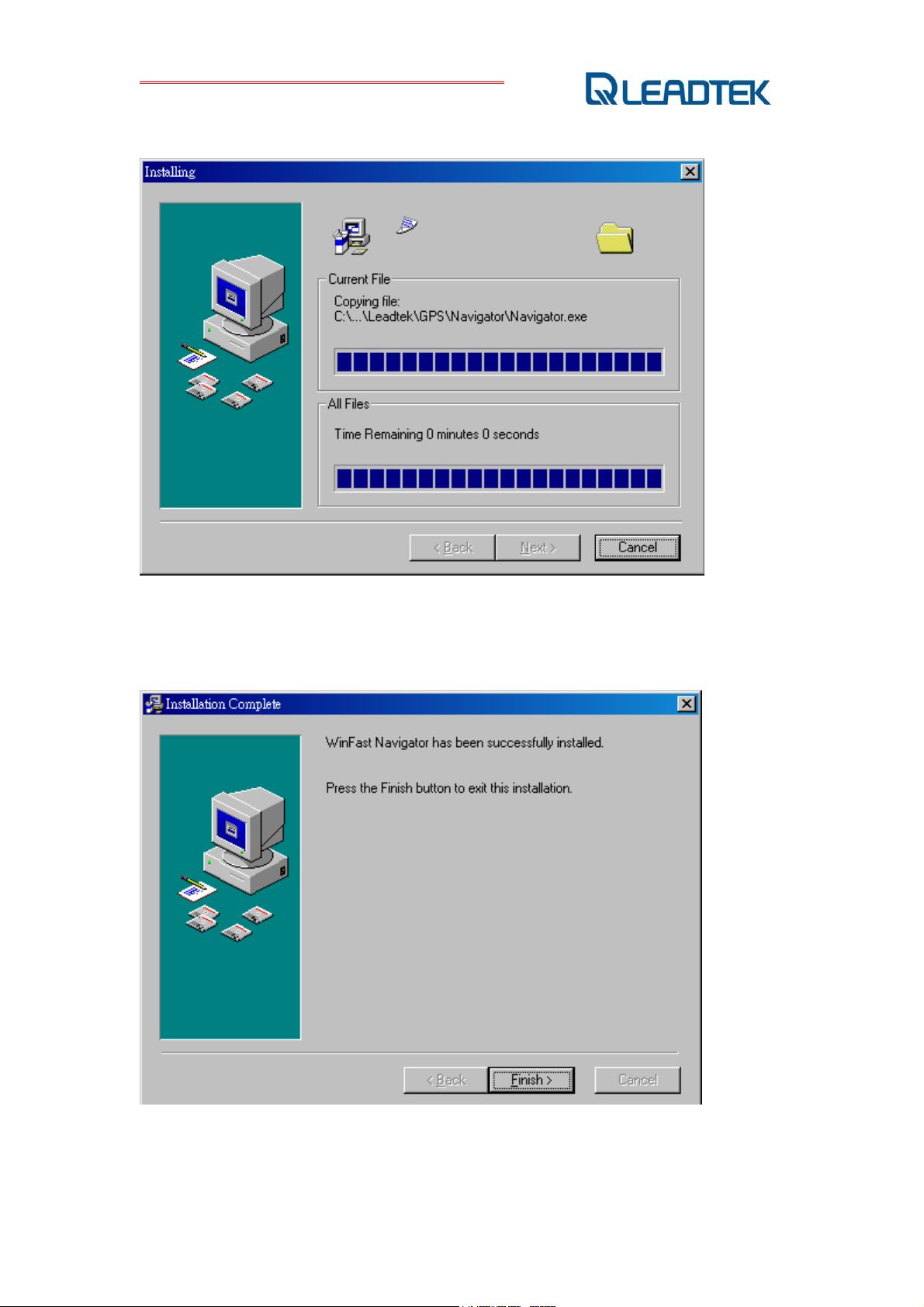

Installation is in progress.
Step 6
Once the installation is complete, check your PC screen to see if additional steps are required to
complete the installation. Click "Finish".
