LEDLight 45167W Bedienungsanleitung

Page 1

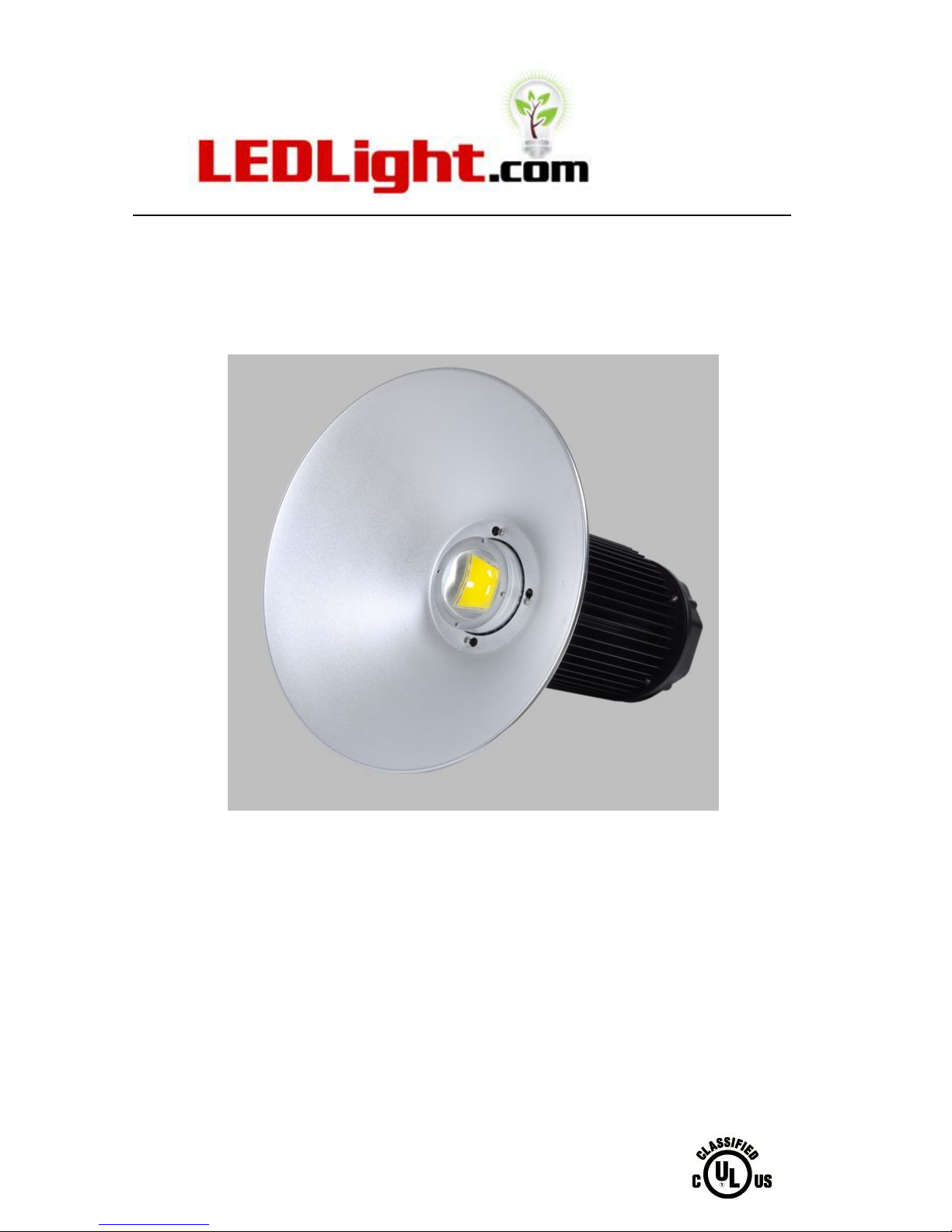

Instruction Manual

Retrofit: LED High Bay Lamp

Model NO: 45167W

Page 2

Product specification

lBeam Angle：120°

lColor Rendering Index(CRI):70

lWeight:11.2(Kg)

lHeat sink : Extruded Aluminum

lBase: Plug

lDimension：（mm）

lReplaced By: 500W Halogen Bulb

lDimmability: Not Dimmable

Electrical Specification

lInput Voltage：AC100~277V

lPower Consumption：200W

lPower Factor: 0.96

Optical Specification

lChip manufacturer: Bridgelux 45mil

lLuminous Flux：21907.8Lm

lCorrelated Color Temp：4000-4100K

Page 3

lIlluminance (center point)

Warranty:

lSee Website Details page for information.

Environment Specification

lOperating Temp:-20℃-45℃

lEnvironmental Humidity:10%-90%

lIP Protection Degree: IP65



Regulation:

lCertification: UL CB TUV CE ROHS

Page 4

Characteristics:

a .Long lifespan

b. Notable energy-saving

c. Convenient installation

d. Healthy Ray, NO UV or IR radiation

e. High CRI

f. High safety Factor

g. Extensive Ranges of Applications

h. Efficient constant current driver

i. Single integrated high power LED light source

Installation instructions

Page 5

LED

High

Bay

Light

Page 6

Page 7

Applications:

Apply to the workshop, the factory, toll station, gas stations, large supermarket,

the exhibition hall, the stadium and other places of need illume.

Packaging:

lRadiator packaging information：

Quantity: 1 Pcs radiator per carton.

Packing material: K353K+EPE+PE

Gross weight: 11.6Kg/Carton.

Net weight: 10.6Kg/Carton.

Carton size: L300X W 300XH448 ( mm).

lPackaging method：

Page 8

lReflector packaging information：

Quantity: 10 Pcs reflector per carton.

Packing material: K353K+EPE+PE

Gross weight: 7Kg/Carton.

Net weight: 6Kg/Carton.

Carton size: L504X W 504XH350 ( mm).

lPackaging method：

Page 9

Use Notice

Warning for applications:

1. No ballast is needed. Any ballast should be removed before installation!

2. The socket temperature peak is 60°, do not touch the aluminum or any part

while working.

3. The product cannot be discarded into garbage can directly, necessary

measures should be done for full recycling.

4. Ensure that installed firmly

Website: www.LEDLight.com

Email: sales@LEDLight.com

Tel: (001)‐877‐283‐5060

Fax: (001)‐602‐861‐4088
